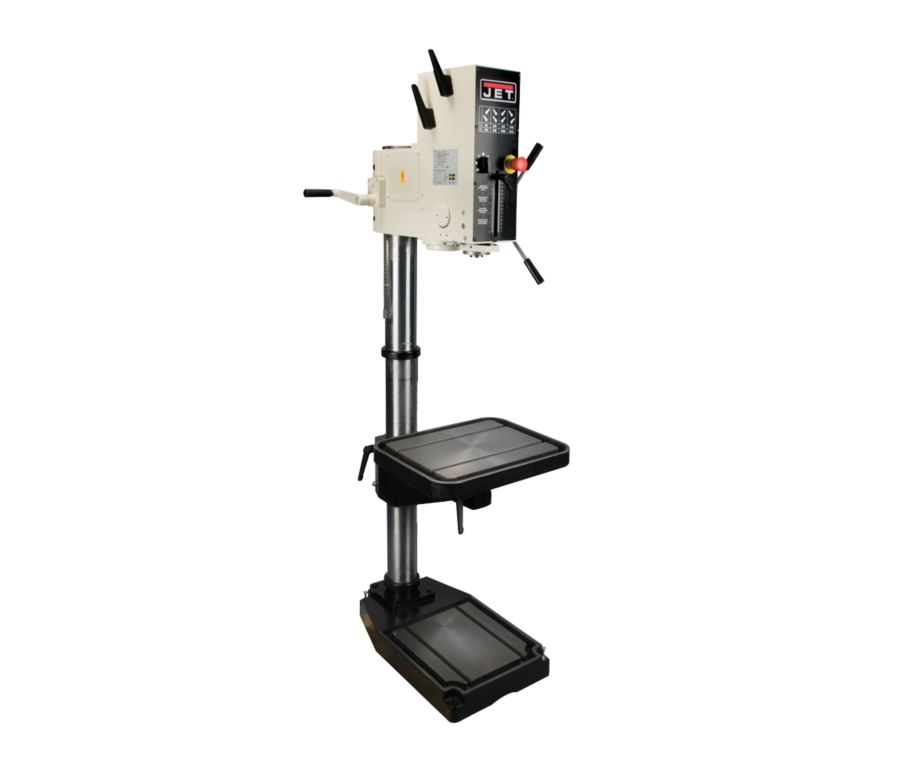

J-A3008-2, 26" Arboga Gear Head Drill Press 220V, 3Ph

354034

This durable drill press is ideal for any drilling application. For superior production, speed and accuracy the J-A3008M-PF models are equipped with a heavy-duty slip clutch powerfeed, which is automatically engaged when pre-set depths are reached. A heavy-duty t-slotted and machined base plate anchors this steady drill.

FEATURES
SPECIFICATIONS
CONTENTS

Helical gears for smooth, quiet operation
Quick release drill ejector
English/Metric depth gauge
Machined T-slotted base plate
Head and table rotate 360 degrees around column

No-Volt release prevents spindle start when power returns after shut down
Fully enclosed spindle
No-volt release prevents spindle start when power returns after shut down

Style (Type)	Geared Head
Spindle Taper (In. x TPI)	MT-3
Drills to Center of Circle (In.)	26
Drilling Capacity Cast Iron (In.)	1-3/16
Drilling Capacity Mild Steel (In.)	31/32

Tapping Capacity Cast Iron (In.)	3/4
Tapping Capacity Mild Steel (In.)	5/8
Column Diameter (In.)
Distance Column to Spindle (In.)	12-5/8
Range of Spindle Speeds (RPM)	90, 190, 320, 530, 640, 1060, 1790, 3610
Spindle Travel (In.)	6
Spindle Distance to Base (In.)	45-5/8
Spindle Distance to Table (Max.) (In.)	35
Table Size (L x W) (In.)	15-3/4 x 19-3/4
Table Travel (In.)	30
T-Slots Number and Size (In.)	2 - 9/16
T-Slot Centers (In.)
Work Table Weight Capacity (Lbs.)	450
Base Dimensions (In.)
Base Work Table (In.)
Base Slots Number & Size (In.)
Motor (HP)	1-1/2 to 2
Prewired (V.)
Overall Dimensions (L x W x H) (In.)
Weight (Lbs.)
