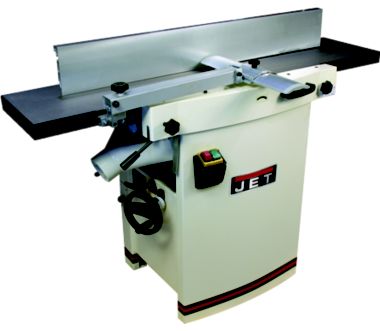

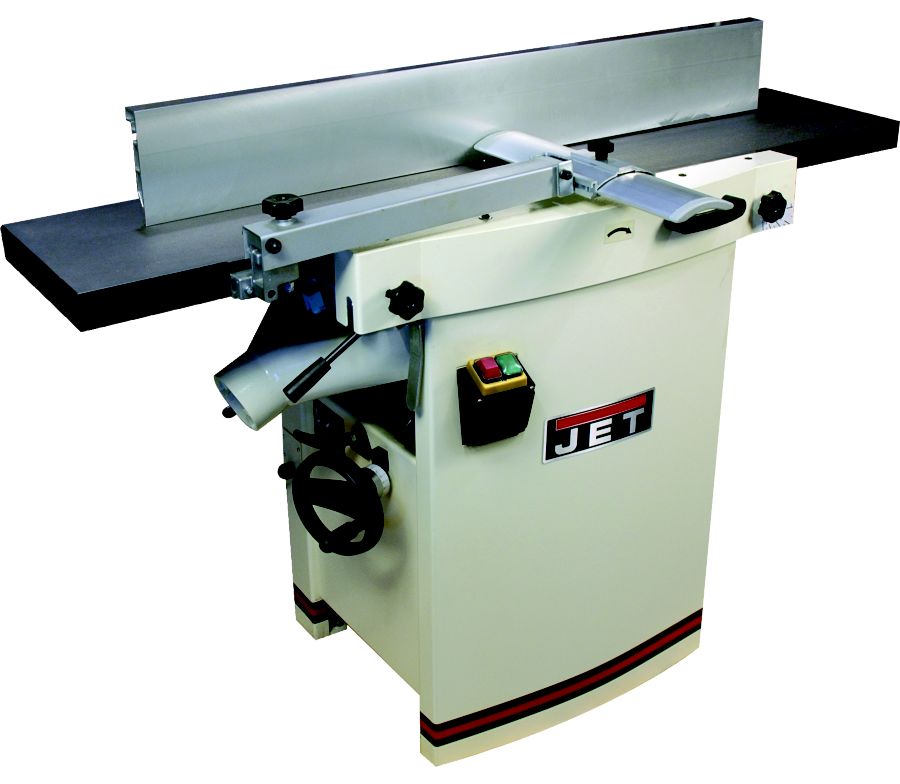

JJP-12HH 12" Planer /Jointer with Helical Head

708476

The innovative JET JJP-12HH Helical Head 12" Jointer/Planer takes our award-winning jointer/planer combination machine and makes it an ever better investment. With the addition of our quality helical cutterhead with indexable carbide inserts, the all-new JJP-12HH sets the standard for creating superior stock in your own workshop.

FEATURES
SPECIFICATIONS
CONTENTS

Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments
Extra large aluminum extruded fence with centered controls for quick adjustments

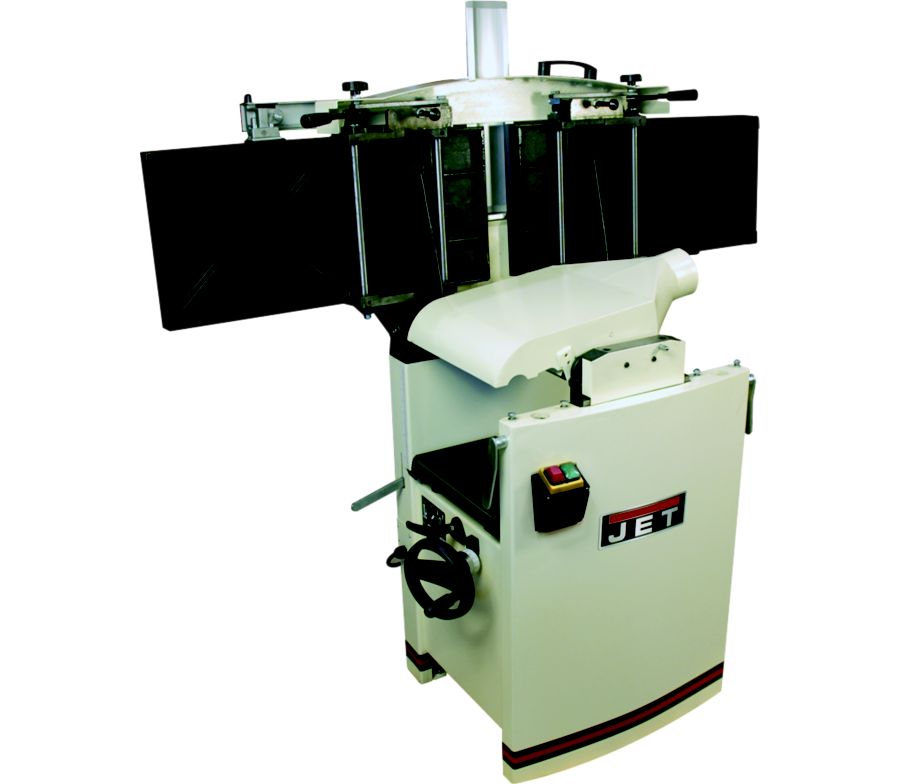

Extremely quick changeover between jointing and planing functions. Fence does not need to be removed
Powerful 3HP induction motor easily handles the toughest jointing and planing tasks

Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
Built-in dust chute with 4" dust port used for both jointing and planing operations
Large handwheel for quick and precise adjustments of planer table
Heavy-duty cast iron tables with a machined finish to ensure accuracy and flatness
Magnetic switch provides safer and more reliable operation

Style (Type)	Planer/Jointer
Size (In.)
Type of Cutterhead
Number of Knives
Helical Knife Size (L x W x T) (In.)	59/100 x 59/100 x 1/100
Standard Knife Size (L x W x T) (In.)
Cuts Per Minute
Cutterhead Diameter (In.)	2-3/4
Cutterhead Speed (RPM)	5,500
Maximum Depth of Cut - Planing (In.)
Maximum Planing Thickness (In.)
Maximum Planing Width (In.)
Minimum Planing Length (In.)
Planer Cutting Capacity (W x D) (In.)	12 x 5/32

Planer Table Size (L x W) (In.)	21-1/4 x 12
Feed Rate - Planing (FPM)
Jointer Cutting Capacity (W x D) (In.)	12 x 1/8
Jointer Table Size (L x W) (In.)	55 x 12
Fence Size (L x H) (In.)	43 x 6
Fence Positive Stops (Deg.)	90, 45 R
Fence Tilt (Deg.)	90 - 45 R
Dust Collection Minimum CFM Required (CFM)	400
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	3
Motor Phase	1
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Wiring Remarks
Motor Current (Amps.)	12-1/2
Recommended Circuit Size (Amps.)
