Product Details

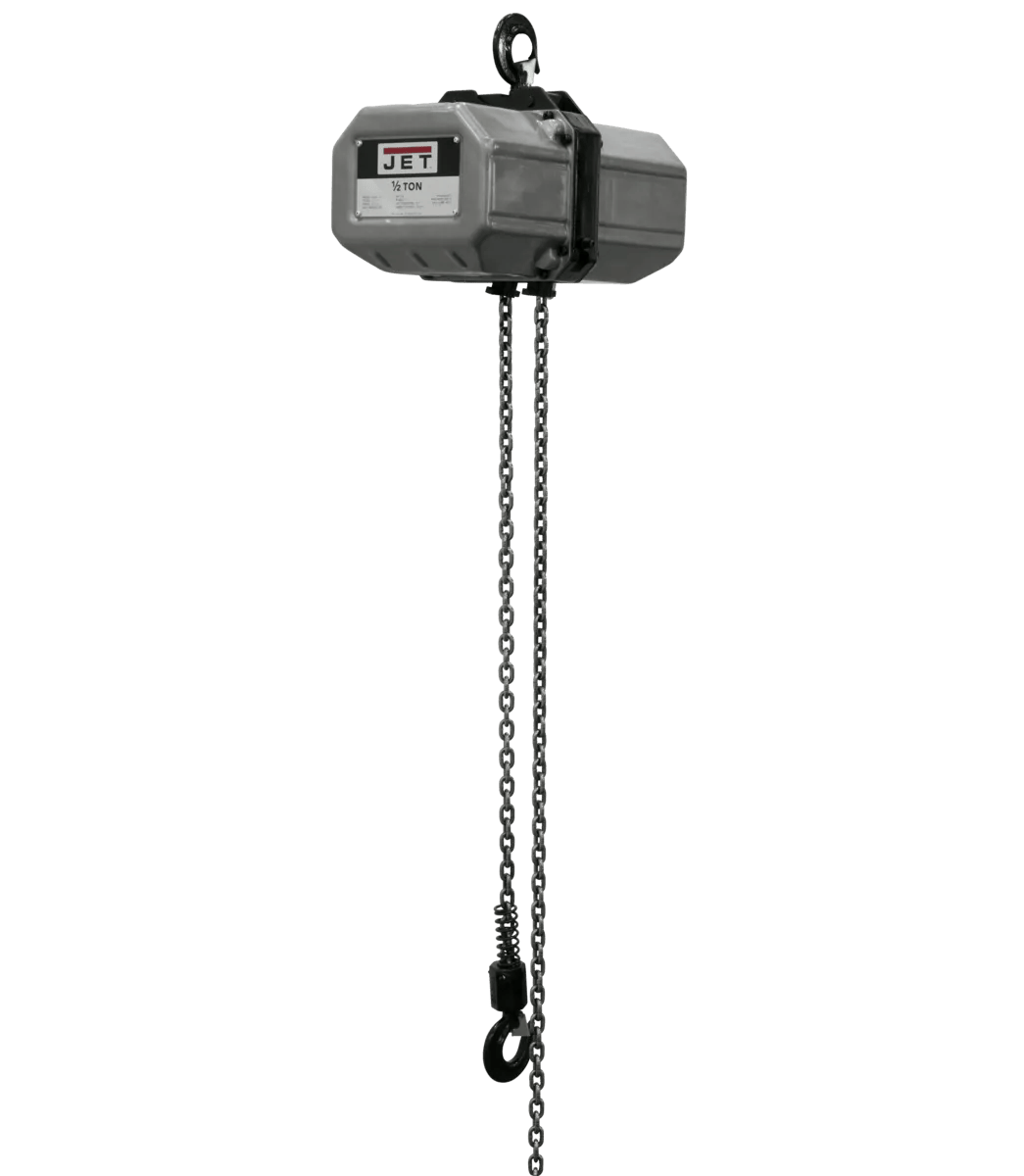

Lifting capacity you can trust, every cycle. The 1/2SS-3C-20 was sized for facilities running ANSI/ASME-compliant overhead lifting. Equipped with a 1.33 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by the JET warranty.
Features
- Factory-tested 1000 lbs rating handles overhead loads for the load library industrial sites actually generate.
- Industrial-spec 20 feet lift range — putting production overhead work in reach.
- Factory-sealed 1.33 HP 460V induction motor stands up to working shops.
- Overload protection senses excess load and disengages mechanically for the safety net that prevents near-miss incidents.
- Double-pawl Weston brake — holding load in either direction with no drift or slip, sized for the brake reliability inspectors actually verify.
- Professional-grade load chain provides chain authority for the chain authority overhead lifting requires.
Specifications
- SKUJT9-123200
- Capacity1100 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Duty Cycle30 H3
- Hook Mount Headroom31.5 in.
- Lift20 ft.
- Lift ControlWired
- Lifting Speed31.5 FPM
- Maximum Number Of Starts Per Hr180
- Maximum On Time Min Hr18
- Old Material Number123200
- Overload ProtectionNo
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight116
- SAP Net weight108
- Shipyard HooksNo
- UPC662755906282
- WarrantyTwo Years
- Motor HP1.33 HP
- Motor PhaseThree
- Motor Voltage460 V
