Product Details

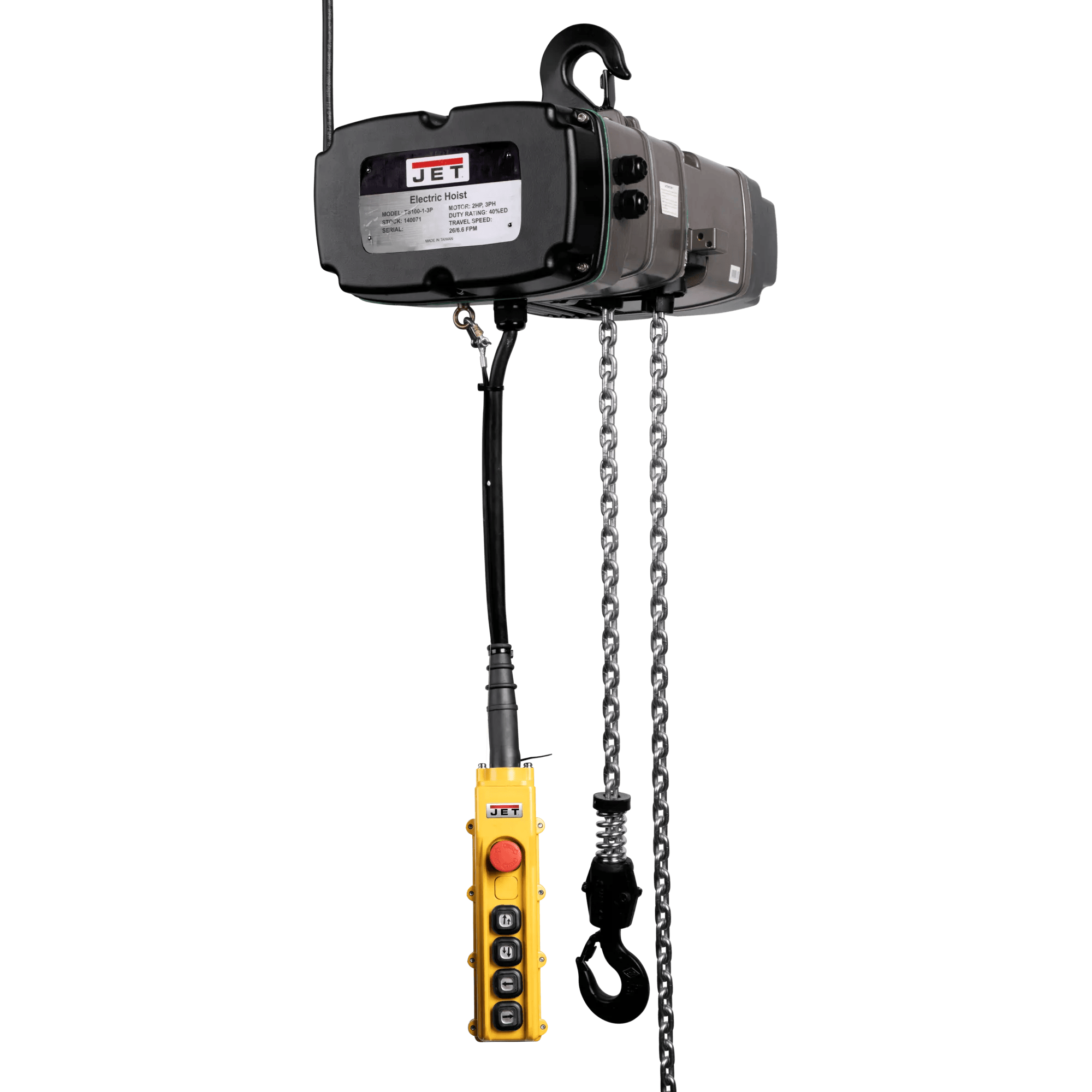

When the load matters, so does the lift. Engineered around facilities running ANSI/ASME-compliant overhead lifting, the TS050-460-010 KIT earns its place. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Lifetime warranty coverage stands behind every certified lift.
Features
- Industrial-grade 1100 lbs working load handles the lifts industrial production lines actually demand.
- Standard 10 feet lift provides the vertical reach for the lift-and-hold cycles production work generates.
- Shop-rated 1.5 HP motor with sealed bearings — holding speed under load when lighter motors stall across service shops.
- Built-in overload protection provides the load-bearing safety net for safety regulated lifting requires.
- Self-engaging Weston brake covers the load-holding redundancy for redundant load holding regulated lifting requires.
- Heat-treated alloy steel load chain covers the strength-to-weight ratio for the cycle counts production lifting environments demand.
Specifications
- SKUJT9-144001K
- Capacity1100 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Duty Cycle40/20 H4
- Hook Mount Headroom43.333 in.
- Lift10 ft.
- Lift ControlWired
- Lifting Speed8 / 33 FPM
- Maximum Number Of Starts Per Hr240
- Maximum On Time Min Hr30
- Old Material Number144001K
- Overload ProtectionNo
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight172
- SAP Net weight117
- Shipyard HooksNo
- UPC731325879872
- WarrantyLimited Lifetime Warranty
- Motor HP1.5 HP
- Motor PhaseThree
- Motor Voltage460 V
