Product Details

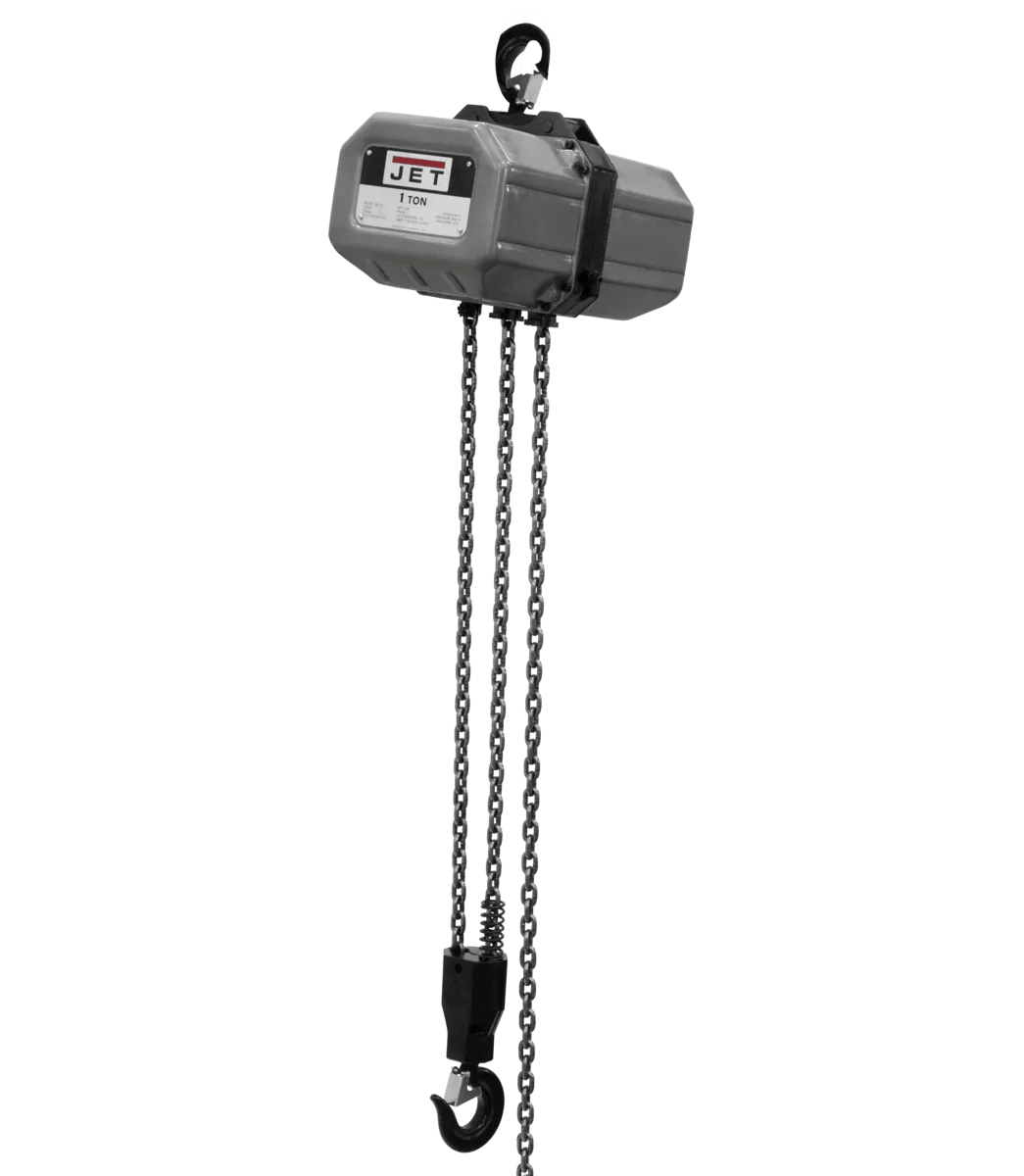

Strength-to-weight, brake authority, and chain durability — engineered together. Designed for plants where load capacity, brake authority, and chain durability all matter, the 1SS-1C-15 stands up to the duty cycle. Equipped with a 1.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Lifetime-backed, because we stand behind every lift.
Features
- 2200 lbs. working load — delivering the strength-to-weight ratio overhead lifting requires, certified for capacity ratings inspectors verify on regulated job sites.
- Industrial-spec 15 feet lift range — delivering the lift envelope production overhead work demands.
- 1.75 HP, 230V single-phase induction motor — holding RPM under cutting load that would stall lighter motors, sized for mixed-material work envelopes.
- Premium-grade overload protection works whether shop power is on or off for the over-pull protection production overhead work demands.
- Precision-rated Weston brake holds load in either direction — splitting load mechanically across both pawls — no electronics, no batteries, no weak link.
- Continuous-duty alloy load chain — matching the strength-to-weight ratio overhead lifting demands.
Specifications
- SKUJT9-111500
- Capacity2200 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Duty Cycle25 H3
- Hook Mount Headroom30.6875 in.
- Lift15 ft.
- Lift ControlWired
- Lifting Speed19.7 FPM
- Maximum Number Of Starts Per Hr150
- Maximum On Time Min Hr15
- Old Material Number111500
- Overload ProtectionNo
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight176
- SAP Net weight166
- Shipyard HooksNo
- UPC662755906169
- WarrantyTwo Years
- Motor HP1.75 HP
- Motor PhaseSingle
- Motor Voltage230 V
