Product Details
Production-grade sawing for shops that need it daily. The JMS-10X was sized for shops cutting varied stock through long-cycle work. Equipped with a 2.3 HP HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by the JET service network.
Features
- Industrial-spec blade speed at 4000 ± 10% RPM delivers cut velocity for the cutting envelope production fabrication generates.
- Industrial saw frame — holding reference flat under cutting loads that warp lighter frames across professional sawing environments.
- Premium-grade tilting table — extending the working envelope, engineered for miter-and-bevel work in one setup.
- Industrial-grade cutting envelope covers workpiece sizes for the workpiece sizes production sawing actually runs.
- Precision-rated cast iron reference surfaces dampen harmonics across industrial tool-room work.
- Surface-ground after hardening, the drive system gears stay in spec — delivering precision power transmission across decades.
Specifications
- SKUJT9-707210
- Arbor Size5/8 in.
- Assembled Dimensions43-1/2 x 29-1/2 x 28-1/2 in.
- Base Size43-1/2 x 29-1/2 in.
- Bevel TypeDual
- Blade Diameter10 in.
- Blade Length10 in.
- Blade Size (In.)10 in.
- Blade Speed4000 ± 10% RPM
- Cut Capacity At 45 Bevel12 x 1-9/16 in. L / 12 x 1 in. R
- Cut Capacity At 45 Compound8-1/2 x 1-9/16 in. / 8-1/2 x 1 in.
- Cut Capacity At 45 Miter8-1/2 x 3-9/16 in.
- Dust BagIncluded

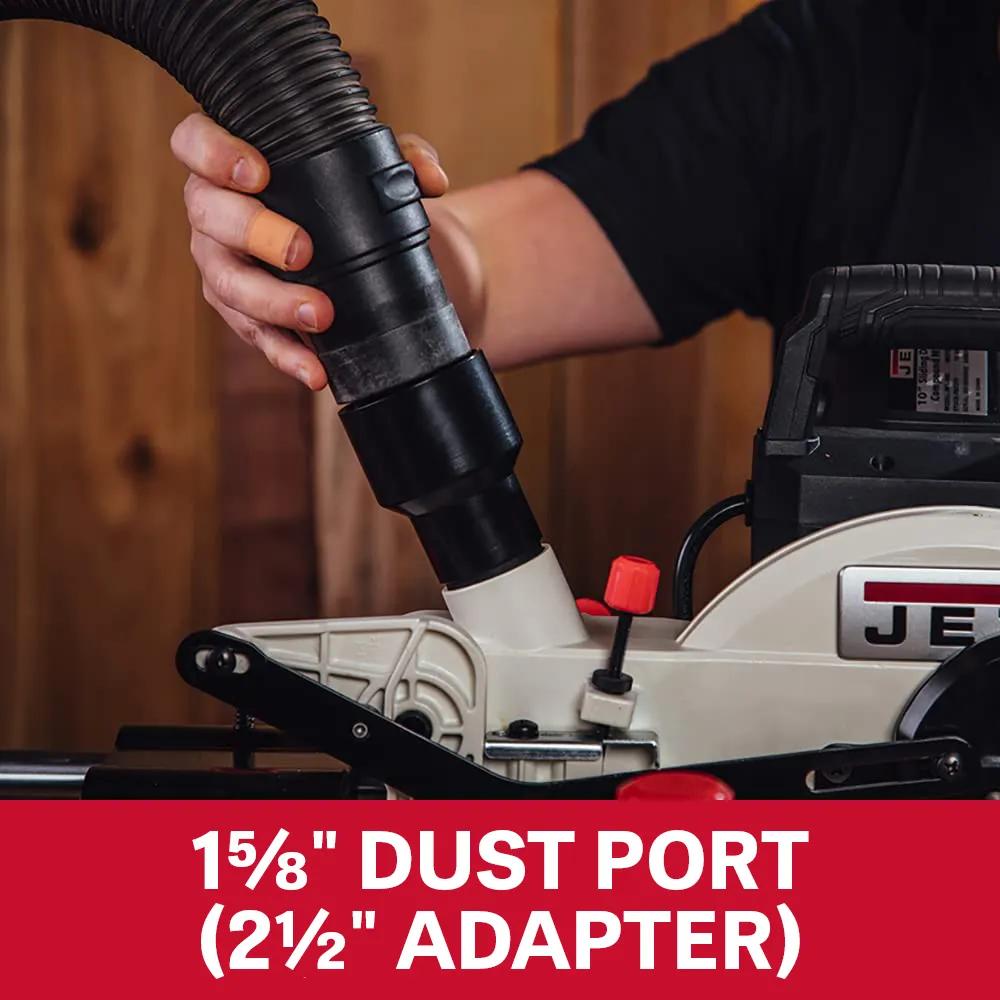

- Dust Port Outside Diameter1-5/8 in.
- Height28-1/2 in.
- Horse Power2.3 HP
- Input Power115 V 1 Ph

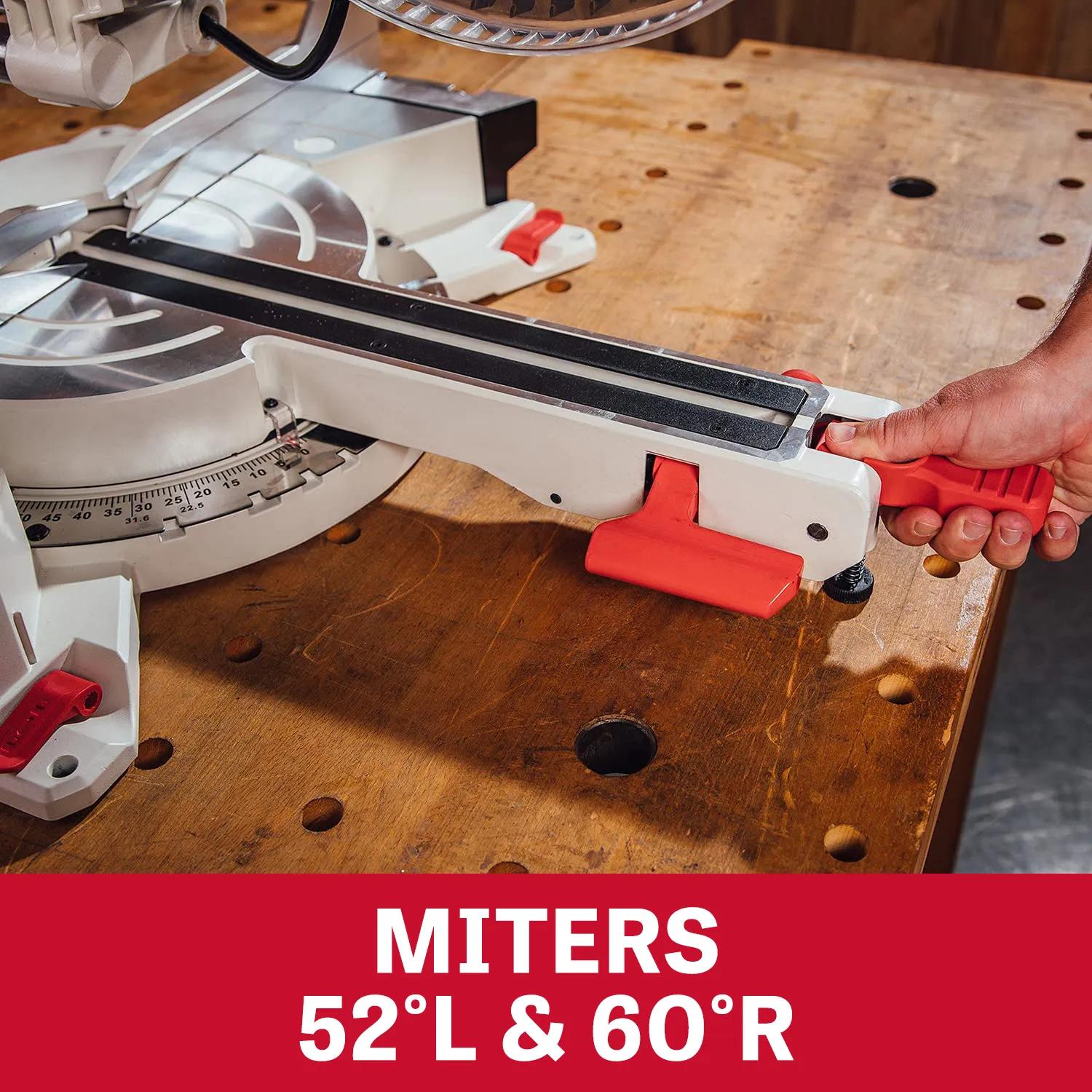

- Miter Angle Range52 Deg. L, 60 Deg. R
- Miter Angle Stops0, 15, 22.5, 31.6, 45 Deg. L & R and 60 Deg. R
- Model NumberJMS-10X
- Motor Amps15 A
- Motor HP2.3 HP
- Motor PhaseSingle
- Motor Voltage115 V
- Old Material Number707210
- Overall Assembled (Bow Lowered)43-1/2 x 29-1/2 x 28-1/2 in.
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp15 A
- SAP Gross Weight54
- SAP Net weight47
- UPC731325793192
- WarrantyFive Years
