Product Details
Cut quality starts with a saw built for the work. The J-7040 was sized for production environments where blade speed and frame rigidity both count. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage stands behind every cut.

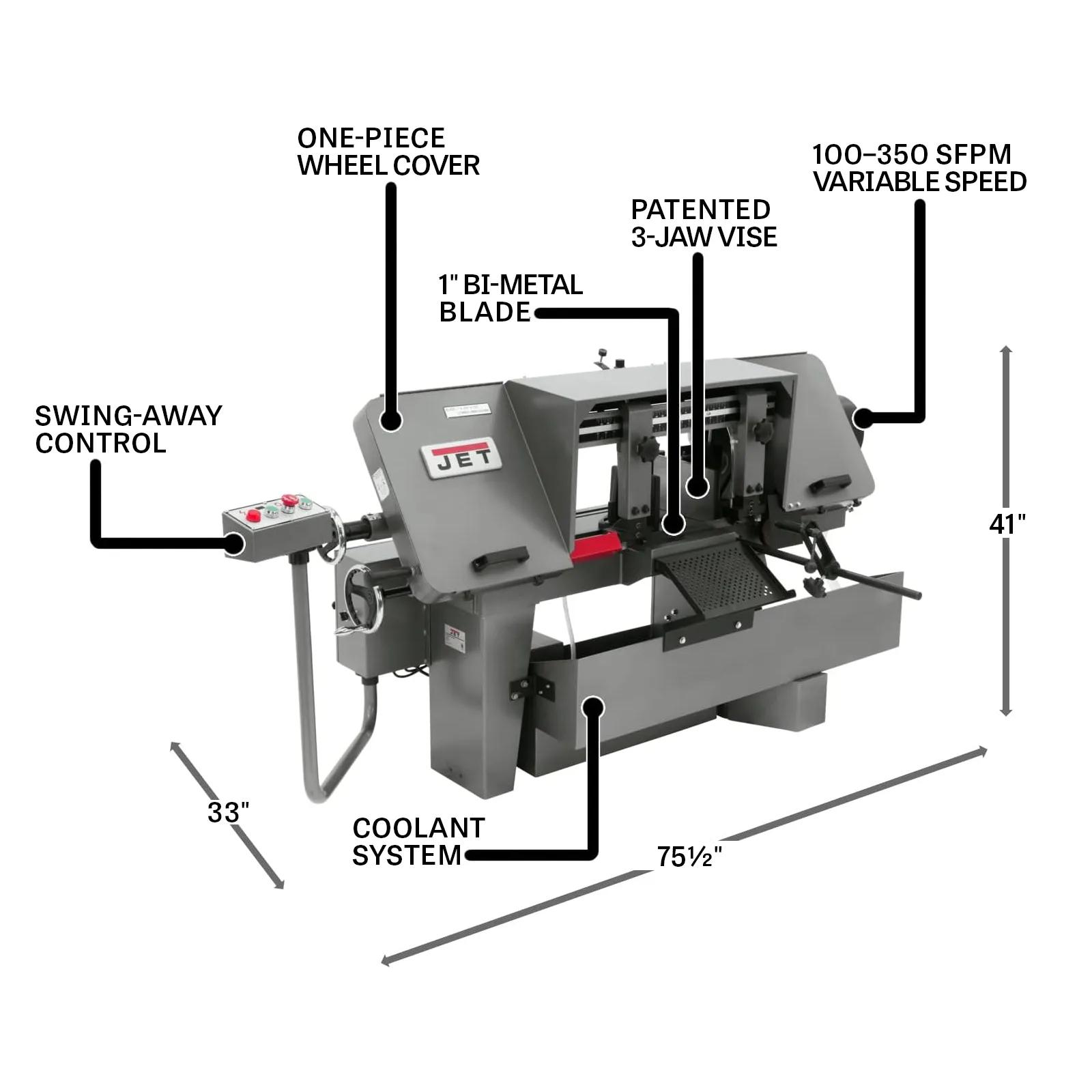

Features
- Industrial-spec 2 HP motor with sealed bearings — holding RPM under cutting load that would stall lighter motors across industrial machining.
- Industrial-spec blade speed at 100 - 350 SFPM provides cut velocity for the cutting velocity production sawing actually requires.
- Welded steel frame keeps the saw planted — holding blade alignment under sustained cutting loads.
- Engineered tilting table — delivering the angle envelope production cutting demands, engineered for miter and bevel cuts that defeat fixed-table saws.
- Production cutting capacity — covering the workpiece library production sawing runs across industrial cutting environments.
- Solid cast iron tables weigh in where stability counts most across the work envelope this machine targets.
Specifications
- SKUJT9-414478
- Assembled Dimensions75-1/2 x 33 x 41 in.
- Bed Height23.5 in.
- Blade Diameter10 in.
- Blade Size (In.)1 x 0.035 x 135 in.
- Blade Speed100 - 350 sfpm
- CoatingPowder Coat
- Drive TypeVariable Speed
- Height28 in.
- Horse Power1.75 HP
- Input Power230 V 3 Ph
- Model NumberJ-7040
- Motor Amps6 A
- Motor HP2 HP
- Motor PhaseThree
- Motor Voltage230 V
- Old Material Number414478
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp15 A
- Rectangle At 45 Degrees6-1/2 x 11 in.
- Rectangle At 90 Degrees10 x 10 in. and 7 x 16 in.
- Round Capacity At 45 Degrees10 in.
- Round Capacity At 90 Degrees10 in.
- SAP Gross Weight1,000
- SAP Net weight973
- UPC662756090980
- Vise Swivels Deg45 Deg.
- WarrantyTwo Years
- Wheel Diameter14 in.
