Product Details
From benchtop to production floor, sized for the work that ships. Designed for production sawing across hardwoods, softwoods, and metal stock, the EHB-1018VM stands up to the duty cycle. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by the JET service network.
Features
- Working-grade 2 HP drive covers consistent torque for the duty cycles production schedules generate.

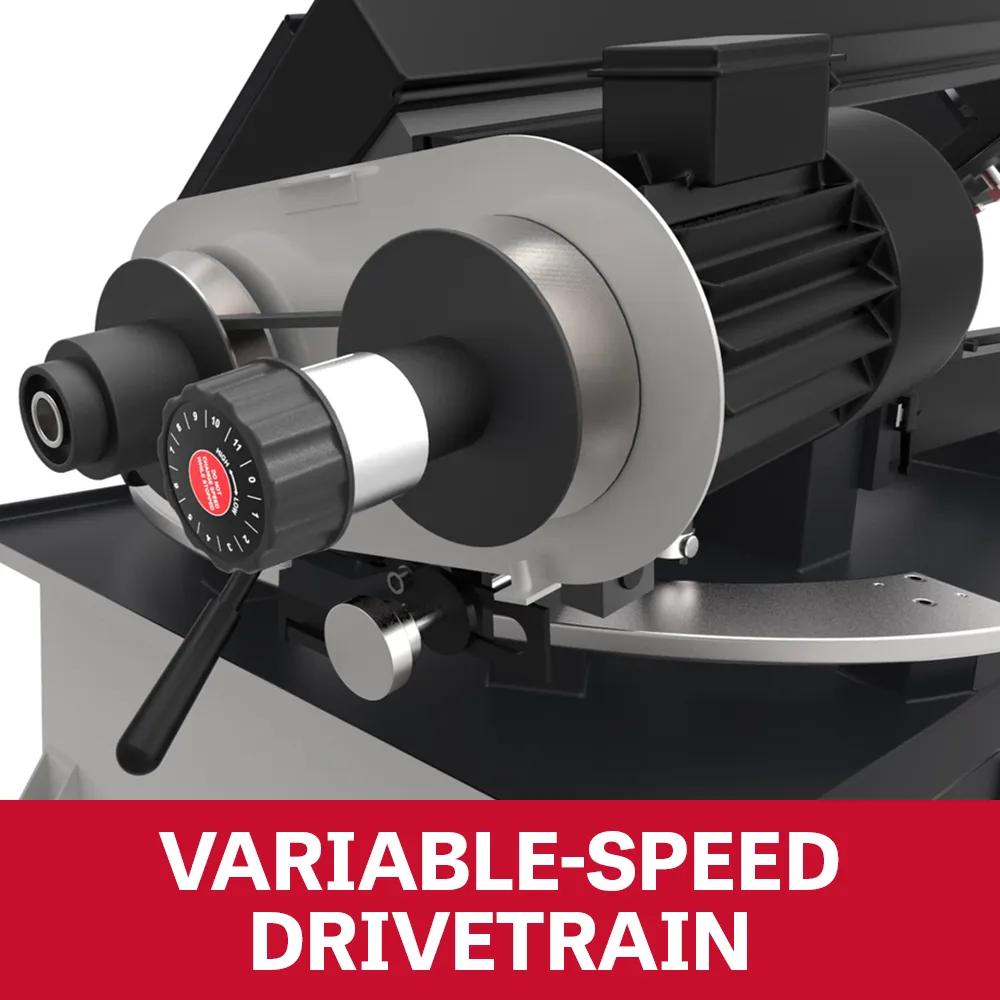

- Variable blade speed up to 53-25753 - 257 SFPM expands the cutting envelope for the working speed range production sawing demands.
- Production-grade frame design absorbs harmonics for the cutting forces production sawing generates.
- Heavy-duty tilting table — delivering angle accuracy precision work expects, engineered for angle accuracy production work expects.
- Industrial-grade cutting envelope provides workpiece sizes for the workpiece sizes production sawing actually runs.
- Premium-grade cast iron frames dampen harmonics across working shop environments.
Specifications
- SKUJT9-891070
- Assembled Dimensions85 x 40 x 44 in.

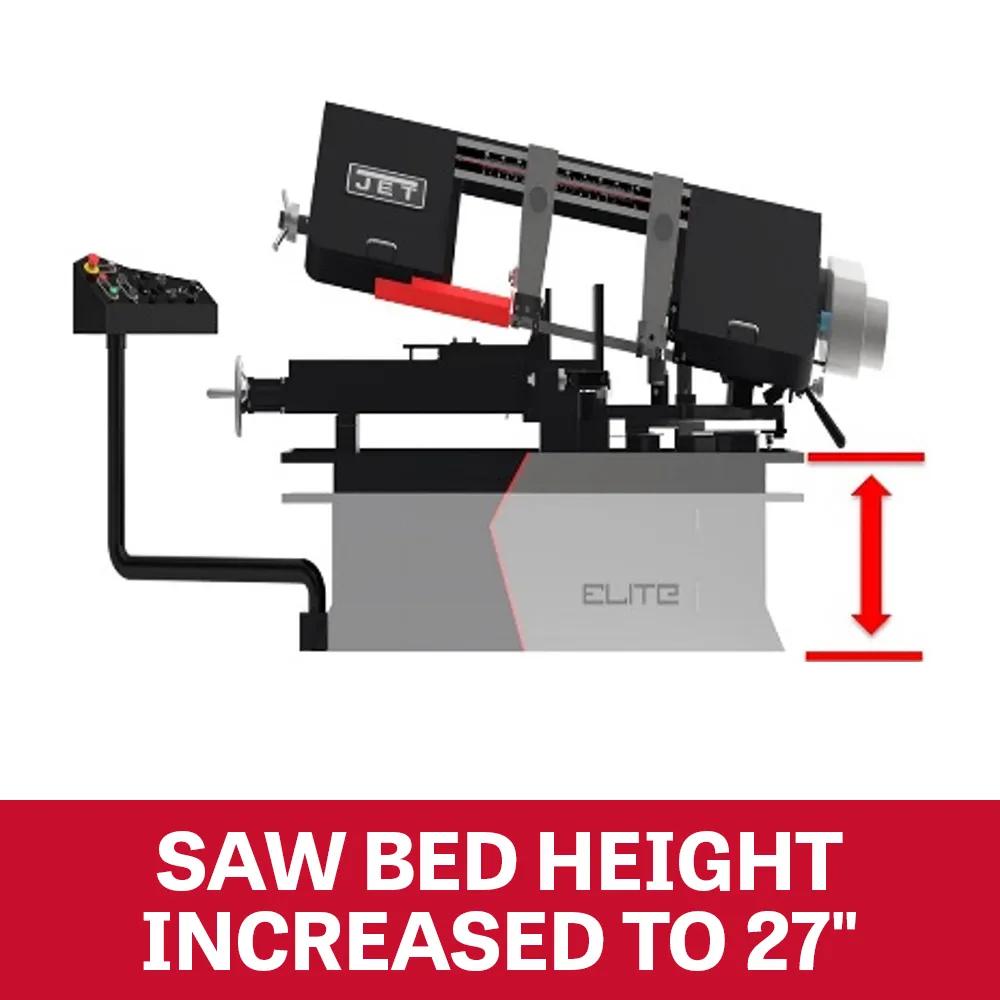

- Bed Height27 in.
- Blade Length144 in.
- Blade Size (In.)1 x .035 x 144 in.
- Blade Speed53-25753 - 257 sfpm
- Drive TypeVariable Speed

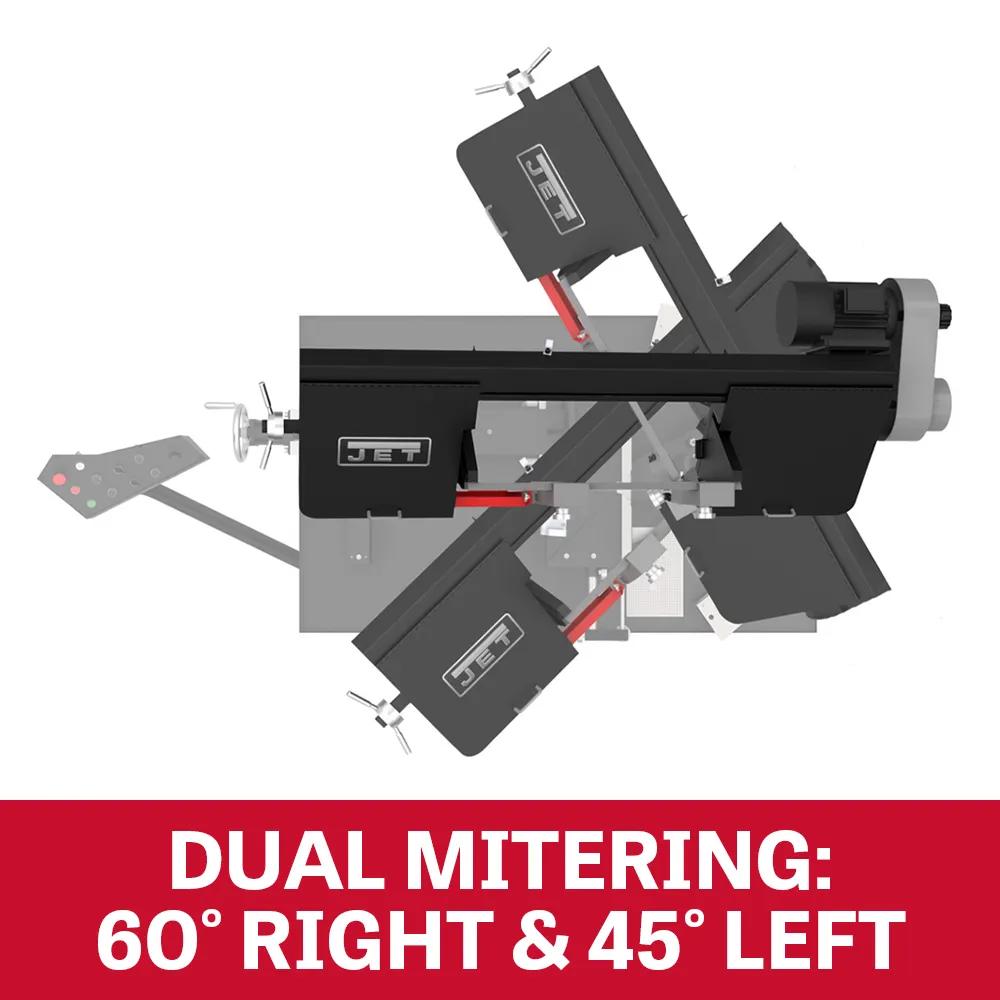

- Head Movement60 Deg.
- Height44 in.
- Input Power230/460 V 3 Ph
- Model NumberEHB-1018VM
- Motor HP2 HP
- Motor PhaseThree
- Motor Voltage230/460 V
- Old Material Number891070
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Rectangle At 45 Degrees10 x 12 in.
- Rectangle At 60 Degrees6 x 5 in.
- Rectangle At 90 Degrees10 x 17 in.
- Round Capacity At 45 Degrees10 in.
- Round Capacity At 60 Degrees6 in.
- Round Capacity At 90 Degrees10 in.
- SAP Gross Weight1,210
- SAP Net weight1,100
- Square At 45 Degrees10 x 10 in.
- Square At 60 Degrees5-1/2 x 5-1/2 in.
- Square At 90 Degrees10 x 10 in.
- UPC731325265583
- Vise Swivels Deg45 Deg.
- WarrantyTwo Years
- Wheel Diameter14 in.
