Product Details
Frame rigidity meets blade-speed flexibility. Built around shops cutting varied stock through long-cycle work, the EHB-1018V delivers production-grade results. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production cycles, warrantied for the long run.
Features
- Factory-sealed 2 HP 230V induction motor stands up to industrial production lines.
- 53-25753 - 257 SFPM blade speed — covering the material library production sawing runs.
- Industrial saw frame — delivering frame authority production sawing actually requires across industrial cutting.
- Working-grade tilting table — handling miter and bevel cuts in one setup, engineered for the angled cuts production fabrication actually runs.
- Precision-rated cutting envelope handles workpiece sizes for the stock library production fabrication actually generates.
- Cast iron construction in the main castings — delivering the structural mass precision work depends on.
Specifications
- SKUJT9-891060
- Assembled Dimensions74 x 30 x 44 in.

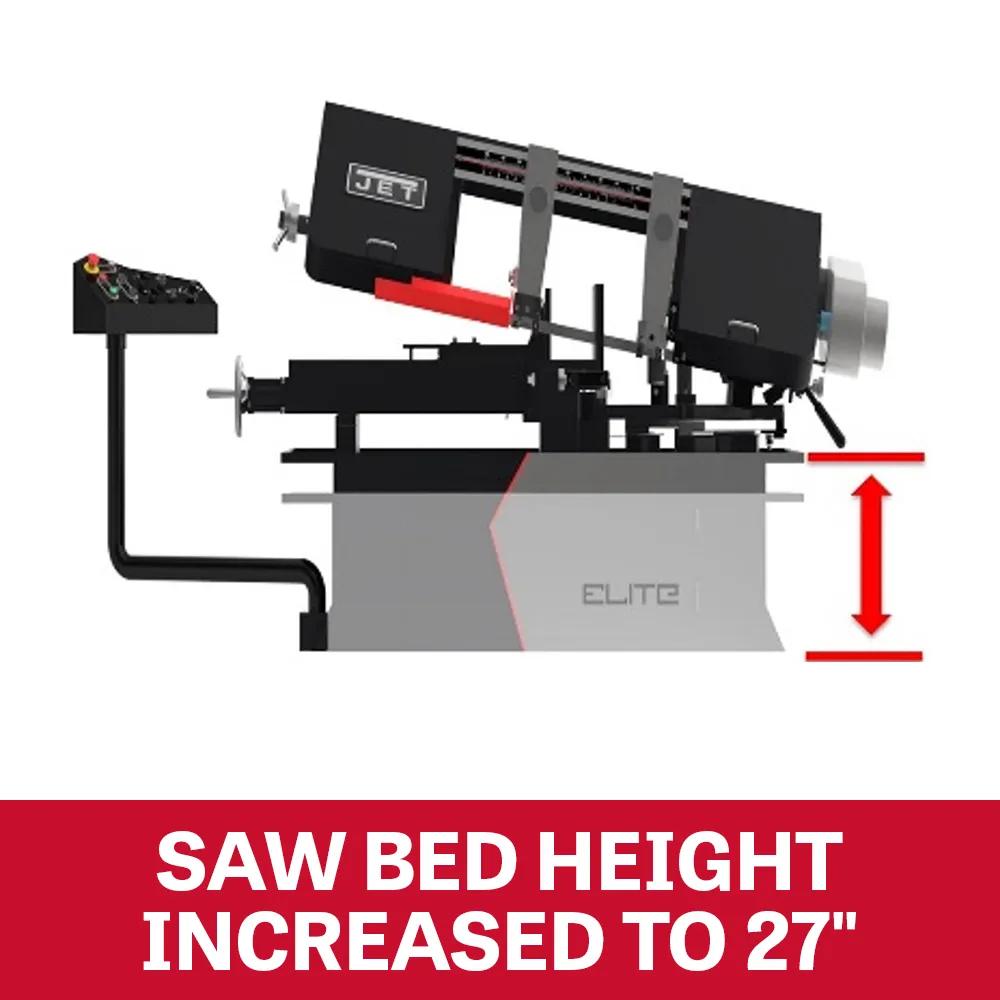

- Bed Height27 in.
- Blade Length132-1/2 in.
- Blade Size (In.)1 x .035 x 132-1/2 in.
- Blade Speed53-25753 - 257 sfpm

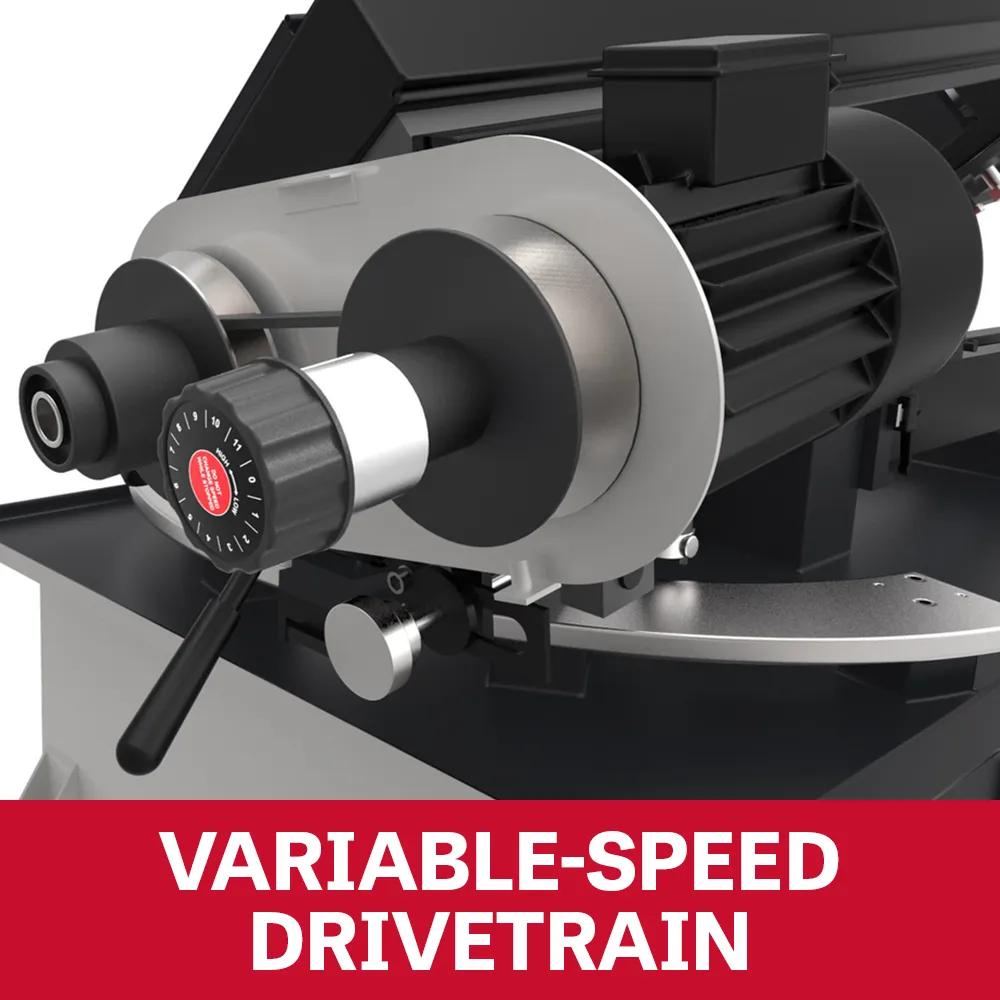

- Drive TypeVariable Speed
- Head Movement0 Deg.
- Input Power230 V 3 Ph
- Model NumberEHB-1018V
- Motor HP2 HP
- Motor PhaseSingle
- Motor Voltage230 V
- Old Material Number891060
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Rectangle At 45 Degrees8-1/2 x 9 in.
- Rectangle At 90 Degrees18 x 3-1/2 in.
- Round Capacity At 45 Degrees9 in.
- Round Capacity At 90 Degrees10 in.
- SAP Gross Weight705
- SAP Net weight705
- Square At 45 Degrees8-1/2 x 8-1/2 in.
- Square At 90 Degrees10 x 10 in.
- UPC731325265576
- Vise Swivels Deg45 Deg.
- WarrantyTwo Years
- Wheel Diameter14 in.
