12" Benchtop Vari.-Speed Drill Press, 0.5HP, 115V 1PH(JWDP-12)
12" Benchtop Vari.-Speed Drill Press, 0.5HP, 115V 1PH(JWDP-12)
12" Benchtop Vari.-Speed Drill Press, 0.5HP, 115V 1PH(JWDP-12)
12" Benchtop Vari.-Speed Drill Press, 0.5HP, 115V 1PH(JWDP-12)
12" Benchtop Vari.-Speed Drill Press, 0.5HP, 115V 1PH(JWDP-12)
12" Benchtop Vari.-Speed Drill Press, 0.5HP, 115V 1PH(JWDP-12)
12" Benchtop Vari.-Speed Drill Press, 0.5HP, 115V 1PH(JWDP-12)
12" Benchtop Vari.-Speed Drill Press, 0.5HP, 115V 1PH(JWDP-12)

12" Benchtop Vari.-Speed Drill Press, 0.5HP, 115V 1PH(JWDP-12)

Stock Number: JT9-716000

0 Reviews

No reviews yet.

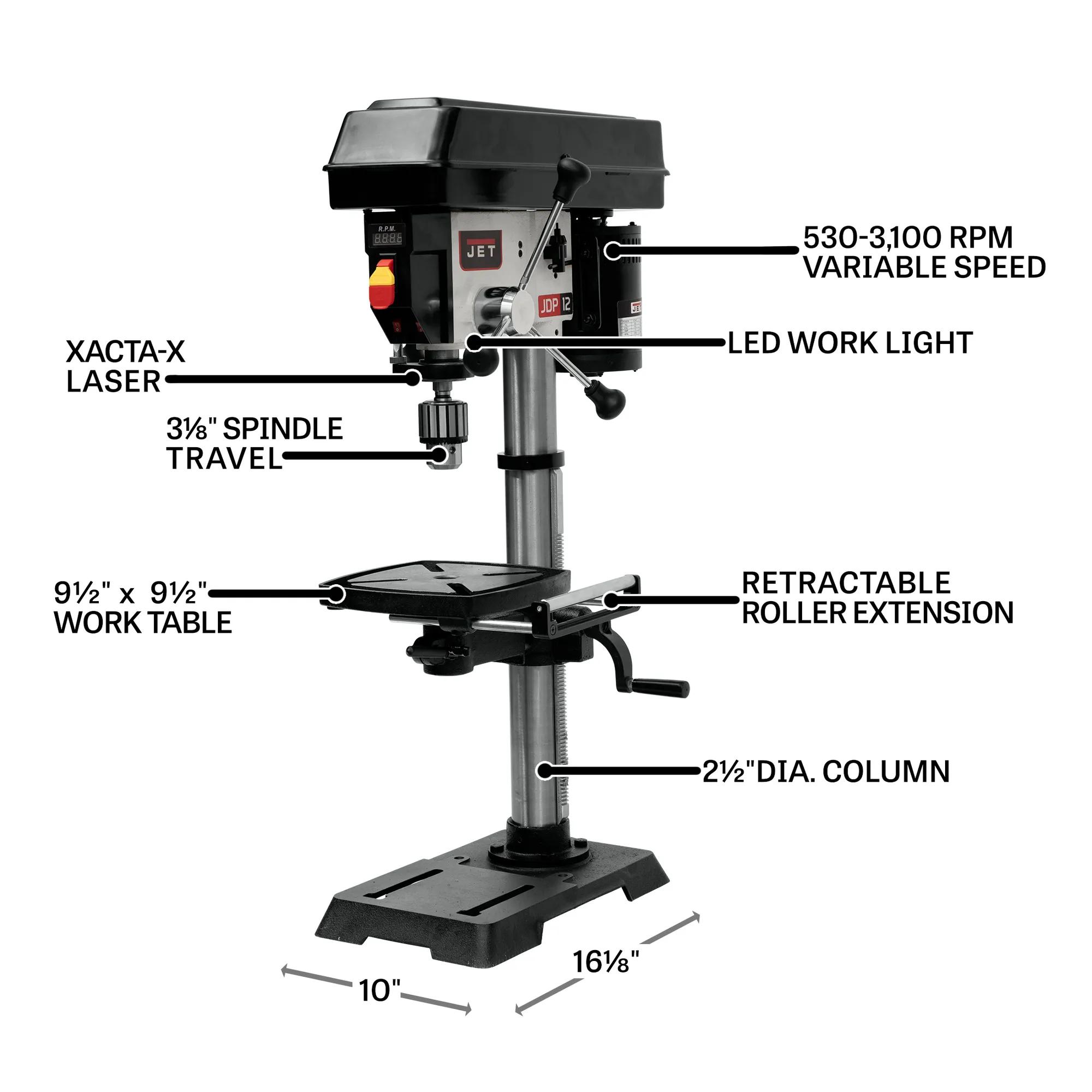

  • 0.5 HP, 115V, single-phase
  • MT2 spindle taper
  • 3-1/8" spindle travel
BUY NOW
Fetching Data...

Product Details

From small-shop hole-making to tool-room precision. Designed for production drilling and tapping work, the JWDP-12 stands up to the duty cycle. Equipped with a 0.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production drilling actually generates.

Features

  • Sealed 0.5 HP induction motor protects against the dust, chips, and humidity of industrial machining.
  • MT2 spindle taper matches the standard end-mill library for the standard tool-holding interface production shops use.
  • 3-1/8-inch spindle travel covers the vertical reach for the vertical envelope production milling targets.
  • Heavy-gauge cast iron base castings — holding reference geometry.
  • Heat-treated headstock gears hold spec — holding feed rates without backlash compensation across industrial shop floors.
  • Continuous-duty CSA/cUS listing — delivering third-party verified electrical safety across industrial production environments.

Specifications

  • SKU
    JT9-716000
  • Assembled Dimensions
    16 x 10 x 37 in.
  • Base Size
    10 x 16-1/8 in.
  • Chuck Size
    5/8 in.

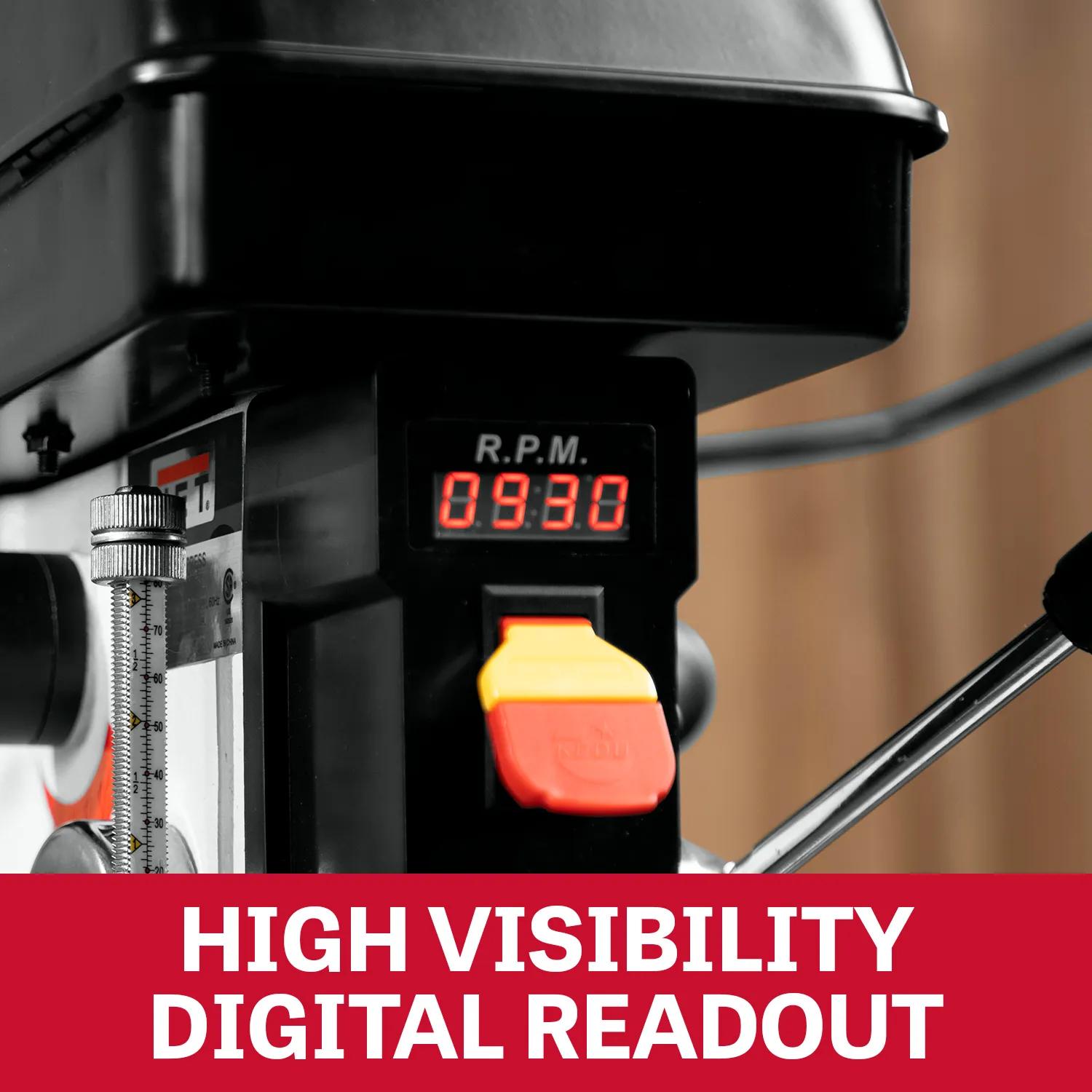

  • Digital Readout
    Yes
  • Distance from Spindle to Base
    23-3/8 in.
  • Drill Capacity (In.)
    5/8 in.
  • Drilling Capacity Mild Steel
    Not Recommended
  • Horse Power
    1/2 HP
  • Input Power
    115 V 1 Ph
  • Maximum Distance Spindle To Table
    17 in.
  • Model Number
    JWDP-12
  • Motor Amps
    15 A
  • Motor HP
    0.5 HP
  • Motor Phase
    Single
  • Motor Voltage
    115 V
  • Number of Spindle Speeds
    Variable Speed
  • Old Material Number
    716000
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    1-7/8 in.
  • Range Of Spindle Speeds
    Variable, 530 - 3100 RPM
  • Recommended Circut Size Amp
    15 A
  • SAP Gross Weight
    92.5
  • SAP Net weight
    85
  • Spindle Distance To Base
    23-3/8 in.
  • Spindle Distance To Table Max
    17 in.
  • Spindle Speed
    530-3100 RPM
  • Spindle Taper
    MT2
  • Spindle Taper X Tpi
    MT2
  • Spindle Travel
    3-1/8 in.
  • Style Type
    Benchtop
  • Swing
    12 in.
  • Table Size
    9-1/2 x 9-1/2 in.

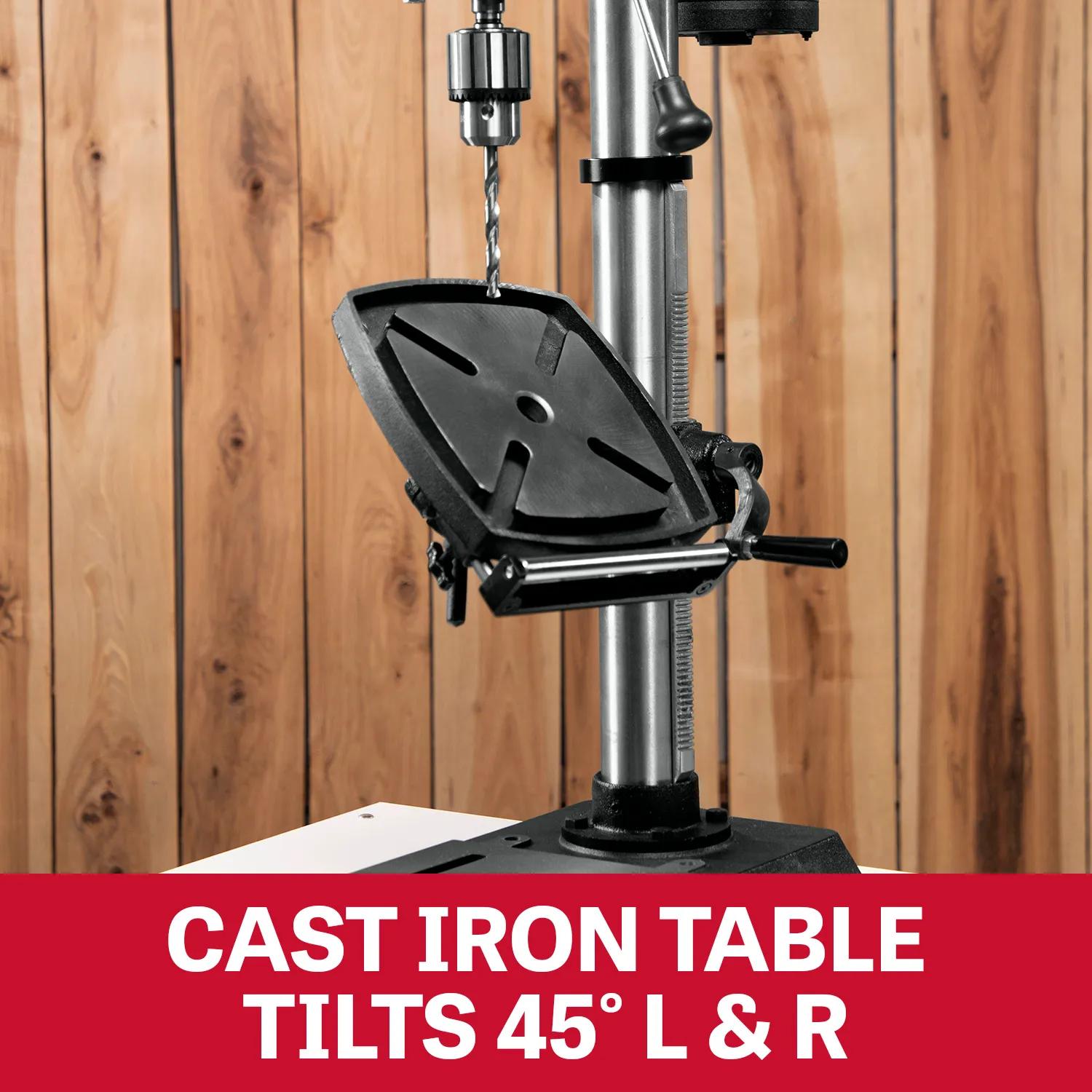

  • Table Tilt (L, R, C)
    Right 45 Deg. / Left 45 Deg.
  • UPC
    731325455885
  • Warranty
    Five Years
