Product Details
Engineered for clean cuts across hardwoods, softwoods, and metal stock. The JMS-12X answers the work generated by production environments where blade speed and frame rigidity both count. Equipped with a 2.3 HP HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by the JET service network.
Features
- Heavy-duty blade speed at 4000 ± 10% RPM handles cut velocity for the cutting velocity production sawing actually requires.
- Heavy-duty saw frame covers blade alignment for cut quality consistency across long runs.
- Engineered tilting table — delivering the angle envelope production cutting demands, engineered for the angle work production fabrication generates.
- Professional-grade cutting envelope delivers workpiece sizes for the cut-length envelope industrial sawing requires.
- Heavy cast iron frames — running cooler under sustained cutting loads than stock alternatives, engineered for the working loads industrial cutting generates.
- Precision-hardened and ground power-train components hold tolerance — resisting the wear pattern that defeats softer components.
Specifications
- SKUJT9-707212
- Arbor Size5/8 in.
- Assembled Dimensions47-1/2 x 30 x 30-5/8 in.
- Base Size47-1/2 x 30 in.
- Bevel TypeDual
- Blade Diameter12 in.
- Blade Length12 in.
- Blade Size (In.)12 in.
- Blade Speed4000 ± 10% RPM
- Cut Capacity At 45 Bevel14 x 2 in. L / 14 x 1-3/8 in. R
- Cut Capacity At 45 Compound10 x 2 in. / 10 x 1-3/8 in.
- Cut Capacity At 45 Miter10 x 4 in.
- Dust BagIncluded

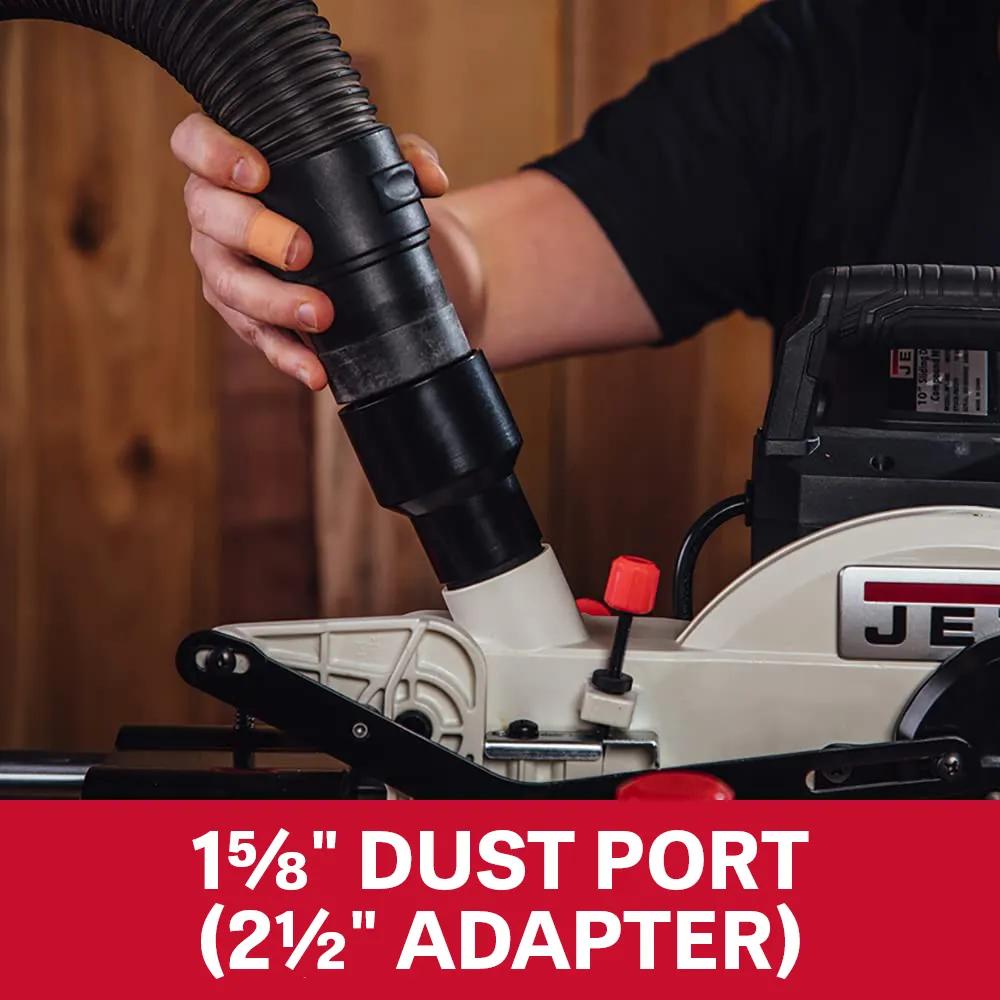

- Dust Port Outside Diameter1-5/8 in.
- Height30-5/8 in.
- Horse Power2.3 HP
- Input Power115 V 1 Ph

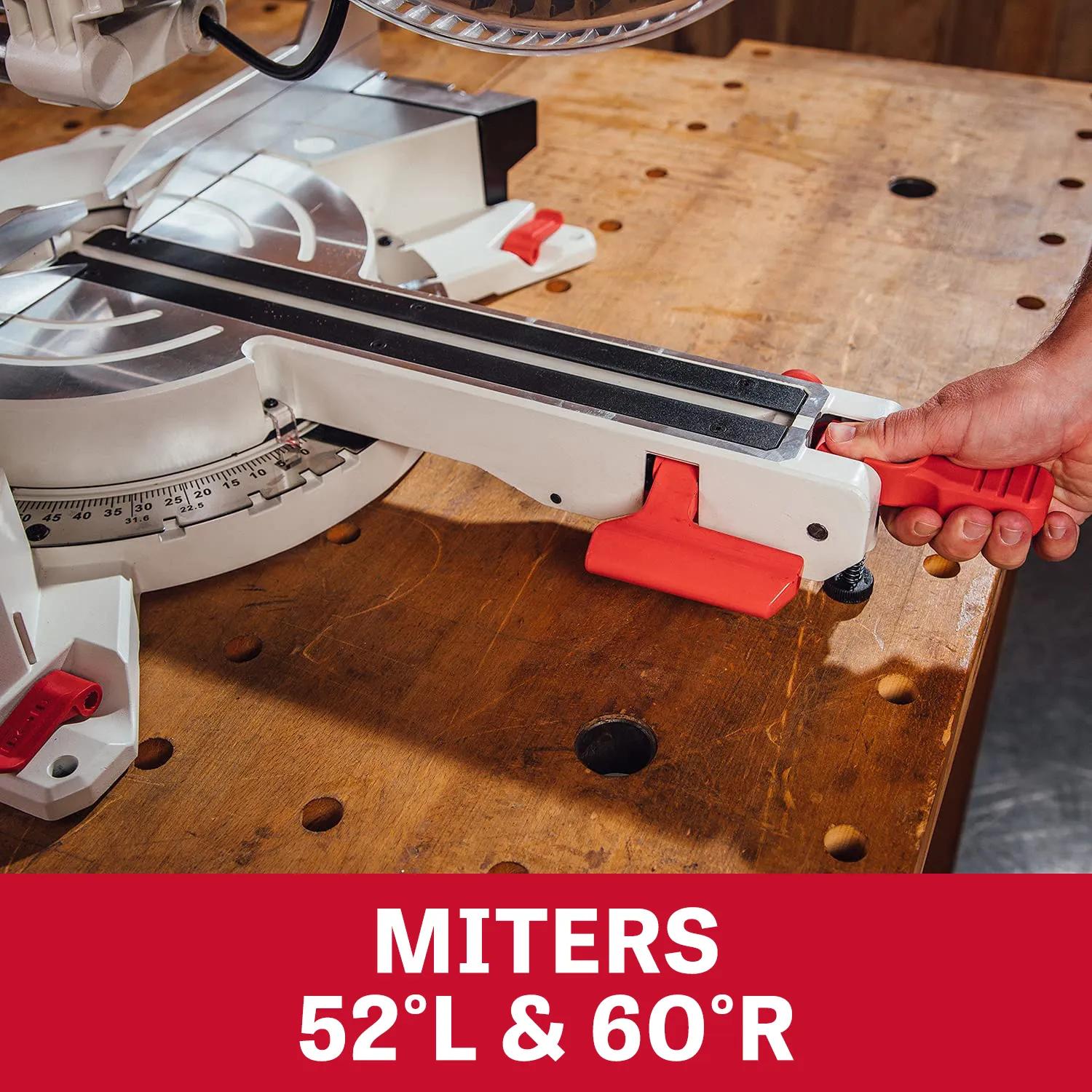

- Miter Angle Range52 Deg. L, 60 Deg. R
- Miter Angle Stops0, 15, 22.5, 31.6, 45 Deg. L & R and 60 Deg. R
- Model NumberJMS-12X
- Motor Amps15 A
- Motor HP2.3 HP
- Motor PhaseSingle
- Motor Voltage115 V
- Old Material Number707212
- Overall Assembled (Bow Lowered)47-1/2 x 30 x 30-5/8 in.
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp15 A
- SAP Gross Weight62
- SAP Net weight56
- UPC731325793208
- WarrantyFive Years
