Stock Number: JT9-722130

0 Reviews

No reviews yet.

  • 2 HP, 115V, single-phase
  • 13" planing capacity
  • 24-knife helical head
  • 10,000 RPM cutterhead
BUY NOW
Fetching Data...

Product Details

Rough lumber in, glass-smooth board out. The JWP-13BT is built for shops that need surface quality consistent enough to skip the sander. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and a 400+ service-center network keep production moving.

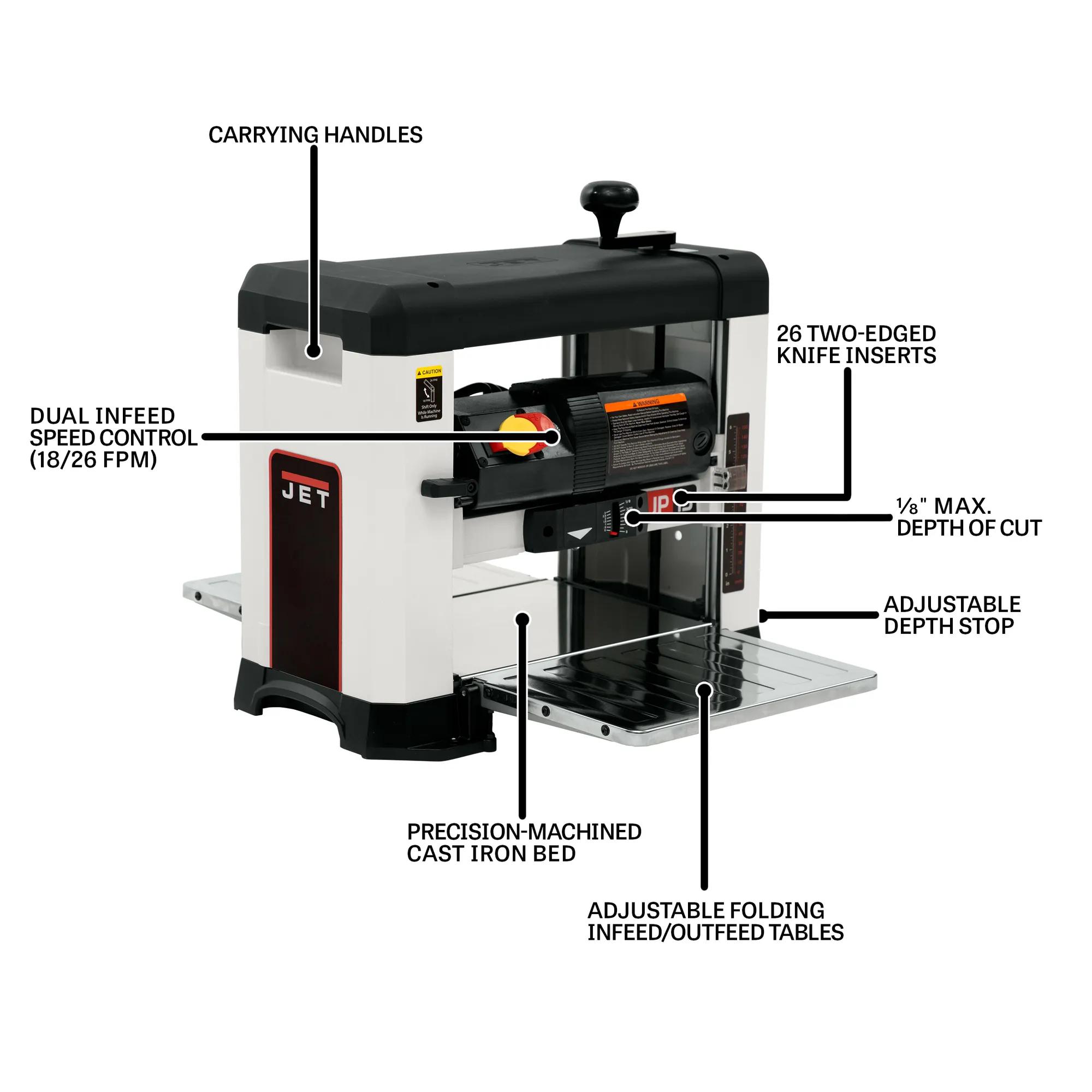

Features

  • Carbide-insert helical head spins at 10,000 RPM for cleaner shearing action straight knives can't match.
  • 13-inch planing capacity handles full-width board work for the panel-grade work cabinet shops actually face.
  • The 2 HP, 115V induction motor handles full-capacity passes without bogging down on full-width passes.
  • Cast iron reference surfaces dampen vibration for the rigidity precision work demands.
  • Hardened-steel gear sets support the working precision without the slop softer drivetrains develop.
  • Industrial-spec CSA/cUS listing — shipping with the certification paperwork inspectors actually check across facility safety inspections.

Specifications

  • SKU
    JT9-722130

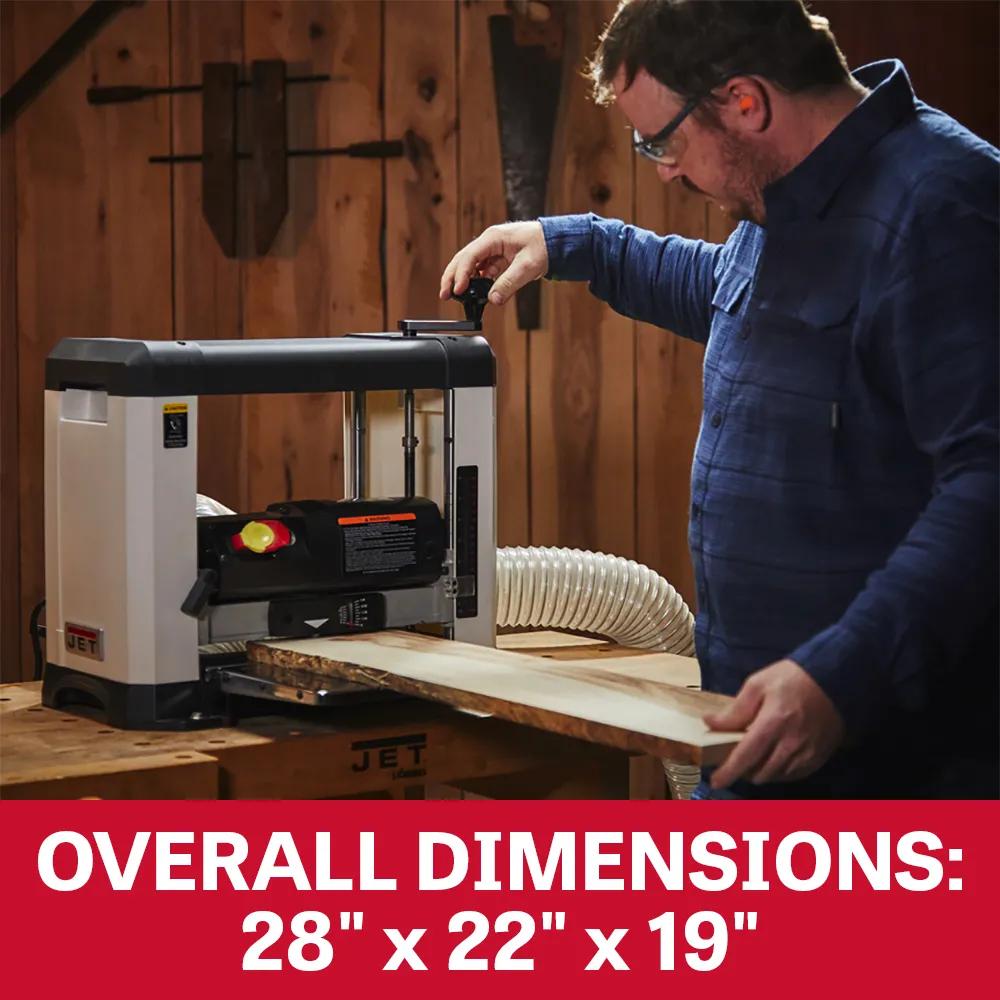

  • Assembled Dimensions
    28 x 22 x 19 in.
  • Coating
    None
  • Cuts Per Minute
    N/A - Continual
  • Cutterhead Diameter
    2 in.
  • Cutterhead Speed
    10000 RPM
  • Cutting Capacity - Width
    13 in.

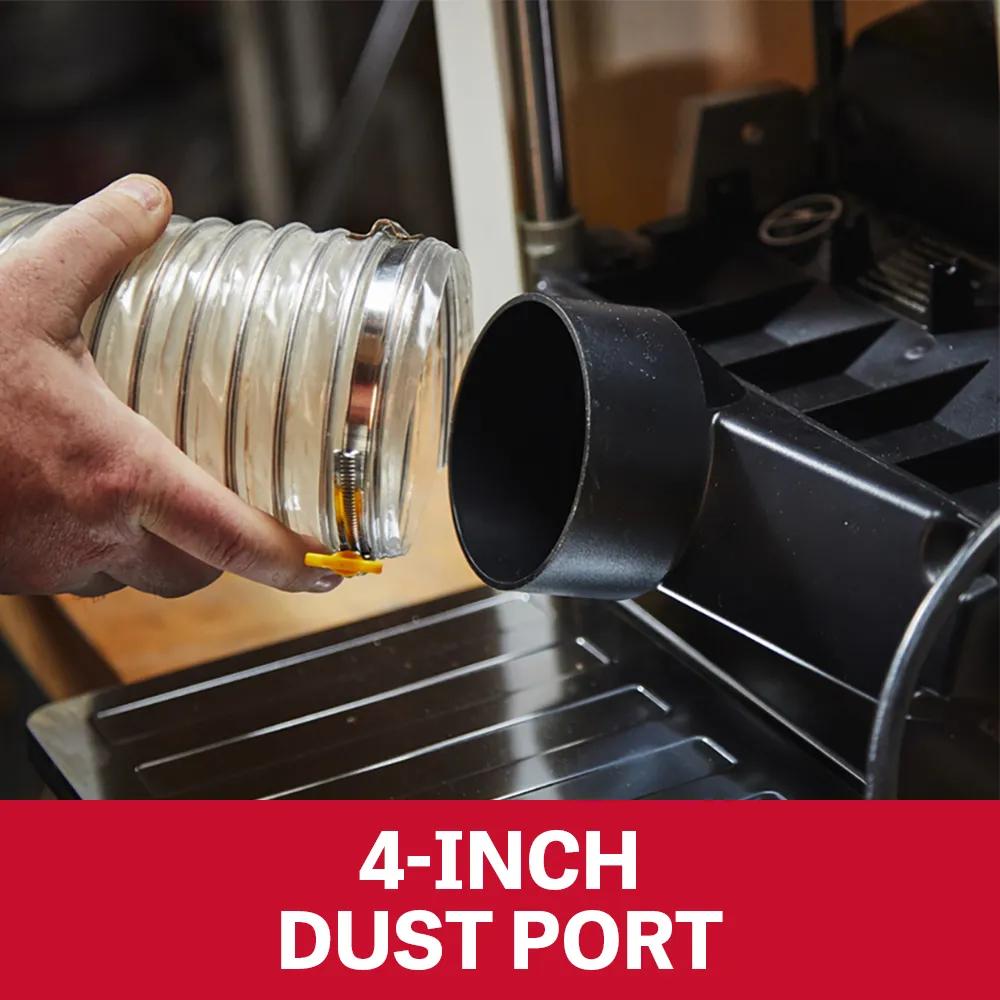

  • Dust Port Outside Diameter
    4 in.
  • Feed Rate
    18/26 FPM
  • Full Width Depth Of Cut
    1/16 in.
  • Height
    19 in.
  • Horse Power
    2 HP
  • Infeed Table Length
    9.25 in.
  • Input Power
    120 V 1 Ph
  • Maximum Board Thickness
    6 in.
  • Maximum Board Width
    13 in.

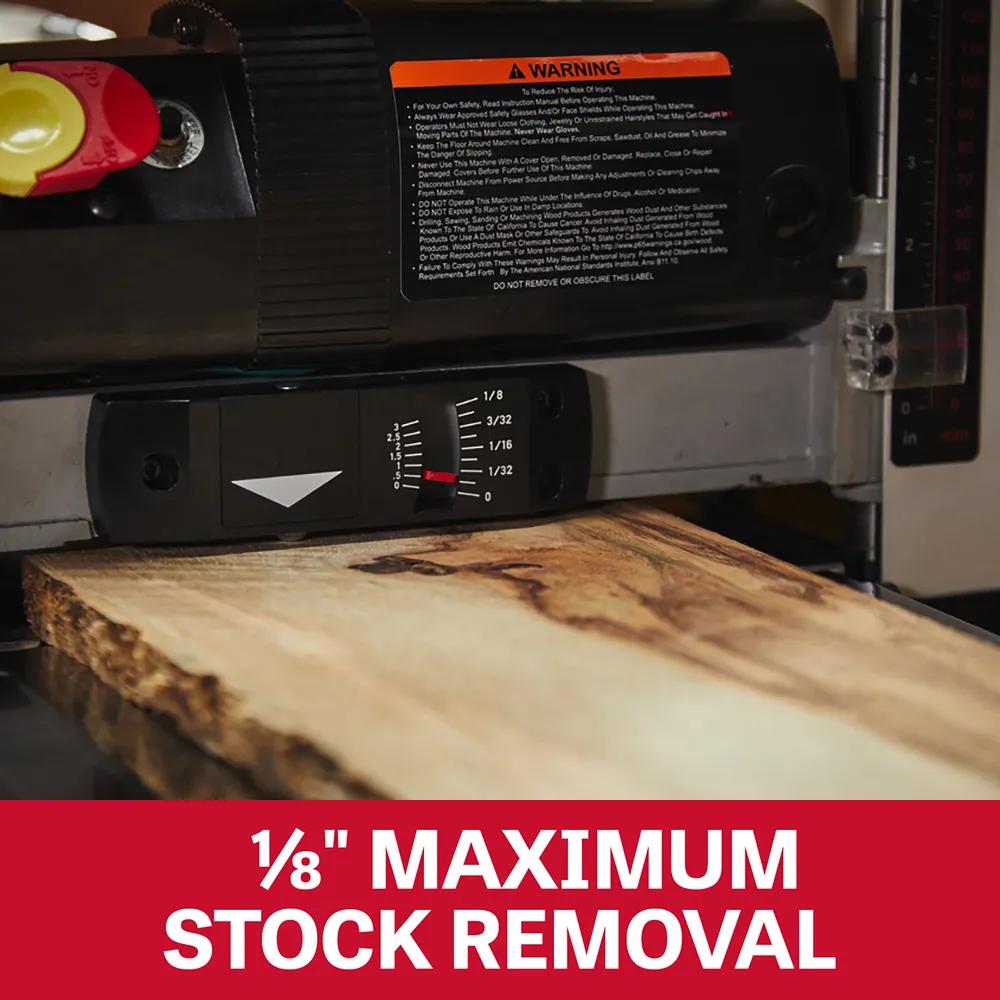

  • Maximum Depth Of Cut
    0.125 in.
  • Minimum Board Length
    9-1/2 in.
  • Model Number
    JWP-13BT
  • Motor Amps
    15 A
  • Motor HP
    2 HP
  • Motor Phase
    Single
  • Motor Voltage
    115 V
  • Number of Knives
    24
  • Number of Speeds
    2
  • Old Material Number
    722130
  • Outfeed Table Length
    9.25 in.
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    20 A
  • Required Cfm
    500 - 500 CFM
  • SAP Gross Weight
    81.73
  • SAP Net weight
    74.8
  • Style Type
    Benchtop
  • Table Height
    Manually Adjusted
  • Table Size
    13 x 9.8 in.
  • Table Support
    4 Column
  • Type of Cutterhead
    Helical Style
  • UPC
    731325762341
  • Warranty
    Five Years
