Product Details
Built for the cuts that production fabrication actually generates. The JWBS-14CS is built for fabrication shops running daily cuts. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage stands behind every cut.
Features
- Factory-tested 1 HP drive covers consistent torque for the operating envelope production demands.
- 3000 FPM blade speed — matching cut velocity to material density.
- Heavy-gauge welded frame delivers structural rigidity for the cutting authority industrial fabrication demands.
- Shop-rated tilting table — covering miter and bevel cuts production fabrication generates, engineered for angle accuracy production work expects.
- Premium-grade cutting envelope delivers workpiece sizes for the stock library production fabrication actually generates.
- Industrial cast iron frames resist deflection for the structural authority production work demands.
Specifications
- SKUJT9-708115K
- Assembled Dimensions19 x 26 x 68 in.
- Base Size26 x 19 in
- Blade Diameter14 in.
- Blade Length93-1/2 in.
- Blade Size (In.)93-1/2 in.
- Blade Speed3000 FPM
- Cutting Capacity - Height6 in.
- Cutting Capacity - Width13-1/2 in.

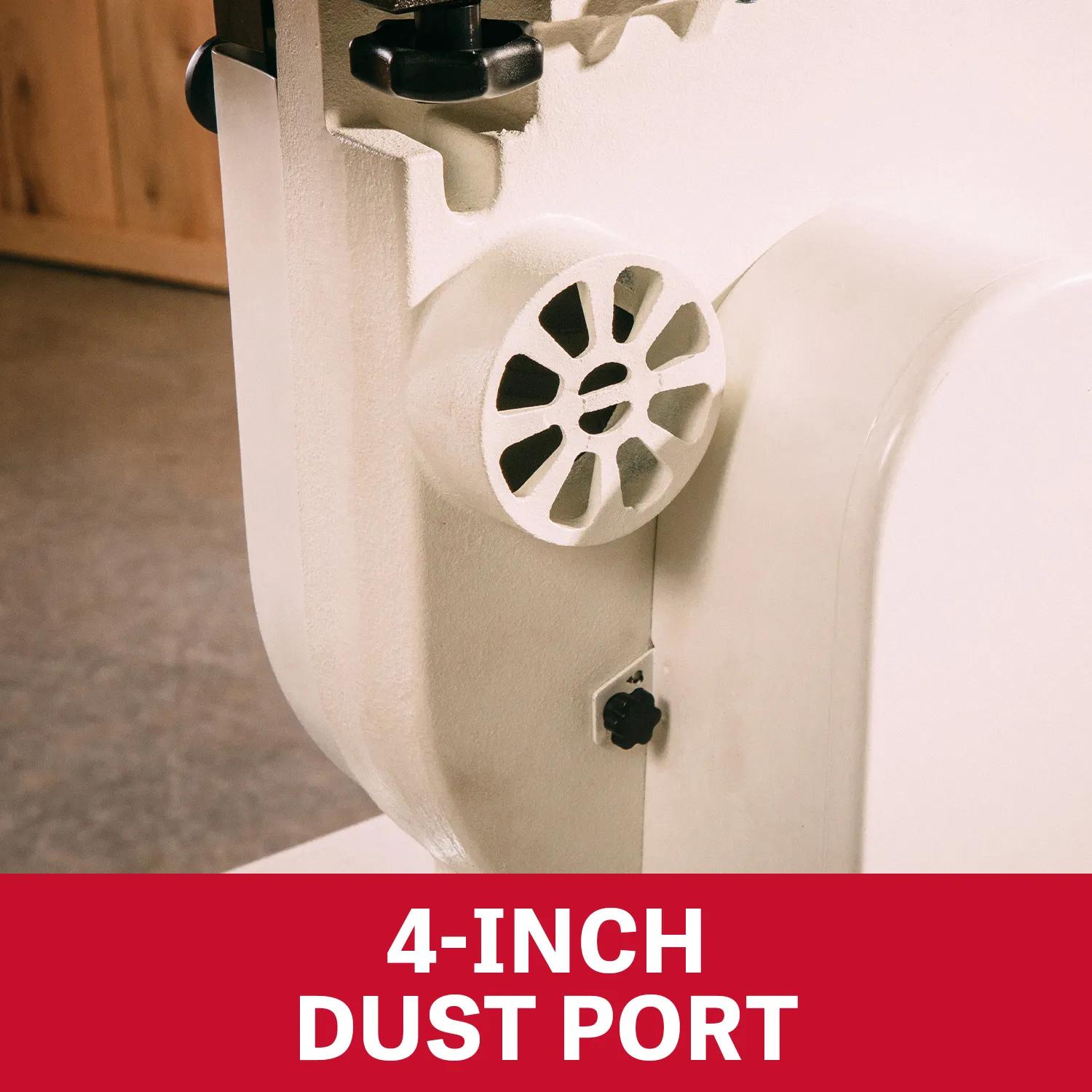

- Dust Port Outside Diameter4 in.
- Height68 in.
- Horse Power1 HP
- Input Power115 V 1 Ph
- Maximum Blade Width3/4 in.
- Minimum Saw Blade Width1/8 in.
- Model NumberJWBS-14CS
- Motor Amps20 A
- Motor HP1 HP
- Motor PhaseSingle
- Motor Voltage115/230 V
- Old Material Number708115K
- Overall Assembled (Bow Lowered)19 x 26 x 68 in.
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp20 A
- Required Cfm300 - 300 CFM
- SAP Gross Weight200
- SAP Net weight185
- Style TypeFloor
- Table Height43-1/2 in.

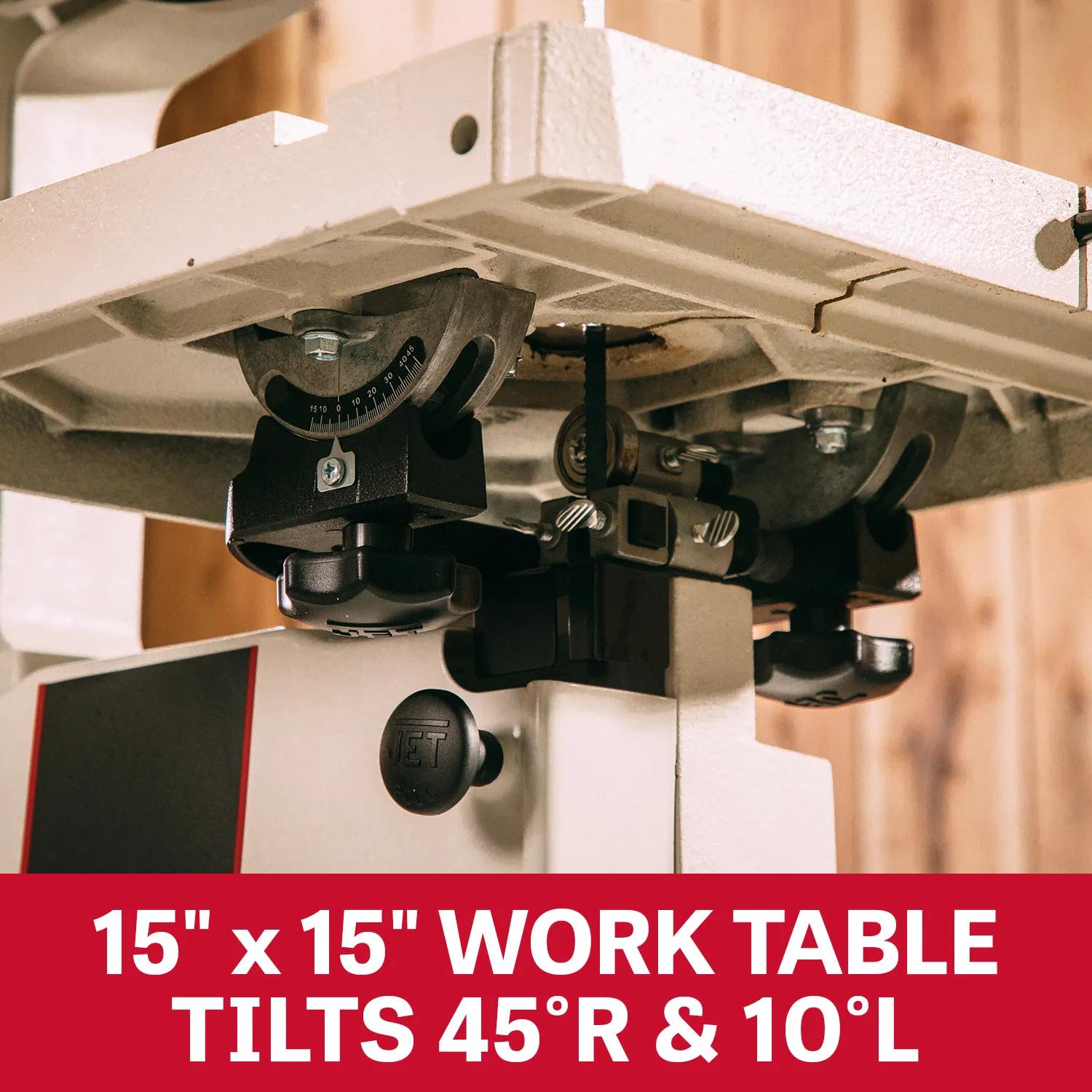

- Table Size15 x 15 in.
- Table T-Slot3/4 in.
- Table Tilt (L, R, C)Right 45 Deg. / Left 10 Deg.
- Throat Depth13-1/2 in.
- UPC662755123290
- WarrantyFive Years
- Wheel Diameter14 in.
