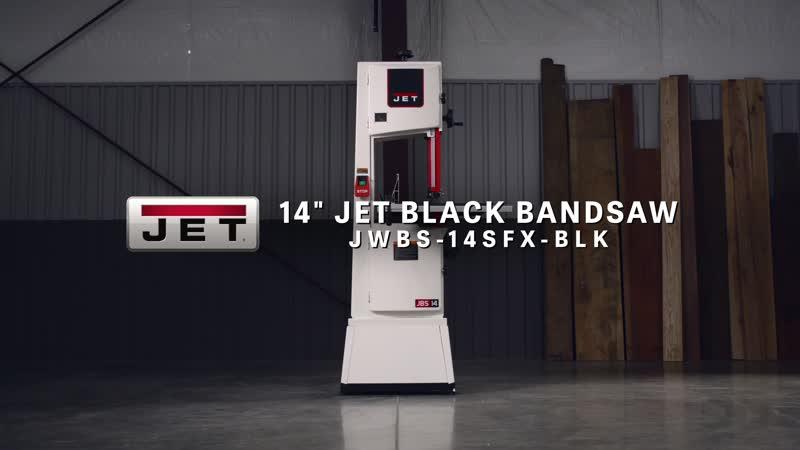

14" Black Bandsaw, 1.75HP, 115/230V 1PH(JWBS-14SFX-BLK)

Stock Number: JT1-1371

0 Reviews

No reviews yet.

  • 1.75 HP, 115/230V, single-phase
  • 3000 FPM
  • Heavy-duty welded steel frame
  • Adjustable blade tracking
BUY NOW
Loading Banner
Loading Need Parts Banner
Fetching Data...

Product Details

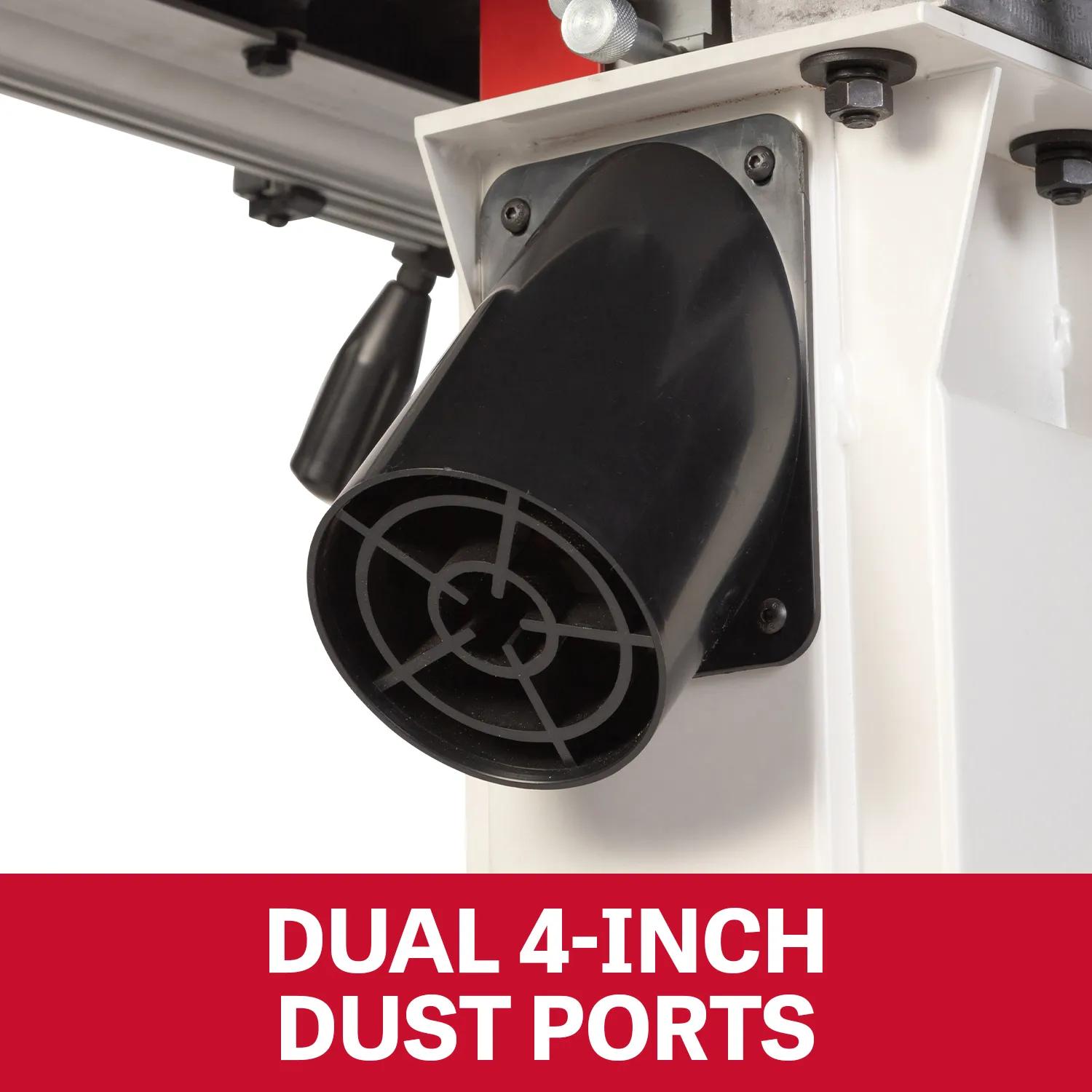

Built on the proven 14 in. 14SFX Steel Frame Bandsaw, the JET BLACK version enhances the machine with a performance-coated cast iron table designed to improve durability and cutting control. With 360 sq. in. of work surface, the table provides excellent support for larger workpieces, while the JET BLACK coating improves visibility, reduces friction, and eliminates the need for waxing or polishing. The result is smoother material movement and long-lasting surface protection. Like the 14 in. 14SFX Steel Frame Bandsaw is built for woodworkers who expect their tools to keep up with their ambition. Powered by a 1-3/4 HP motor and engineered with a rigid steel frame, this bandsaw delivers the stability and precision needed to take on demanding cuts with confidence. A machined aluminum, dual-height fence system with easy-to-read measurements ensures accurate setup, while independently adjustable ball bearing blade guides keep every cut tracking true. With over 13 in. of resaw capacity and dual 4 in. dust ports for efficient dust collection, this bandsaw is built to keep your workflow moving. Combined with heavy-duty steel frame construction and a stable base, the JET BLACK 14 in. 14SFX Steel Frame Bandsaw delivers the precision, durability, and control serious woodworkers rely on—so you can push your craft further and do more in your shop.

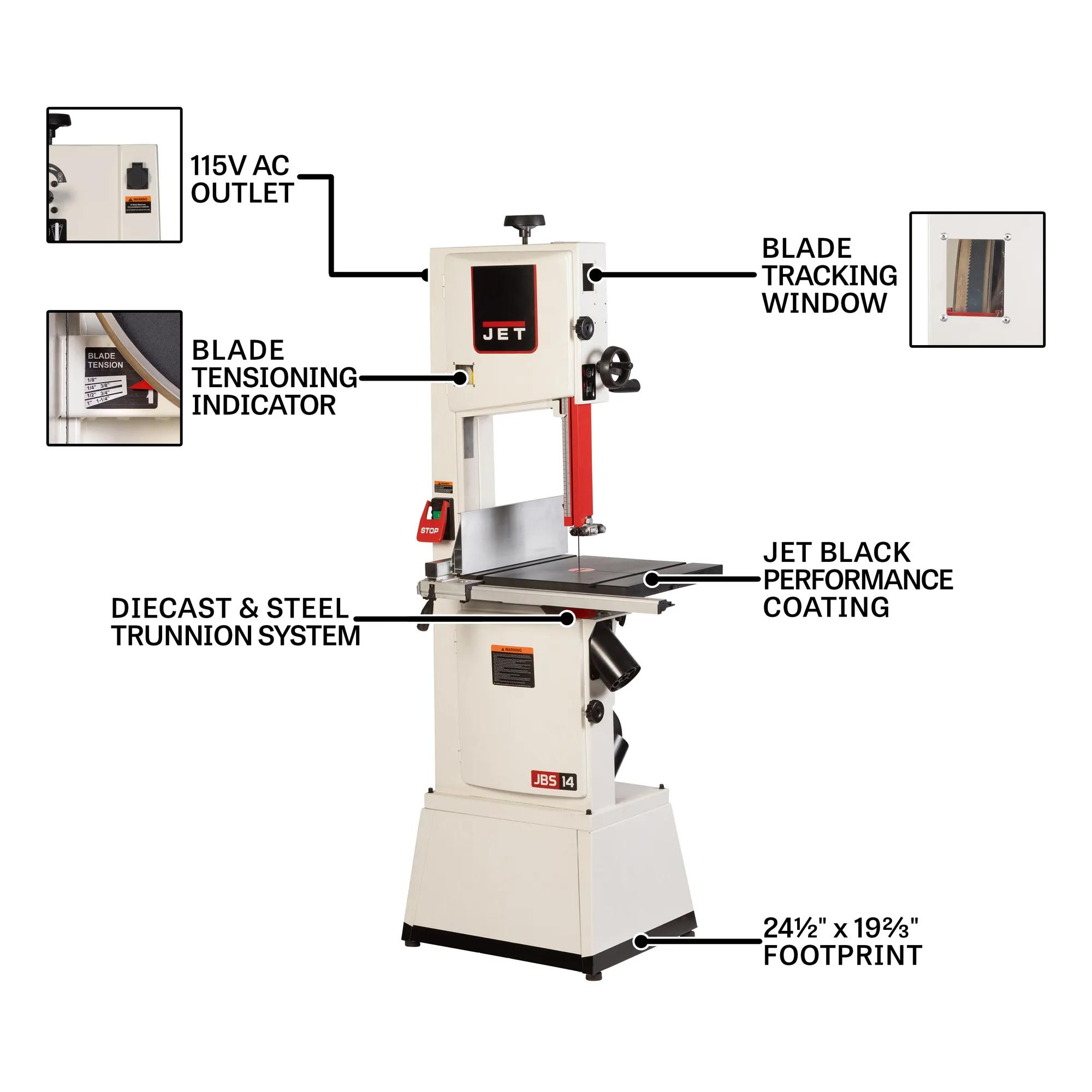

Features

  • JET Black Performance Coating: Coated cast iron surface resists corrosion, reduces friction for smoother cuts, and eliminates the need for waxing or polishing.
  • Top-Mounted Blade Tensioning Wheel: Improves workpiece clearance during cutting for smoother operations.
  • Convenient 115V AC Outlet: Perfectly positioned for easy access to optional accessories.

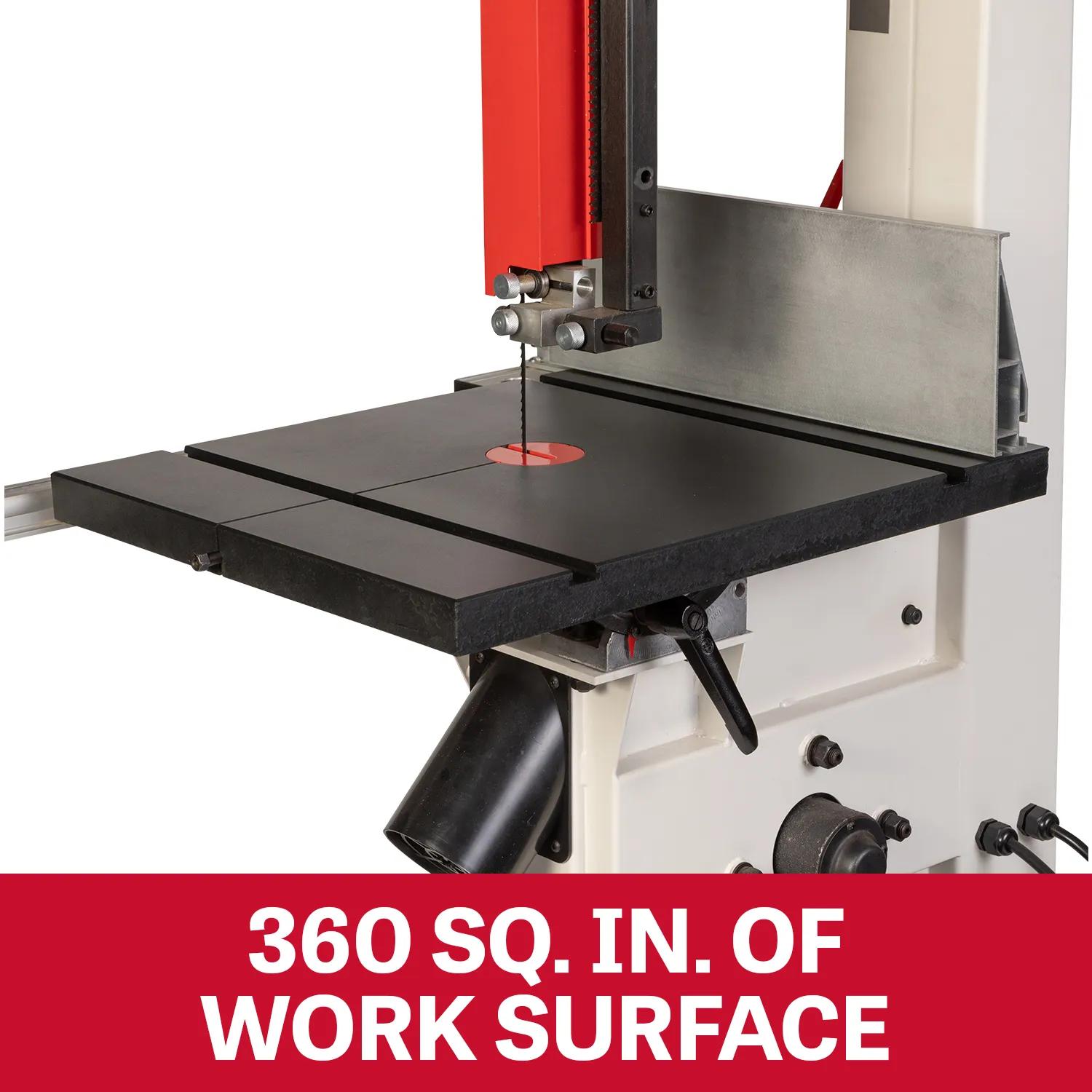

  • 360 sq. in. Work Surface: JET Black coated cast iron table offers superior support for large workpieces.
  • Diecast and Steel Trunnion System: Single-point adjustments for effortless table movements.
  • Adjustable Blade Guides: Independently adjustable upper and lower ball bearing guides for precision.
  • Robust Bearing Bolt Pattern: Oversized lower bearing bolt pattern ensures maximum strength and rigidity.

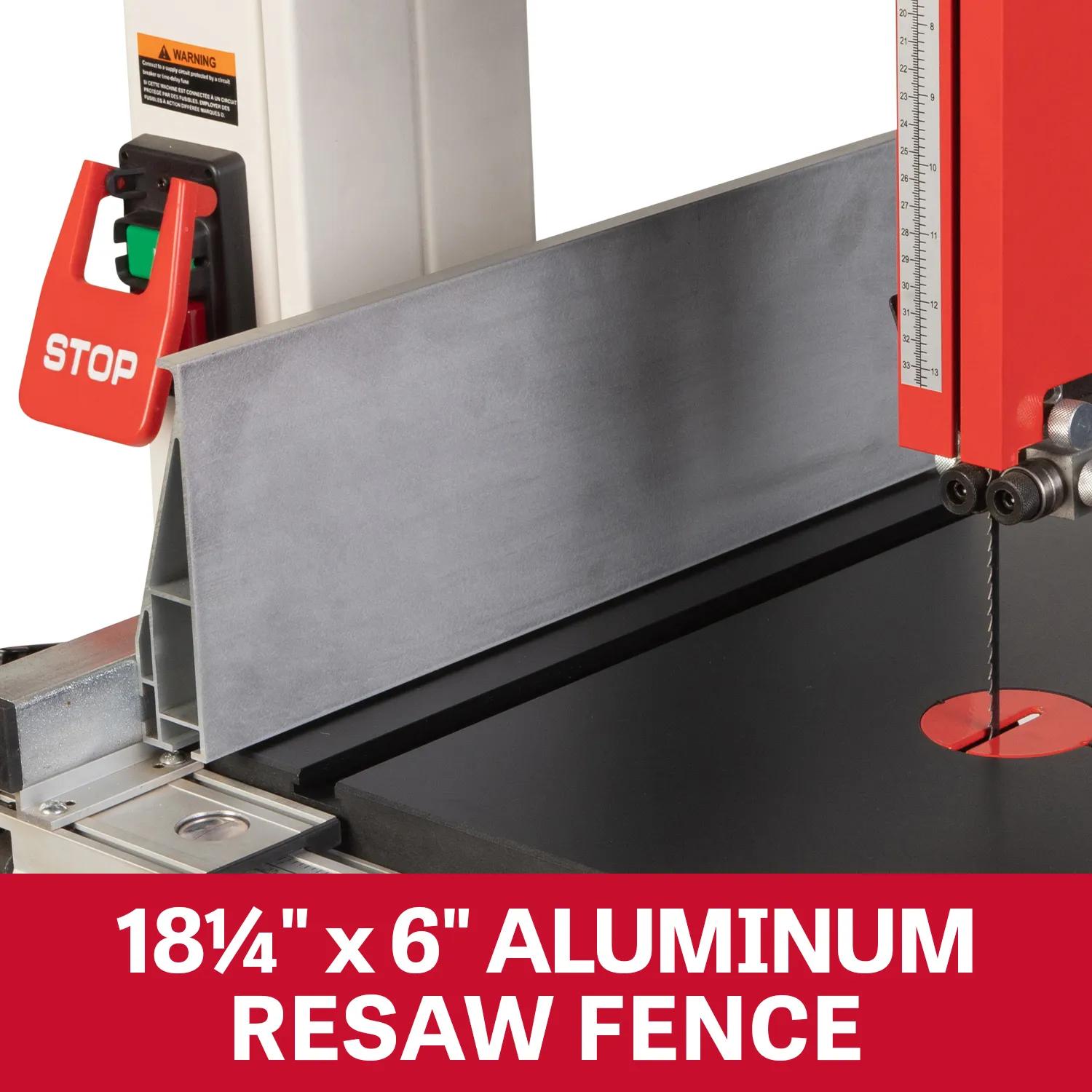

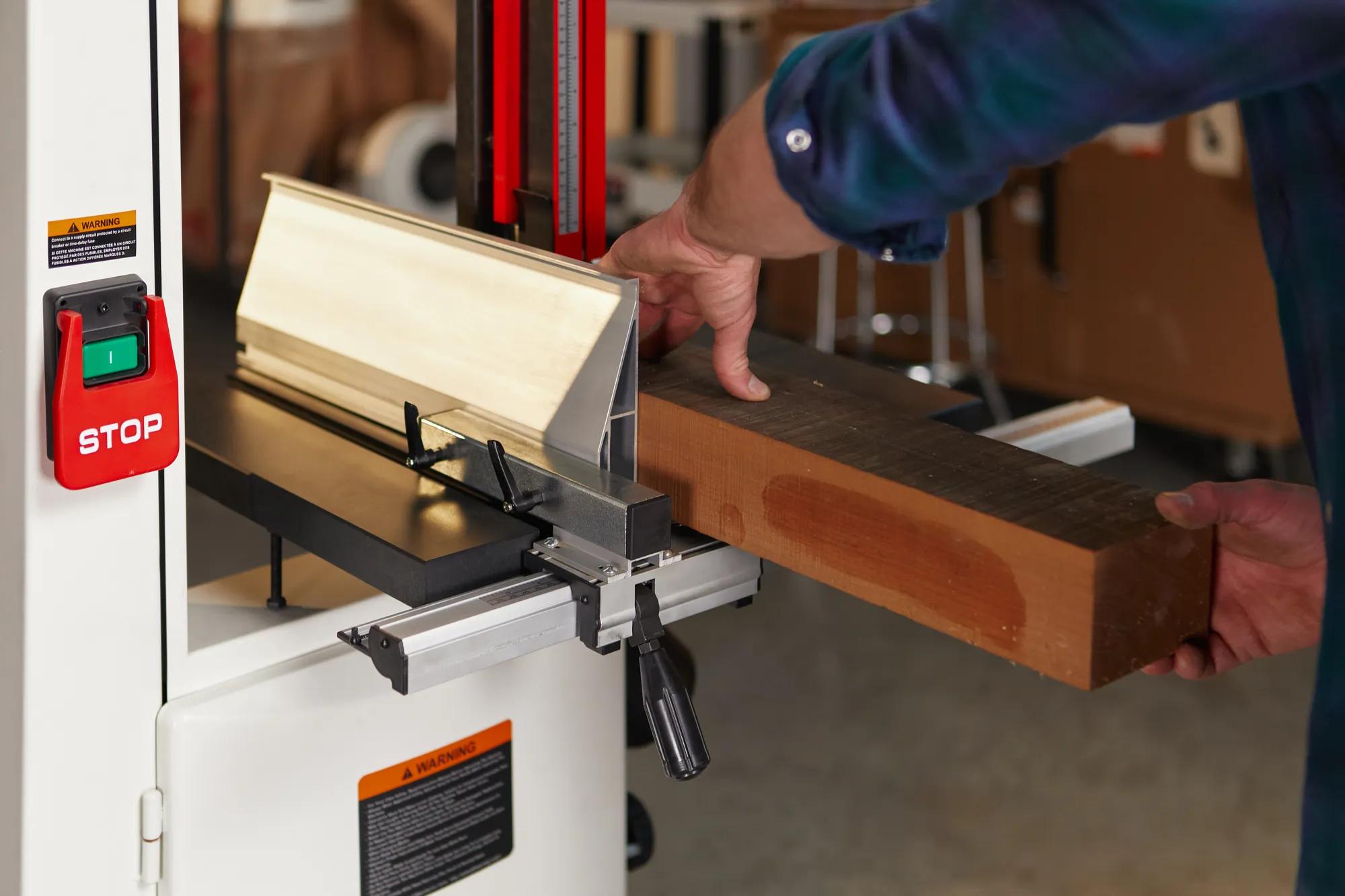

  • Machined Aluminum Fence System: Features easily visible measurements for the most accurate cuts.
  • Backed by 5 Years of Reliable Support: Enjoy peace of mind with JET’s 5-year warranty, ensuring long-lasting performance and support for your bandsaw.

Specifications

  • SKU
    JT1-1371
  • Assembled Dimensions
    37 x 27-1/2 x 75-3/8 in.
  • Base Size
    24.4 x 19.7 in.
  • Blade Diameter
    14 in.
  • Blade Length
    116 in.
  • Blade Size (In.)
    14 in.
  • Blade Speed
    3000 FPM
  • Coating
    JET Black Coating
  • Cutting Capacity - Height
    13 in.
  • Cutting Capacity - Width
    13-1/2 in.
  • Dust Port Outside Diameter
    4 in.
  • Fence Size L X H
    18-1/4 x 6 in.
  • Height
    75-3/8 in.
  • Horse Power
    1.75 HP
  • Input Power
    115/230 V 1 Ph
  • Maximum Blade Width
    3/4 in.
  • Minimum Saw Blade Width
    1/8 in.
  • Model Number
    JWBS-14SFX-BLK
  • Motor Amps
    15 A
  • Motor HP
    1.75 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
  • Overall Assembled (Bow Lowered)
    37 x 27-1/2 x 75-3/8 in.
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Required Cfm
    400 - 400 CFM
  • SAP Gross Weight
    311
  • SAP Net weight
    269
  • Style Type
    Floor
  • Table Height
    40 in.
  • Table Size
    21-1/2 x 17 in.
  • Table T-Slot
    3/4 in.

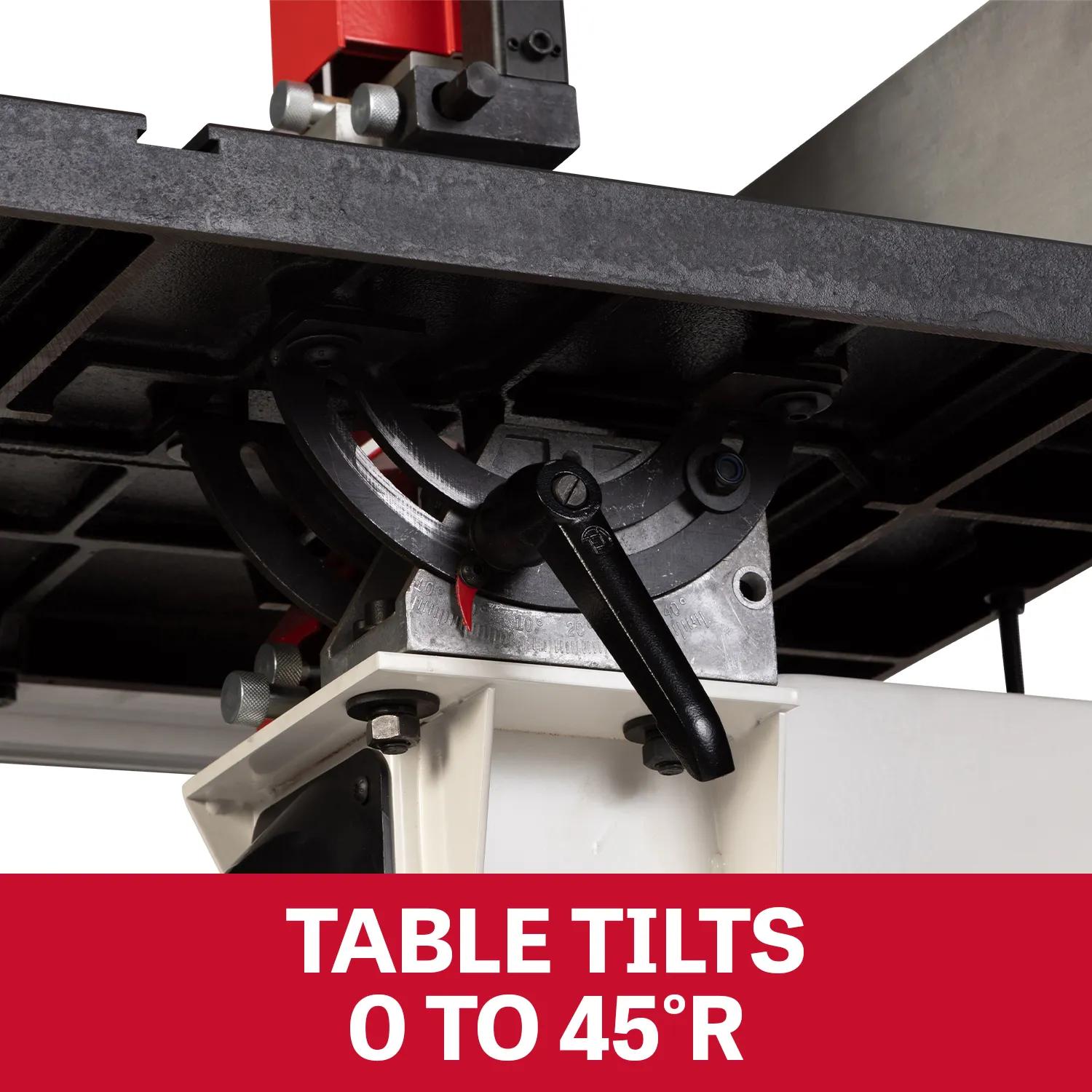

  • Table Tilt (L, R, C)
    Right 45 Deg.
  • Throat Depth
    13-1/2 in.
  • UPC
    019907931973
  • Warranty
    Five Years
  • Wheel Diameter
    14 in.
