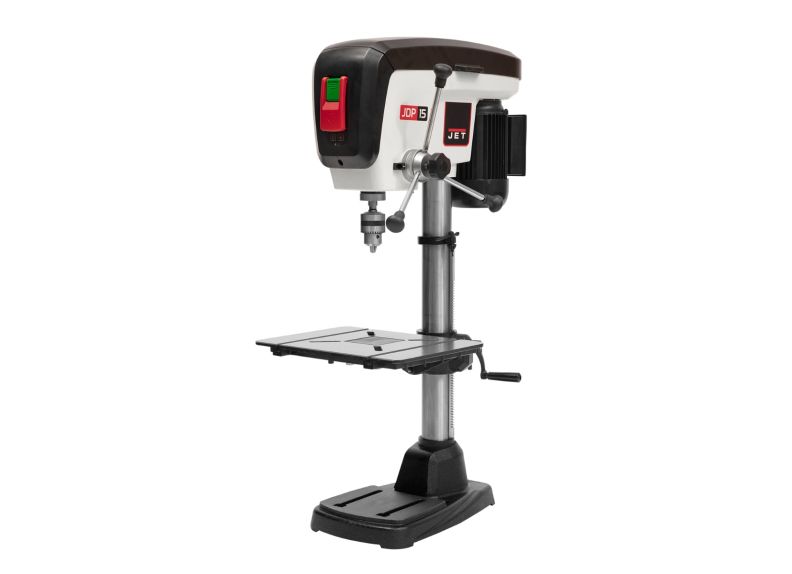

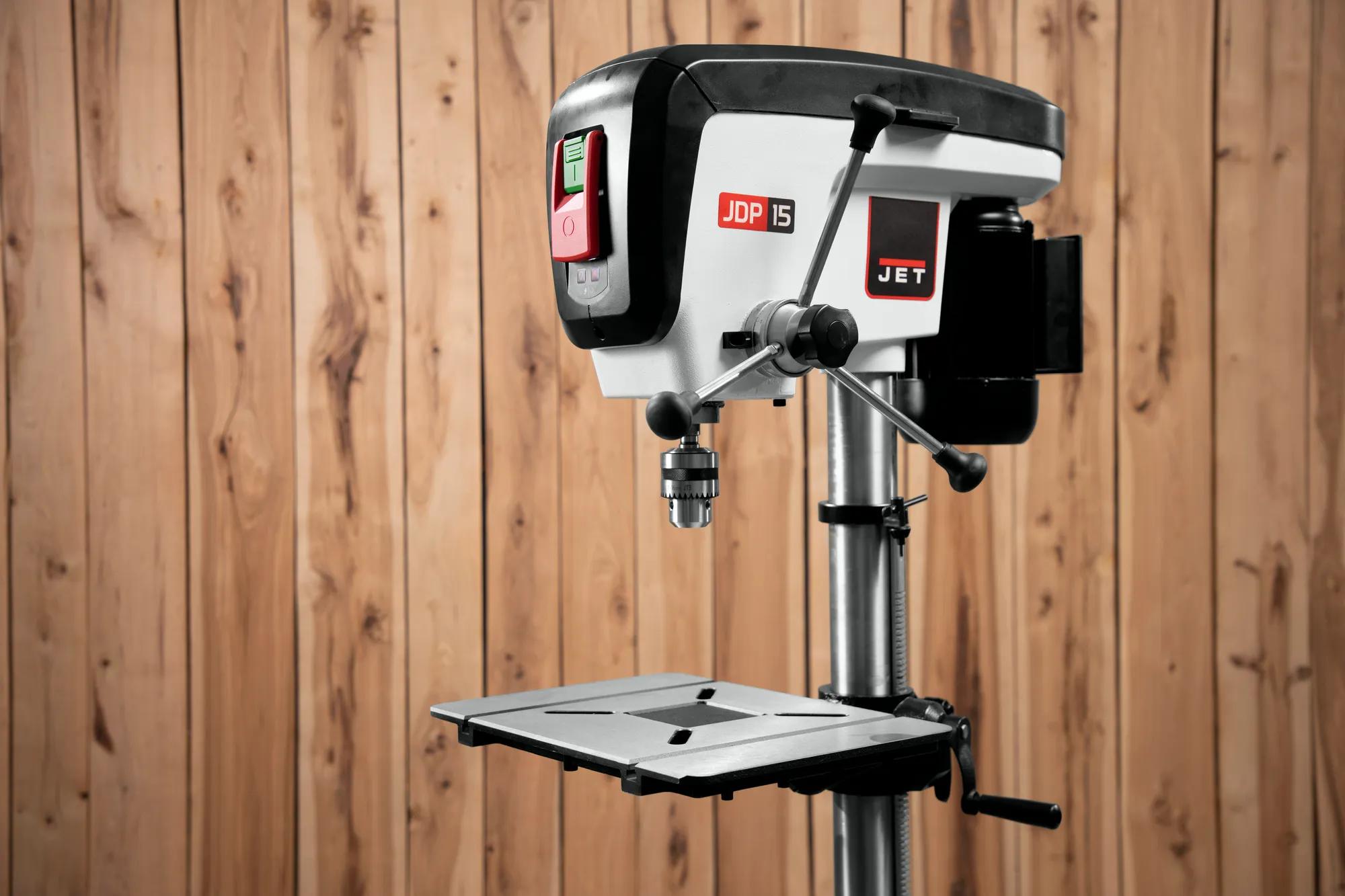

15" Benchtop Drill Press, 0.75HP, 115V 1PH(JDP-15B)
15" Benchtop Drill Press, 0.75HP, 115V 1PH(JDP-15B)
15" Benchtop Drill Press, 0.75HP, 115V 1PH(JDP-15B)
15" Benchtop Drill Press, 0.75HP, 115V 1PH(JDP-15B)
15" Benchtop Drill Press, 0.75HP, 115V 1PH(JDP-15B)
15" Benchtop Drill Press, 0.75HP, 115V 1PH(JDP-15B)
15" Benchtop Drill Press, 0.75HP, 115V 1PH(JDP-15B)
15" Benchtop Drill Press, 0.75HP, 115V 1PH(JDP-15B)

15" Benchtop Drill Press, 0.75HP, 115V 1PH(JDP-15B)

Stock Number: JT9-716200

0 Reviews

No reviews yet.

  • 0.75 HP, 115V, single-phase
  • 15" drilling capacity
  • 3/8 x 24 spindle taper
  • 3-1/8" spindle travel
BUY NOW
Fetching Data...

Product Details

Built for the production drilling that defines repeat parts. The JDP-15B is built for production drilling and tapping work. Equipped with a 0.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and the service network keep production drilling running.

Features

  • Industrial-grade 0.75 HP single-phase drive — running cooler under sustained load than equivalents, built for professional shop floors.
  • 15-inch capacity covers the production hole-making for the hole library production drilling actually faces.
  • 3/8 x 24 spindle taper handles the standard end-mill library for the standard tool-holding interface production shops use.
  • 3-1/8-inch vertical reach handles production milling for the production drilling capacity industrial work demands.
  • 210-3500 RPM envelope provides the speed range for the working envelope production cutting generates.
  • Industrial-grade cast iron table castings deliver rigidity for the operating envelope precision cutting generates.

Specifications

  • SKU
    JT9-716200
  • Assembled Dimensions
    27 x 17 x 43-7/8 in.
  • Base Size
    18 x 11-3/8 in.
  • Chuck Distance to Base
    22-7/8 in.
  • Chuck Distance to Table
    14-1/2 in.
  • Chuck Size
    5/8 in.
  • Distance from Spindle to Base
    26-7/8 in.
  • Drill Capacity (In.)
    5/8 in.
  • Drilling Capacity Mild Steel
    Not Recommended
  • Horse Power
    0.75 HP
  • Input Power
    115 V 1 Ph
  • Maximum Distance Spindle To Table
    18-1/2 in.
  • Model Number
    JDP-15B
  • Motor Amps
    15 A
  • Motor HP
    0.75 HP
  • Motor Phase
    Single
  • Motor Voltage
    115 V
  • Number of Spindle Speeds
    16
  • Old Material Number
    716200
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    1-7/8 in.
  • Range Of Spindle Speeds
    210 - 3500 RPM
  • Recommended Circut Size Amp
    15 A
  • SAP Gross Weight
    165.5
  • SAP Net weight
    154
  • Spindle Distance To Base
    26-3/4 in.
  • Spindle Distance To Table Max
    18-1/2 in.
  • Spindle Speed
    210-3500 RPM
  • Spindle Taper
    MT2
  • Spindle Taper X Tpi
    MT2
  • Spindle Travel
    3-1/8 in.
  • Style Type
    Benchtop
  • Swing
    15 in.

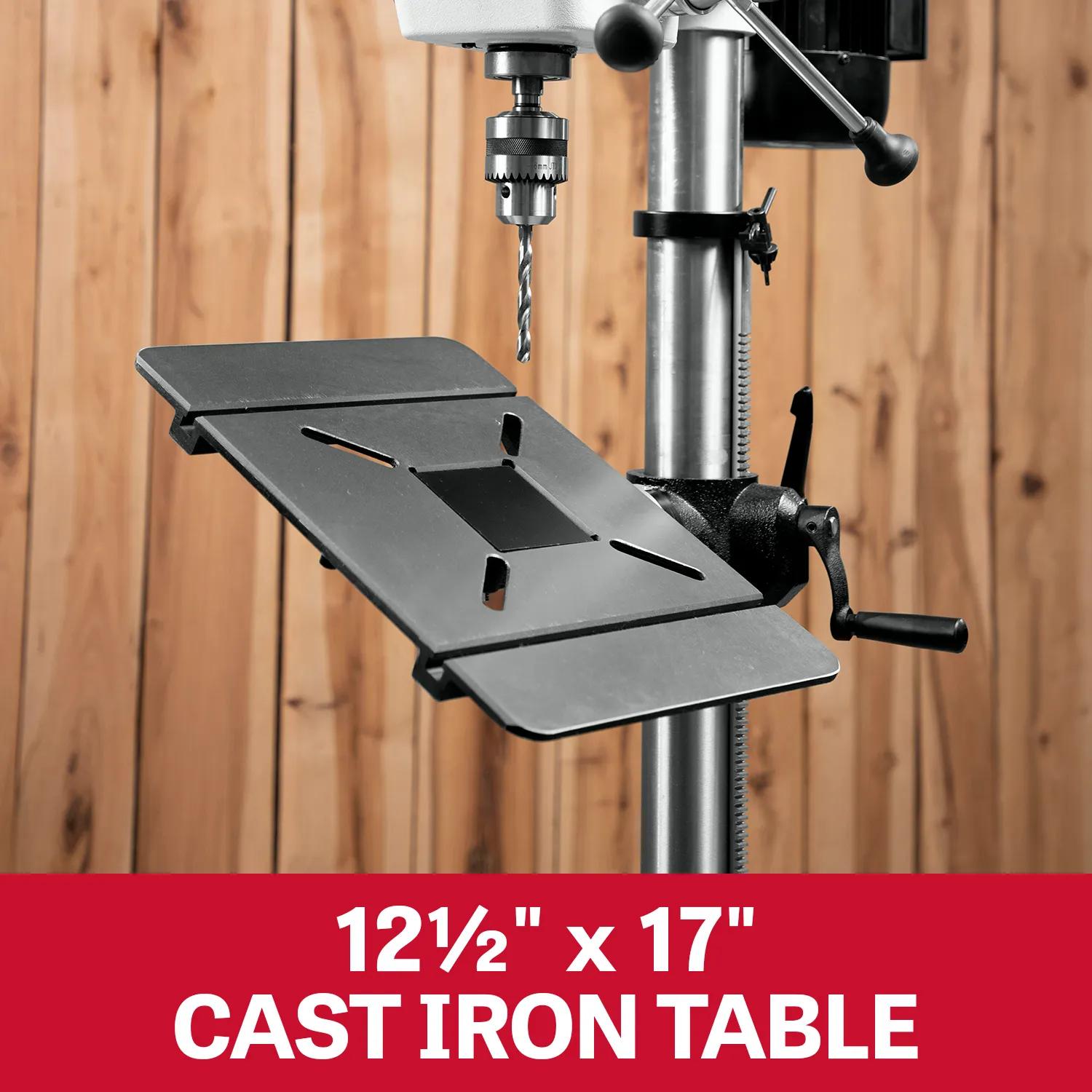

  • Table Size
    12-1/2 x 17 in.

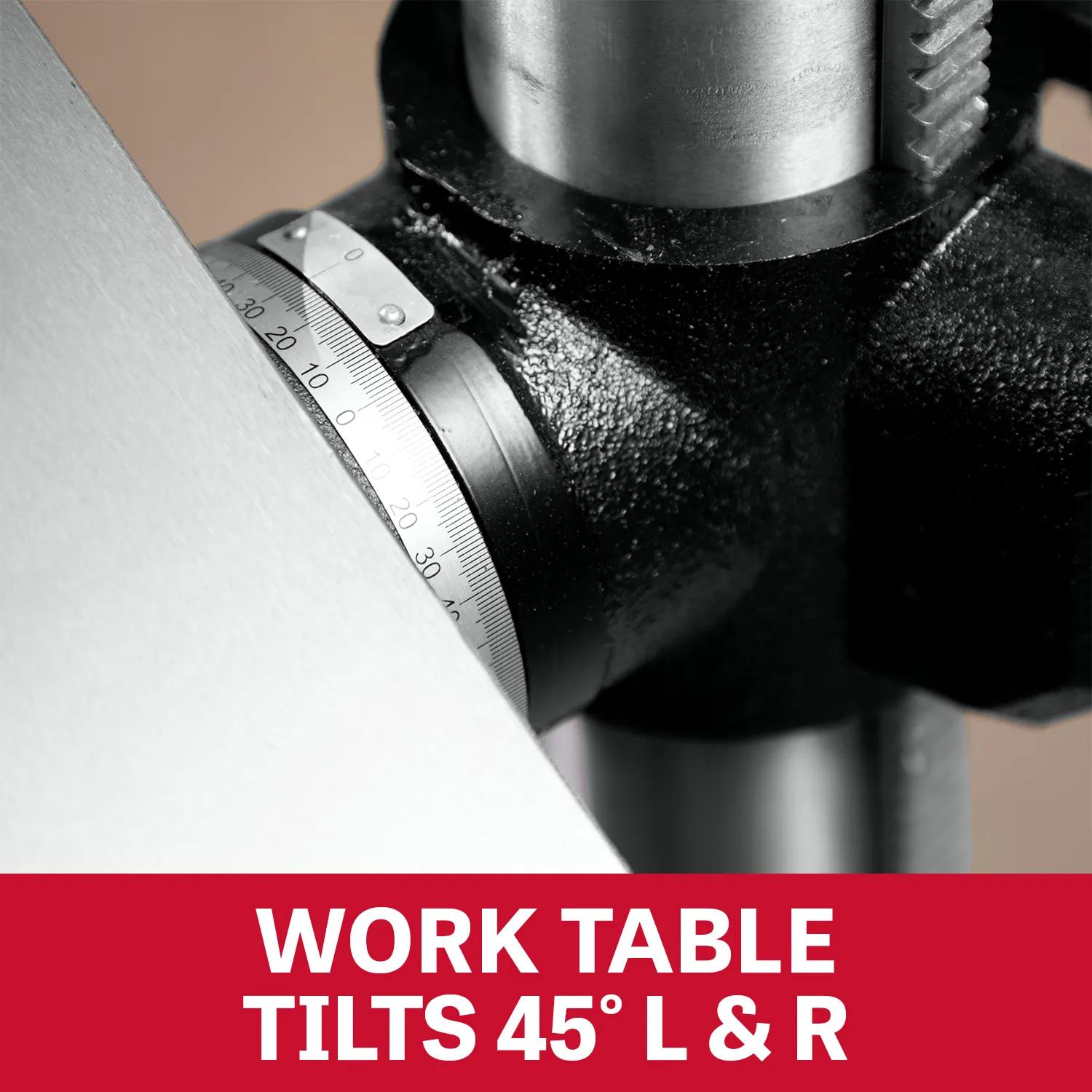

  • Table Tilt (L, R, C)
    Right 45 Deg. / Left 45 Deg.
  • UPC
    731325424263
  • Warranty
    Five Years
