15" FloorStanding Drill Press, 0.75HP, 115V 1PH(JDP-15F)
15" FloorStanding Drill Press, 0.75HP, 115V 1PH(JDP-15F)
15" FloorStanding Drill Press, 0.75HP, 115V 1PH(JDP-15F)
15" FloorStanding Drill Press, 0.75HP, 115V 1PH(JDP-15F)
15" FloorStanding Drill Press, 0.75HP, 115V 1PH(JDP-15F)

15" FloorStanding Drill Press, 0.75HP, 115V 1PH(JDP-15F)

Stock Number: JT9-716250

0 Reviews

No reviews yet.

  • 0.75 HP, 115V, single-phase
  • 15" drilling capacity
  • 3-1/8" spindle travel
BUY NOW
Fetching Data...

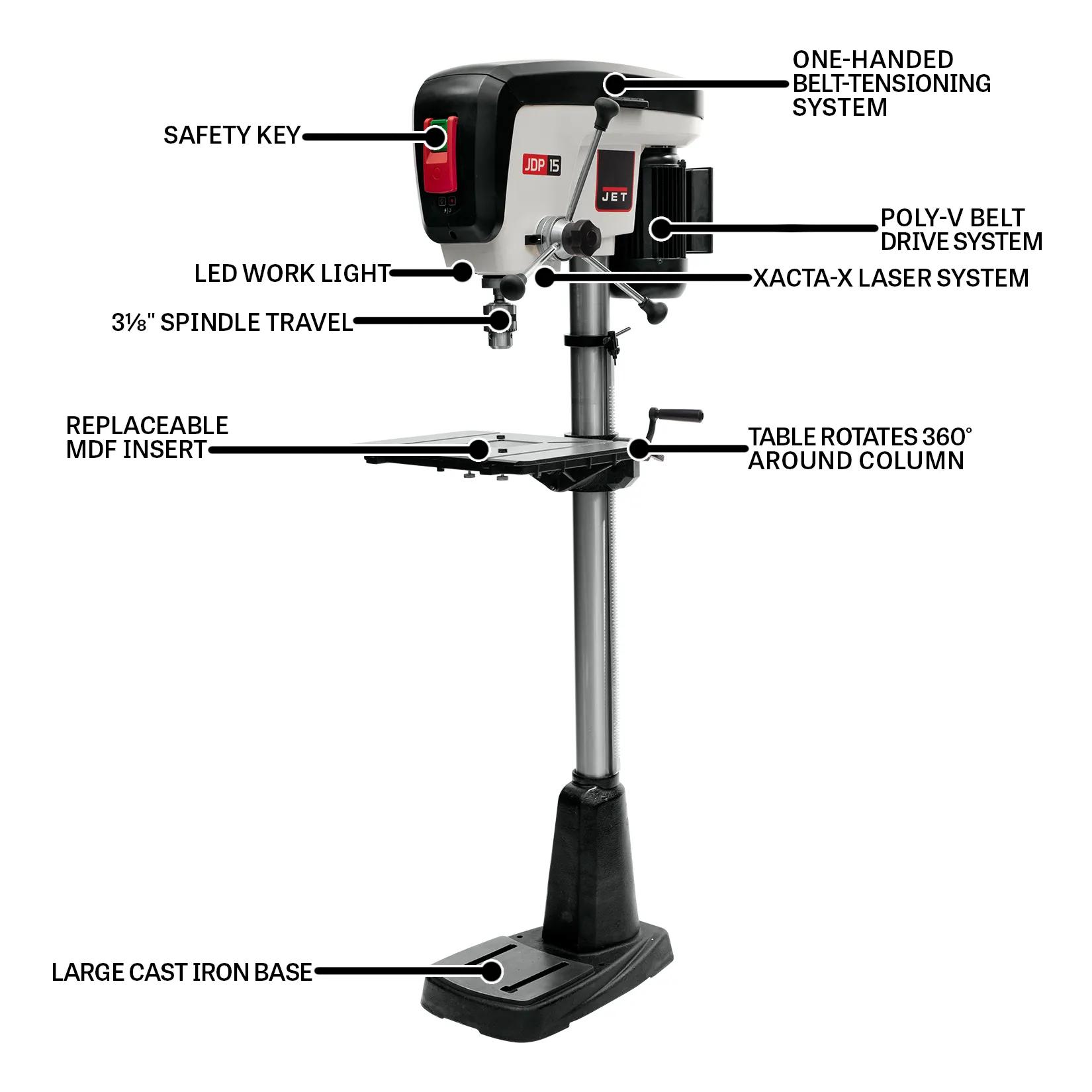

Product Details

Repeatable hole-making, run after run. Engineered around tool-room hole-making and repeat parts production, the JDP-15F earns its place. Equipped with a 0.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade build, industrial-grade warranty.

Features

  • Production-grade 0.75 HP, 115V drive — outlasting brush-driven alternatives across decades.
  • Shop-rated 15-inch drilling envelope — putting production drilling in reach across fabrication and tool-room work.
  • Generous 3-1/8-inch quill travel handles deep-hole and through-hole production work for the vertical envelope production milling targets.
  • Spindle RPM range of 210-3500 matches the cuts for the material library production shops actually run.
  • Industrial cast iron base castings resist deflection for tolerance retention across years of cycles.
  • Heat-treated and surface-ground quill assemblies resist wear across tolerance-grade machining.

Specifications

  • SKU
    JT9-716250
  • Assembled Dimensions
    27 x 17 x 63-7/8 in.
  • Base Size
    18-7/8 x 11-3/8 in.
  • Chuck Distance to Base
    42-1/2 in.
  • Chuck Distance to Table
    25-5/8 in.
  • Chuck Size
    5/8 in.
  • Distance from Spindle to Base
    46-1/2 in.
  • Drill Capacity (In.)
    5/8 in.
  • Drilling Capacity Mild Steel
    Not Recommended
  • Horse Power
    0.75 HP
  • Input Power
    115 V 1 Ph
  • Maximum Distance Spindle To Table
    30-5/8 in.
  • Model Number
    JDP-15F
  • Motor Amps
    15 A
  • Motor HP
    0.75 HP
  • Motor Phase
    Single
  • Motor Voltage
    115 V
  • Number of Spindle Speeds
    16
  • Old Material Number
    716250
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    1-7/8 in.
  • Range Of Spindle Speeds
    210 - 3500 RPM
  • Recommended Circut Size Amp
    15 A
  • SAP Gross Weight
    183
  • SAP Net weight
    172
  • Spindle Distance To Base
    46-1/2 in.
  • Spindle Distance To Table Max
    30-5/8 in.
  • Spindle Speed
    210-3500 RPM
  • Spindle Taper
    MT2
  • Spindle Taper X Tpi
    MT2
  • Spindle Travel
    3-1/8 in.
  • Style Type
    Floor Standing
  • Swing
    15 in.
  • Table Size
    12-1/2 x 17 in.
  • Table Tilt (L, R, C)
    Right 45 Deg. / Left 45 Deg.
  • UPC
    731325424270
  • Warranty
    Five Years
