15" Helical Cutterhead Planer, 3HP, 230V 1PH(JWP-15BHH)

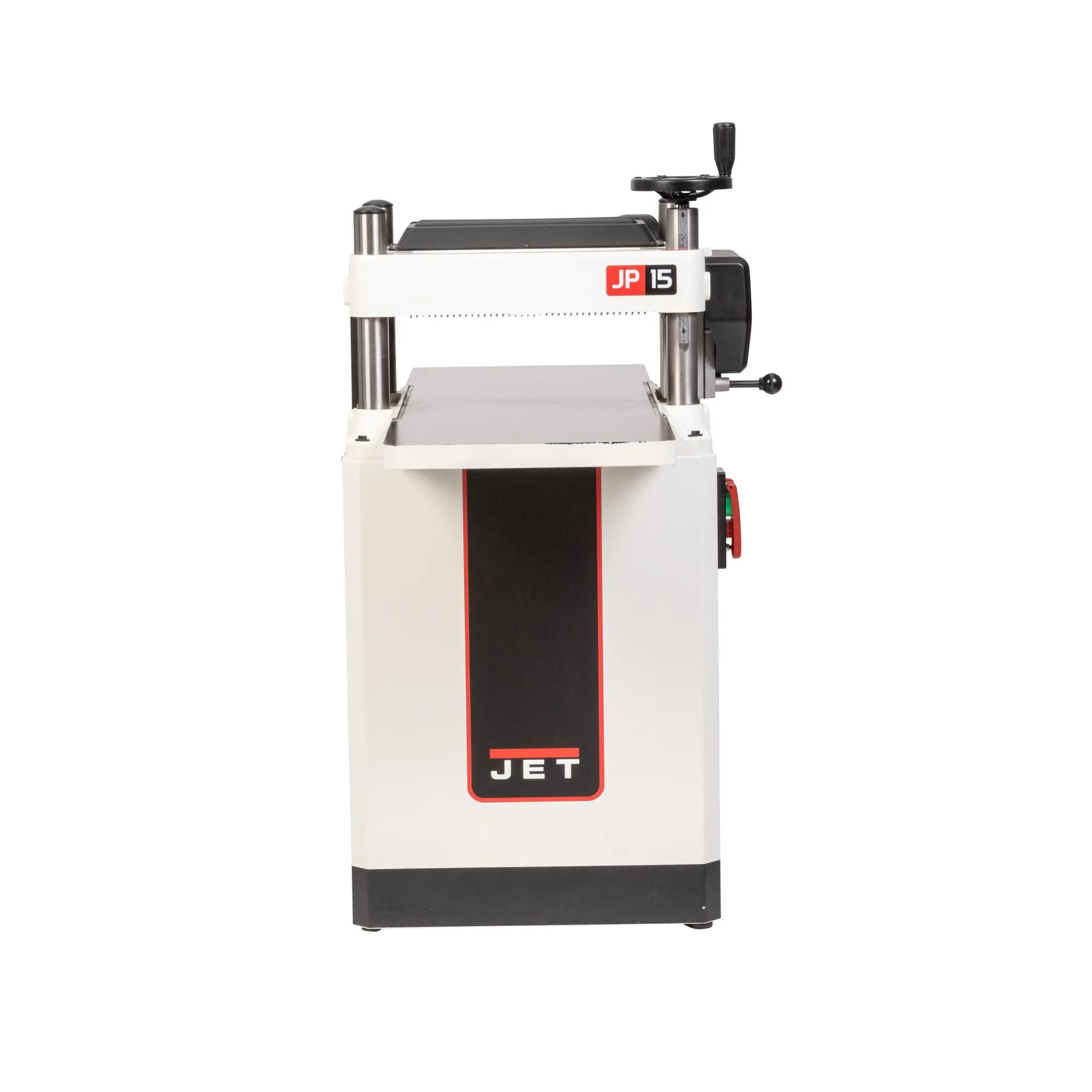

Front View
15" Helical Cutterhead Planer, 3HP, 230V 1PH(JWP-15BHH)
15" Helical Cutterhead Planer, 3HP, 230V 1PH(JWP-15BHH)
15" Helical Cutterhead Planer, 3HP, 230V 1PH(JWP-15BHH)
15" Helical Cutterhead Planer, 3HP, 230V 1PH(JWP-15BHH)
15" Helical Cutterhead Planer, 3HP, 230V 1PH(JWP-15BHH)
15" Helical Cutterhead Planer, 3HP, 230V 1PH(JWP-15BHH)
15" Helical Cutterhead Planer, 3HP, 230V 1PH(JWP-15BHH)
15" Helical Cutterhead Planer, 3HP, 230V 1PH(JWP-15BHH)
15" Helical Cutterhead Planer, 3HP, 230V 1PH(JWP-15BHH)
15" Helical Cutterhead Planer, 3HP, 230V 1PH(JWP-15BHH)

15" Helical Cutterhead Planer, 3HP, 230V 1PH(JWP-15BHH)

Stock Number: JT9-722155

0 Reviews

No reviews yet.

  • 3 HP, 230V, single-phase
  • 15" planing capacity

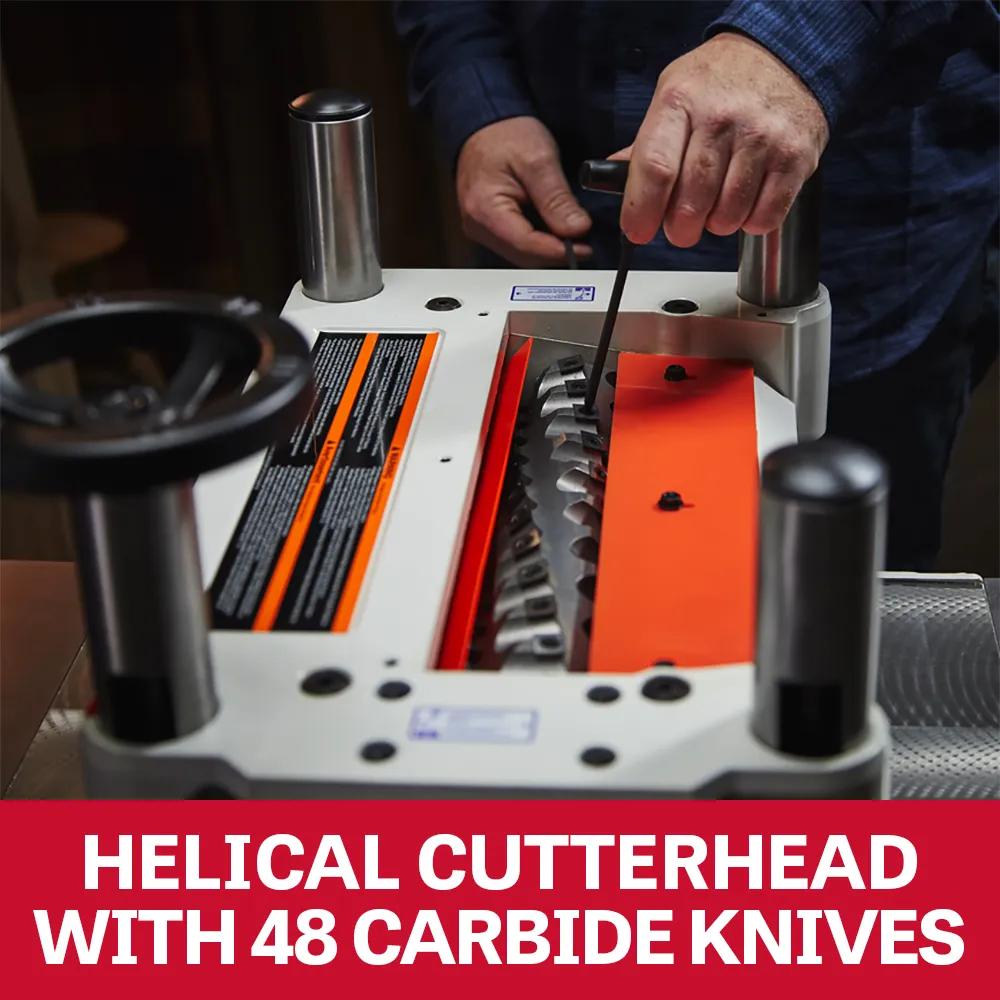

  • 48-knife helical head
  • 5,200 RPM cutterhead
BUY NOW
Fetching Data...

Product Details

Surface quality is decided at the cutterhead — and this one delivers. The JWP-15BHH answers the work generated by production woodworking environments. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for decades of cabinet-grade output.

Features

  • A 48-knife helical head separates a hobby-grade machine from production tools — shearing wood fibers at a slicing angle.
  • 15-inch cutting width matches standard board widths for reducing rip-and-glue operations on full-width panels.
  • Heavy-duty 3 HP induction motor handles working speed under load — delivering production-grade power output.

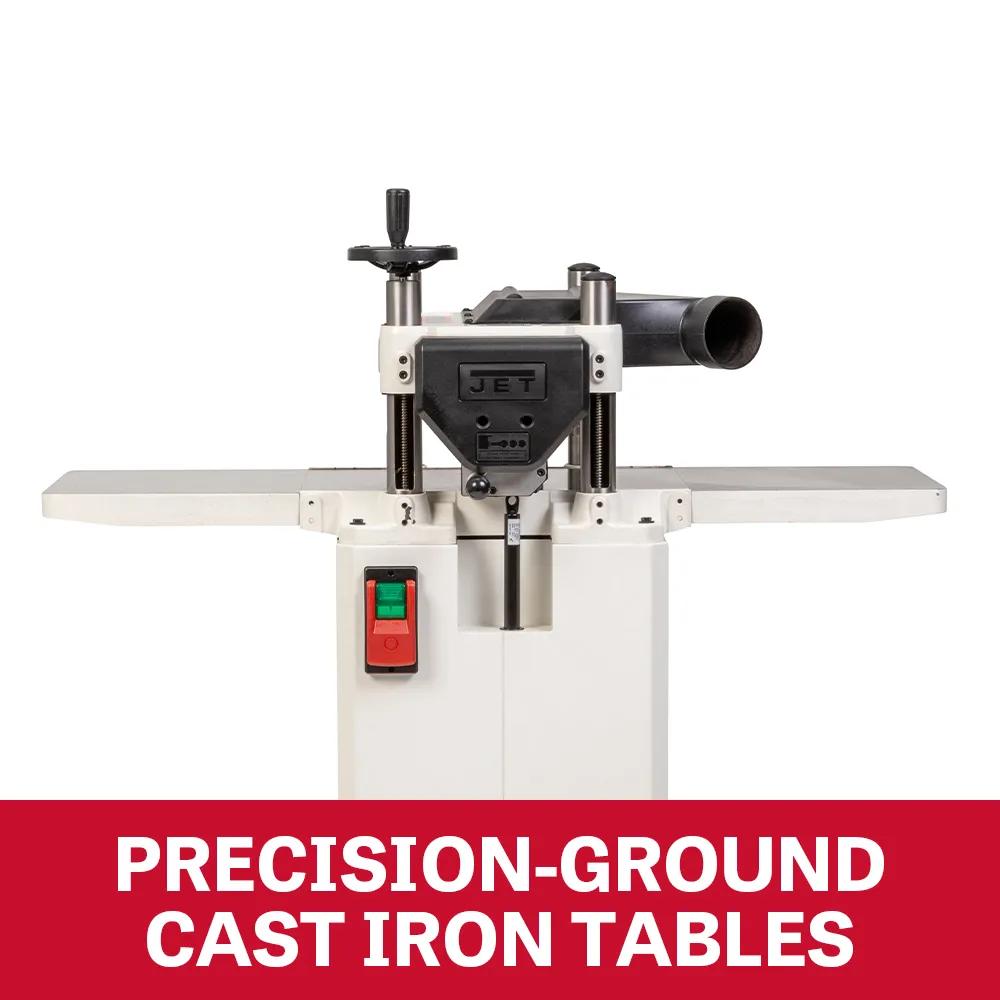

  • Tolerance-grade cast iron reference surfaces dampen harmonics across tolerance-grade cutting.
  • Precision-hardened and ground power-train components hold tolerance — holding feed rates without backlash compensation.
  • Continuous-duty CSA/cUS listing — shipping ready across industrial production environments.

Specifications

  • SKU
    JT9-722155

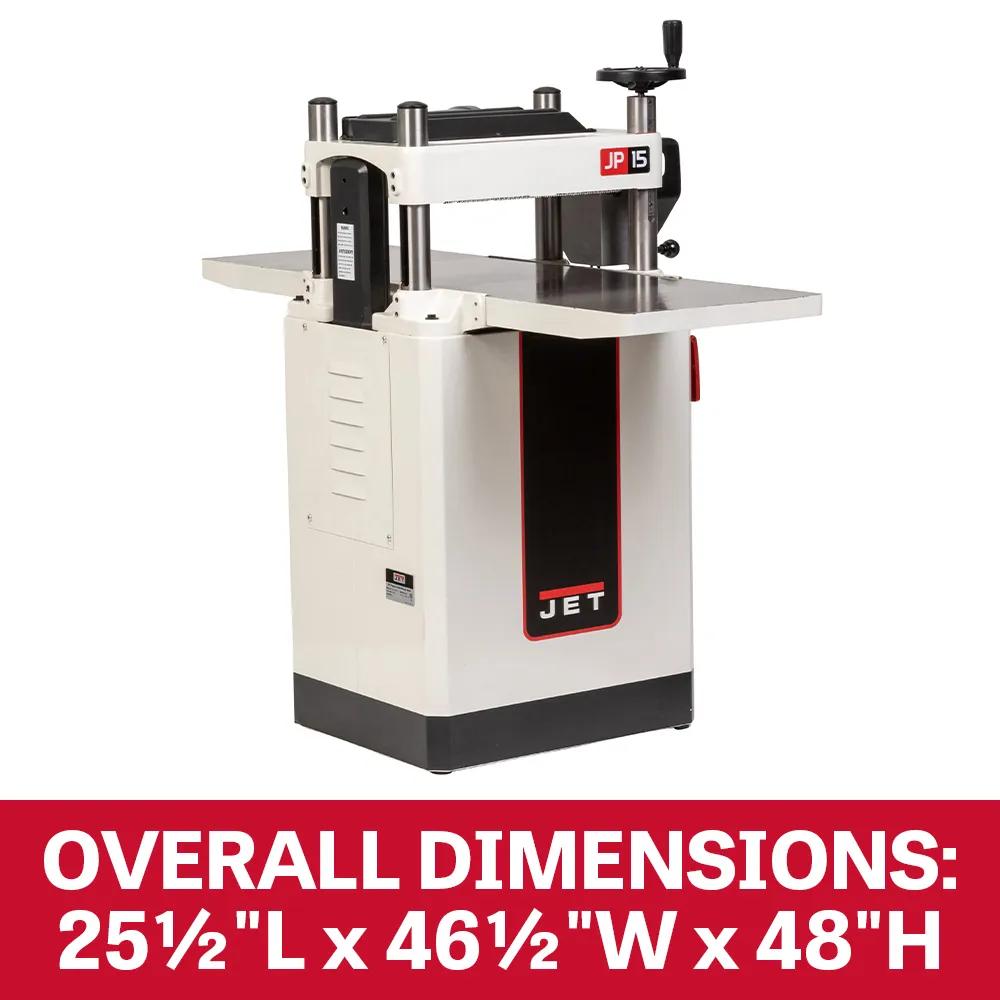

  • Assembled Dimensions
    25.5 x 46.5 x 48 in.
  • Coating
    None
  • Cuts Per Minute
    N/A - Continual
  • Cutterhead Diameter
    2.6 in.
  • Cutterhead Speed
    5200 RPM
  • Cutting Capacity - Width
    6 in.

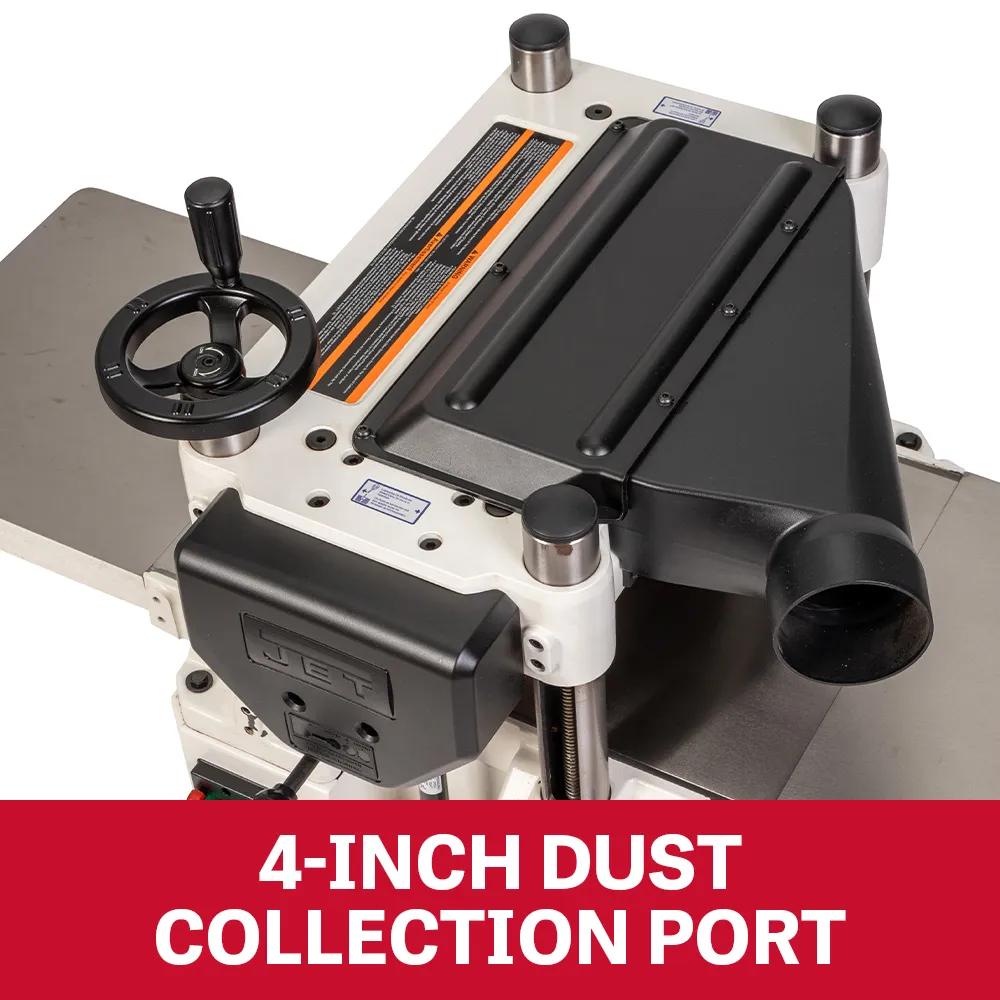

  • Dust Port Outside Diameter
    4 in.

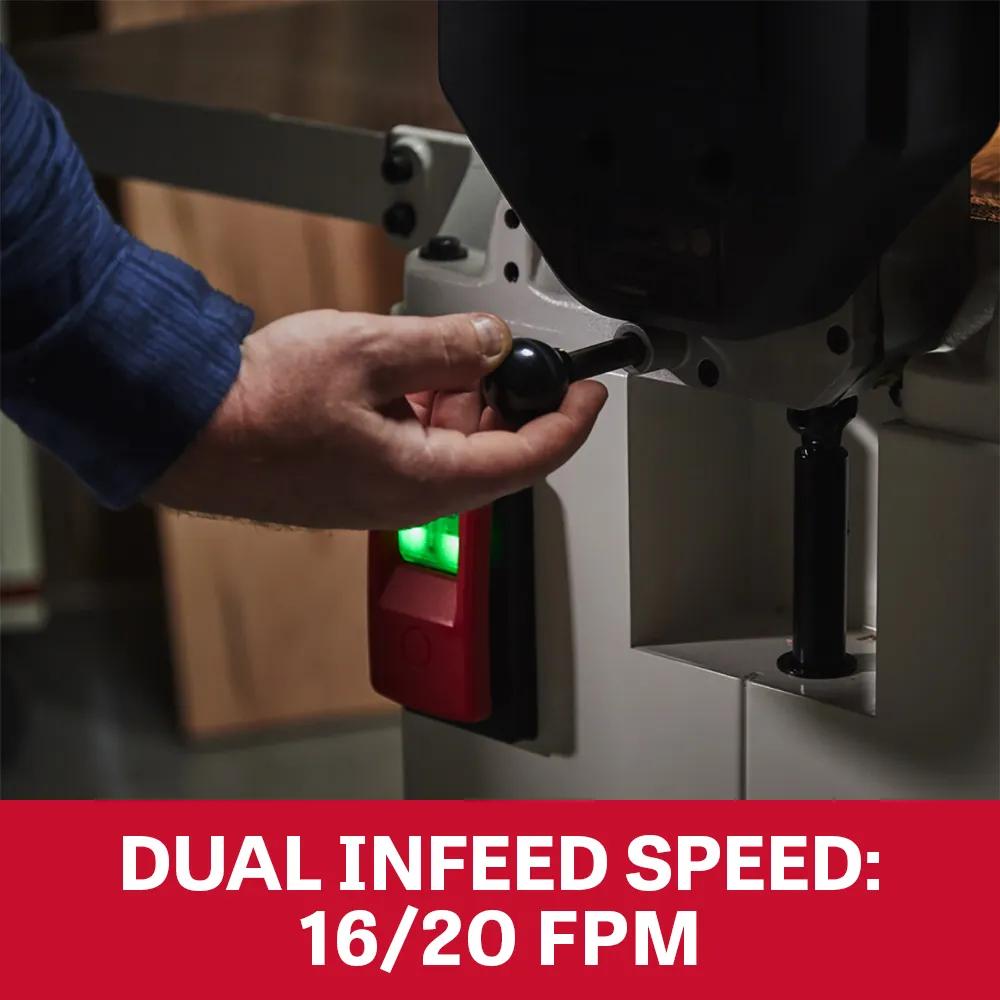

  • Feed Rate
    16/20 FPM
  • Full Width Depth Of Cut
    1/8 in.
  • Height
    48 in.
  • Horse Power
    3 HP
  • Infeed Table Length
    12.375 in.
  • Input Power
    230 V 1 Ph
  • Knife Size
    15 x 15 x 2.5 mm
  • Maximum Board Thickness
    6 in.
  • Maximum Board Width
    15 in.

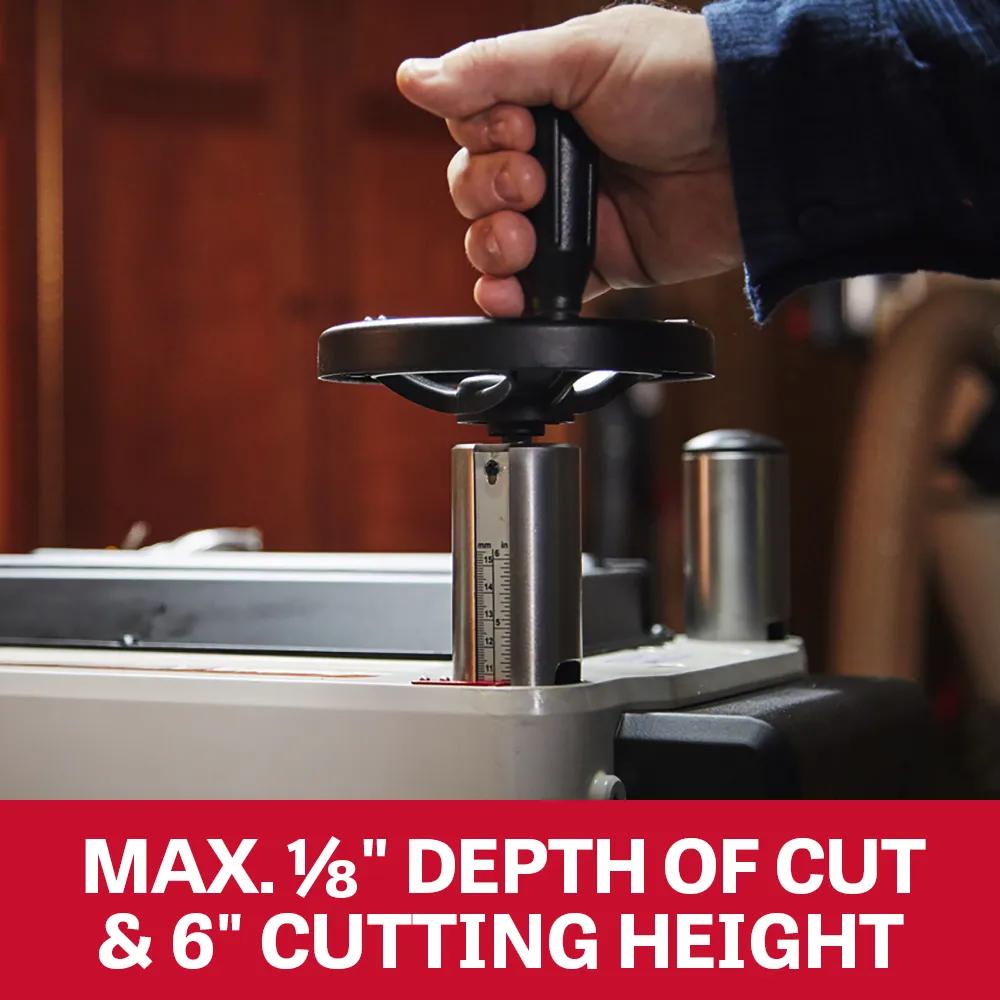

  • Maximum Depth Of Cut
    0.125 in.
  • Minimum Board Length
    5.6 in.
  • Model Number
    JWP-15BHH
  • Motor Amps
    11 A
  • Motor HP
    3 HP
  • Motor Phase
    Single
  • Motor Voltage
    230 V
  • Number of Knives
    48
  • Number of Speeds
    2
  • Old Material Number
    722155
  • Outfeed Table Length
    12.375 in.
  • Prewired Voltage
    230 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    20 A
  • Required Cfm
    600 - 600 CFM
  • SAP Gross Weight
    330.5
  • SAP Net weight
    286
  • Style Type
    Floor Standing
  • Table Height
    Manually Adjusted
  • Table Size
    15 x 46.5 in.
  • Table Support
    4 Column
  • Type of Cutterhead
    Helical Head
  • UPC
    731325762365
  • Warranty
    Five Years
