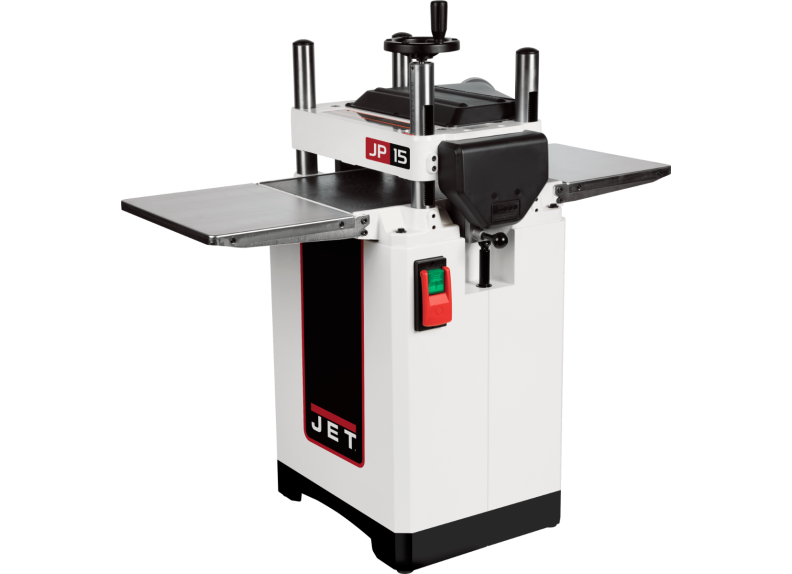

15" Straight Knife Planer, 3HP, 230V 1PH(JWP-15B)
15" Straight Knife Planer, 3HP, 230V 1PH(JWP-15B)
15" Straight Knife Planer, 3HP, 230V 1PH(JWP-15B)
15" Straight Knife Planer, 3HP, 230V 1PH(JWP-15B)
15" Straight Knife Planer, 3HP, 230V 1PH(JWP-15B)
15" Straight Knife Planer, 3HP, 230V 1PH(JWP-15B)
15" Straight Knife Planer, 3HP, 230V 1PH(JWP-15B)
15" Straight Knife Planer, 3HP, 230V 1PH(JWP-15B)

15" Straight Knife Planer, 3HP, 230V 1PH(JWP-15B)

Stock Number: JT9-722150

0 Reviews

No reviews yet.

  • 3 HP, 230V, single-phase
  • 15" planing capacity
  • 3-knife cutterhead
  • 5,200 RPM cutterhead
BUY NOW
Fetching Data...

Product Details

From rough-sawn to ready-to-glue, in one pass. Engineered around cabinet and furniture makers running daily, the JWP-15B earns its place. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by the JET warranty.

Features

  • 15-inch planing width expands the working envelope for production-grade planing capacity.
  • Sealed 3 HP induction motor protects against the dust, chips, and humidity of manufacturing cells.

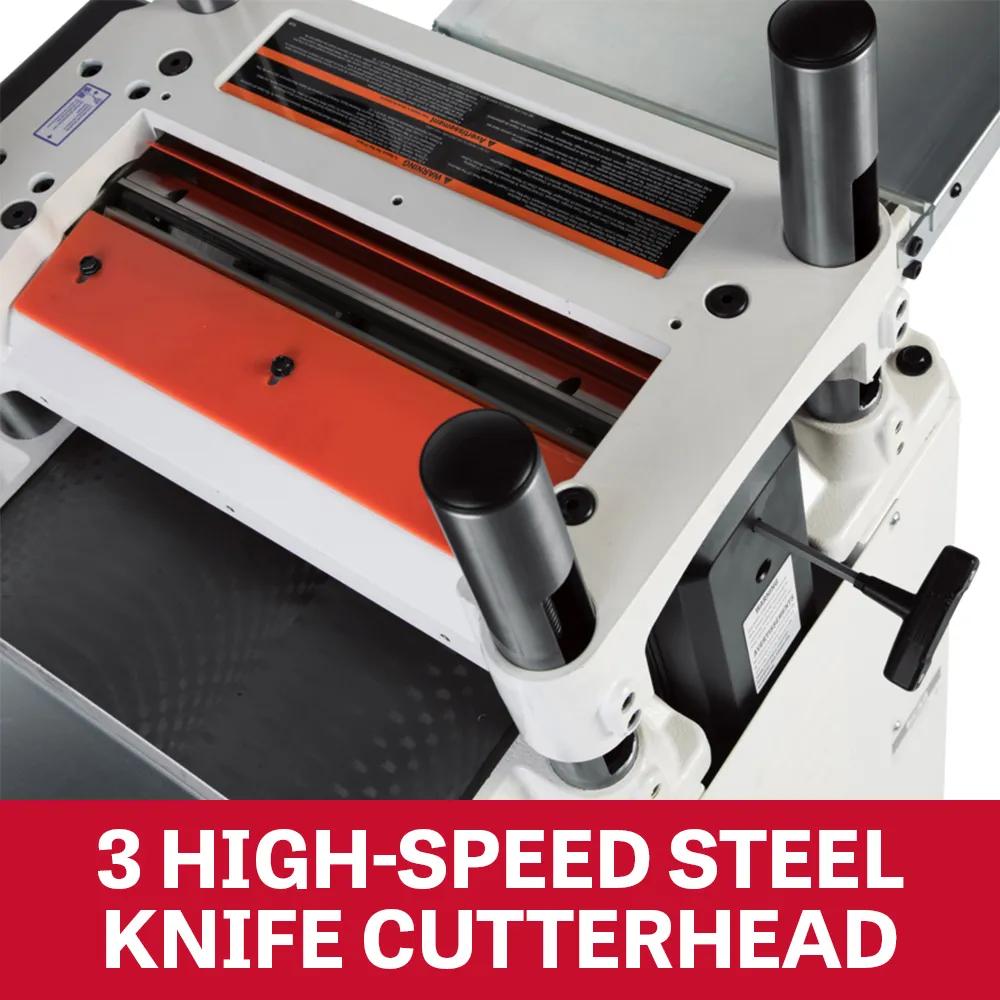

  • Industrial-grade 3-knife straight cutterhead delivers traditional cutting performance for consistent results across hardwoods and softwoods alike.
  • Cast iron tables hold reference flat for dimensional stability under sustained cutting loads.
  • Heat-treated, ground, and matched drive gears run as a precision system across precision production work.
  • Heavy-duty CSA/cUS listing — simplifying safety compliance across facility safety inspections.

Specifications

  • SKU
    JT9-722150
  • Assembled Dimensions
    25.5 x 46.5 x 48 in.
  • Coating
    None
  • Cuts Per Minute
    15600
  • Cutterhead Diameter
    2.6 in.
  • Cutterhead Speed
    5200 RPM
  • Cutting Capacity - Width
    6 in.
  • Dust Port Outside Diameter
    4 in.

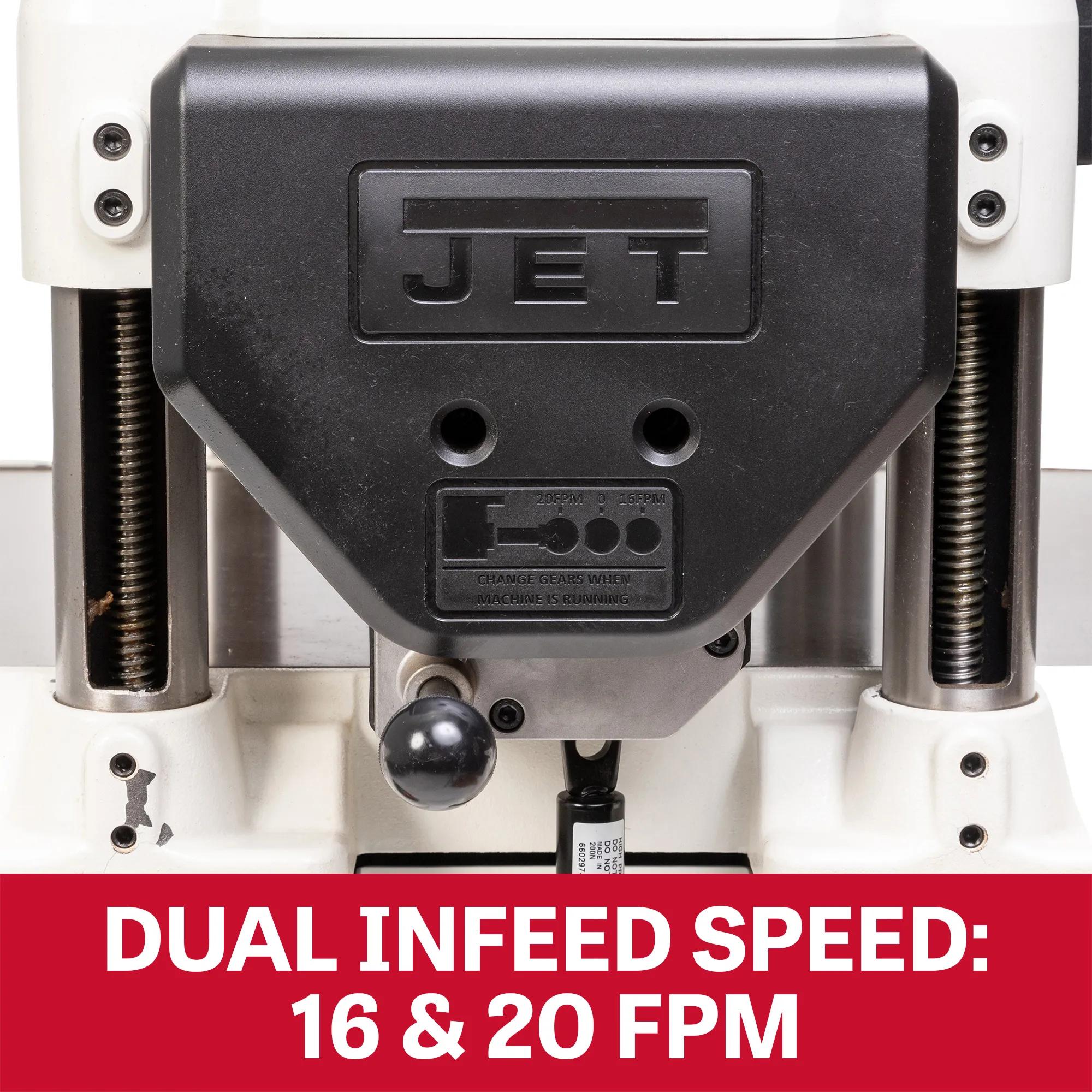

  • Feed Rate
    16/20 FPM
  • Full Width Depth Of Cut
    1/8 in.
  • Height
    48 in.
  • Horse Power
    3 HP
  • Infeed Table Length
    12.375 in.
  • Input Power
    230 V 1 Ph
  • Maximum Board Thickness
    6 in.
  • Maximum Board Width
    15 in.

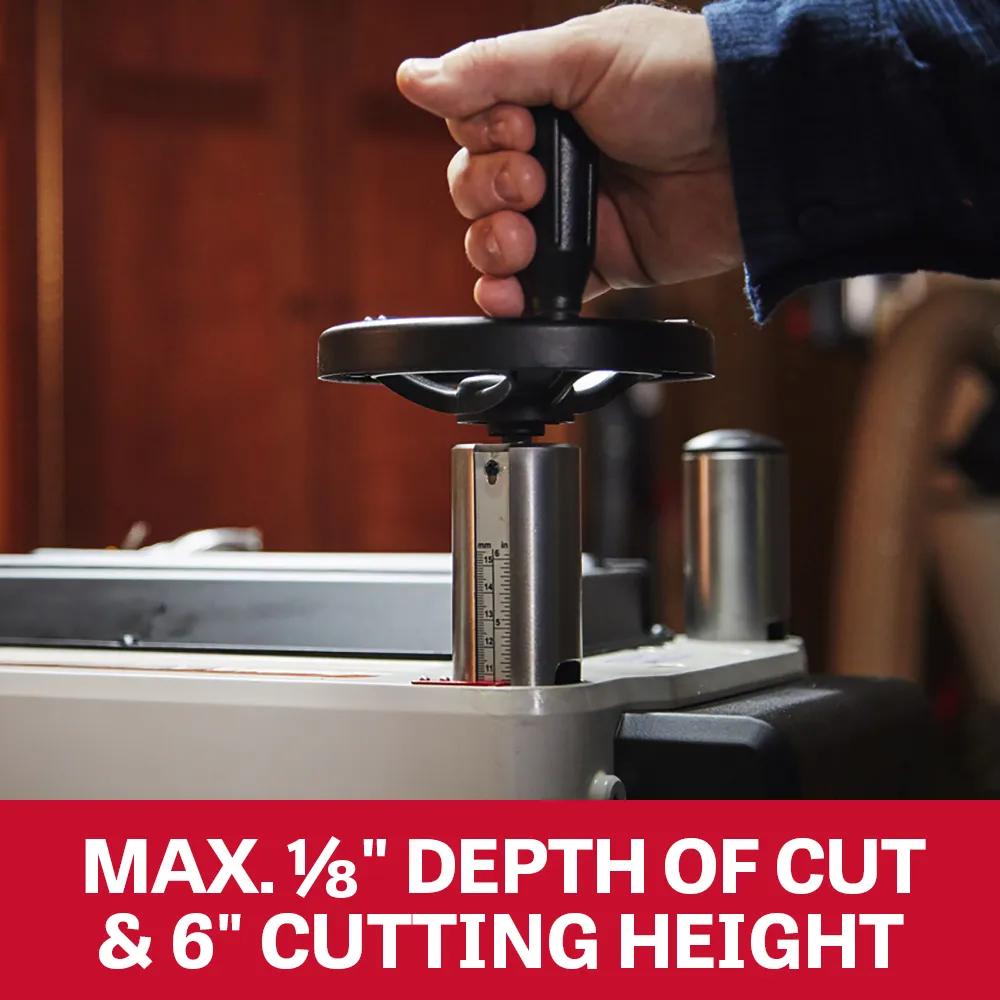

  • Maximum Depth Of Cut
    0.125 in.
  • Minimum Board Length
    5.6 in.
  • Model Number
    JWP-15B
  • Motor Amps
    11 A
  • Motor HP
    3 HP
  • Motor Phase
    Single
  • Motor Voltage
    230 V
  • Number of Knives
    3
  • Number of Speeds
    2
  • Old Material Number
    722150
  • Outfeed Table Length
    12.375 in.
  • Prewired Voltage
    230 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    20 A
  • Required Cfm
    600 - 600 CFM
  • SAP Gross Weight
    313.5
  • SAP Net weight
    253
  • Style Type
    Floor Standing
  • Table Height
    Manually Adjusted
  • Table Size
    15 x 21.45 in.
  • Table Support
    4 Column
  • Type of Cutterhead
    Straight Knife
  • UPC
    731325762358
  • Warranty
    Five Years
