16-1/2" Drill Press, 0.75HP, 115/230V 1PH(JDP-17MF)
16-1/2" Drill Press, 0.75HP, 115/230V 1PH(JDP-17MF)
16-1/2" Drill Press, 0.75HP, 115/230V 1PH(JDP-17MF)
16-1/2" Drill Press, 0.75HP, 115/230V 1PH(JDP-17MF)
16-1/2" Drill Press, 0.75HP, 115/230V 1PH(JDP-17MF)
16-1/2" Drill Press, 0.75HP, 115/230V 1PH(JDP-17MF)

16-1/2" Drill Press, 0.75HP, 115/230V 1PH(JDP-17MF)

Stock Number: JT9-354169

0 Reviews

No reviews yet.

  • 0.75 HP, 115/230V, single-phase
  • 16-1/2" drilling capacity
  • MT-2 spindle taper
  • 4-3/8" spindle travel
BUY NOW

Product Details

From small-shop hole-making to tool-room precision. The JDP-17MF fits shops where drilling capacity meets daily duty cycles — and the cycle counts they generate. Equipped with a 0.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and the service network keep production drilling running.

Features

  • 0.75 HP, 115/230V single-phase induction motor — running at nameplate output, sized for the duty cycles production schedules generate.
  • 16-1/2-inch capacity covers the hole sizes for the hole library production drilling actually faces.
  • Industrial-grade MT-2 spindle interface — delivering the standard interface production milling expects.
  • Generous 4-3/8-inch quill travel handles deep-hole and through-hole production work for the depth-of-cut production schedules generate.

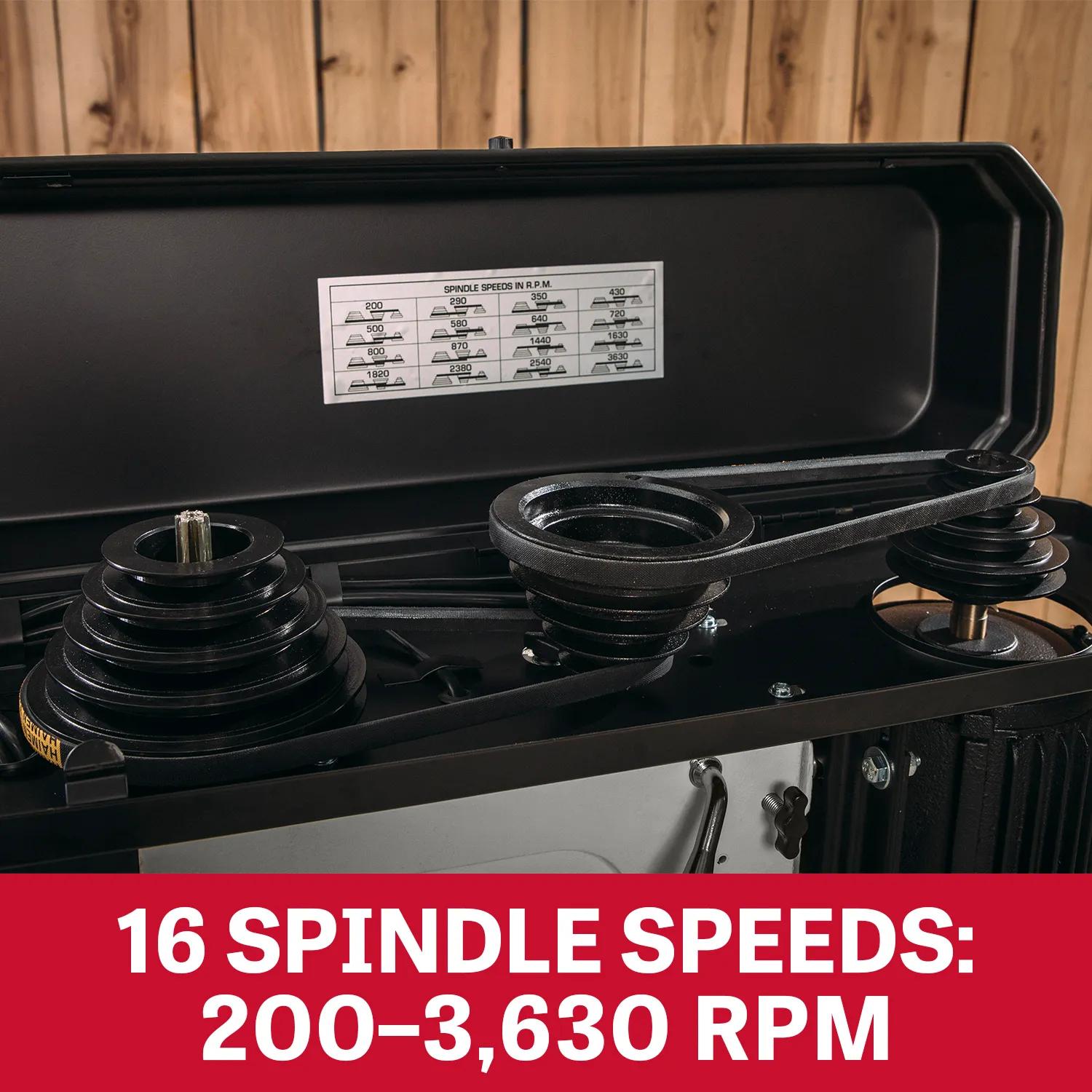

  • Production-grade 200-3,630 RPM range — delivering operator-side speed control.
  • Solid cast iron column castings weigh in where stability counts most across professional shop floors.

Specifications

  • SKU
    JT9-354169
  • Assembled Dimensions
    12-1/2 x 19-5/8 x 66 in.
  • Base Size
    12-1/2 x 19-5/8 in.
  • Chuck Size
    5/8 in.
  • Distance from Spindle to Base
    49 in.
  • Drill Capacity (In.)
    5/8 in.
  • Drilling Capacity Mild Steel
    5/8 in.
  • Input Power
    115/230 V 1 Ph
  • Maximum Distance Spindle To Table
    29-1/8 in.
  • Model Number
    JDP-17MF
  • Motor Amps
    9 A
  • Motor HP
    0.75 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
  • Number of Spindle Speeds
    16
  • Old Material Number
    354169
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    2 in.
  • Range Of Spindle Speeds
    200 - 3630 RPM
  • Recommended Circut Size Amp
    15 A
  • SAP Gross Weight
    209
  • SAP Net weight
    209
  • Spindle Distance To Base
    49 in.
  • Spindle Distance To Table Max
    29-1/8 in.
  • Spindle Speed
    200-3630 RPM
  • Spindle Taper
    MT2
  • Spindle Taper X Tpi
    MT2
  • Spindle Travel
    4-3/8 in.
  • Style Type
    Floor standing Model

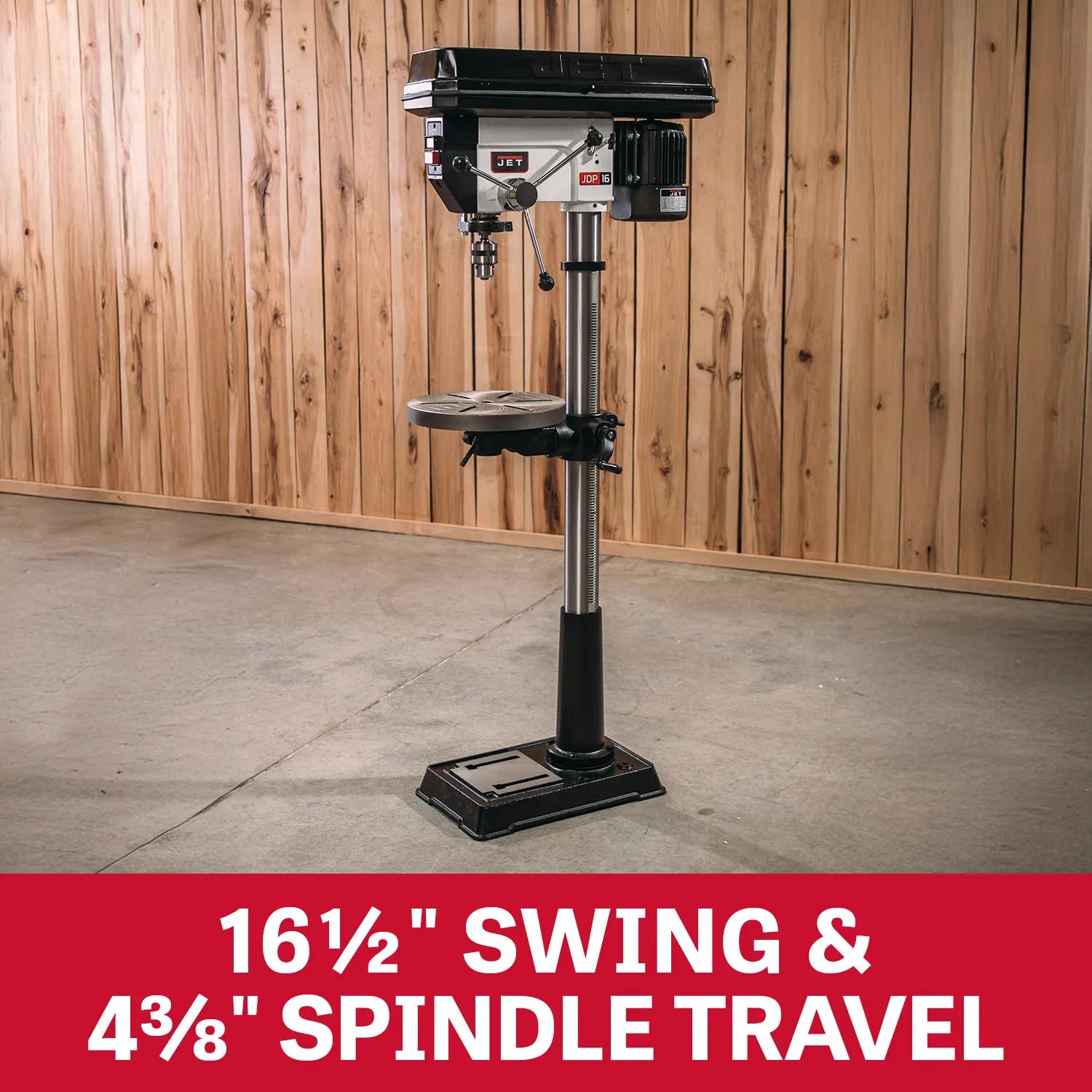

  • Swing
    16-1/2 in.

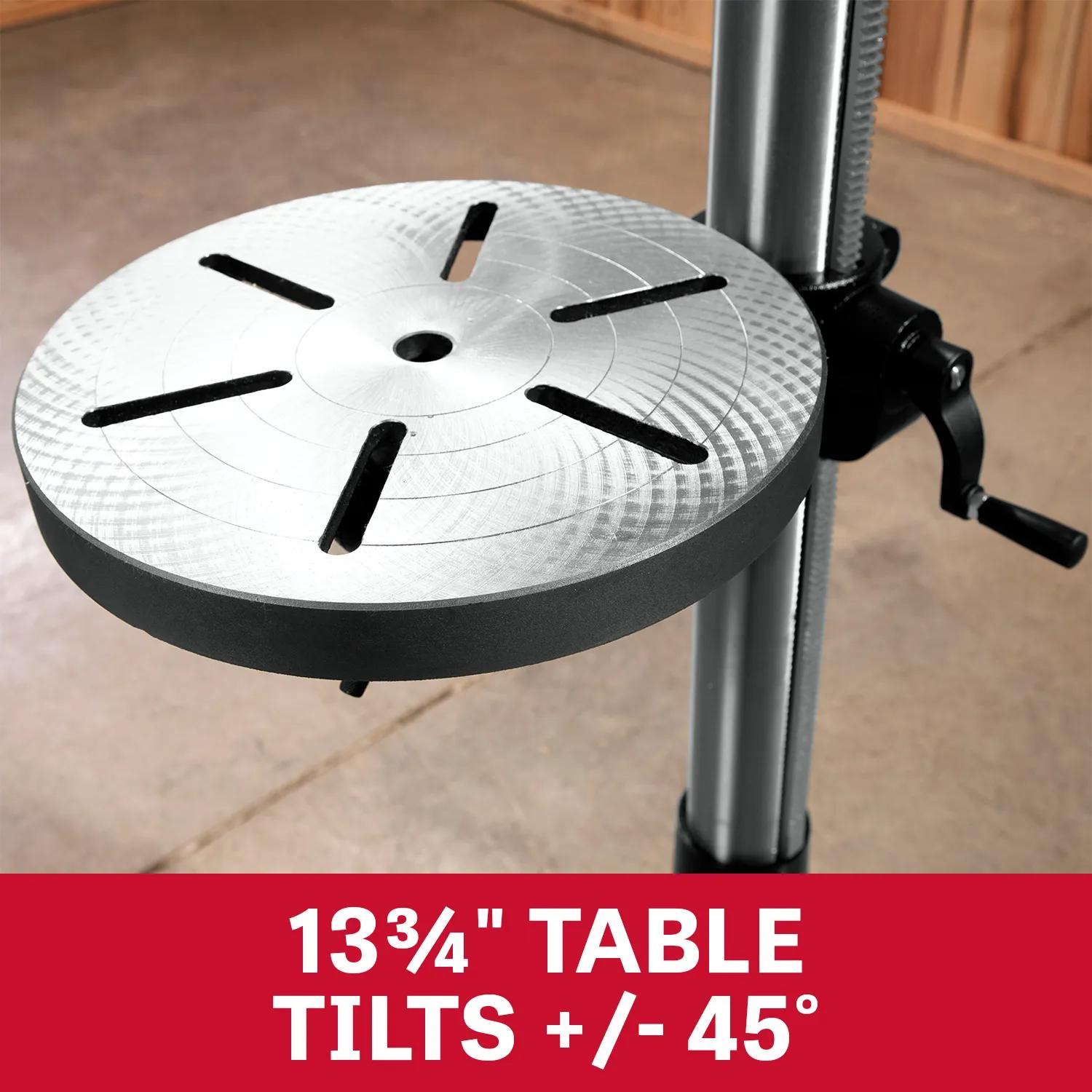

  • Table Size
    13-3/4 in. Diameter
  • Table Tilt (L, R, C)
    Right 45 Deg. / Left 45 Deg.
  • UPC
    662755104114
  • Warranty
    Five Years
