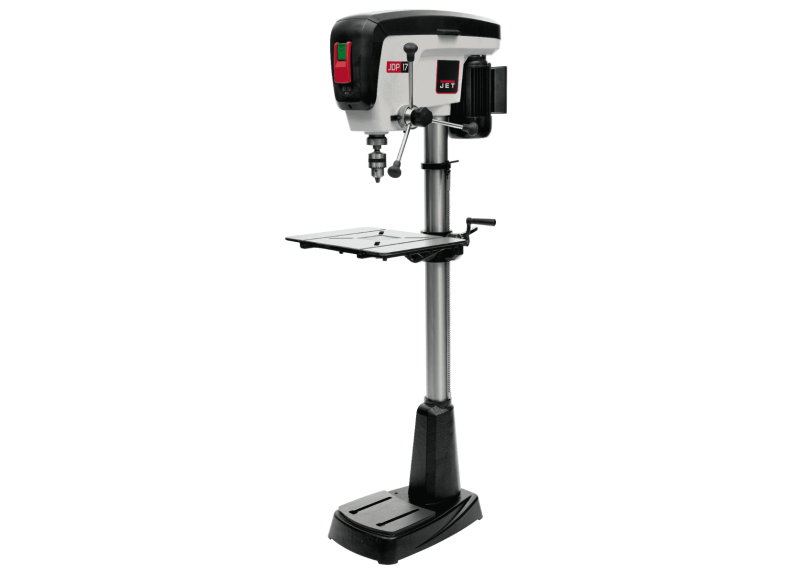

17" Drill Press, 0.75HP, 115V 1PH(JDP-17)
17" Drill Press, 0.75HP, 115V 1PH(JDP-17)
17" Drill Press, 0.75HP, 115V 1PH(JDP-17)
17" Drill Press, 0.75HP, 115V 1PH(JDP-17)
17" Drill Press, 0.75HP, 115V 1PH(JDP-17)
17" Drill Press, 0.75HP, 115V 1PH(JDP-17)
17" Drill Press, 0.75HP, 115V 1PH(JDP-17)
17" Drill Press, 0.75HP, 115V 1PH(JDP-17)

17" Drill Press, 0.75HP, 115V 1PH(JDP-17)

Stock Number: JT9-716300

0 Reviews

No reviews yet.

  • 0.75 HP, 115V, single-phase
  • 17" drilling capacity
  • MT-2 spindle taper
  • 5" spindle travel
BUY NOW
Fetching Data...

Product Details

Built for the production drilling that defines repeat parts. Built around industrial drilling environments running through-hole and deep-hole work, the JDP-17 delivers production-grade results. Equipped with a 0.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and the service network keep production drilling running.

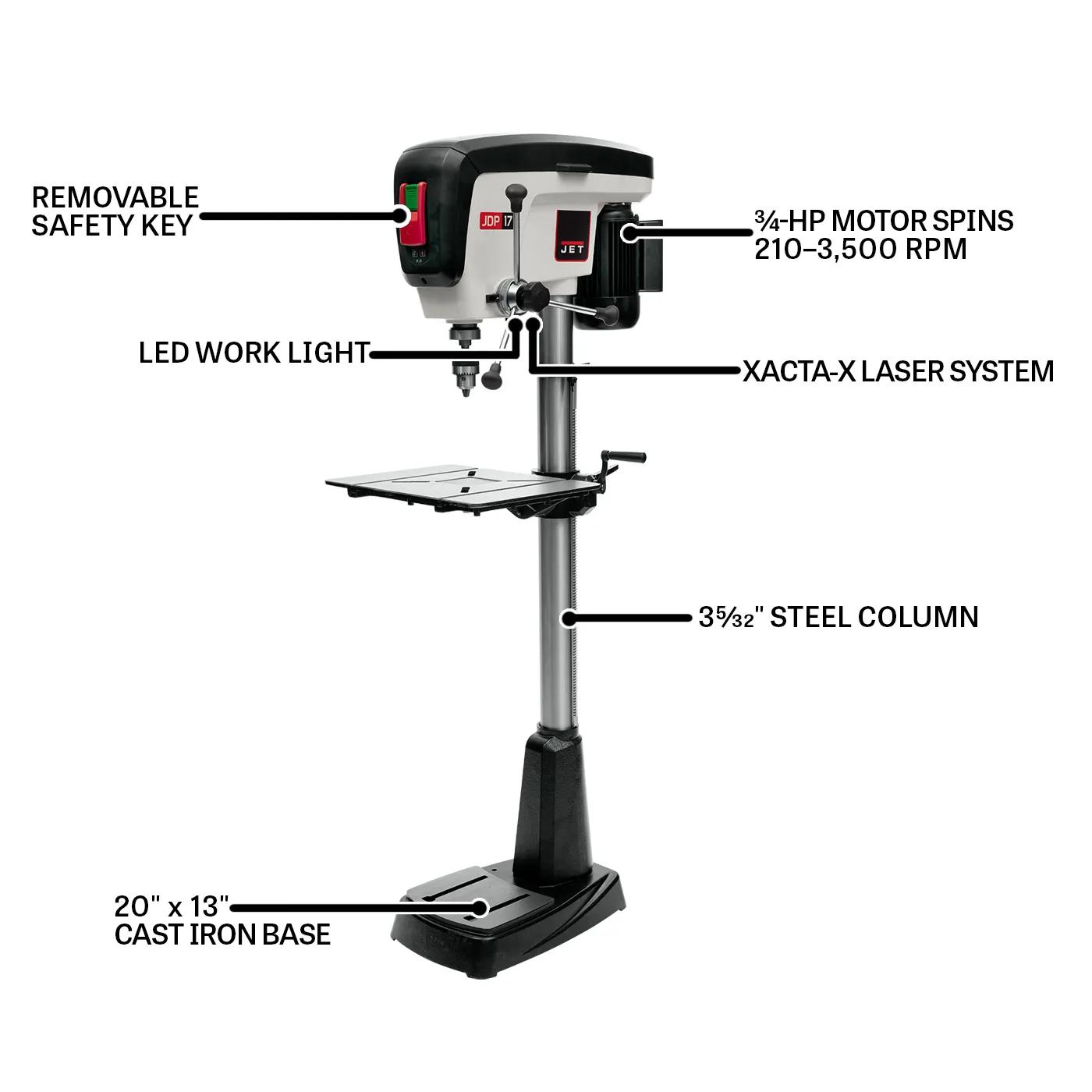

Features

  • Continuous-duty 0.75 HP induction drive — transmitting power without the maintenance brush-motor designs require.
  • 17-inch drilling capacity handles the production hole-making for the hole library production drilling actually faces.
  • Engineered MT-2 spindle interface — delivering the standard interface production milling expects.
  • Industrial-spec 5-inch spindle travel — expanding the operating envelope without compromise across industrial drilling.
  • Wide 210-3500 RPM range — delivering the speed envelope production cutting demands.
  • Vibration-dampening cast iron head castings keep finish quality consistent for the structural stability shop work demands.

Specifications

  • SKU
    JT9-716300
  • Assembled Dimensions
    28-1/2 x 19 x 66 in.
  • Base Size
    20 x 13 in.
  • Chuck Distance to Base
    42-1/2 in.
  • Chuck Distance to Table
    25-1/4 in.
  • Chuck Size
    5/8 in.
  • Distance from Spindle to Base
    46-1/2 in.
  • Drill Capacity (In.)
    5/8 in.
  • Drilling Capacity Mild Steel
    Not Recommended
  • Horse Power
    0.75 HP
  • Input Power
    115 V 1 Ph
  • Maximum Distance Spindle To Table
    30 in.
  • Model Number
    JDP-17
  • Motor Amps
    15 A
  • Motor HP
    0.75 HP
  • Motor Phase
    Single
  • Motor Voltage
    115 V
  • Number of Spindle Speeds
    16
  • Old Material Number
    716300
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    2 in.
  • Range Of Spindle Speeds
    210 - 3500 RPM
  • Recommended Circut Size Amp
    15 A
  • SAP Gross Weight
    198
  • SAP Net weight
    187
  • Spindle Distance To Base
    46-1/2 in.
  • Spindle Distance To Table Max
    30 in.
  • Spindle Speed
    210-3500 RPM
  • Spindle Taper
    MT2
  • Spindle Taper X Tpi
    MT2
  • Spindle Travel
    5 in.
  • Style Type
    Floor Standing
  • Swing
    16-7/8 in.

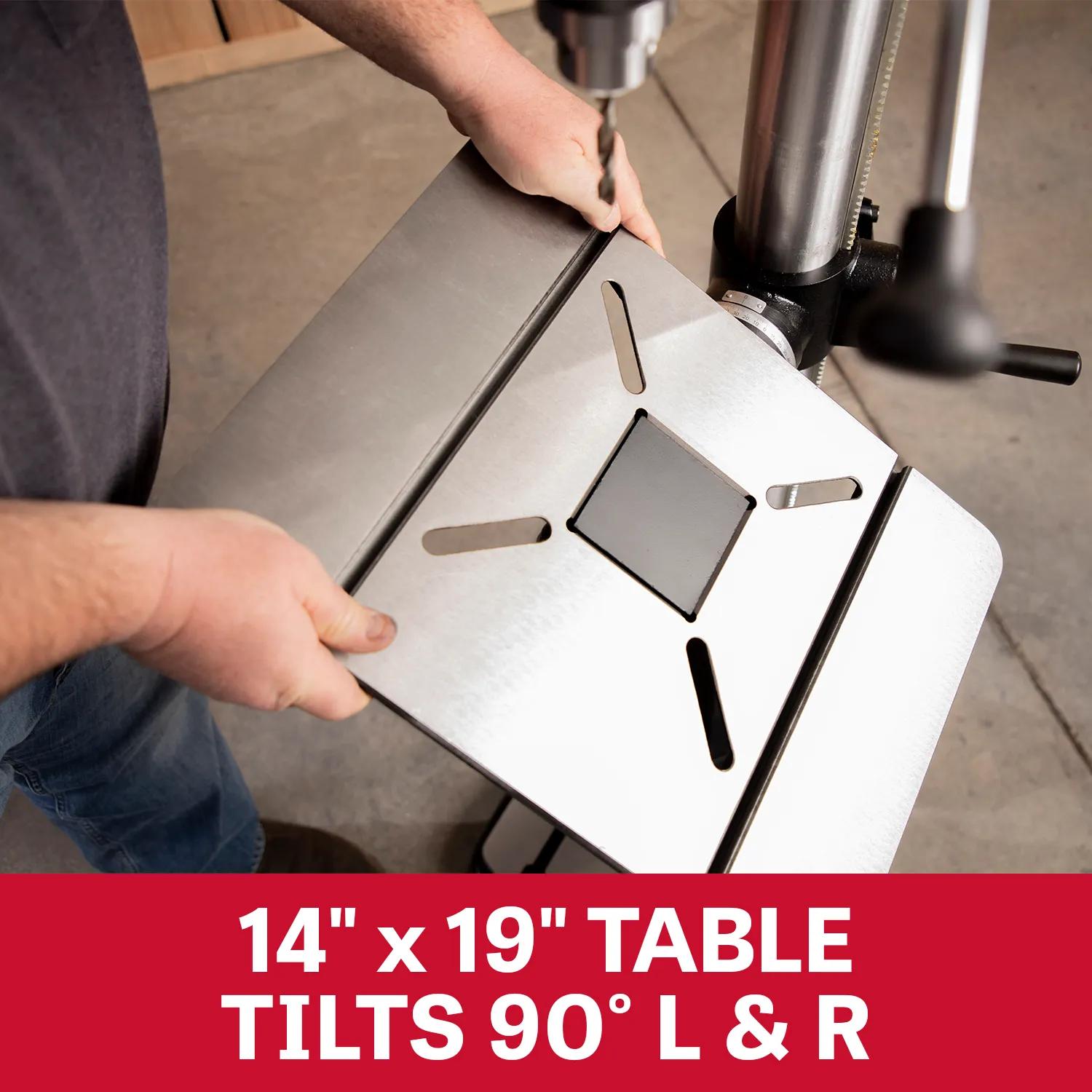

  • Table Size
    19 x 14 in.
  • Table Tilt (L, R, C)
    Right 90 Deg. / Left 90 Deg.
  • UPC
    731325340013
  • Warranty
    Five Years
