Product Details
Engineered for clean cuts across hardwoods, softwoods, and metal stock. Designed for fabrication shops running daily cuts, the JWBS-18SFX-3 stands up to the duty cycle. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage stands behind every cut.
Features
- Premium-grade 3 HP motor with sealed bearings — standing up to the dust, chips, and humidity of working shops across production cutting.
- 3100 FPM cutting speed — covering the material library production sawing runs across fabrication shops.
- Continuous-duty saw frame provides blade alignment for blade alignment under sustained cutting.
- Precision table tilt mechanism delivers angle accuracy for miter-and-bevel work in one setup.
- Working-grade cutting envelope delivers workpiece sizes for the stock library production fabrication actually generates.
- Cast iron support castings support the structural mass for the structural authority production work demands.
Specifications
- SKUJT1-548
- Assembled Dimensions34-1/4 x 38 x 79-1/4 in.
- Base Size28-3/4 x 18-3/8 in.
- Blade Diameter18-1/2 in.
- Blade Length150 in.
- Blade Size (In.)18-1/2 in.
- Blade Speed3100 FPM
- CoatingNone

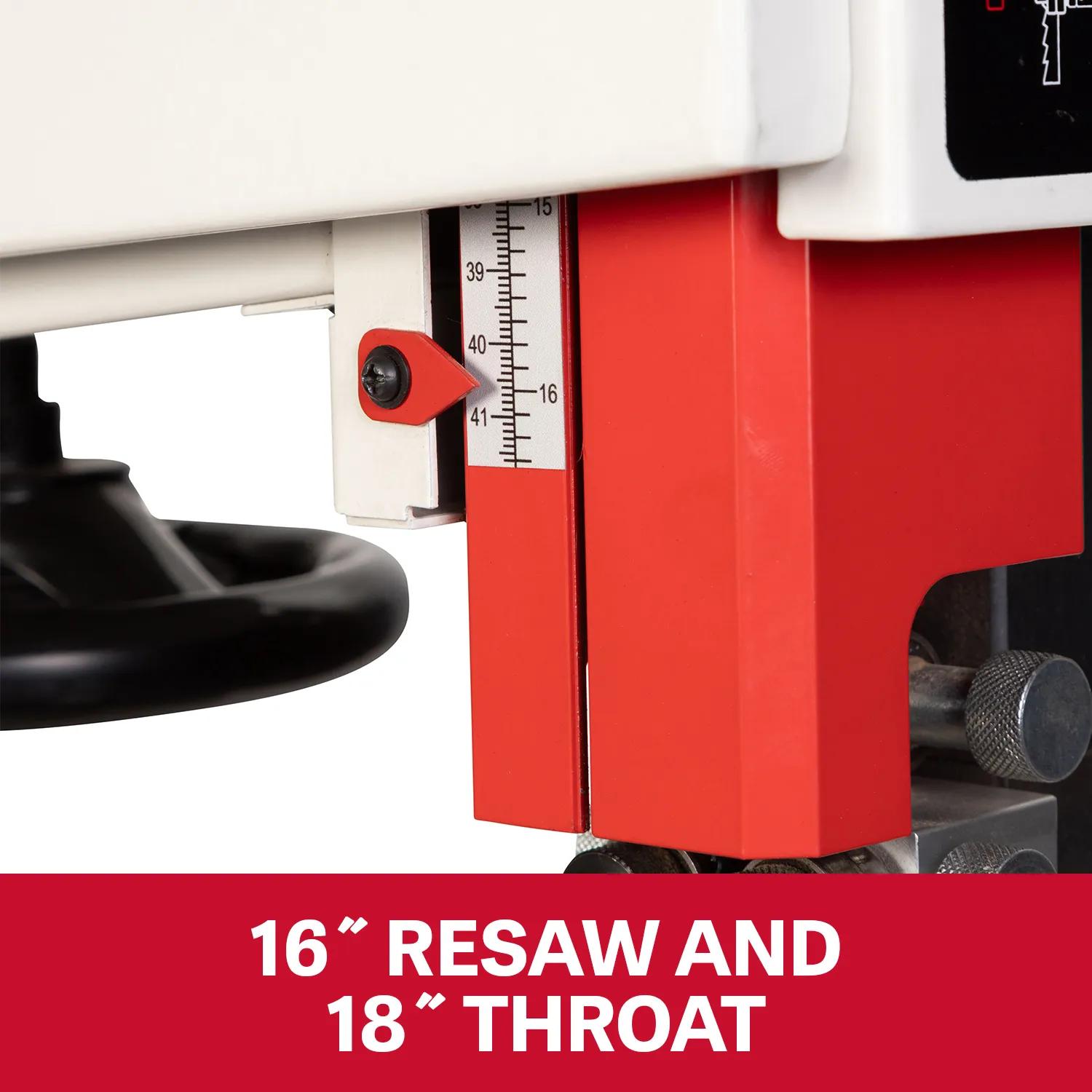

- Cutting Capacity - Height16 in.
- Cutting Capacity - Width18 in.

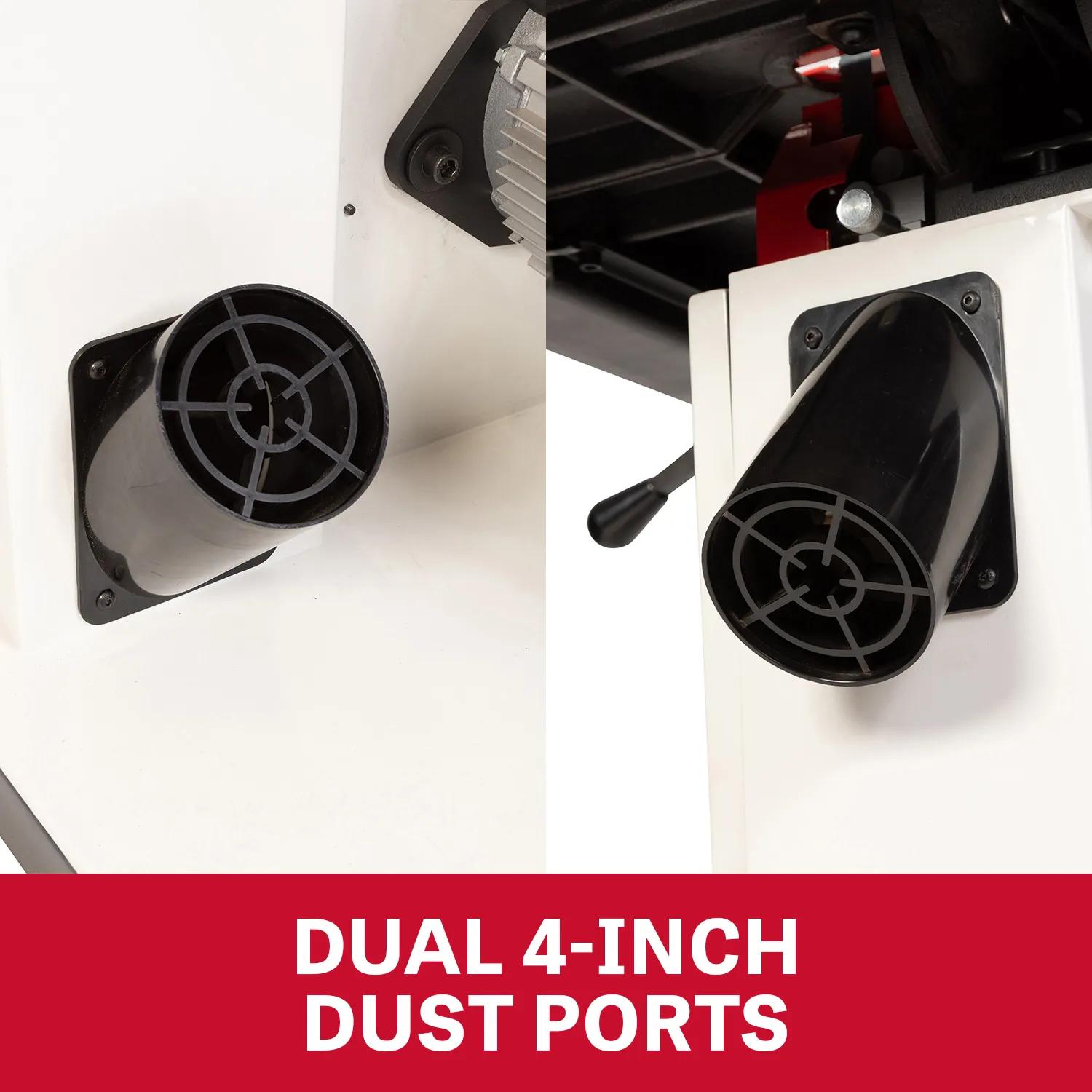

- Dust Port Outside Diameter4 in.
- Height79-1/4 in.
- Horse Power3 HP
- Input Power230 V 1 Ph
- Maximum Blade Width1-1/4 in.
- Minimum Saw Blade Width1/8 in.
- Model NumberJWBS-18SFX-3
- Motor Amps12 A
- Motor HP3 HP
- Motor PhaseSingle
- Motor Voltage230 V
- Overall Assembled (Bow Lowered)31-7/8 x 38 x 79-1/4 in.
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp20 A
- Required Cfm600 - 600 CFM
- SAP Gross Weight501.6
- SAP Net weight402.6
- Style TypeFloor
- Table Height37 in.
- Table Size27-1/4 x 20 in.
- Table T-Slot3/4 in.

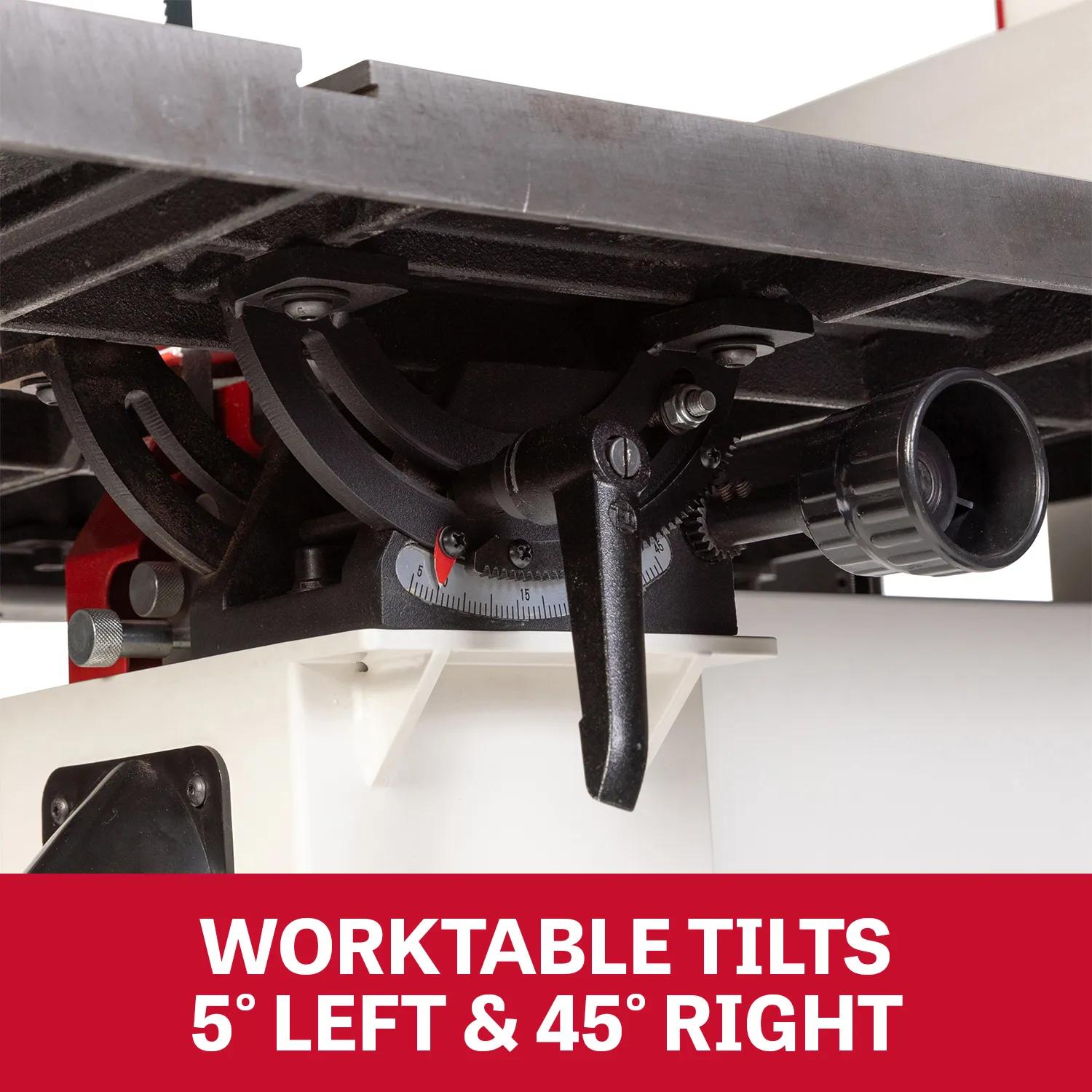

- Table Tilt (L, R, C)Right 45 Deg. / Left 5 Deg.
- Throat Depth18 in.
- UPC019907655909
- WarrantyFive Years
- Wheel Diameter18-1/2 in.
