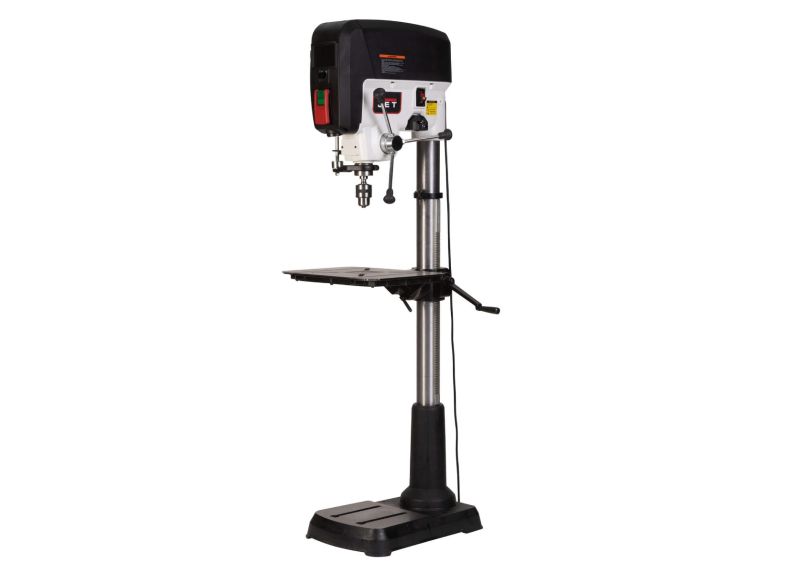

20" Smart Drill Press, 1.5HP, 120V 1PH(JDP-20S)

Stock Number: JT1-2060

0 Reviews

No reviews yet.

BUY NOW
Loading Banner
Loading Need Parts Banner
Fetching Data...

Product Details

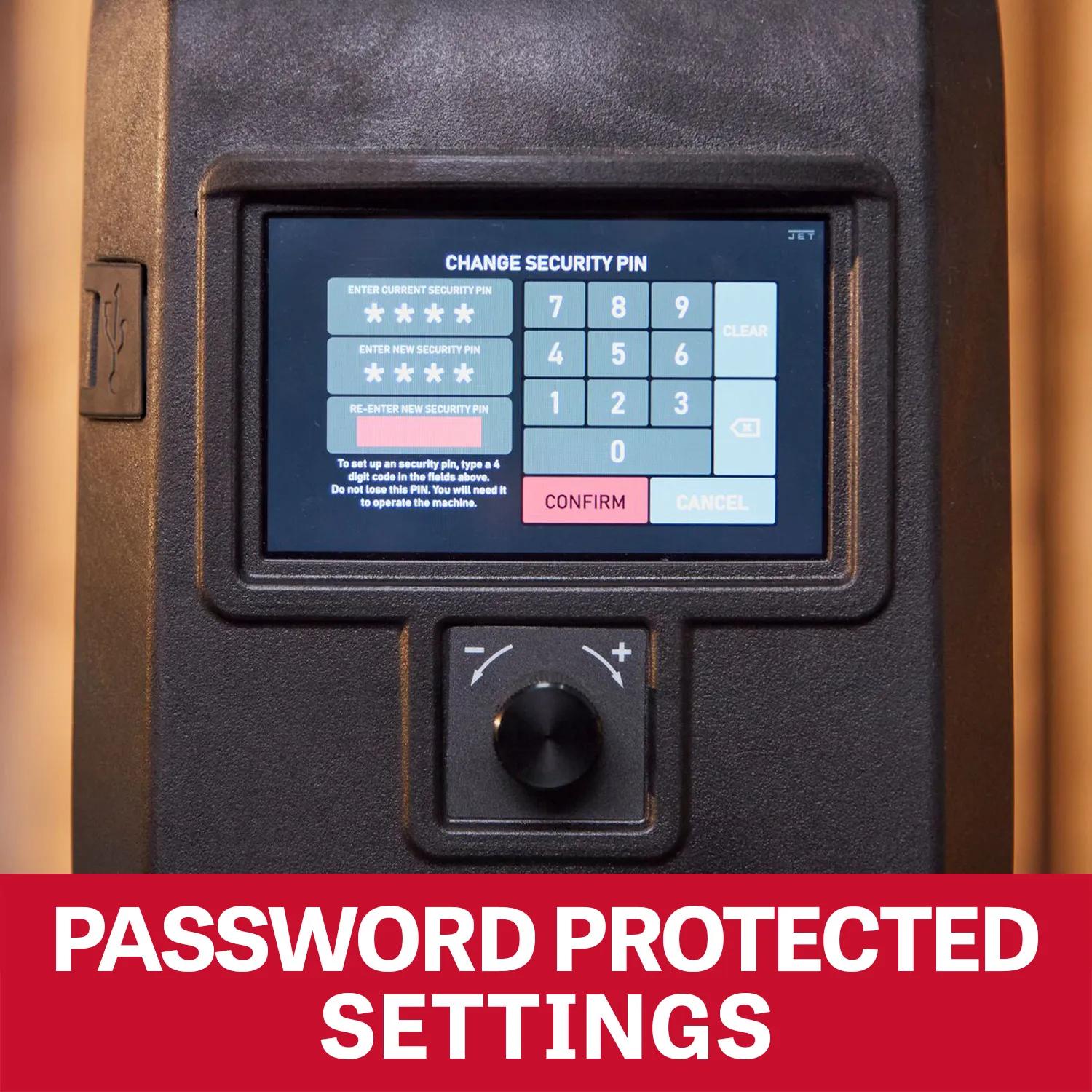

Meet the first true Smart Drill Press in the JET lineup—the JDP-20S. Designed for pros, schools, and serious woodworkers, it combines advanced digital control with the rock-solid performance you expect from JET. The vibrant 5" touchscreen puts the entire machine at your command—select your tool type, size, and material to get instant RPM recommendations. Save up to 15 user presets for repeat jobs, lock settings with password protection, and track real-time motor load for perfect results every time. Powered by a 1.5 HP brushless motor and anchored by a cast iron base, the JDP-20S delivers a massive 20" swing, 6" spindle travel, and a tilting cast iron table for drilling at any angle. With integrated LED lighting, crosshair lasers, and an industry-leading 5-year warranty, this drill press is built to outthink, outpower, and outlast the competition.

Features

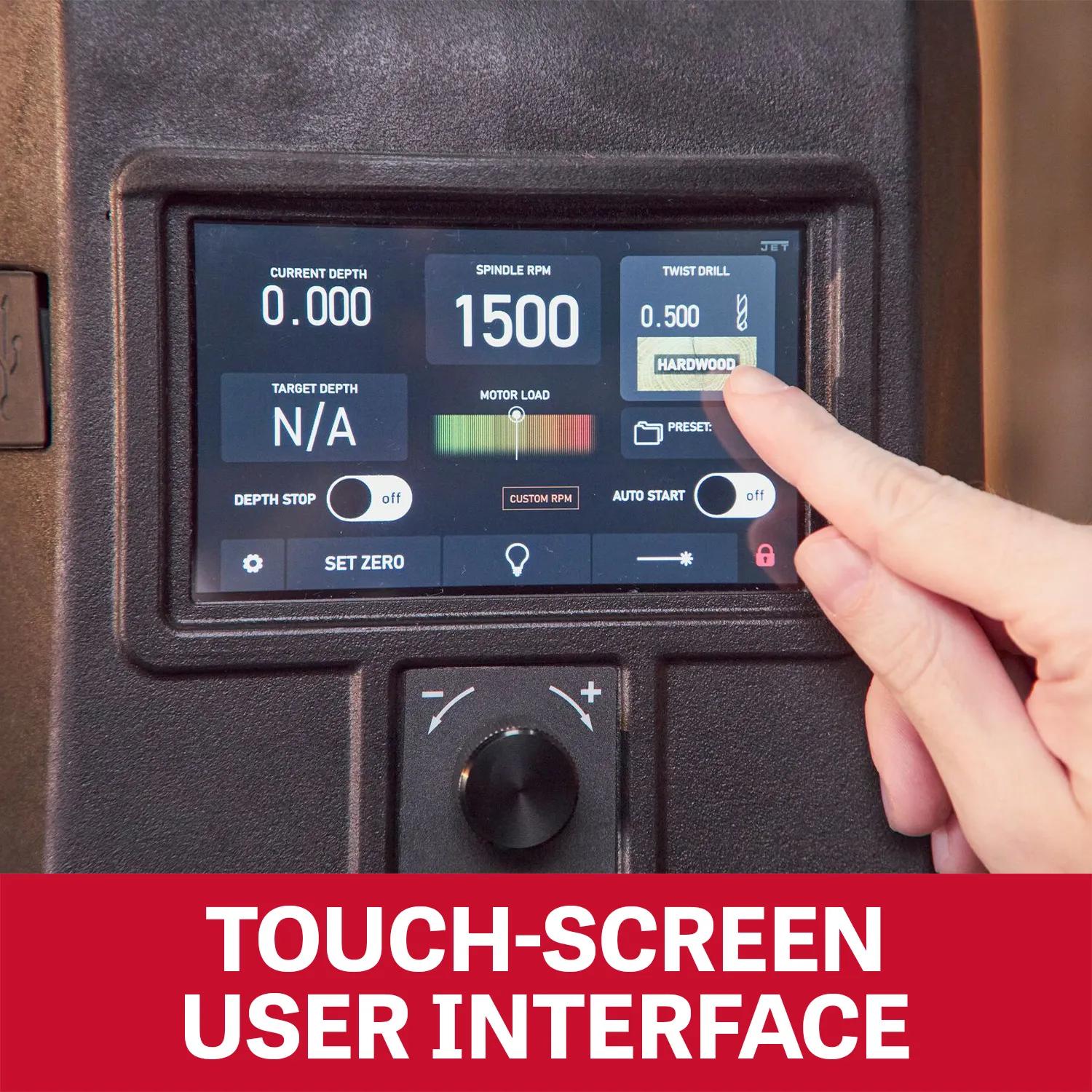

  • 5" Intuitive Touch-Screen Interface: Control at your fingertips for seamless operation

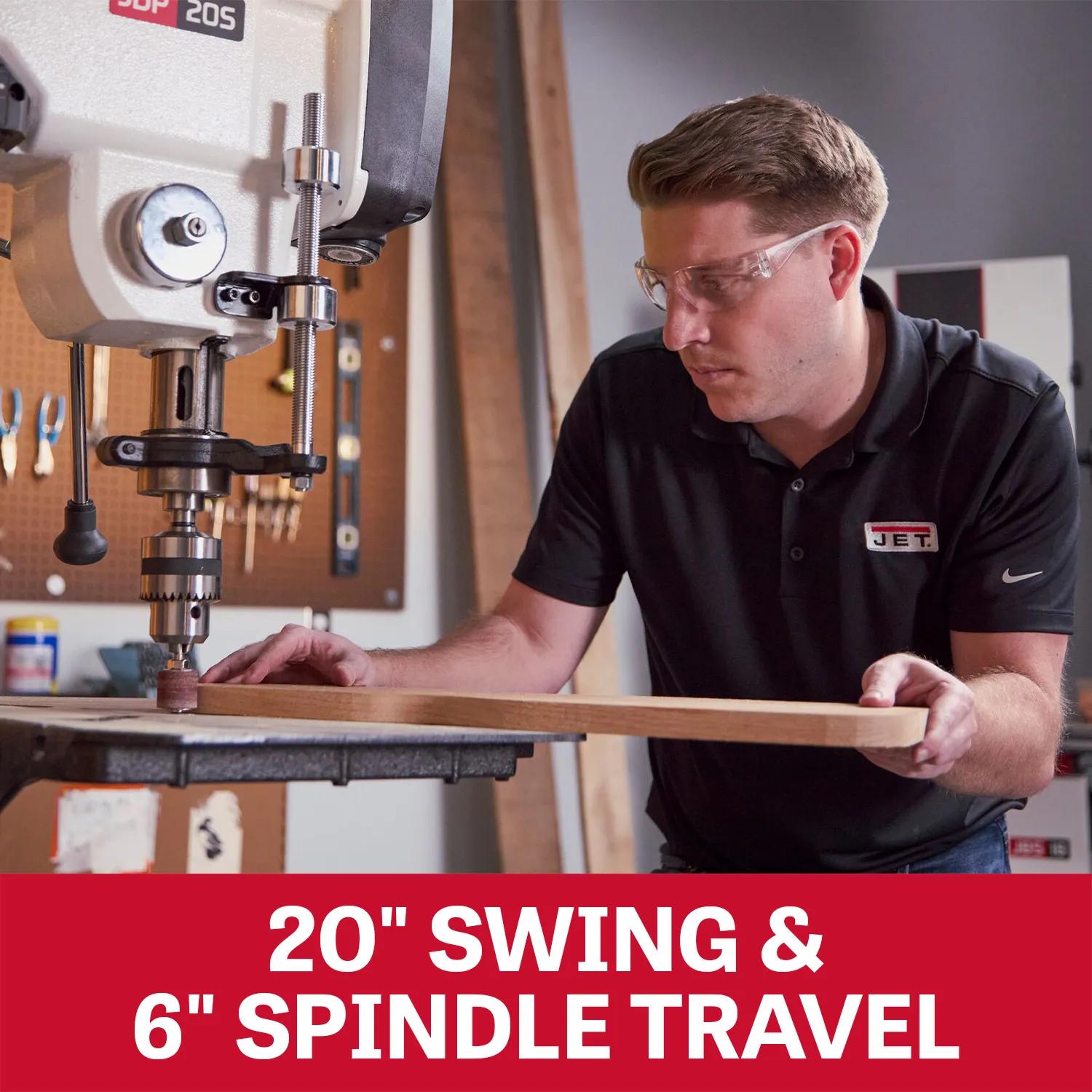

  • Versatile Performance: 20" capacity and 6" quill travel to tackle any project

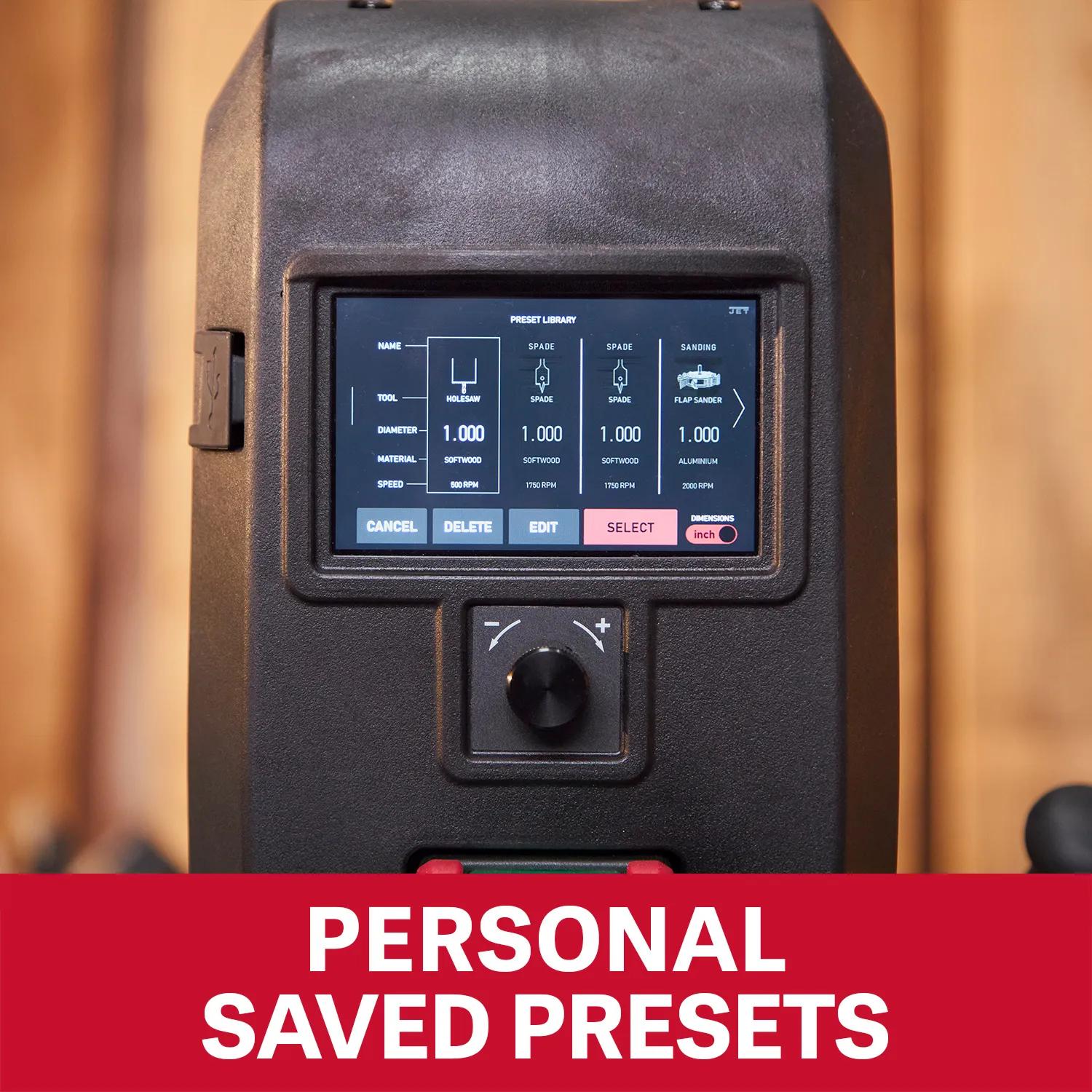

  • Customizable Efficiency: Save up to 15 preset settings for project repeatability
  • Optimal RPM Settings: 7 material types and 22 tool selections guide you to the best performance
  • Powerful Brushless Motor: 1.5-HP motor with 120V/240V options for consistent power

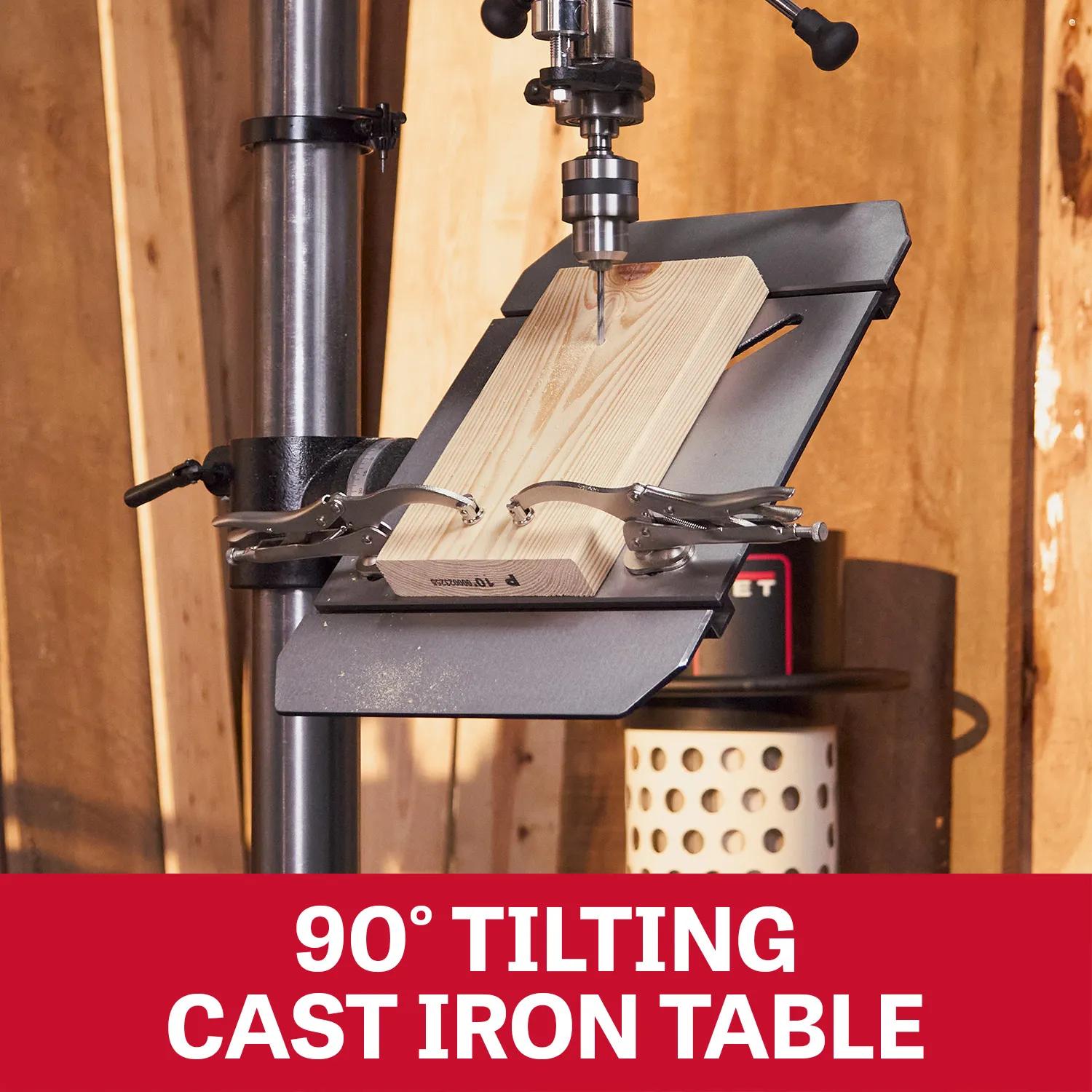

  • Durable and Adjustable Work Surface: 20" x 14" cast iron table tilts 90° left and right

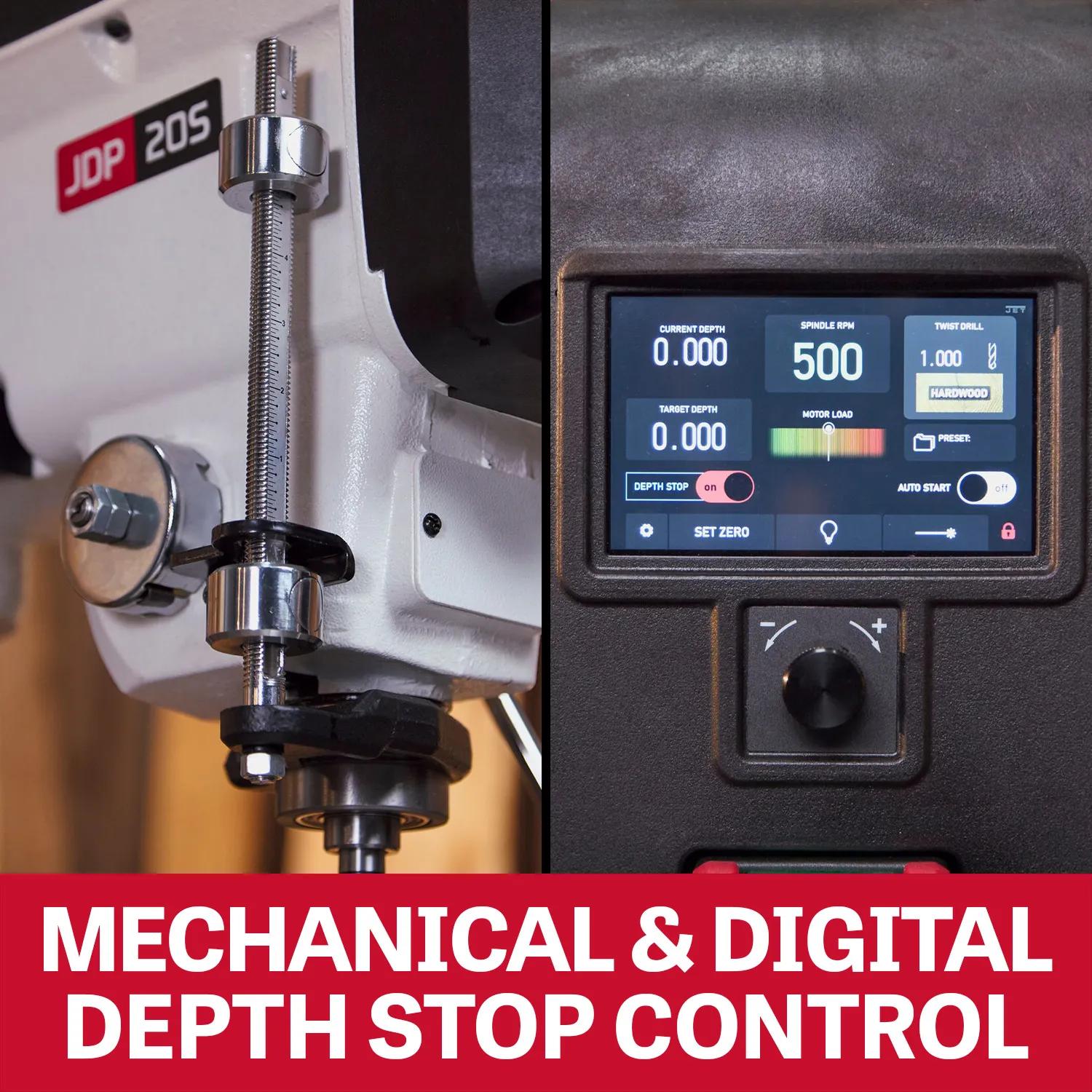

  • Precision Depth Control: Integrated electronic and manual depth stops ensure consistent results.
  • Speed Adjustments: Adjust RPM from 150 to 3000 with ease using touchscreen or variable speed knob
  • Enhanced Safety Features: A safety key main switch and paddle-style on/off button offer peace of mind

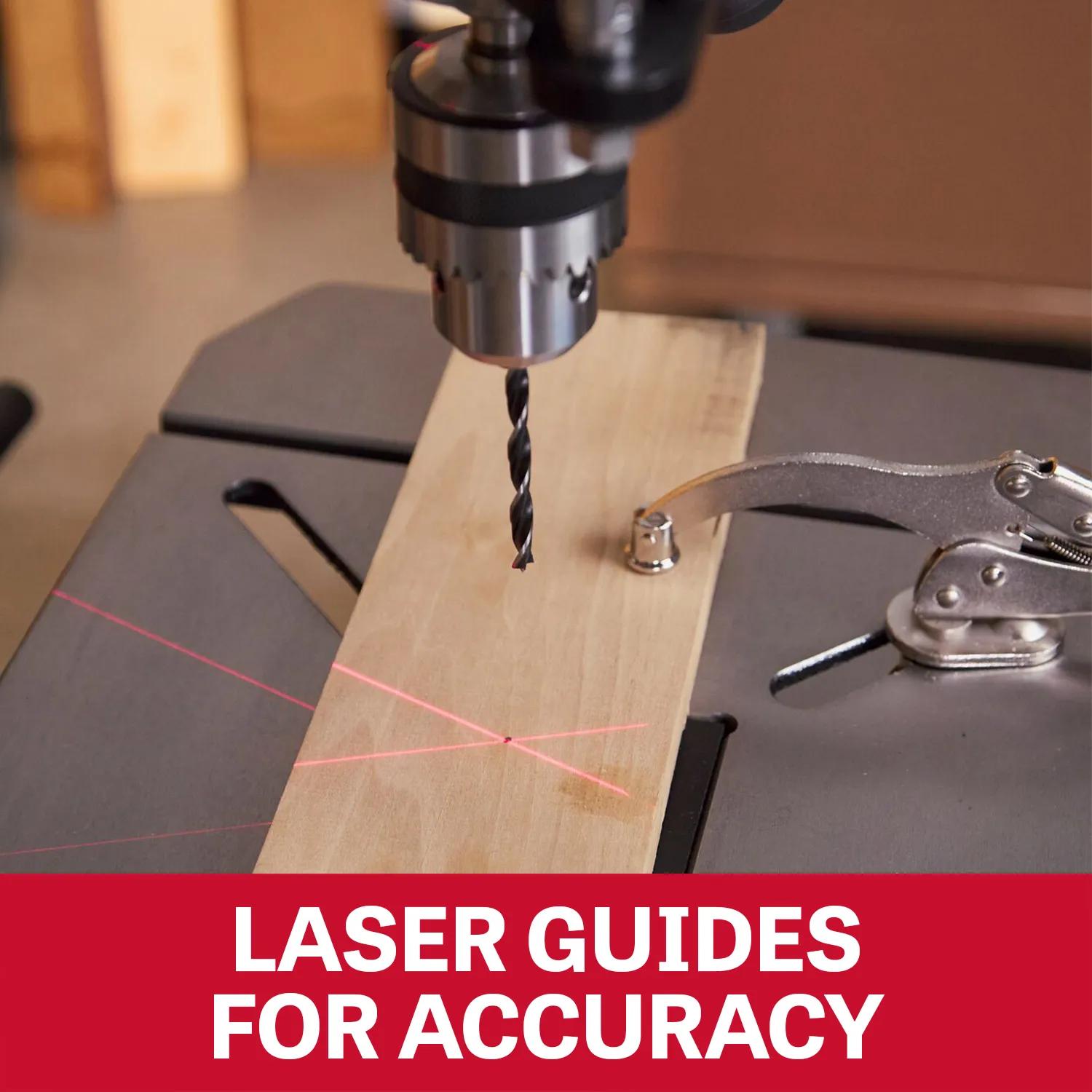

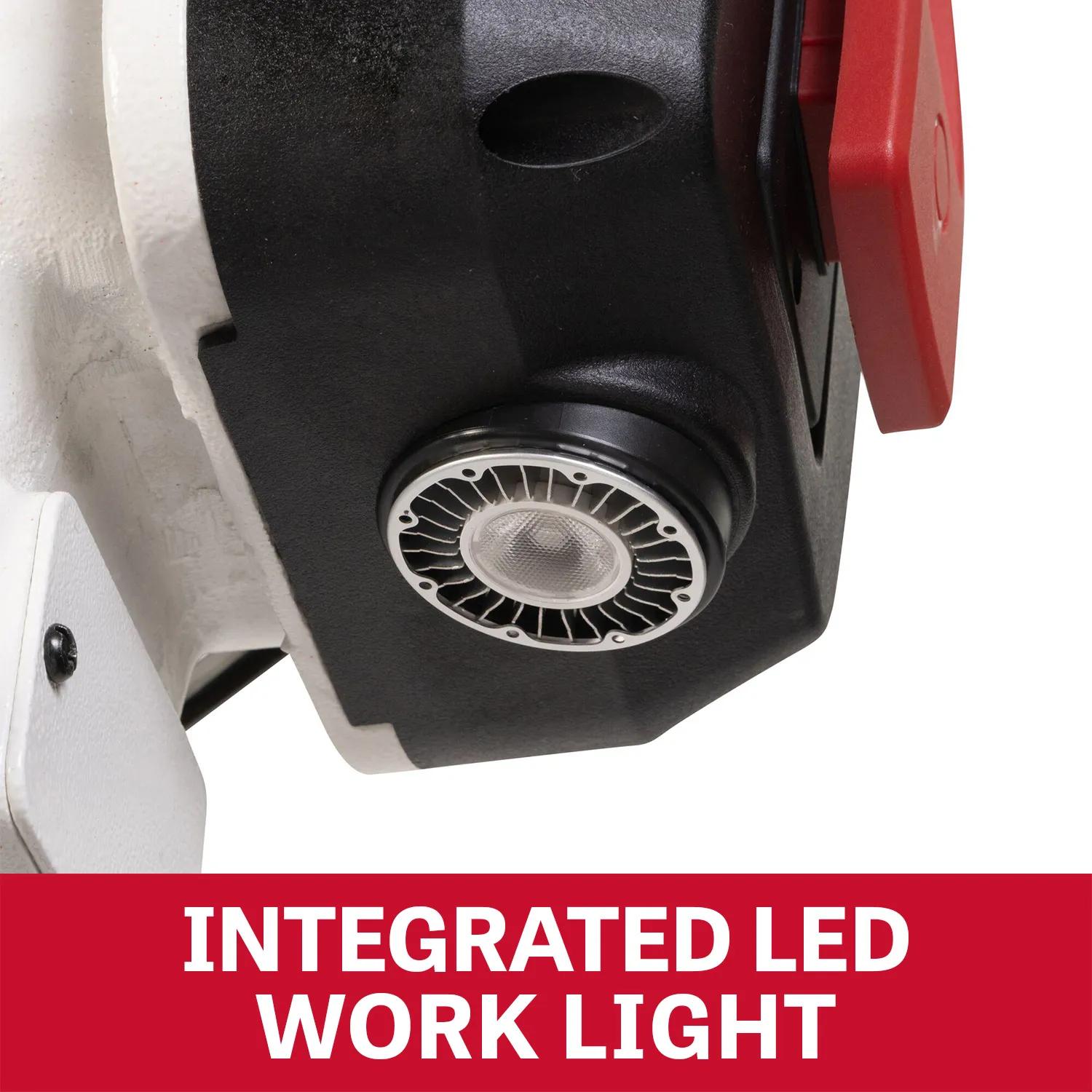

  • Visibility and Accuracy: Equipped with crosshair lasers and LED lighting for perfect alignment

Specifications

  • SKU
    JT1-2060
  • Assembled Dimensions
    24 x 25.5 x 71.5 in.
  • Base Size
    24 x 25.5 in.
  • Chuck Distance to Base
    42.9 in.
  • Chuck Distance to Table
    24 in.
  • Chuck Size
    5/8 in.
  • Distance from Spindle to Base
    46-1/2 in.
  • Drill Capacity (In.)
    5/8 in.
  • Drilling Capacity Mild Steel
    Not Recommended
  • Horse Power
    1.5 HP
  • Input Power
    115 V 1 Ph
  • Maximum Distance Spindle To Table
    27.63 in.
  • Model Number
    JDP-20S
  • Motor Amps
    13 A
  • Motor HP
    1.5 HP
  • Motor Phase
    Single
  • Motor Voltage
    120 V
  • Number of Spindle Speeds
    Variable Speed
  • Prewired Voltage
    120 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    2.6 in.
  • Range Of Spindle Speeds
    Variable
  • SAP Gross Weight
    275
  • SAP Net weight
    220
  • Spindle Distance To Base
    46-1/2 in.
  • Spindle Distance To Table Max
    27.63 in.
  • Spindle Speed
    Variable
  • Spindle Taper
    MT2
  • Spindle Taper X Tpi
    MT2
  • Spindle Travel
    6 in.
  • Style Type
    Floor Standing
  • Swing
    20 in.
  • Table Size
    20.24 x 13.94 in.
  • Table Tilt (L, R, C)
    Right 90 Deg. / Left 90 Deg.
  • UPC
    019907897750
  • Warranty
    Five Years
