20" Black Helical Head Planer, 5HP, 230V 1PH(JWP-208HH-BLK)
20" Black Helical Head Planer, 5HP, 230V 1PH(JWP-208HH-BLK)
20" Black Helical Head Planer, 5HP, 230V 1PH(JWP-208HH-BLK)
20" Black Helical Head Planer, 5HP, 230V 1PH(JWP-208HH-BLK)
20" Black Helical Head Planer, 5HP, 230V 1PH(JWP-208HH-BLK)
20" Black Helical Head Planer, 5HP, 230V 1PH(JWP-208HH-BLK)
20" Black Helical Head Planer, 5HP, 230V 1PH(JWP-208HH-BLK)
20" Black Helical Head Planer, 5HP, 230V 1PH(JWP-208HH-BLK)

20" Black Helical Head Planer, 5HP, 230V 1PH(JWP-208HH-BLK)

Stock Number: JT1-1374

0 Reviews

No reviews yet.

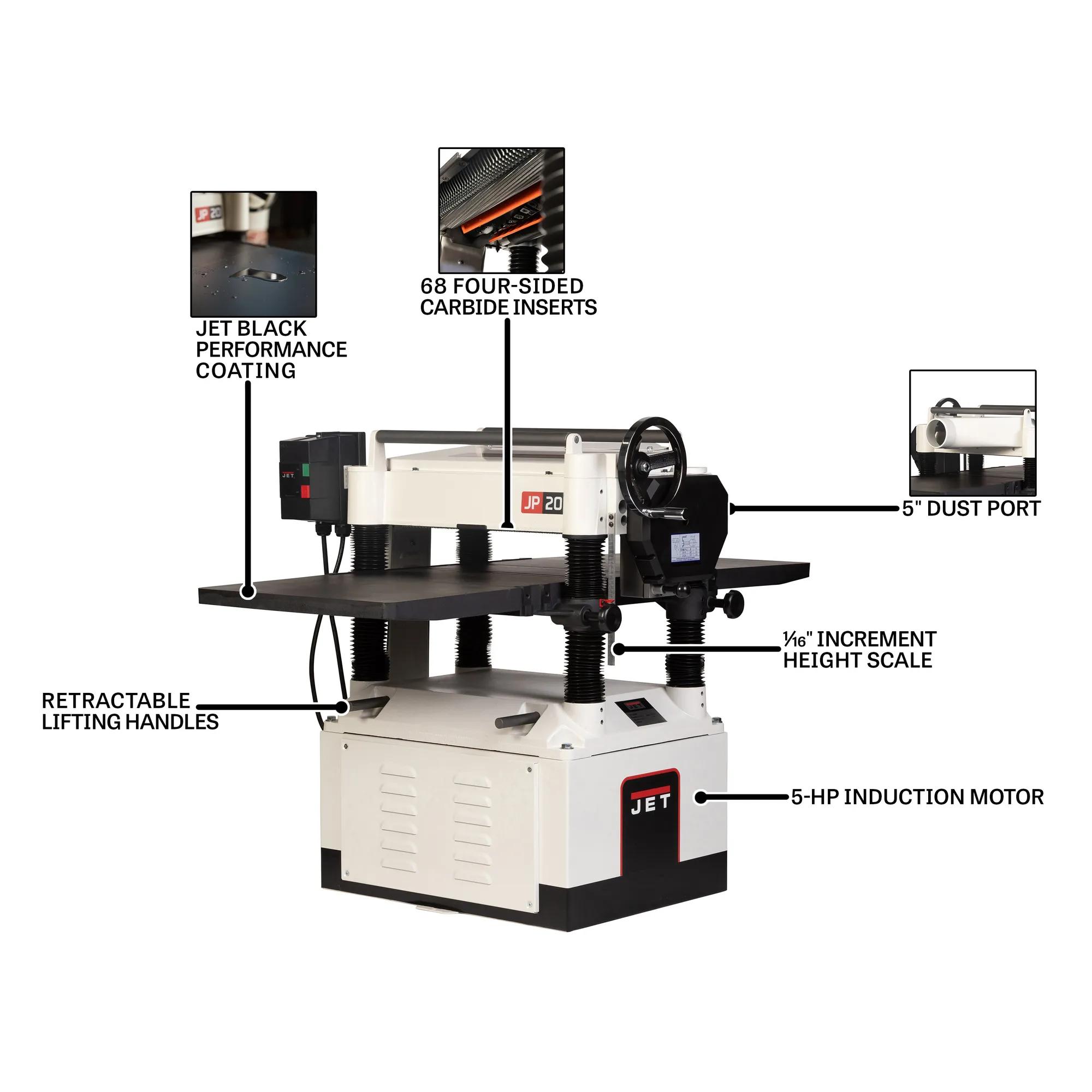

  • 5 HP, 230V, single-phase
  • 20" planing capacity

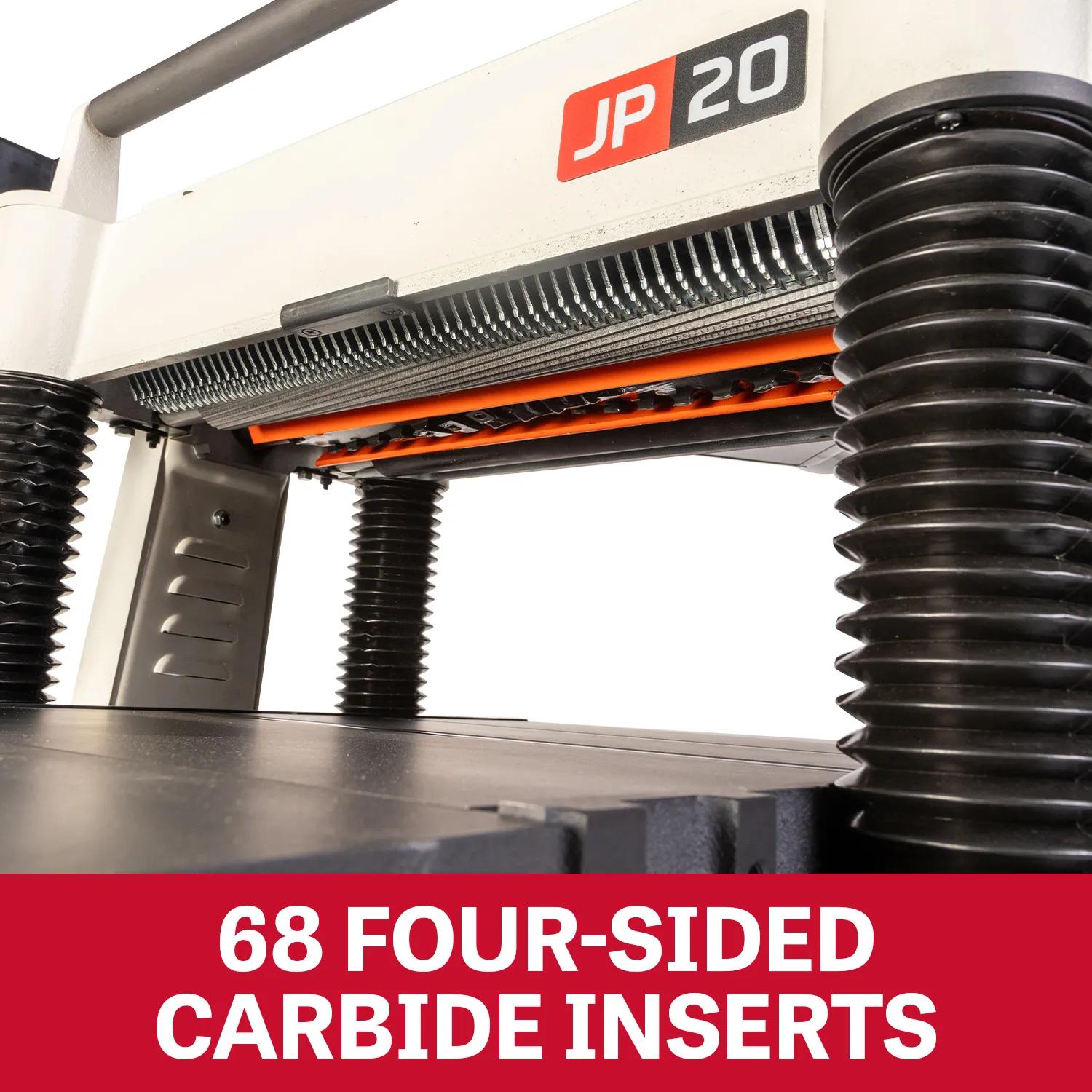

  • 68-knife helical head
  • 5,000 RPM cutterhead
BUY NOW
Fetching Data...

Product Details

From rough-sawn to ready-to-glue, in one pass. The JWP-208HH-BLK was sized for production shops that depend on consistent finish quality. Equipped with a 5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by the JET warranty.

Features

  • Helical cutterhead at 5,000 RPM — running quieter and cleaner than straight-knife alternatives, sized for the cut quality production planing demands.
  • 20-inch planing width expands the working envelope for production-grade planing capacity.
  • The 5 HP, 230V induction motor handles full-capacity passes for the cycle counts industrial use generates.
  • Industrial-grade cast iron reference surfaces deliver rigidity for the structural authority production work demands.
  • Industrial-grade hardened drive gears run quieter and longer than commercial-grade alternatives across long service life.
  • CSA and cUS certification means this machine ships ready for professional shop floors.

Specifications

  • SKU
    JT1-1374
  • Assembled Dimensions
    26 x 36-5/8 x 41-3/8 in.
  • Coating
    JET Black Coating
  • Cuts Per Minute
    N/A - Continual
  • Cutterhead Diameter
    3-7/32 in.
  • Cutterhead Speed
    5000 RPM
  • Cutting Capacity - Width
    20 in.
  • Dust Port Outside Diameter
    5 in.

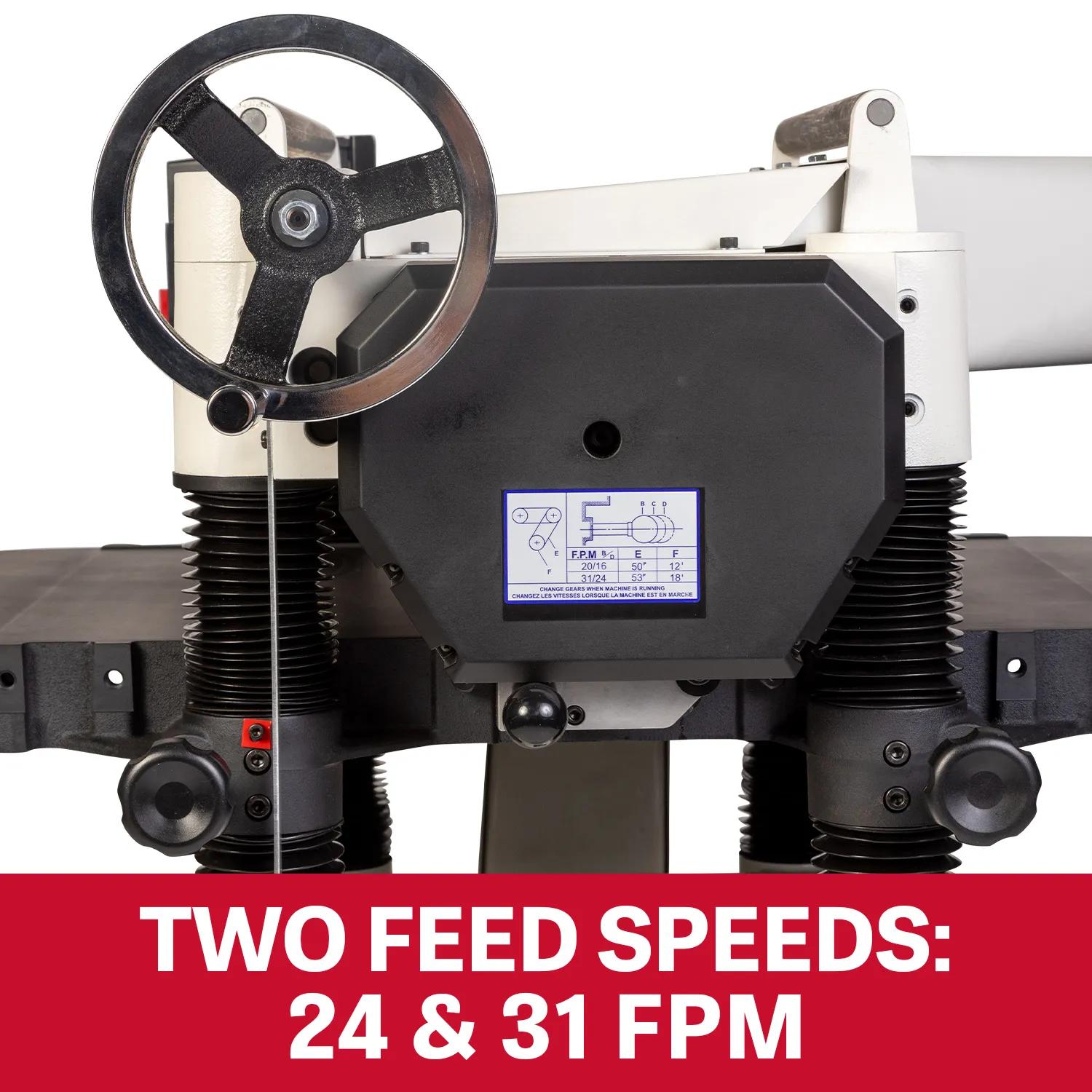

  • Feed Rate
    24/31 FPM
  • Full Width Depth Of Cut
    3/32 in.
  • Height
    43 in.
  • Horse Power
    5 HP
  • Infeed Table Length
    15 in.
  • Input Power
    230 V 1 Ph
  • Knife Size
    15 x 15 x 2.5 mm
  • Maximum Board Thickness
    8 in.
  • Maximum Board Width
    20 in.
  • Maximum Depth Of Cut
    0.09375 in.
  • Minimum Board Length
    6-3/4 in.
  • Model Number
    JWP-208HH-BLK
  • Motor Amps
    20 A
  • Motor HP
    5 HP
  • Motor Phase
    Single
  • Motor Voltage
    230 V
  • Number of Knives
    68
  • Number of Speeds
    2
  • Outfeed Table Length
    15 in.
  • Prewired Voltage
    230 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    30 A
  • Required Cfm
    400 - 400 CFM
  • SAP Gross Weight
    765
  • SAP Net weight
    640
  • Style Type
    Floor Standing
  • Table Height
    Manually Adjusted
  • Table Size
    25-3/4 x 20 in.
  • Table Support
    4 Column
  • Type of Cutterhead
    Helical Head
  • UPC
    019907932000
  • Warranty
    Five Years
