Product Details

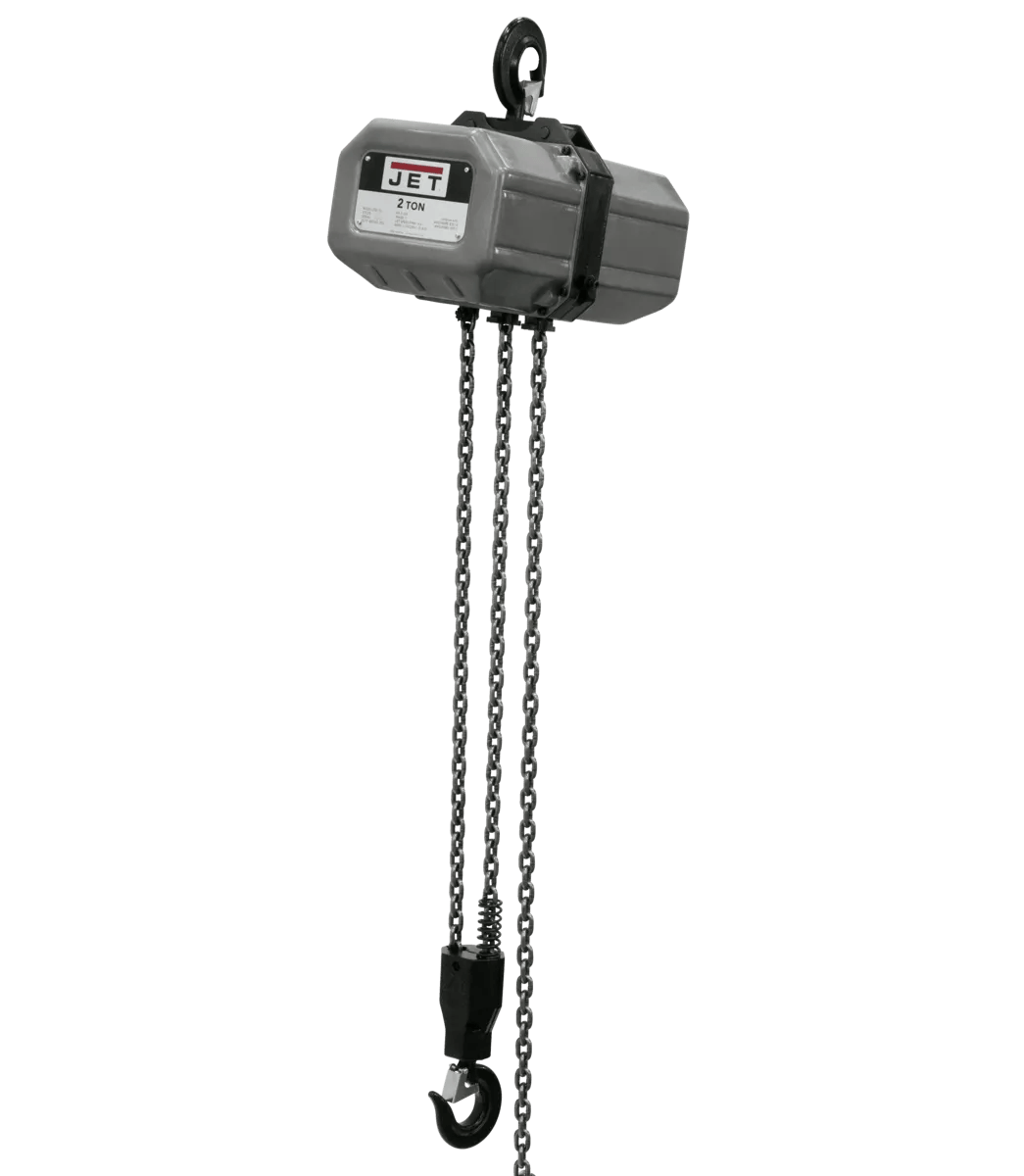

Engineered for the loads that production environments actually move. Built around plants where load capacity, brake authority, and chain durability all matter, the 2SS-1C-20 delivers production-grade results. Equipped with a 1.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage and ANSI/ASME-verified construction.
Features
- Production 4400 lbs rating handles overhead work across industrial overhead work.
- Standard 20 feet lift provides the vertical reach for the lift envelope production rigging generates.
- Engineered 1.75 HP single-phase induction drive: running tens of thousands of hours without service intervention, sized for the operating envelope production demands.
- Professional-grade overload protection works whether shop power is on or off for the safety paperwork regulated lifting verifies.
- Self-engaging Weston brake delivers the load-holding redundancy for added security under strain.
- Heavy-duty alloy load chain — matching the strength-to-weight ratio overhead lifting demands.
Specifications
- SKUJT9-212000
- Capacity4400 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Duty Cycle25 H3
- Hook Mount Headroom21.6667 in.
- Lift20 ft.
- Lift ControlWired
- Lifting Speed9.8 FPM
- Maximum Number Of Starts Per Hr150
- Maximum On Time Min Hr15
- Net Weight188
- Old Material Number212000
- Overload ProtectionNo
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight207
- Shipyard HooksNo
- UPC662755906206
- WarrantyTwo Years
- Motor HP1.75 HP
- Motor PhaseSingle
- Motor Voltage230 V
