Product Details

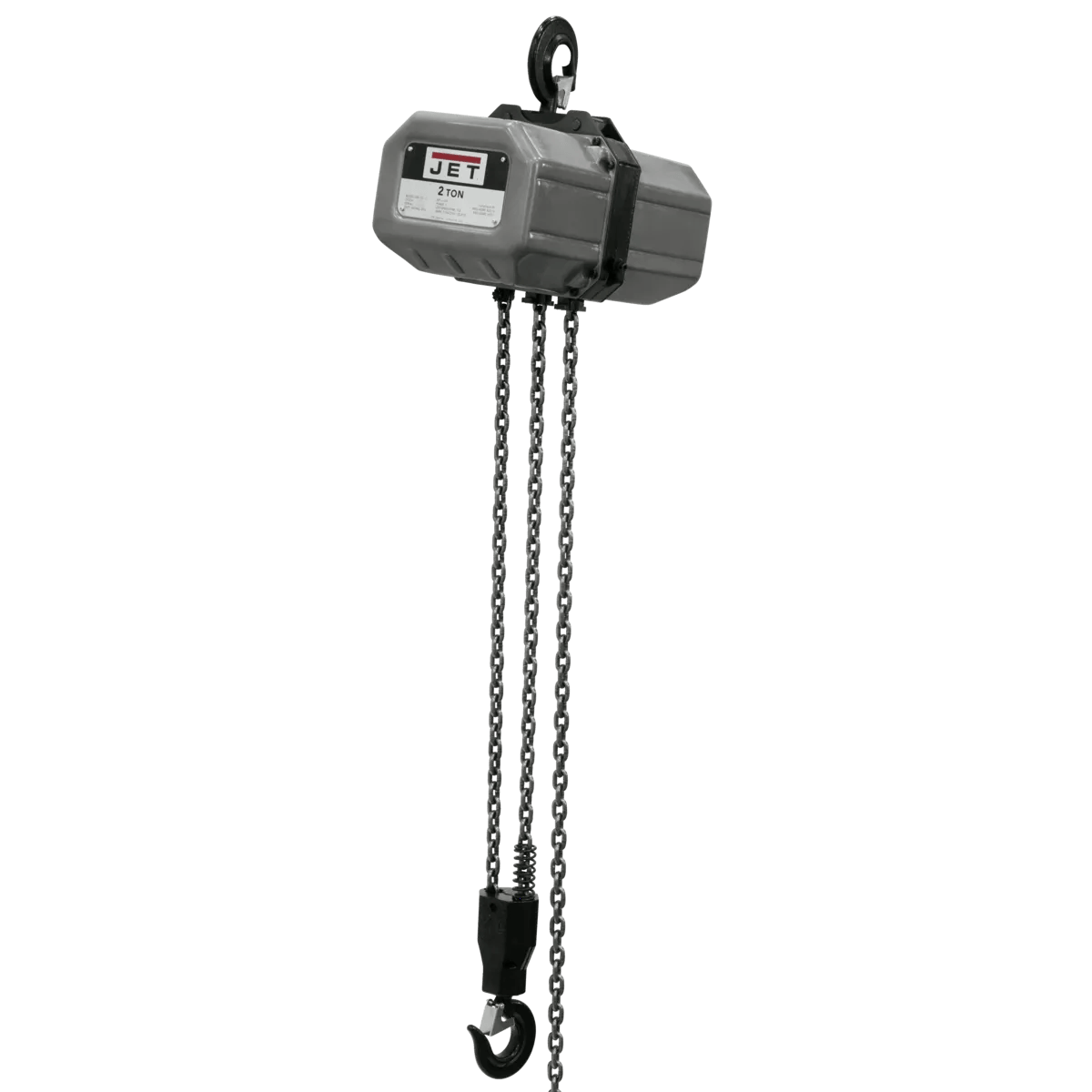

When the load matters, so does the lift. The 2SS-3C-10 answers the work generated by rigging operations that demand certified equipment. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Lifetime-backed, because we stand behind every lift.
Features
- Production 4400 lbs rating handles overhead work across regulated industrial lifting.
- Standard 10 feet lift handles the vertical reach for the lift envelope production rigging generates.
- Tolerance-grade 2 HP three-phase induction motor delivers torque for long-cycle production work.
- Tolerance-grade overload protection works whether shop power is on or off for the load-protection redundancy overhead rigging requires.
- Double-pawl Weston brake — splitting load mechanically across both pawls — no electronics, no batteries, no weak link, sized for the redundant pawl-and-ratchet design overhead lifting demands.
- Industrial-grade load chain — outlasting commercial-grade alternatives in the same operating envelope, sized for the chain authority overhead lifting requires.
Specifications
- SKUJT9-231000
- Capacity4400 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Duty Cycle25 H3
- Hook Mount Headroom40.0625 in.
- Lift10 ft.
- Lift ControlWired
- Lifting Speed12.4 FPM
- Maximum Number Of Starts Per Hr180
- Maximum On Time Min Hr18
- Old Material Number231000
- Overload ProtectionNo
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight176
- SAP Net weight157
- Shipyard HooksNo
- UPC662755906329
- WarrantyTwo Years
- Motor HP2 HP
- Motor PhaseThree
- Motor Voltage460 V
