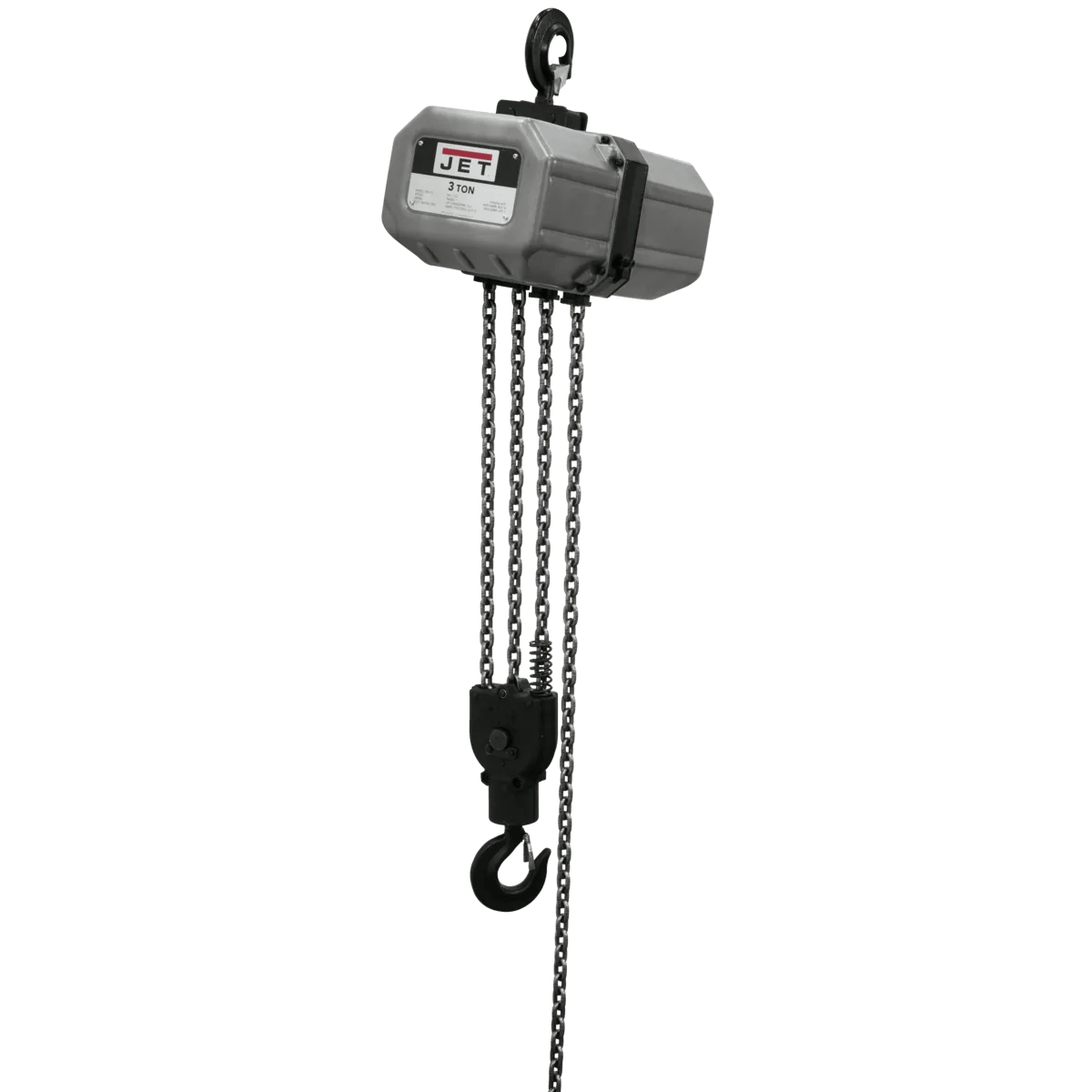

Where loads move and safety can't slip. Built around production environments where overhead lifting can't pause, the 3SS-1C-10 delivers production-grade results. Equipped with a 1.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Lifetime-backed, because we stand behind every lift.
Features
- Industrial 6600 lbs. capacity — covering the load envelope production overhead lifting generates across industrial overhead work.
- Standard 10 feet lift handles the vertical reach regulated overhead environments demand.
- Industrial 1.75 HP induction motor: holding RPM under cutting load that would stall lighter motors, designed for production environments.
- Mechanical overload limiter — engaging without electronics, batteries, or shop-power dependency across production overhead lifting.
- Weston-pattern brake — passing the third-party criteria field inspectors actually check, engineered for redundant load holding regulated lifting requires.
- Alloy steel load chain — standing up to the abrasive realities of overhead work across regulated lifting environments.
Specifications
- SKUJT9-311000
- Capacity6600 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Duty Cycle25 H3
- Hook Mount Headroom40.0625 in.
- Lift10 ft.
- Lift ControlWired
- Lifting Speed6.6 FPM
- Maximum Number Of Starts Per Hr150
- Maximum On Time Min Hr15
- Old Material Number311000
- Overload ProtectionNo
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight218
- SAP Net weight199
- Shipyard HooksNo
- UPC662755906213
- WarrantyTwo Years
- Motor HP1.75 HP
- Motor PhaseSingle
- Motor Voltage230 V
