Product Details

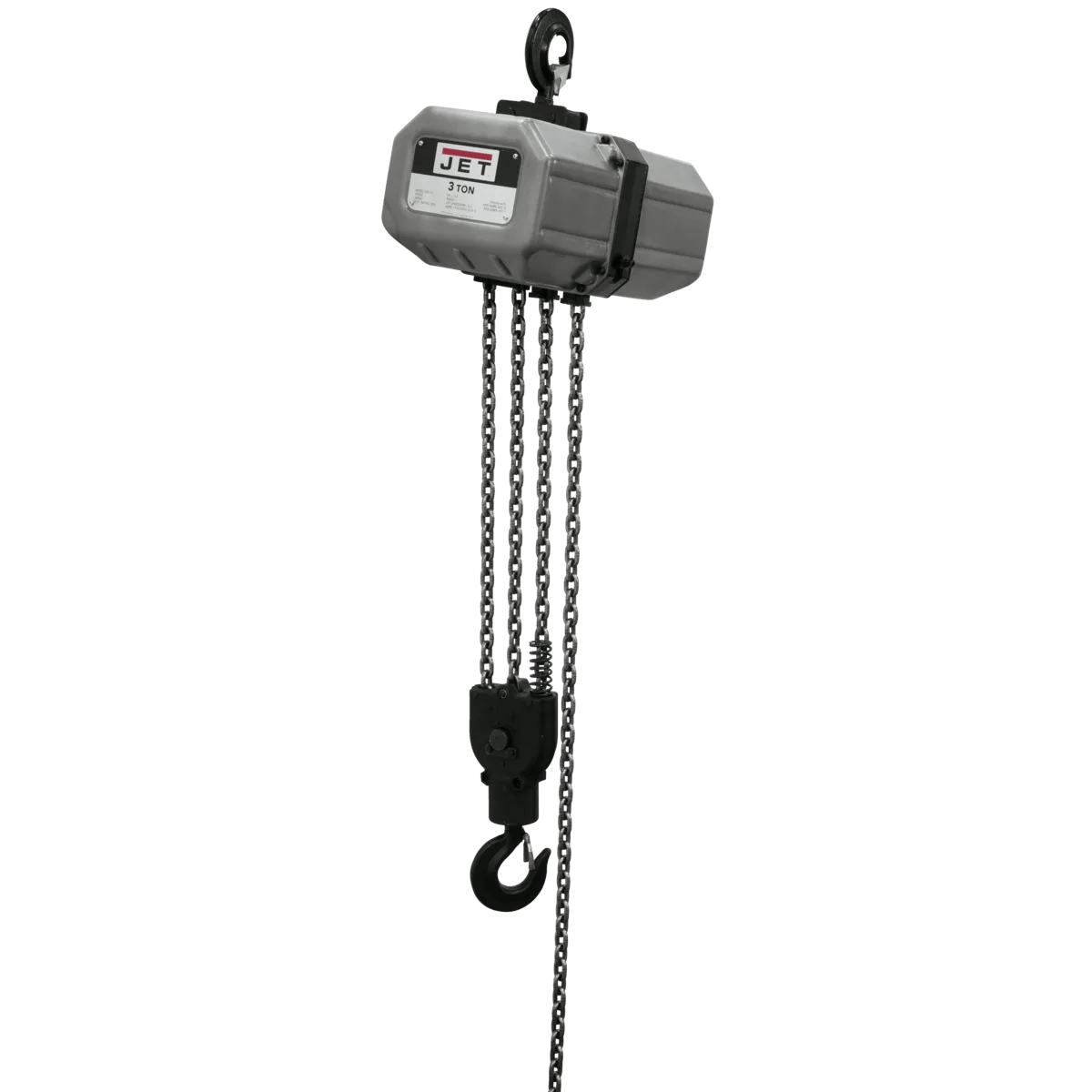

When the load matters, so does the lift. The 3SS-1C-15 answers the work generated by facilities running ANSI/ASME-compliant overhead lifting. Equipped with a 1.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by the JET warranty.
Features
- Tolerance-grade 6600 lbs. working load handles the lifts professional rigging operations actually demand.
- The 15 feet lift envelope was sized for production overhead work across varied beam heights.
- Industrial-spec 1.75 HP single-phase induction motor delivers torque for the power output industrial cutting requires.
- Built-in overload protection covers the load-bearing safety net for safety regulated lifting requires.
- Weston-pattern brake — delivering redundant brake authority overhead lifting requires, engineered for the redundant pawl-and-ratchet design overhead lifting demands.
- Alloy steel load chain — outlasting commercial-grade alternatives in the same operating envelope across production overhead lifting.
Specifications
- SKUJT9-311500
- Capacity6600 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Duty Cycle25 H3
- Hook Mount Headroom40.0625 in.
- Lift15 ft.
- Lift ControlWired
- Lifting Speed6.6 FPM
- Maximum Number Of Starts Per Hr150
- Maximum On Time Min Hr15
- Old Material Number311500
- Overload ProtectionNo
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight233
- SAP Net weight214
- Shipyard HooksNo
- UPC662755906220
- WarrantyTwo Years
- Motor HP1.75 HP
- Motor PhaseSingle
- Motor Voltage230 V
