Product Details

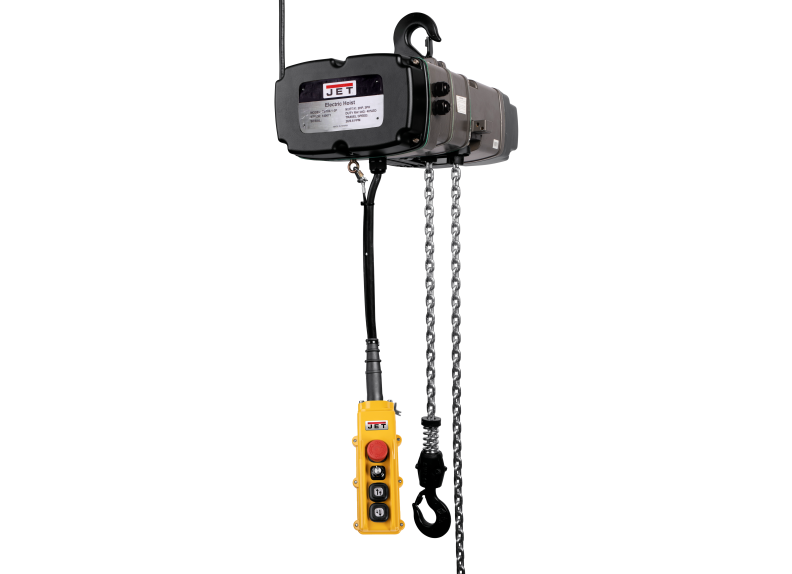

Built for overhead work that doesn't forgive shortcuts. The TS500-230-020 answers the work generated by plants where load capacity, brake authority, and chain durability all matter. Equipped with a 5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage and ANSI/ASME-verified construction.
Features
- Engineered 11000 lbs rating — covering production loads without operator-side compromise.
- Standard 20 feet lift delivers the vertical reach for the headroom most overhead applications actually require.
- Brushless induction design at 5 HP delivers reliable output for the duty range working shops actually run.
- Engineered overload sensing — sensing excess load and disengaging mechanically, sized for safety regulated lifting requires.
- Working-grade Weston brake holds load in either direction — engaging without operator-side switches, batteries, or maintenance.
- Heat-treated, proof-loaded chain provides cycle-count durability for the chain authority overhead lifting requires.
Specifications
- SKUJT9-140129
- Capacity11000 lbs.
- Classification / CertificationANSI/ASME B30.16, ANSI/ASME HST-1 Standard
- Duty Cycle40/20 H4
- Hook Mount Headroom5.375 in.
- Lift20 ft.
- Lift ControlWired
- Lifting Speed3 / 13 FPM
- Maximum Number Of Starts Per Hr240
- Maximum On Time Min Hr30
- Old Material Number140129
- Overload ProtectionNo
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight465
- SAP Net weight410
- Shipyard HooksNo
- UPC731325854756
- WarrantyLimited Lifetime Warranty
- Motor HP5 HP
- Motor PhaseThree
- Motor Voltage230 V
