6" Deluxe Jointer w/ Quick Set Knives, 1HP, 115/230V 1PH(JJ-6CSDX)
6" Deluxe Jointer w/ Quick Set Knives, 1HP, 115/230V 1PH(JJ-6CSDX)
6" Deluxe Jointer w/ Quick Set Knives, 1HP, 115/230V 1PH(JJ-6CSDX)
6" Deluxe Jointer w/ Quick Set Knives, 1HP, 115/230V 1PH(JJ-6CSDX)
6" Deluxe Jointer w/ Quick Set Knives, 1HP, 115/230V 1PH(JJ-6CSDX)
6" Deluxe Jointer w/ Quick Set Knives, 1HP, 115/230V 1PH(JJ-6CSDX)
6" Deluxe Jointer w/ Quick Set Knives, 1HP, 115/230V 1PH(JJ-6CSDX)

6" Deluxe Jointer w/ Quick Set Knives, 1HP, 115/230V 1PH(JJ-6CSDX)

Stock Number: JT9-708457DXK

0 Reviews

No reviews yet.

  • 1 HP, 115/230V, single-phase
  • 6" jointing capacity
  • 3-knife cutterhead
  • 6,000 RPM cutterhead
BUY NOW
Fetching Data...

Product Details

Rough lumber in, glass-smooth board out. The JJ-6CSDX answers the work generated by shops that need surface quality consistent enough to skip the sander. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for decades of cabinet-grade output.

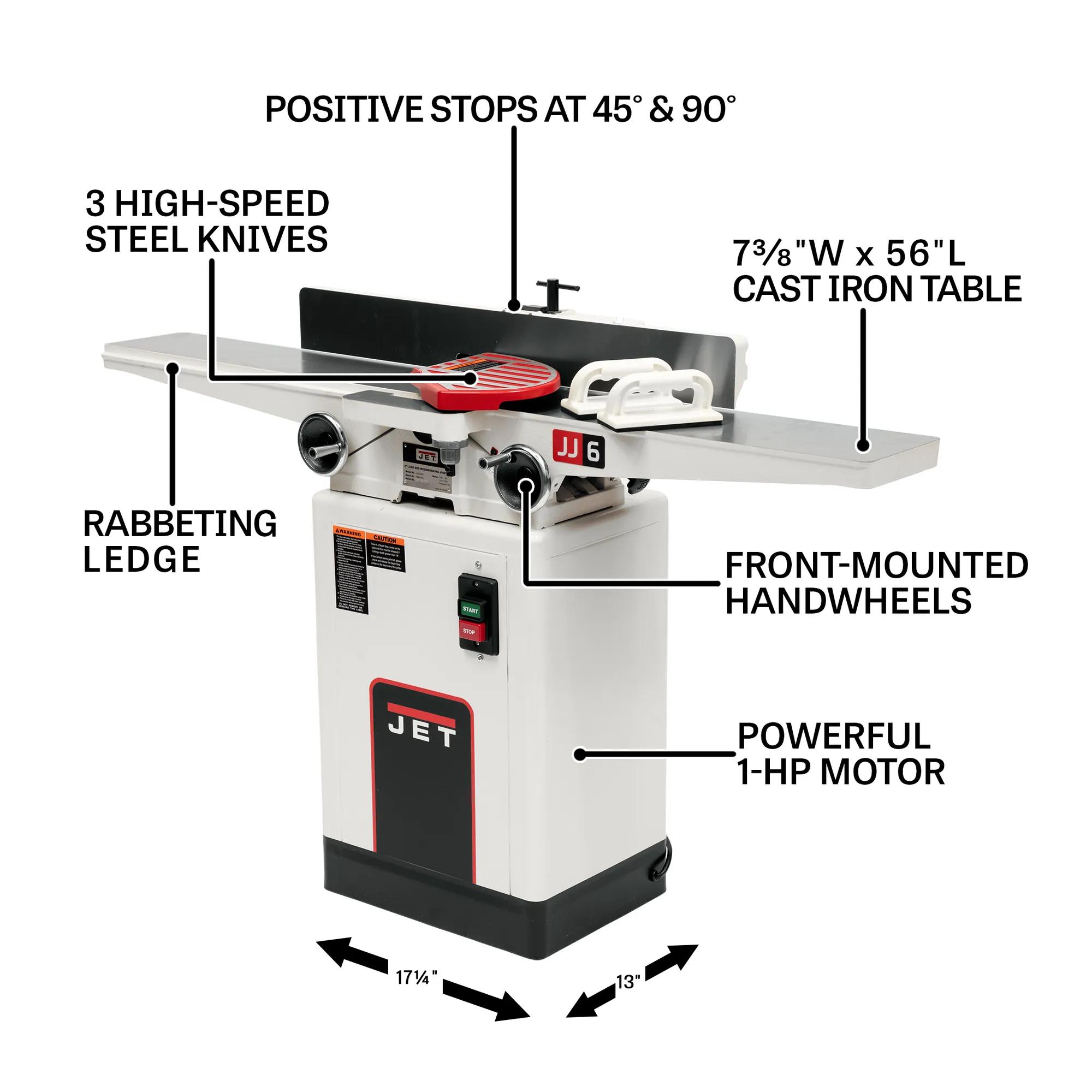

Features

  • 6-inch jointing width — edging the wide stock benchtop jointers force you to rip first.
  • Industrial 1 HP induction motor — running cooler under sustained load than equivalents, engineered for full-shift continuous operation.

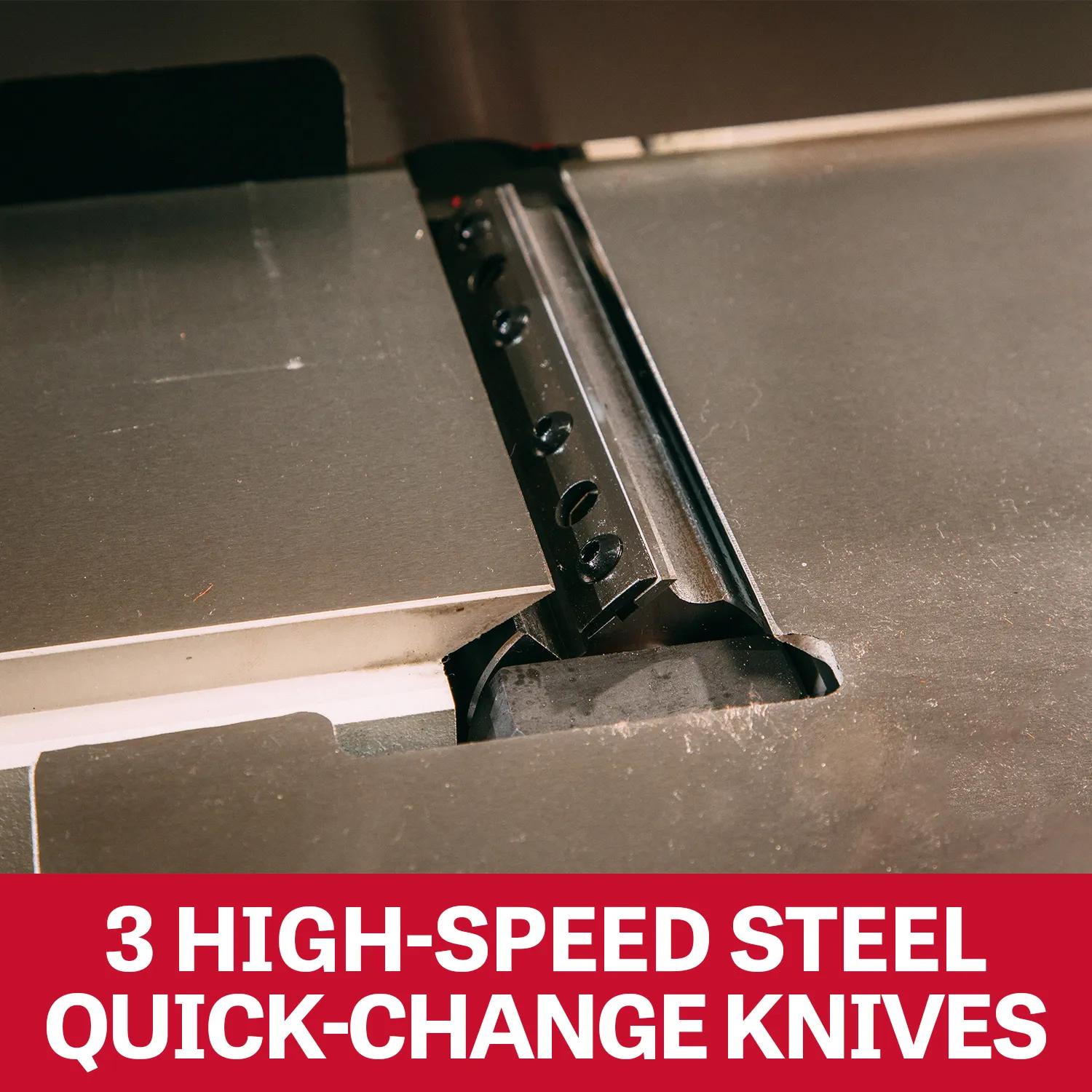

  • Reversible 3-knife design — delivering proven results.
  • Solid cast iron frame castings weigh in where stability counts most across working shop environments.
  • Heat-treated gears hold spec — delivering the dimensional stability precision work measures across production cycles.
  • CSA/cUS listing simplifies safety compliance for facility safety compliance requirements.

Specifications

  • SKU
    JT9-708457DXK
  • Assembled Dimensions
    56 x 20.25 x 36.5 in.
  • Coating
    None
  • Cuts Per Minute
    18000
  • Cutterhead Speed
    6000 RPM
  • Cutting Capacity - Width
    6 in.

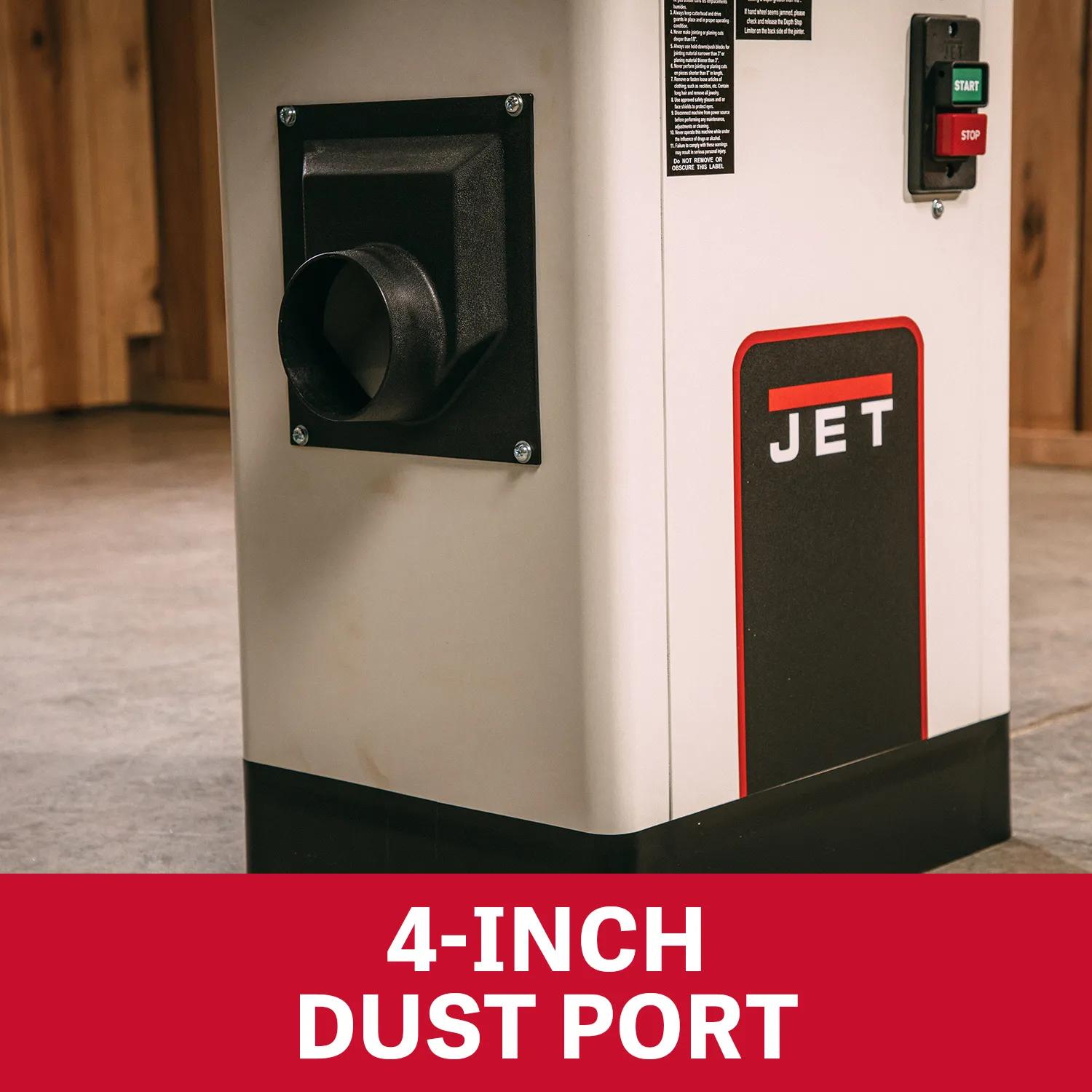

  • Dust Port Outside Diameter
    4 in.
  • Fence Size L X H
    29-18 x 3-7/8 in.

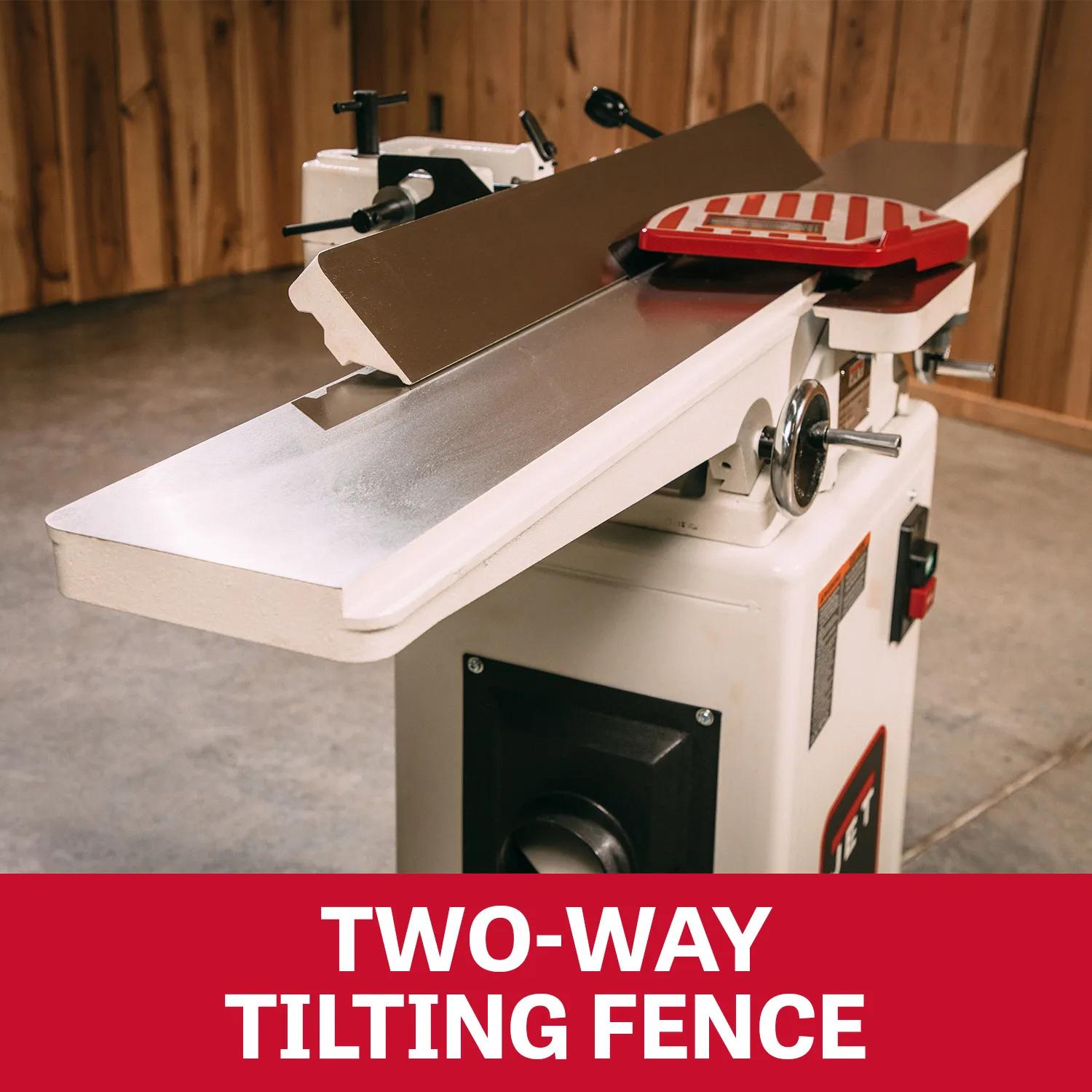

  • Fence Tilt
    90 Deg. to 45 Deg. R
  • Full Width Depth Of Cut
    1/8 in.
  • Height
    25.75 in.
  • Horse Power
    1 HP
  • Infeed Table Length
    28 in.
  • Input Power
    115 V 1 Ph
  • Maximum Board Thickness
    6 in.
  • Maximum Board Width
    6 in.
  • Maximum Depth Of Cut
    0.125 in.
  • Minimum Board Length
    6 in.
  • Model Number
    JJ-6CSDX
  • Motor Amps
    13 A
  • Motor HP
    1 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
  • Number of Knives
    3
  • Old Material Number
    708457DXK
  • Outfeed Table Length
    23 in.
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Rabbeting Capacity
    1/2 in.
  • Rabbeting Ledge
    3-1/8 x 8-3/4 in.
  • Recommended Circut Size Amp
    20 A
  • Required Cfm
    350 - 350 CFM
  • SAP Gross Weight
    256
  • SAP Net weight
    237
  • Table Height
    31-1/4 in.
  • Table Size
    56 x 7-3/8 in.
  • Type of Cutterhead
    Straight Knife
  • UPC
    662755519703
  • Warranty
    Five Years
