6" Long Bed Wood Jointer w/ Helical Head Kit, 1HP, 115/230V 1PH(JJ-6HHDX)
6" Long Bed Wood Jointer w/ Helical Head Kit, 1HP, 115/230V 1PH(JJ-6HHDX)
6" Long Bed Wood Jointer w/ Helical Head Kit, 1HP, 115/230V 1PH(JJ-6HHDX)
6" Long Bed Wood Jointer w/ Helical Head Kit, 1HP, 115/230V 1PH(JJ-6HHDX)
6" Long Bed Wood Jointer w/ Helical Head Kit, 1HP, 115/230V 1PH(JJ-6HHDX)
6" Long Bed Wood Jointer w/ Helical Head Kit, 1HP, 115/230V 1PH(JJ-6HHDX)
6" Long Bed Wood Jointer w/ Helical Head Kit, 1HP, 115/230V 1PH(JJ-6HHDX)

6" Long Bed Wood Jointer w/ Helical Head Kit, 1HP, 115/230V 1PH(JJ-6HHDX)

Stock Number: JT9-708466DXK

0 Reviews

No reviews yet.

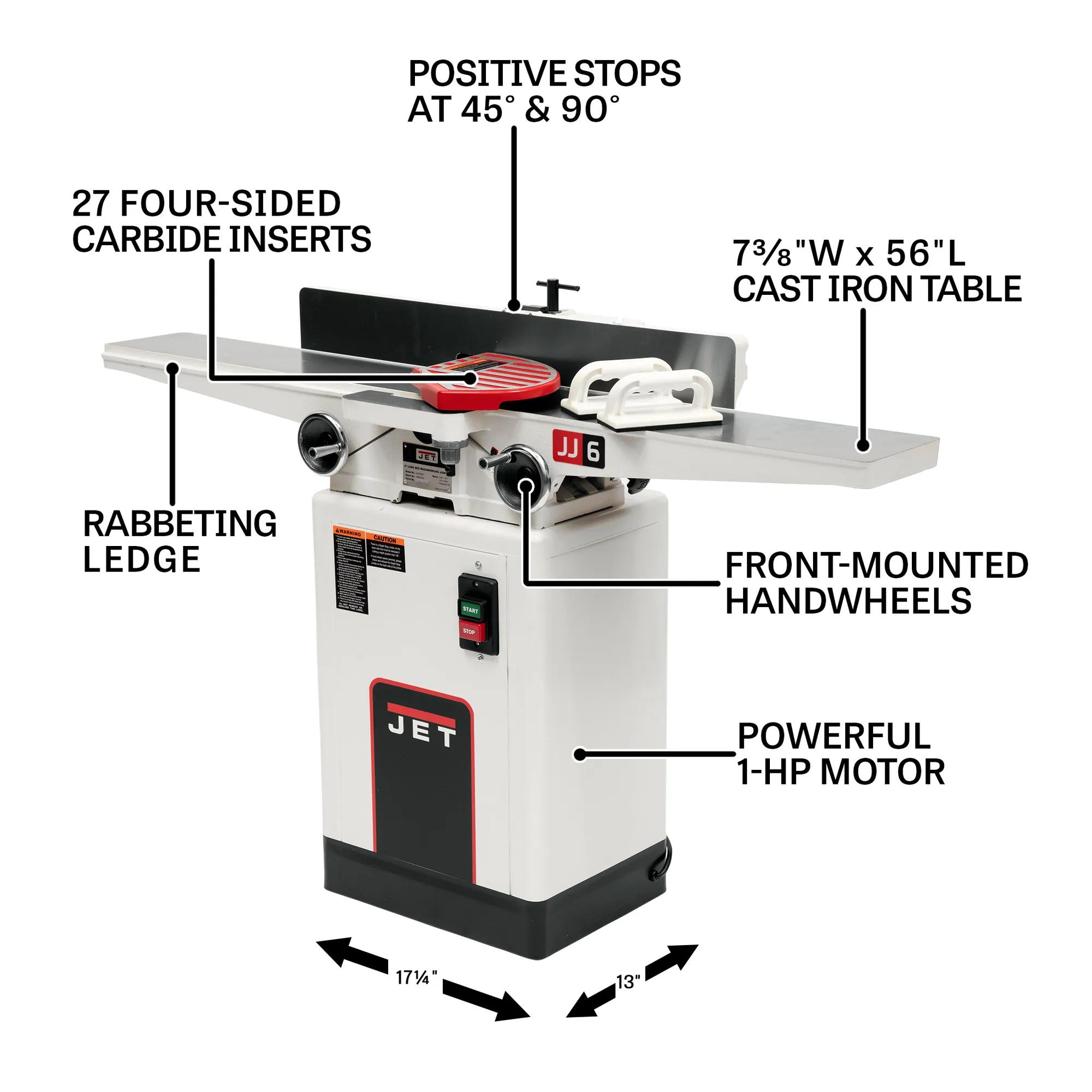

  • 1 HP, 115/230V, single-phase
  • 6" jointing capacity

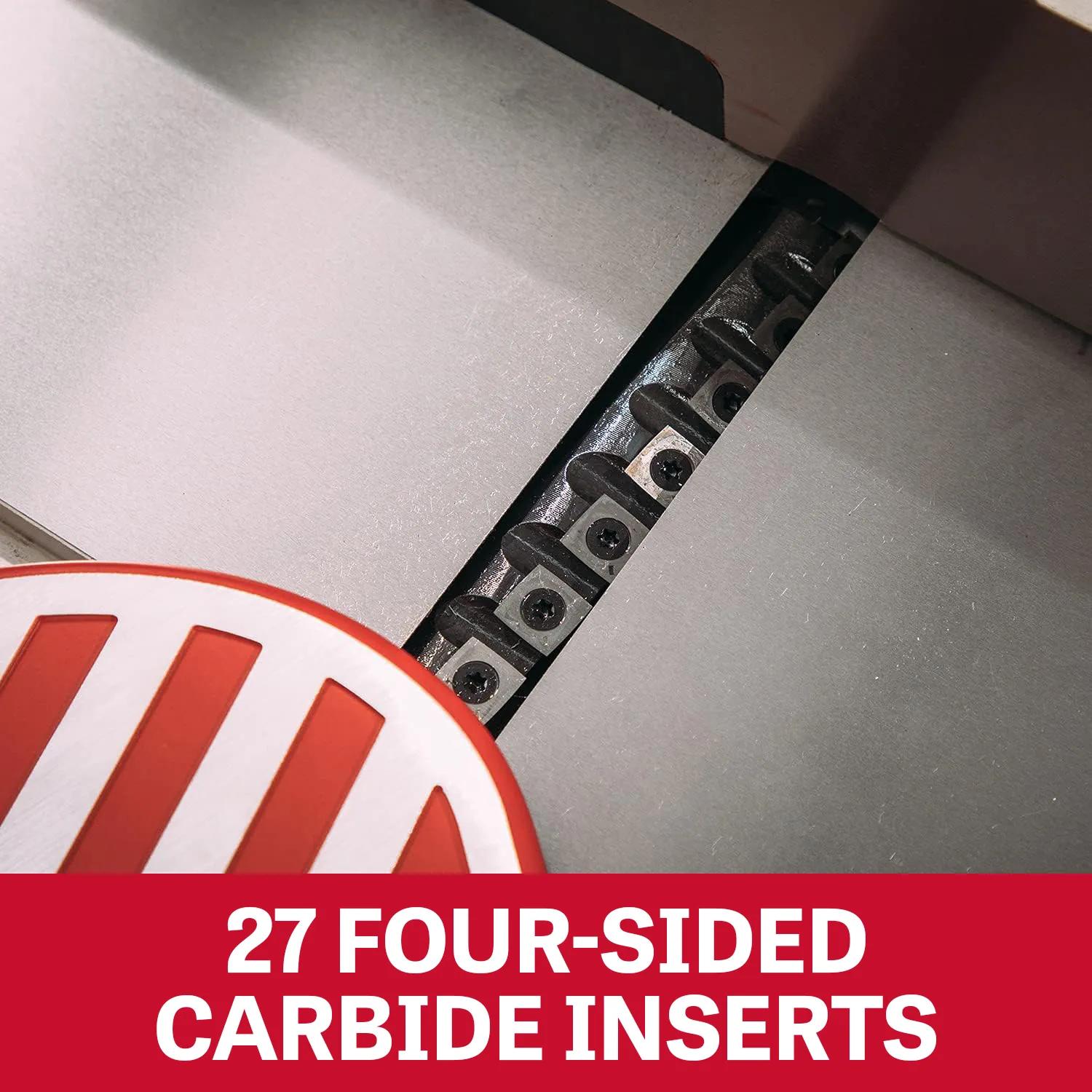

  • 27-knife helical head
  • 6,000 RPM cutterhead
BUY NOW
Fetching Data...

Product Details

Surface quality is decided at the cutterhead — and this one delivers. The JJ-6HHDX is built for production shops that depend on consistent finish quality. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Five years of warranty stand behind every pass.

Features

  • Helical-head geometry shears wood fibers at a slicing angle — eliminating the tearout straight knives leave behind.
  • Precision-rated 6-inch jointing width delivers edge work for full-width edge work in one pass.
  • Continuous-duty 1 HP induction drive — delivering consistent torque without brushwear.
  • Industrial cast iron tables resist deflection for the structural stability shop work demands.
  • Hardened and matched drive gears — delivering tolerance-grade transmission, sized for the working precision shops measure in tenths.
  • Third-party CSA/cUS certification covers the safety paperwork for the third-party verification regulated industrial sites require.

Specifications

  • SKU
    JT9-708466DXK
  • Assembled Dimensions
    56 x 20.25 x 36.5 in.
  • Coating
    None
  • Cuts Per Minute
    Continuous
  • Cutterhead Speed
    6000 RPM
  • Cutting Capacity - Width
    6 in.

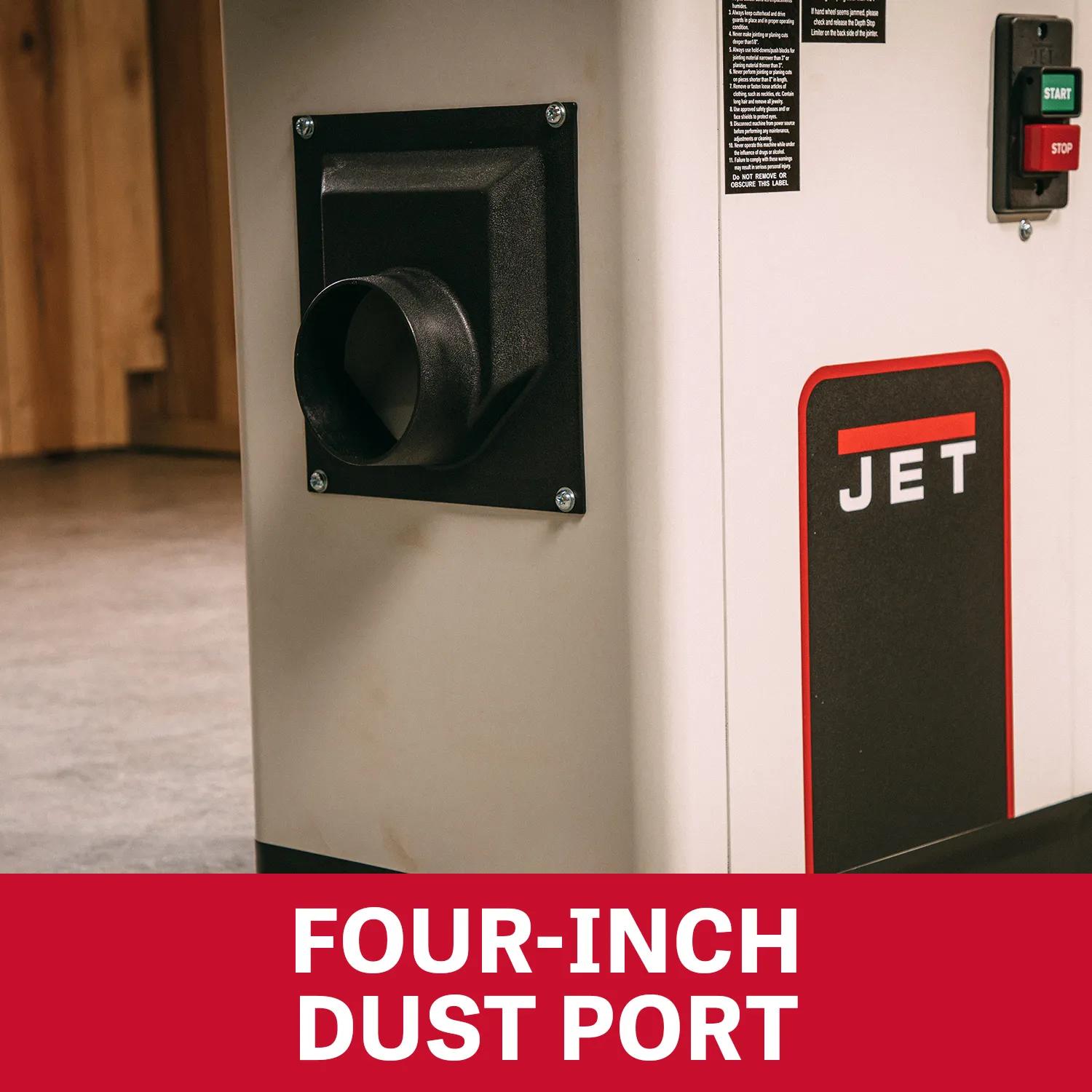

  • Dust Port Outside Diameter
    4 in.
  • Fence Size L X H
    29-18 x 3-7/8 in.

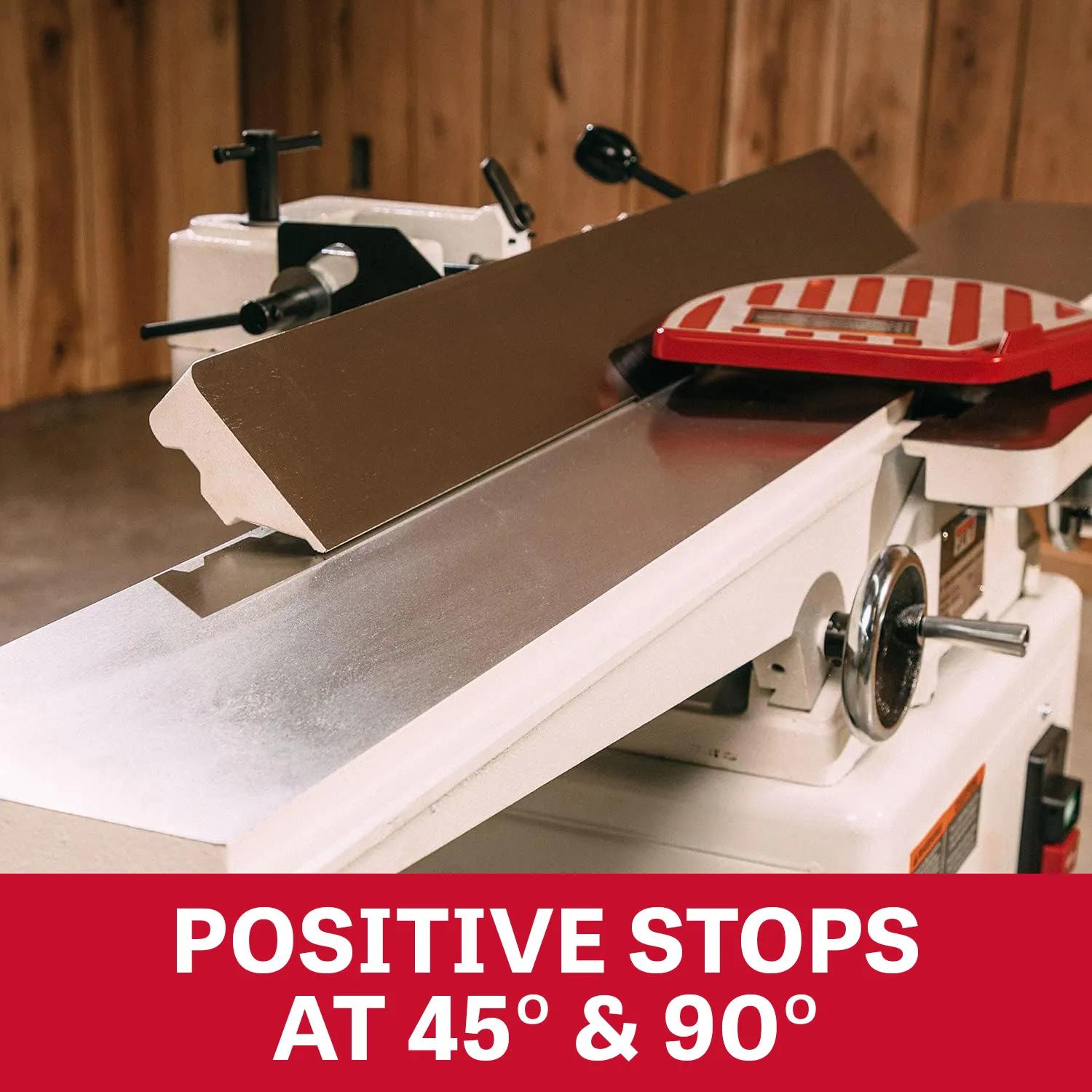

  • Fence Tilt
    90 Deg. to 45 Deg. R
  • Full Width Depth Of Cut
    1/8 in.
  • Height
    45 in.
  • Horse Power
    1 HP
  • Infeed Table Length
    28 in.
  • Input Power
    115 V 1 Ph
  • Maximum Board Thickness
    6 in.
  • Maximum Board Width
    6 in.
  • Maximum Depth Of Cut
    0.125 in.
  • Minimum Board Length
    6 in.
  • Model Number
    JJ-6HHDX
  • Motor Amps
    13 A
  • Motor HP
    1 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
  • Number of Knives
    27
  • Old Material Number
    708466DXK
  • Outfeed Table Length
    23 in.
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Rabbeting Ledge
    3-1/8 x 8-3/4 in.
  • Recommended Circut Size Amp
    20 A
  • Required Cfm
    350 - 350 CFM
  • SAP Gross Weight
    260
  • SAP Net weight
    240
  • Table Height
    31-1/4 in.
  • Table Size
    56 x 7-3/8 in.
  • Type of Cutterhead
    Helical Head
  • UPC
    662755955952
  • Warranty
    Five Years
