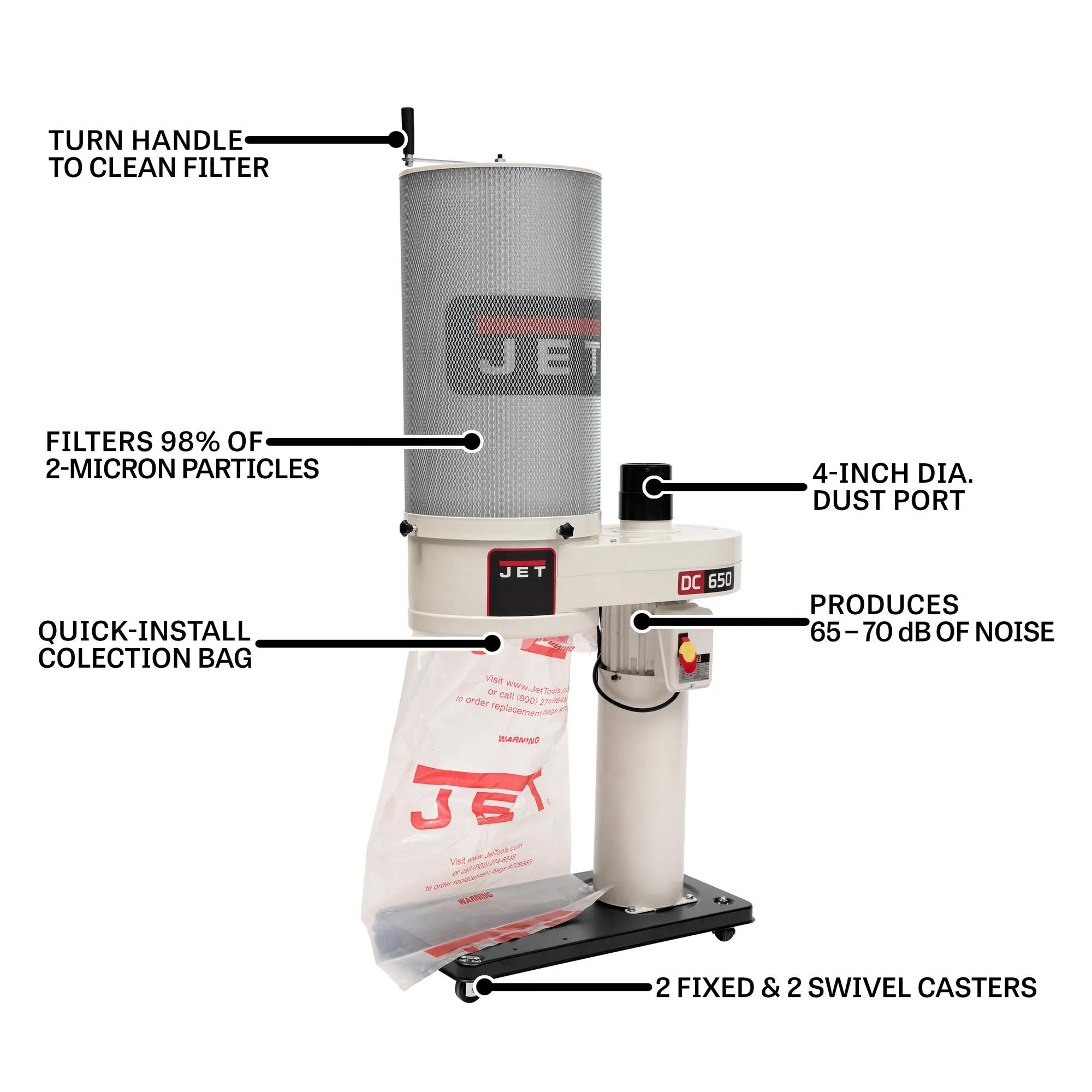

650 CFM, Dust Collector w/ 2 Micron Canister Filter, 1HP, 115/230V 1PH(DC-650CK)
650 CFM, Dust Collector w/ 2 Micron Canister Filter, 1HP, 115/230V 1PH(DC-650CK)
650 CFM, Dust Collector w/ 2 Micron Canister Filter, 1HP, 115/230V 1PH(DC-650CK)

650 CFM, Dust Collector w/ 2 Micron Canister Filter, 1HP, 115/230V 1PH(DC-650CK)

Stock Number: JT9-708642CK

0 Reviews

No reviews yet.

  • 1 HP, 115/230V, single-phase
  • 650 CFM air filtration
  • Multi-stage filter design
  • Industrial-grade construction
BUY NOW
Fetching Data...

Product Details

Production-grade air filtration for environments that demand it. The DC-650CK was sized for industrial shop floors with serious air-quality requirements. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for daily duty, warrantied for the long run.

Features

  • Operator-rated 650 CFM throughput matches the dust loads for the air-volume production shops actually need to move.
  • Sealed 1 HP induction motor protects against the dust, chips, and humidity of industrial shop floors.
  • From visible dust to invisible mist, the media catches it for both equipment life and operator health.
  • Layered filter geometry — keeping maintenance simple, sized for both coarse particulates and fine dust in one pass.
  • Production-grade mounting design — delivering installation flexibility production environments expect across production shop floors.
  • Operator-side remote — delivering operator-side control without wiring runs across production environments.

Specifications

  • SKU
    JT9-708642CK
  • Air Consumption
    650 CFM
  • Air Inlet Size
    4 in.
  • Assembled Dimensions
    27 x 14 x 66 in.
  • Base Size
    27 x 14 in.
  • Batteries Included
    No
  • Collection Bag Capacity
    2.1 Cu. Ft.
  • Collection Bag Diameter
    14 in.
  • Collection Bag Length
    23 in.
  • Connection Diameter
    4 in.
  • Filter Type
    2 Micron Canister Filter
  • Height
    66 in.
  • Horse Power
    1 HP
  • Impeller Diameter
    9-1/2 in.
  • Impeller Material
    Steel
  • Input Power
    115/230 V 1 Ph
  • Maximum CFM
    650 CFM
  • Maximum Static Pressure
    6-1/2 in.
  • MERV Value
    98% of 2 micron
  • Micron Rating
    2 Micron
  • Model Number
    DC-650CK
  • Motor Amps
    11 A
  • Motor HP
    1 HP
  • Motor Phase
    Single
  • Motor Voltage
    115/230 V
  • Old Material Number
    708642CK
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • SAP Gross Weight
    84
  • SAP Net weight
    84
  • Sound Rating Db
    65 - 70 dB
  • Speeds CFM Filtered Air
    650 CFM
  • Style Type
    Canister
  • UPC
    662755985492
  • Velocity at 4 FPM
    6300 FPM
  • Warranty
    Five Years
