Product Details

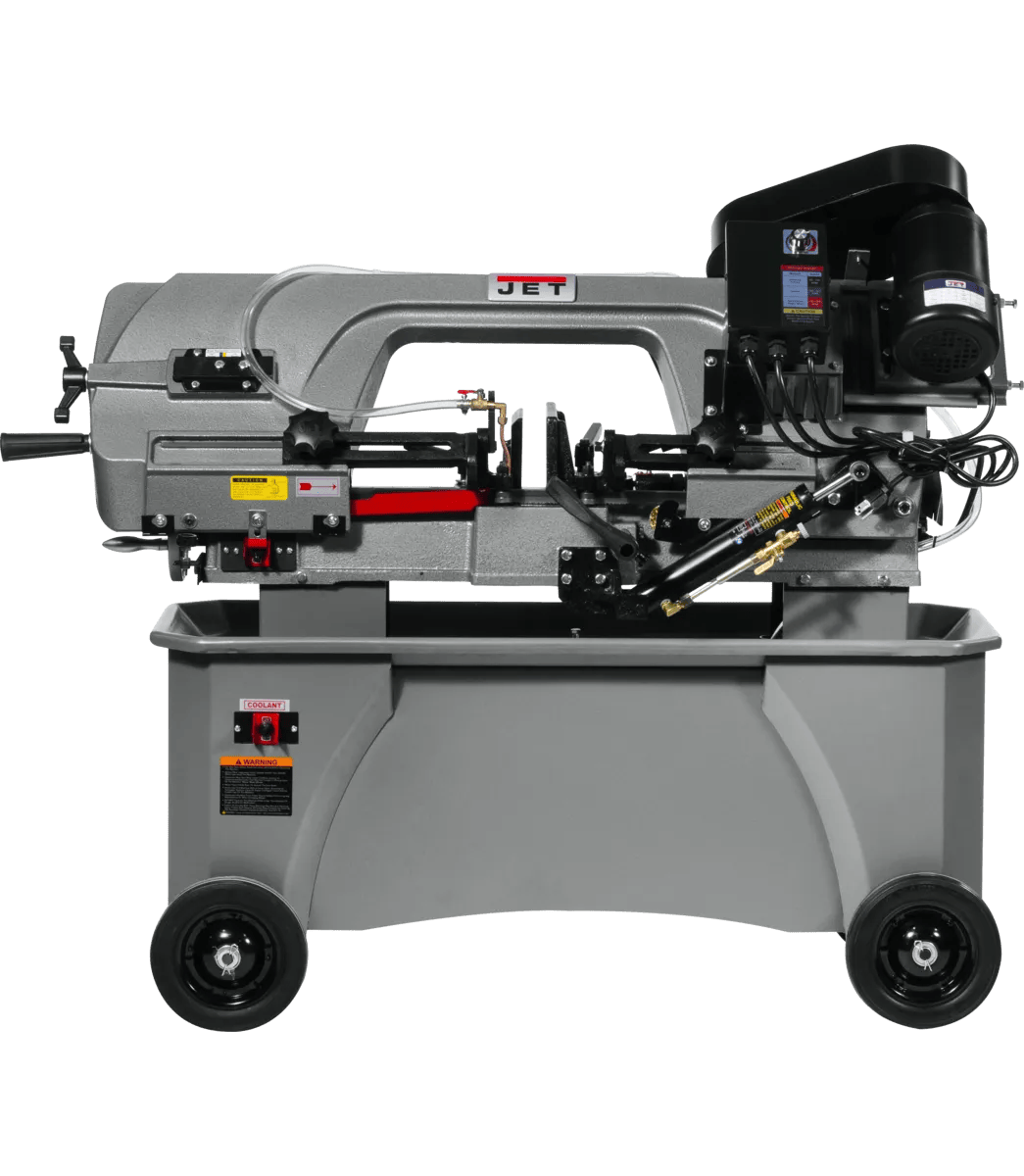

Production-grade sawing for shops that need it daily. The HVBS712DV is built for fabrication shops running daily cuts. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by the JET service network.
Features
- 1 HP, 115V single-phase induction motor — outlasting brush-driven alternatives across decades, sized without bogging down on full-width passes.

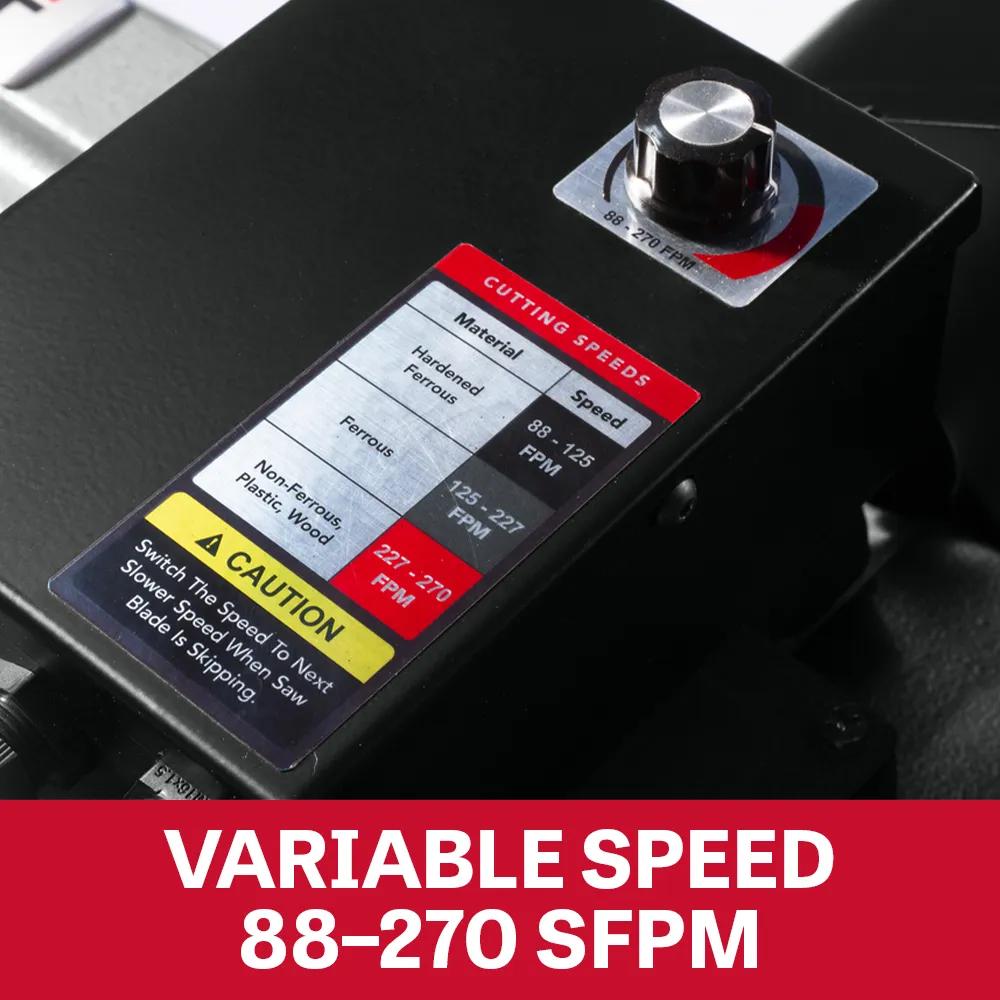

- 88 - 270 cutting speed — expanding the cutting envelope across production sawing.
- Welded steel frame keeps the saw planted — running cooler under sustained cutting loads than commercial-grade frames.

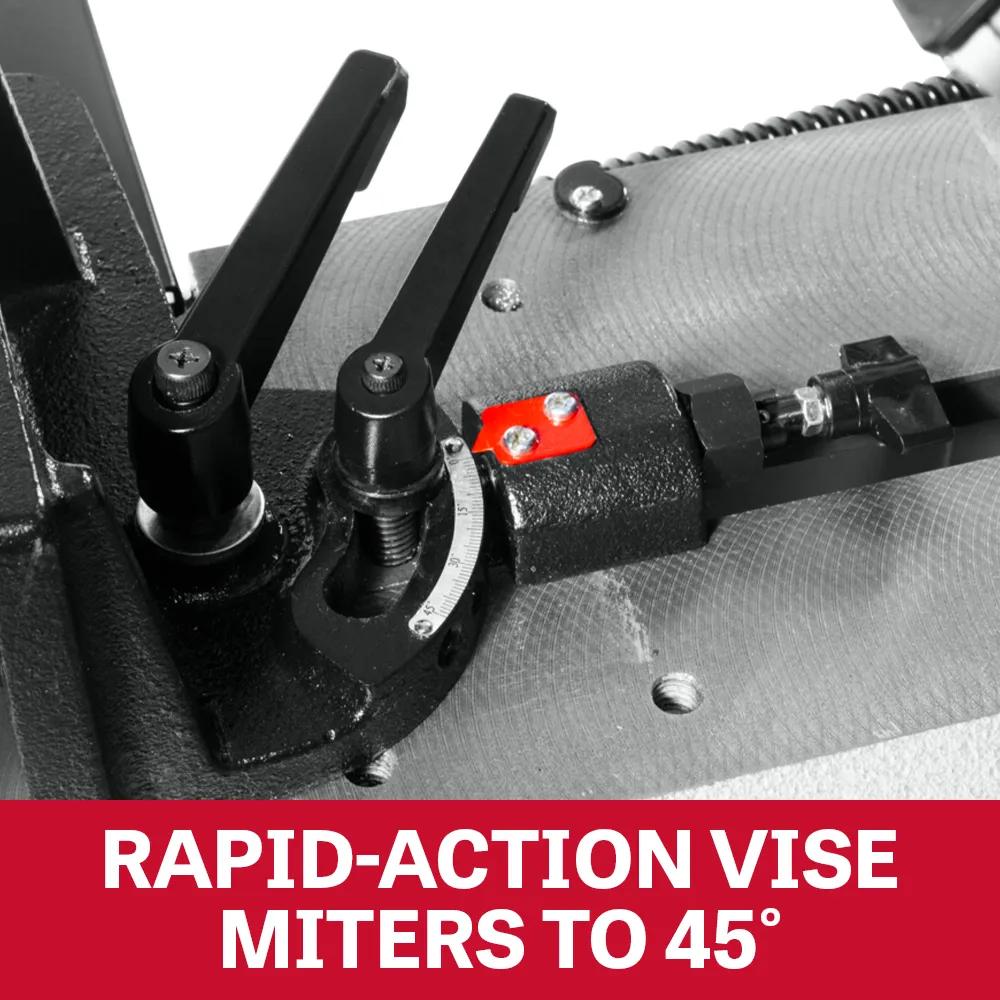

- Precision-rated tilting table — handling miter and bevel cuts in one setup, engineered for the angled cuts production fabrication actually runs.
- Tolerance-grade cutting envelope provides workpiece sizes for the workpiece sizes production sawing actually runs.
- Cast iron reference surfaces provide the structural mass for dimensional stability under sustained cutting loads.
Specifications
- SKUJT9-415560
- Assembled Dimensions48 x 17 x 44 in.
- Blade Size (In.)3/4 x 0.035 x 93 in. (19 x 0.90 x 2360 mm)
- Blade Speed88 - 270
- Drive TypeVariable Speed
- Height22.4 in.
- Input Power115 V 1 Ph
- Model NumberHVBS-712D
- Motor HP1 HP
- Motor PhaseSingle
- Motor Voltage115 V
- Old Material Number415560
- Overall Assembled (Bow Lowered)48 x 17 x 40 in. (1219 x 432 x 1016 mm)
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Rectangle At 45 Degrees6 x 4 in.
- Round Capacity At 45 Degrees5 in.
- Round Capacity At 90 Degrees7 in.
- SAP Gross Weight418
- SAP Net weight374
- Square At 90 Degrees7 x 7 in.
- UPC731325789676
- Vise Swivels Deg45 Deg.
- WarrantyTwo Years
- Wheel Diameter11.75 in.
