8" Closed Stand Jointer, 2HP, 230V 1PH(JWJ-8CS)
8" Closed Stand Jointer, 2HP, 230V 1PH(JWJ-8CS)
8" Closed Stand Jointer, 2HP, 230V 1PH(JWJ-8CS)
8" Closed Stand Jointer, 2HP, 230V 1PH(JWJ-8CS)
8" Closed Stand Jointer, 2HP, 230V 1PH(JWJ-8CS)
8" Closed Stand Jointer, 2HP, 230V 1PH(JWJ-8CS)
8" Closed Stand Jointer, 2HP, 230V 1PH(JWJ-8CS)

8" Closed Stand Jointer, 2HP, 230V 1PH(JWJ-8CS)

Stock Number: JT9-718200K

0 Reviews

No reviews yet.

  • 2 HP, 230V, single-phase
  • 8" jointing capacity
  • 3-knife cutterhead
  • 5,500 RPM cutterhead
BUY NOW
Fetching Data...

Product Details

Cabinet-grade finishes start with a planer built for them. Designed for production shops that depend on consistent finish quality, the JWJ-8CS stands up to the duty cycle. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Built for the long run — and warrantied for it.

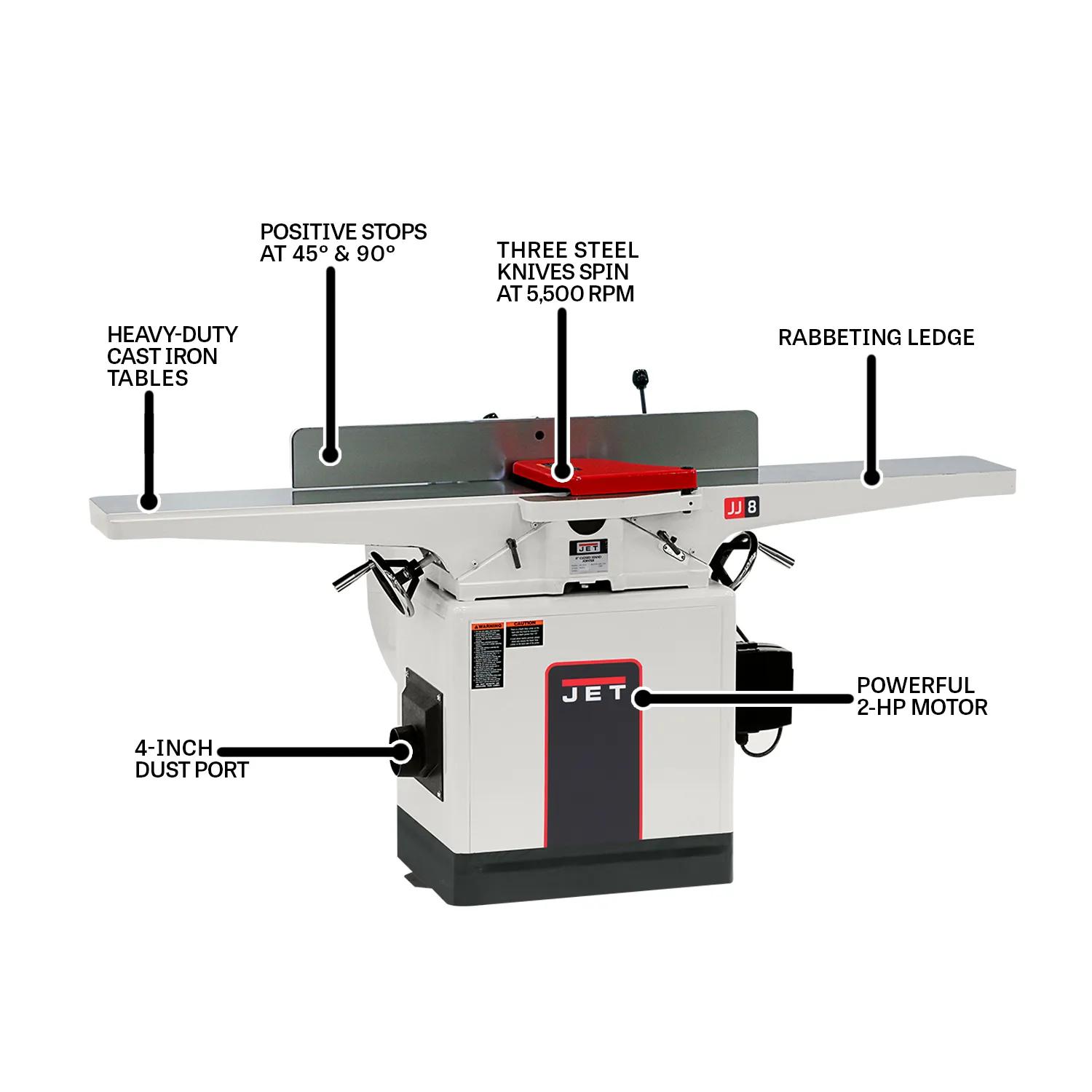

Features

  • Engineered 8-inch jointing width covers edge work for face-and-edge work production projects depend on.
  • Heavy-duty 2 HP induction motor handles working speed under load — running tens of thousands of hours without service intervention.
  • Precision-rated 3-knife straight cutterhead provides traditional cutting performance for the proven planing performance production shops actually run.
  • Shop-rated cast iron main castings dampen harmonics across production runs.
  • Hardened-steel drive system gears support the working precision without backlash drift that costs you finish quality.
  • Built and tested to CSA/cUS listing standards for facility safety compliance requirements.

Specifications

  • SKU
    JT9-718200K
  • Assembled Dimensions
    72-3/8 x 26-1/16 x 39-31/32 in.
  • Coating
    None
  • Cuts Per Minute
    16500
  • Cutterhead Speed
    5500 RPM
  • Cutting Capacity - Width
    8 in.

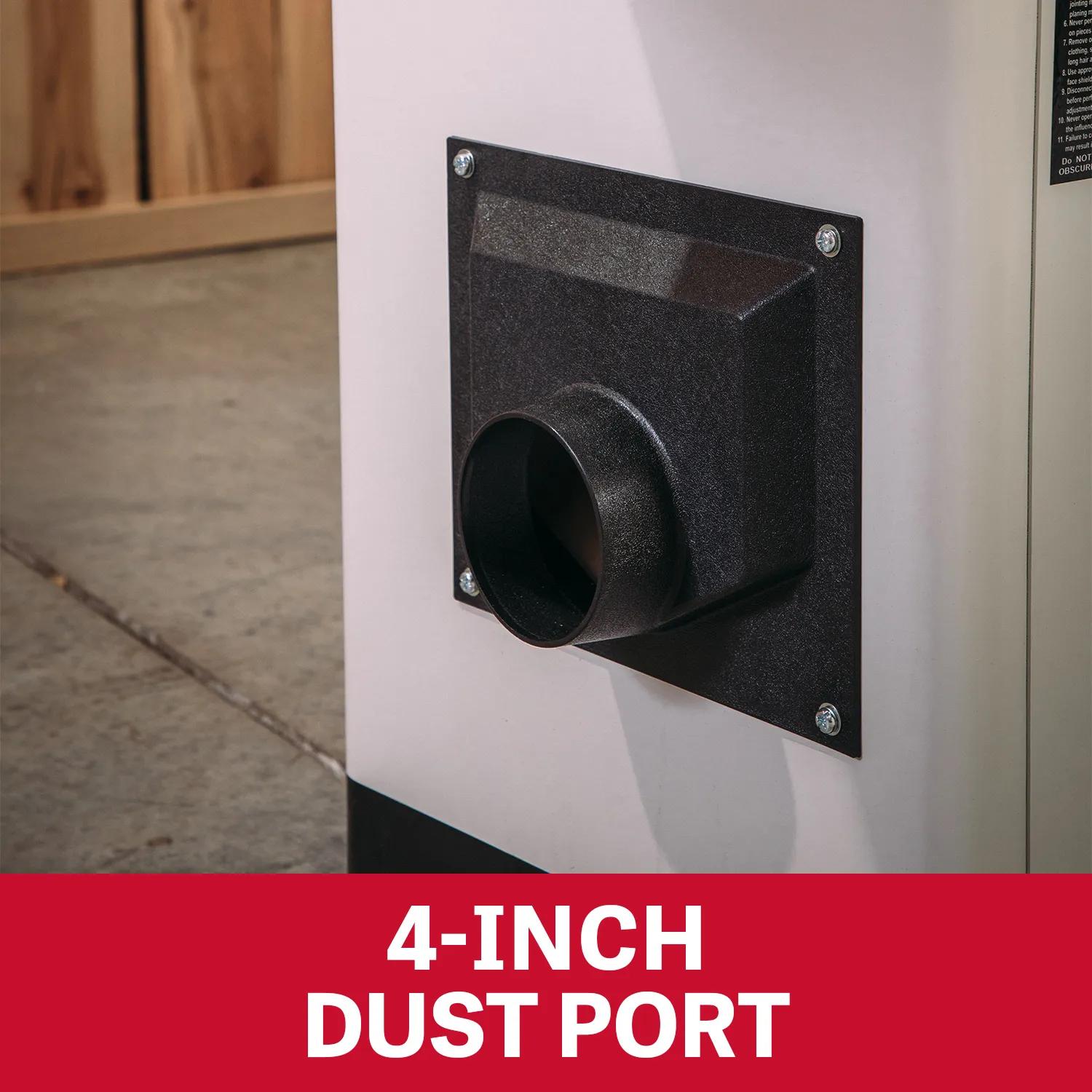

  • Dust Port Outside Diameter
    4 in.

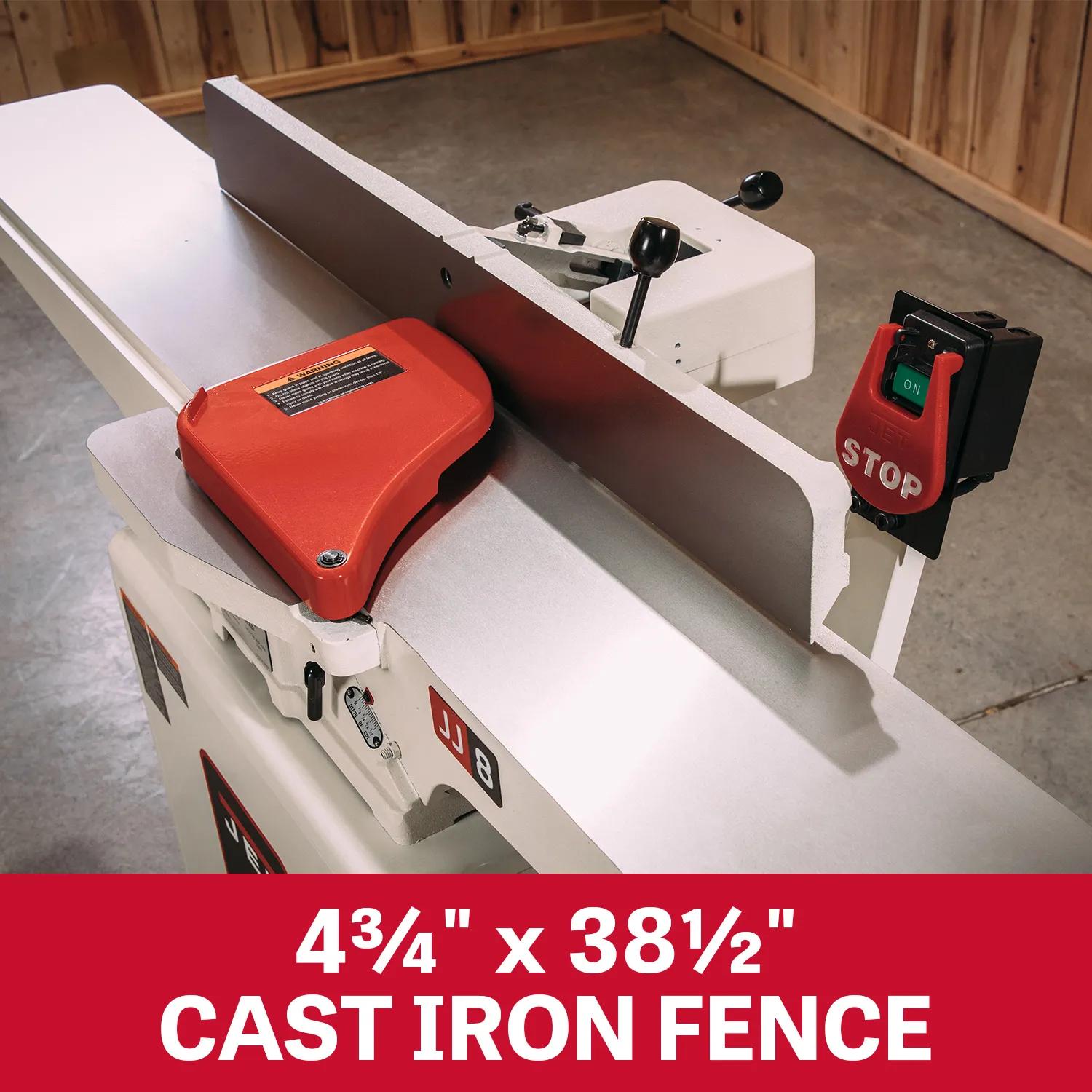

  • Fence Size L X H
    38 x 4-3/4 in.

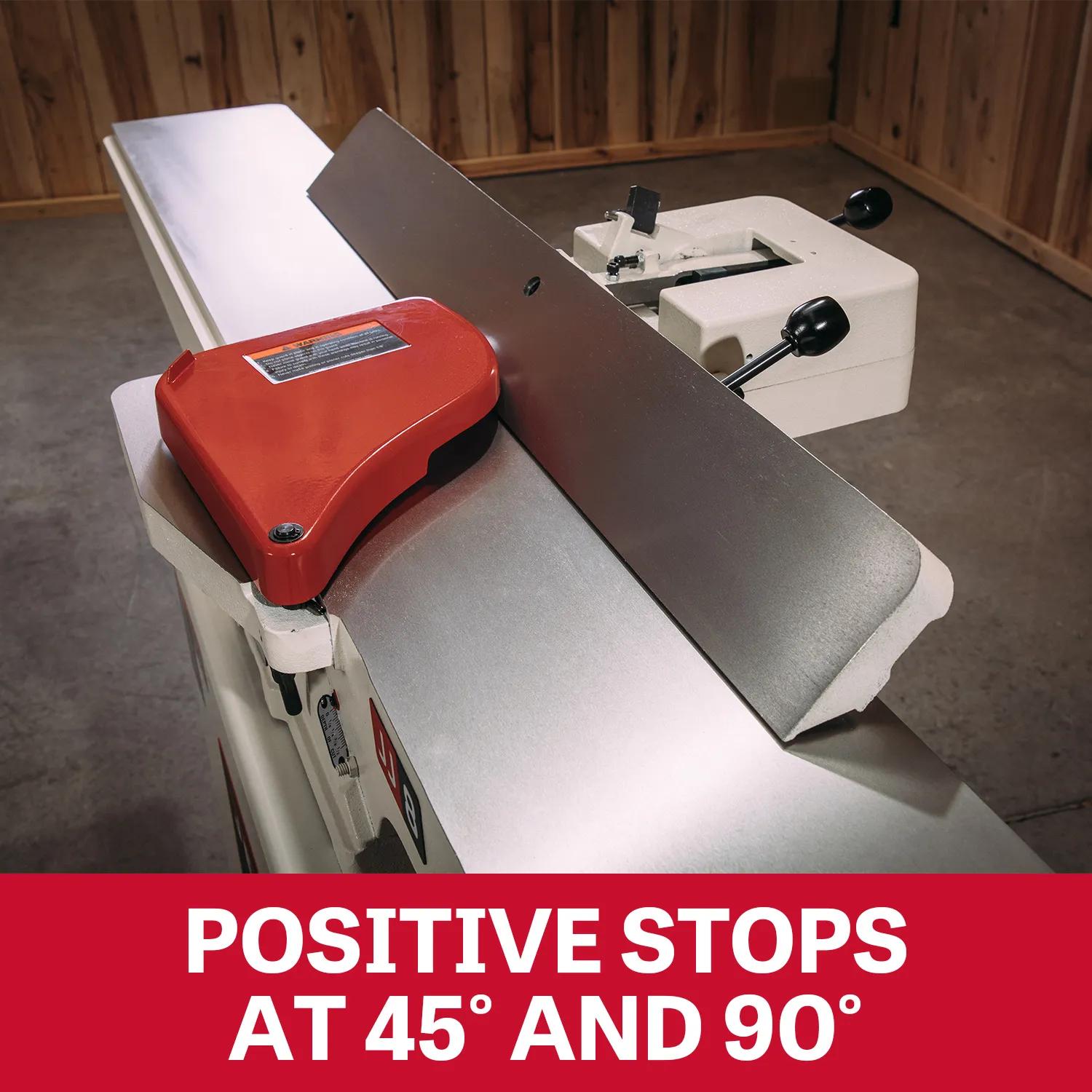

  • Fence Tilt
    -45 Deg. to +45 Deg.
  • Full Width Depth Of Cut
    1/8 in.
  • Height
    39-31/32 in.
  • Horse Power
    2 HP
  • Infeed Table Length
    33 in.
  • Input Power
    230 V 1 Ph
  • Maximum Board Thickness
    8 in.
  • Maximum Board Width
    8 in.

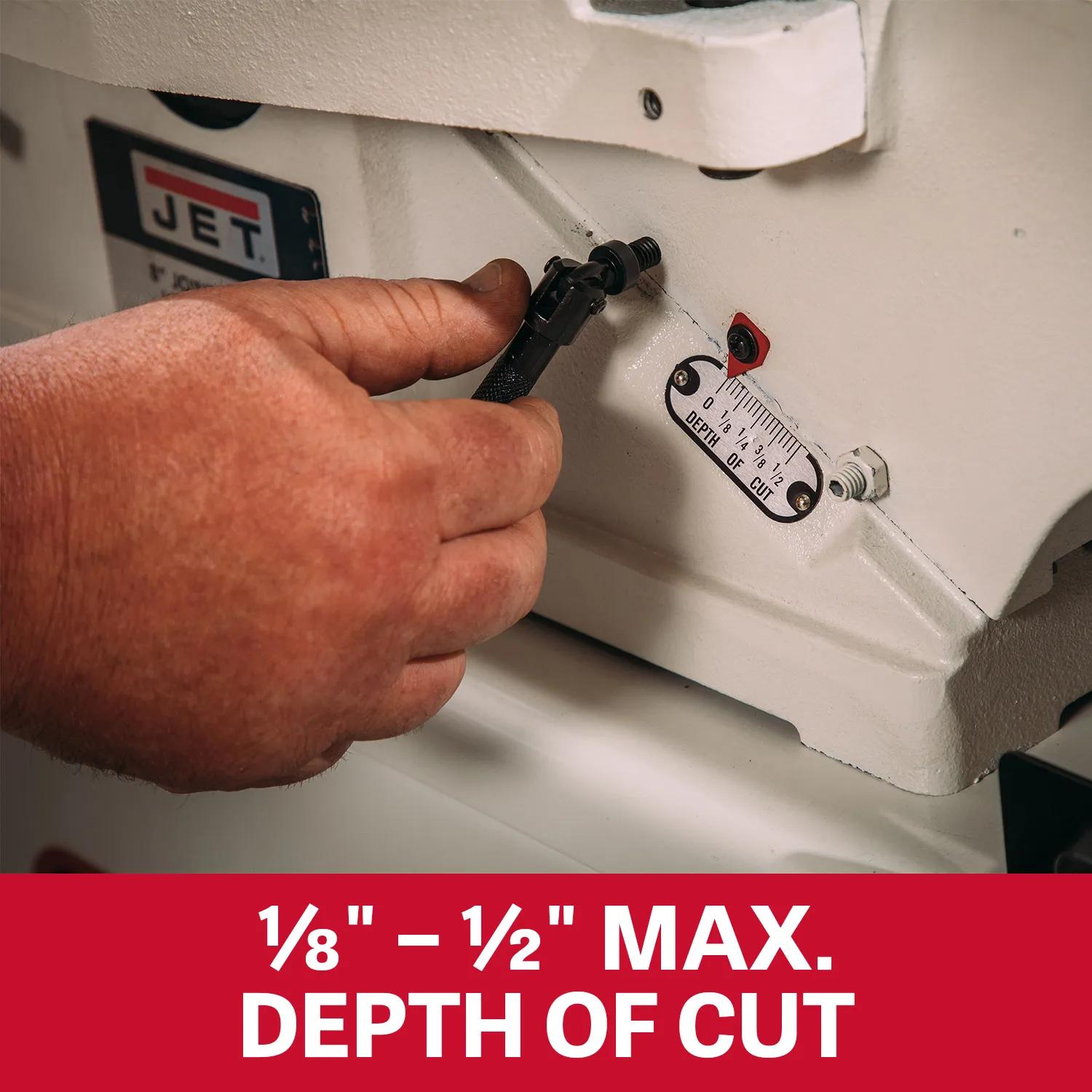

  • Maximum Depth Of Cut
    0.125 in.
  • Minimum Board Length
    8 in.
  • Model Number
    JWJ-8CS
  • Motor Amps
    12 A
  • Motor HP
    2 HP
  • Motor Phase
    Single
  • Motor Voltage
    230 V
  • Number of Knives
    3
  • Old Material Number
    718200K
  • Outfeed Table Length
    36 in.
  • Prewired Voltage
    230 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Rabbeting Capacity
    1/2 in.
  • Rabbeting Ledge
    3-1/8 x 8-3/4 in.
  • Recommended Circut Size Amp
    20 A
  • Required Cfm
    350 - 350 CFM
  • SAP Gross Weight
    452
  • SAP Net weight
    375
  • Table Height
    31-1/4 in.
  • Table Size
    72 x 9 in.
  • Type of Cutterhead
    Straight Knife
  • UPC
    731325480801
  • Warranty
    Five Years
