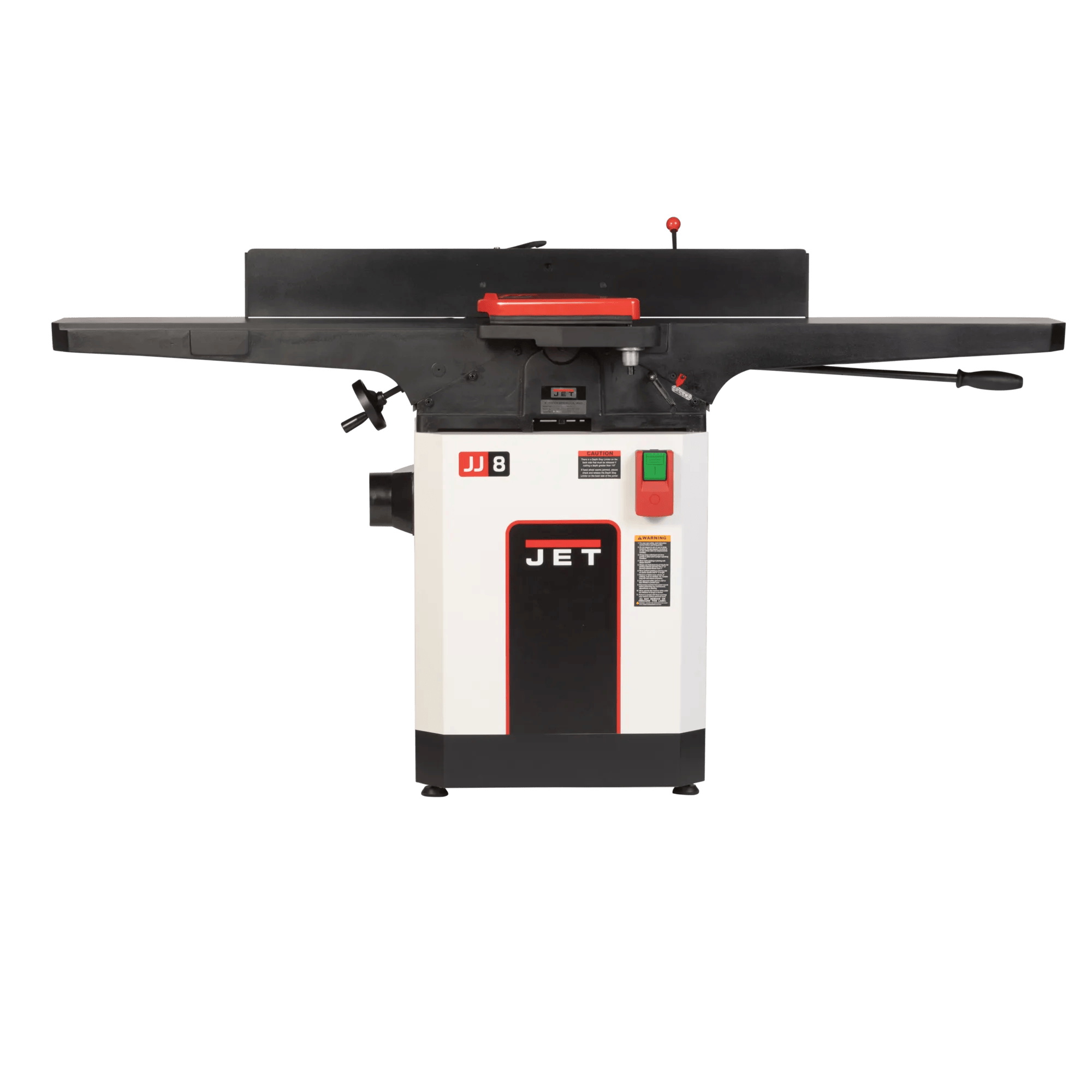

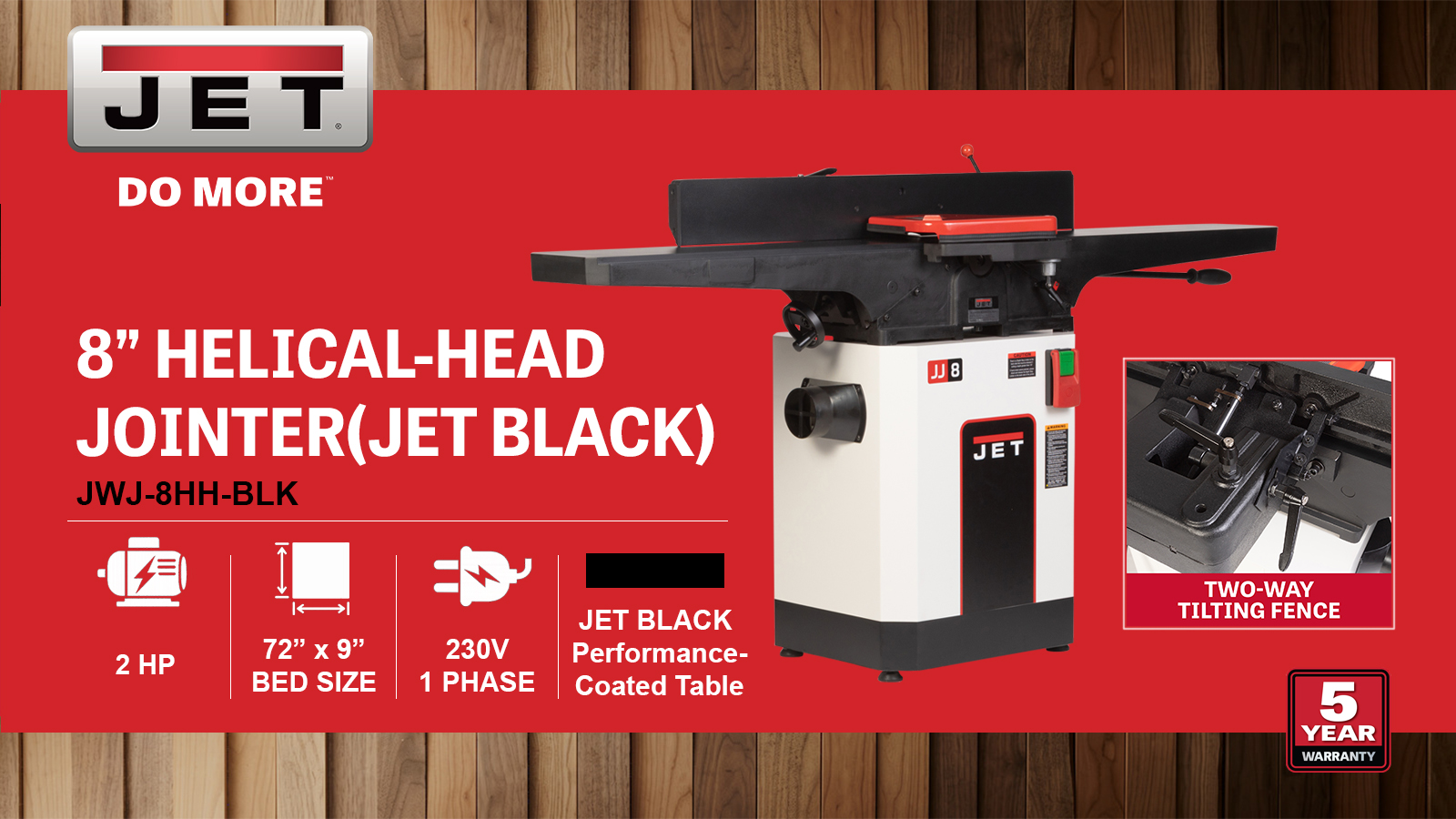

8" Black Helical Head Jointer, 2HP, 230V 1PH(JWJ-8HH-BLK)
8" Black Helical Head Jointer, 2HP, 230V 1PH(JWJ-8HH-BLK)
8" Black Helical Head Jointer, 2HP, 230V 1PH(JWJ-8HH-BLK)
8" Black Helical Head Jointer, 2HP, 230V 1PH(JWJ-8HH-BLK)
8" Black Helical Head Jointer, 2HP, 230V 1PH(JWJ-8HH-BLK)
8" Black Helical Head Jointer, 2HP, 230V 1PH(JWJ-8HH-BLK)
8" Black Helical Head Jointer, 2HP, 230V 1PH(JWJ-8HH-BLK)
8" Black Helical Head Jointer, 2HP, 230V 1PH(JWJ-8HH-BLK)
8" Black Helical Head Jointer, 2HP, 230V 1PH(JWJ-8HH-BLK)
8" Black Helical Head Jointer, 2HP, 230V 1PH(JWJ-8HH-BLK)
8" Black Helical Head Jointer, 2HP, 230V 1PH(JWJ-8HH-BLK)

8" Black Helical Head Jointer, 2HP, 230V 1PH(JWJ-8HH-BLK)

Stock Number: JT1-1373

0 Reviews

No reviews yet.

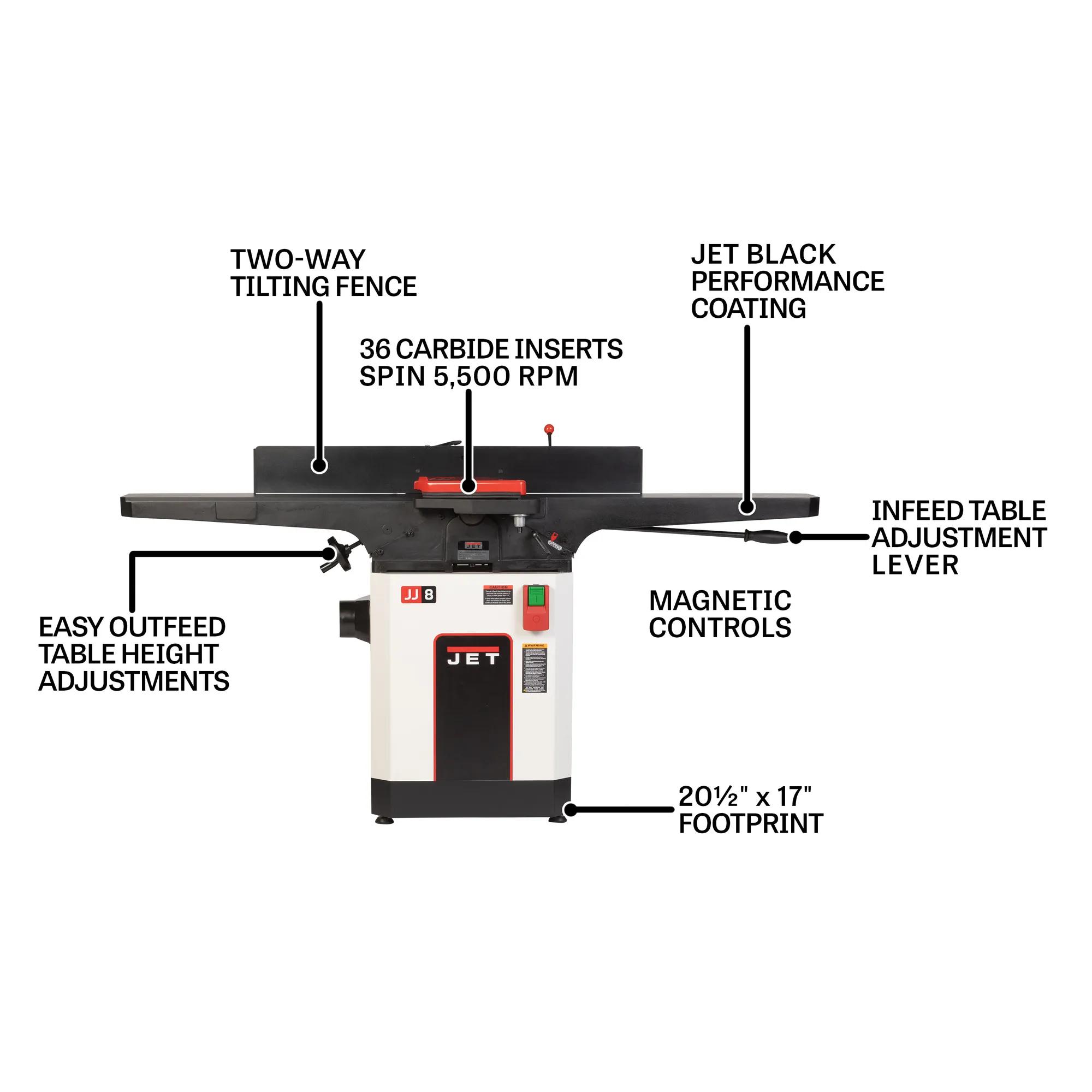

  • 2 HP, 230V, single-phase
  • 8" jointing capacity

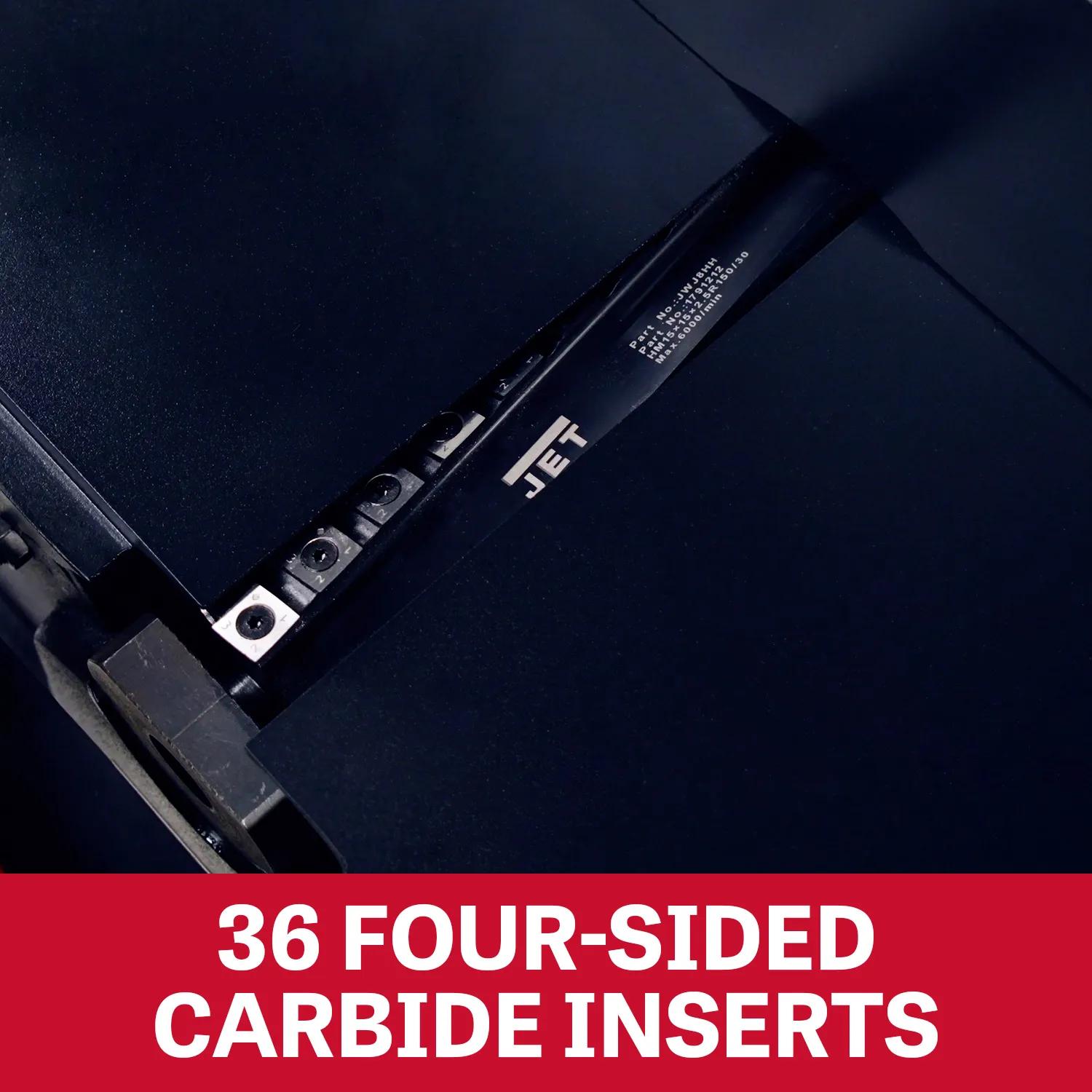

  • 36-knife helical head
  • 5,500 RPM cutterhead
BUY NOW
Fetching Data...

Product Details

Power, precision, and the finish quality that turns rough cut into shop-ready. Engineered around production woodworking environments, the JWJ-8HH-BLK earns its place. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and a 400+ service-center network keep production moving.

Features

  • 36-insert helical geometry — delivering cleaner cuts than straight-knife alternatives across cabinet and furniture making.
  • Wide 8-inch capacity — squaring boards your projects actually use.
  • Heavy-duty 2 HP induction motor handles working speed under load — handling startup loads where smaller motors trip.
  • Heavy cast iron table surfaces — earning their place through sheer mechanical authority, engineered for finish quality consistency across speeds.
  • Hardened and ground drive components keep the drivetrain transmitting power without tolerance drift across the warranty period.
  • CSA/cUS listed construction — shipping with the certification paperwork inspectors actually check, certified for the documentation safety officers expect.

Specifications

  • SKU
    JT1-1373
  • Assembled Dimensions
    70-7/8 x 25-5/8 x 45-1/4 in.
  • Base Size
    20-1/2 x 17 in.

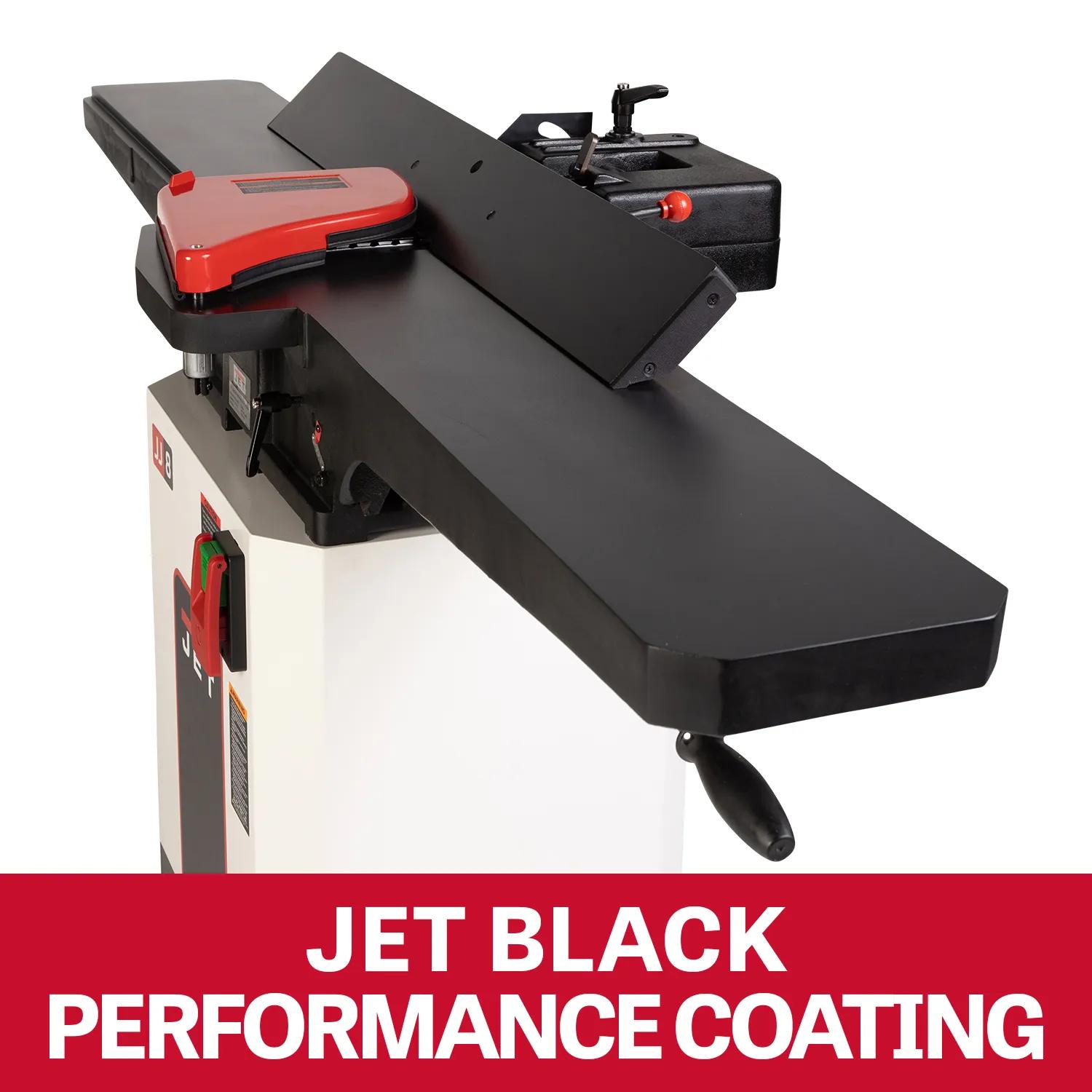

  • Coating
    JET Black Coating
  • Cutterhead Diameter
    2-15/16 in.
  • Cutterhead Speed
    5500 RPM
  • Cutting Capacity - Width
    8 in.

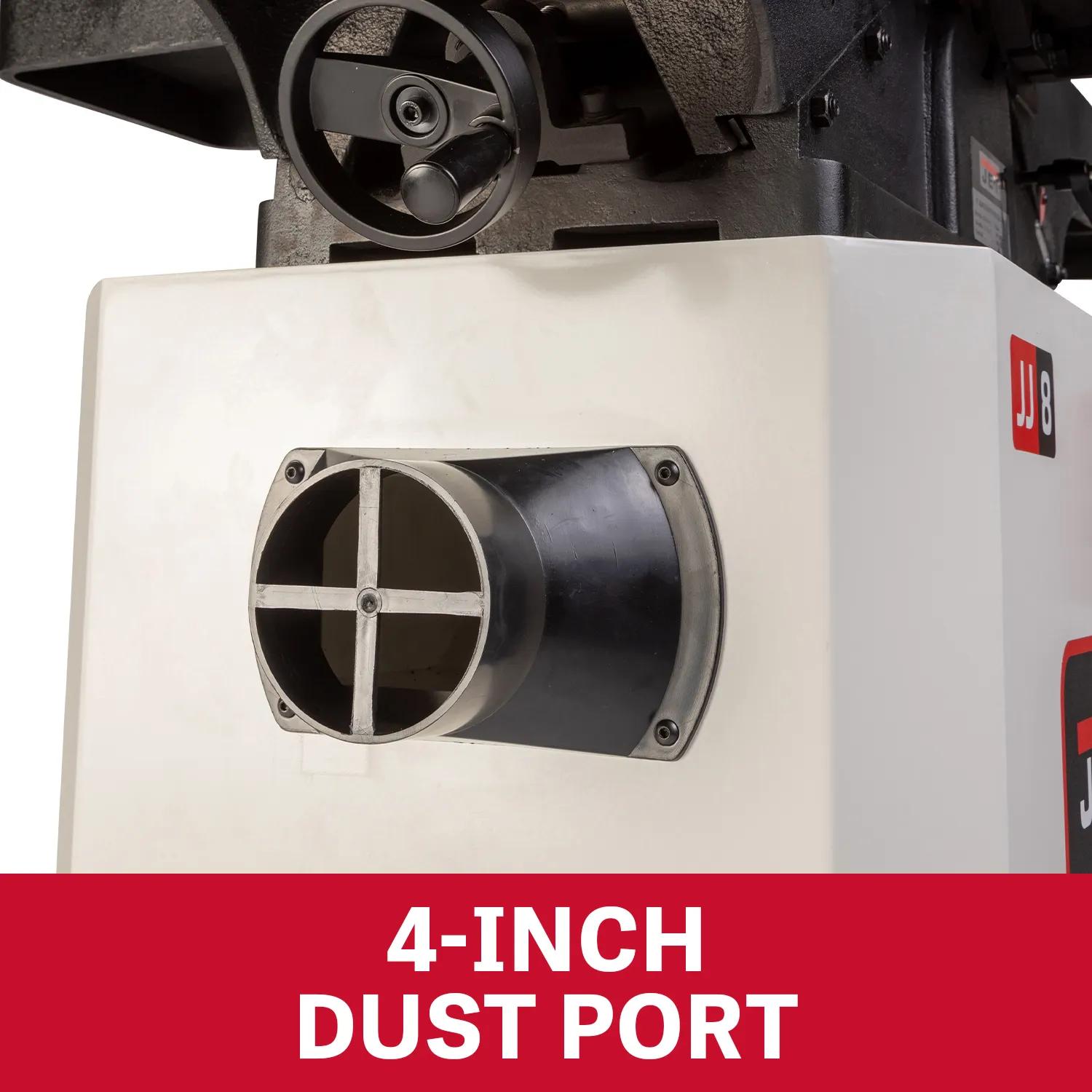

  • Dust Port Outside Diameter
    4 in.
  • Fence Size L X H
    40-1/2 x 5 in.

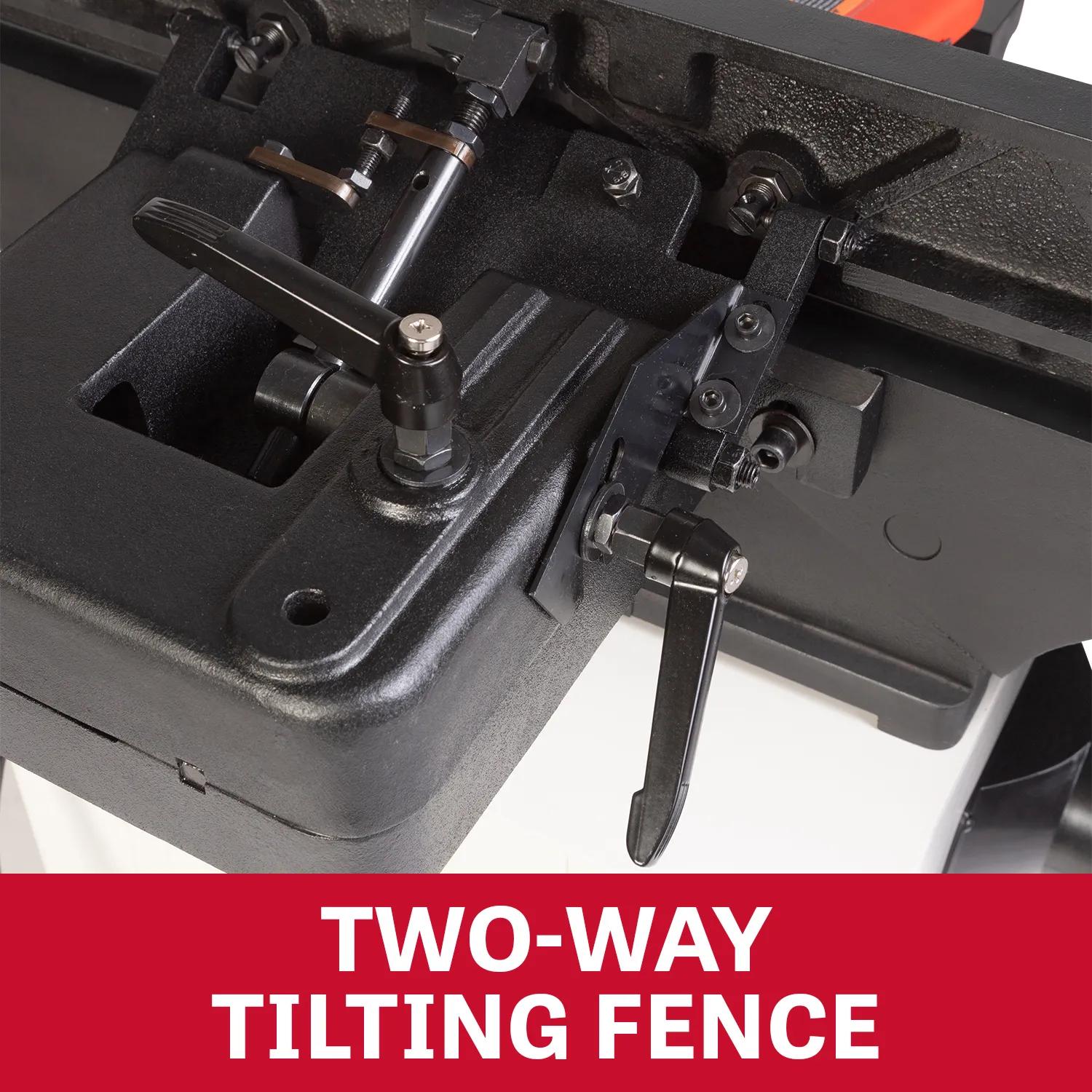

  • Fence Tilt
    45 Deg. L, 90 Deg., 135 Deg.
  • Full Width Depth Of Cut
    1/8 in.
  • Height
    42 in.
  • Helical Head Size
    0.59 x 0.59 x 0.10 in.
  • Horse Power
    2 HP
  • Infeed Table Length
    34-11/16 in.
  • Input Power
    230 V 1 Ph
  • Maximum Board Thickness
    8 in.
  • Maximum Board Width
    8 in.
  • Maximum Depth Of Cut
    0.125 in.
  • Minimum Board Length
    8 in.
  • Model Number
    JWJ-8HH-BLK
  • Motor Amps
    9 A
  • Motor HP
    2 HP
  • Motor Phase
    Single
  • Motor Voltage
    230 V
  • Number of Knives
    36
  • Outfeed Table Length
    34-11/16 in.

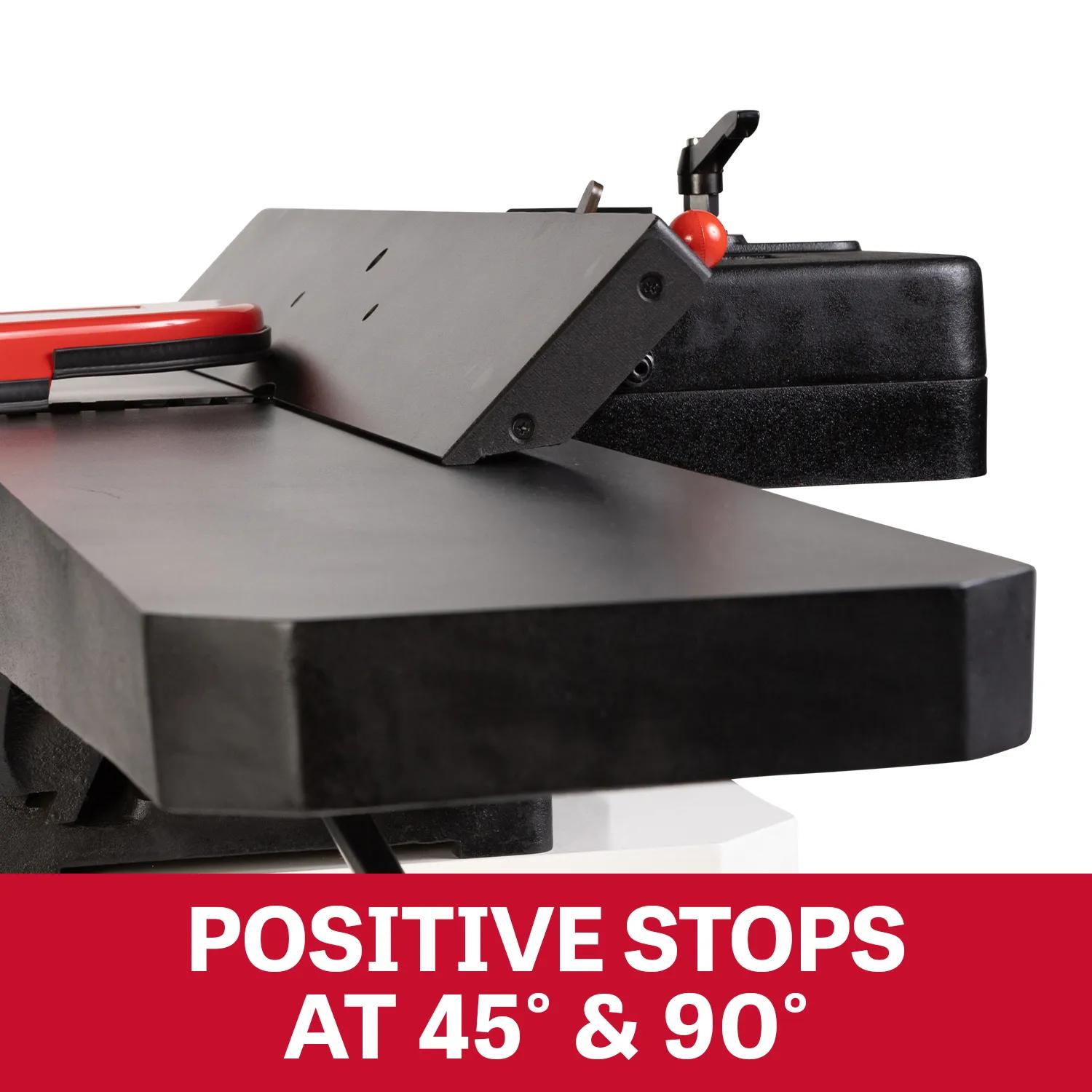

  • Positive Stops
    45 Deg. L, 90 Deg., 45 Deg. R
  • Prewired Voltage
    230 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    20 A
  • Required Cfm
    400 - 400 CFM
  • SAP Gross Weight
    415
  • SAP Net weight
    415
  • Table Height
    33 in.
  • Table Size
    70-7/8 x 9-1/2 in.
  • Type of Cutterhead
    Helical Head
  • UPC
    019907931997
  • Warranty
    Five Years
