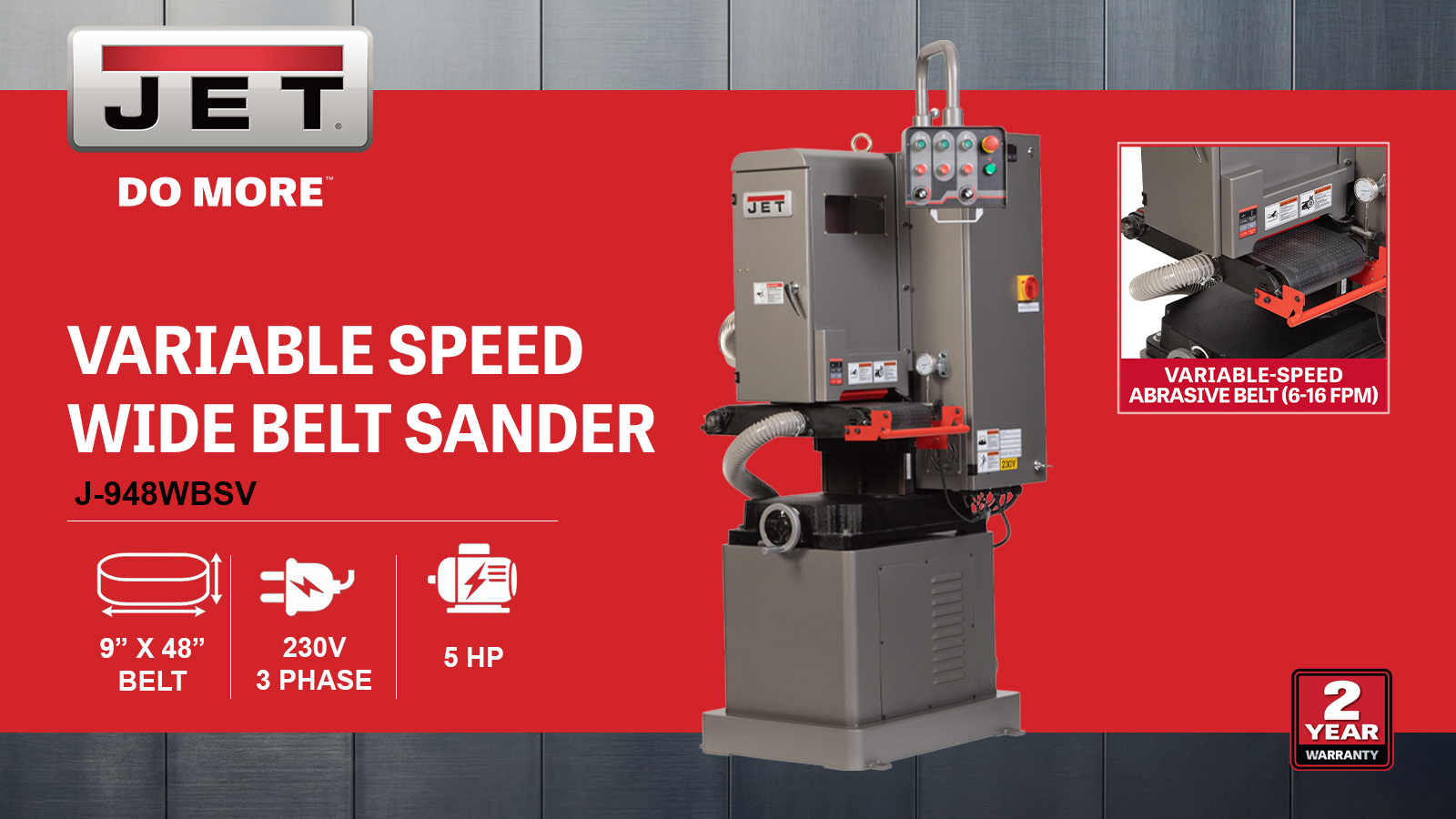

9 x 48" . Vari. Speed Wide Belt Sander, 5HP, 230V 3PH(J-948WBSV)
9 x 48" . Vari. Speed Wide Belt Sander, 5HP, 230V 3PH(J-948WBSV)
9 x 48" . Vari. Speed Wide Belt Sander, 5HP, 230V 3PH(J-948WBSV)
9 x 48" . Vari. Speed Wide Belt Sander, 5HP, 230V 3PH(J-948WBSV)
9 x 48" . Vari. Speed Wide Belt Sander, 5HP, 230V 3PH(J-948WBSV)
9 x 48" . Vari. Speed Wide Belt Sander, 5HP, 230V 3PH(J-948WBSV)
9 x 48" . Vari. Speed Wide Belt Sander, 5HP, 230V 3PH(J-948WBSV)
9 x 48" . Vari. Speed Wide Belt Sander, 5HP, 230V 3PH(J-948WBSV)
9 x 48" . Vari. Speed Wide Belt Sander, 5HP, 230V 3PH(J-948WBSV)
9 x 48" . Vari. Speed Wide Belt Sander, 5HP, 230V 3PH(J-948WBSV)
9 x 48" . Vari. Speed Wide Belt Sander, 5HP, 230V 3PH(J-948WBSV)

9 x 48" . Vari. Speed Wide Belt Sander, 5HP, 230V 3PH(J-948WBSV)

Stock Number: JT1-550

0 Reviews

No reviews yet.

  • 5 HP, 230V, three-phase
  • Heavy-duty belt drive
  • Cast iron base
  • Precision-balanced disc
BUY NOW
Fetching Data...

Product Details

Engineered for the abrasive cycle counts production work actually generates. The J-948WBSV was sized for production grinding and sanding cycles. Equipped with a 5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage backs every production-grade finish.

Features

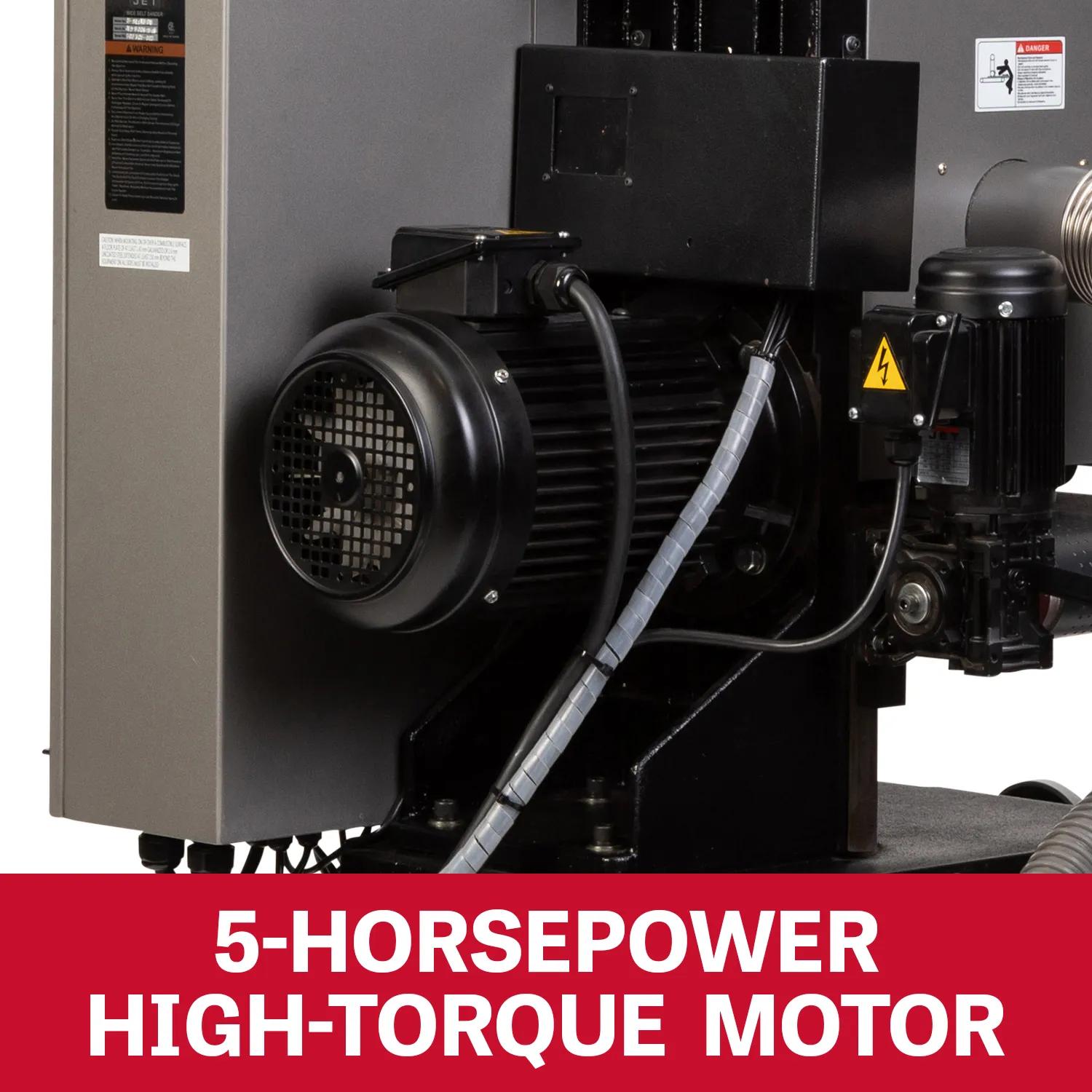

  • Industrial-grade 5 HP three-phase drive — delivering full-rated power to the cut, not the brush dust, built for working shops.
  • Abrasive belt geometry was sized for the cycle counts production finishing generates.
  • Belt-tension mechanism — handling the abrasive media production finishing uses.
  • Heavy-duty disc construction — covering the disc-finishing envelope production work generates.
  • Industrial-spec tilting table — delivering the angle accuracy precision finishing requires across industrial finishing.
  • Cast iron support castings hold reference flat for finish quality where lighter materials fail.

Specifications

  • SKU
    JT1-550
  • Abrasive Grit
    80
  • Abrasive Type
    Belt
  • Amp Draw (amps)
    15 A
  • Assembled Dimensions
    35.1 x 28.9 x 70.5 in.
  • Belt Size
    9 x 48 in.
  • Belt Speed
    660-2500 FPM
  • Conveyor Gear Box Ratio
    1/100
  • Conveyor Motor (HP)
    1/4 HP

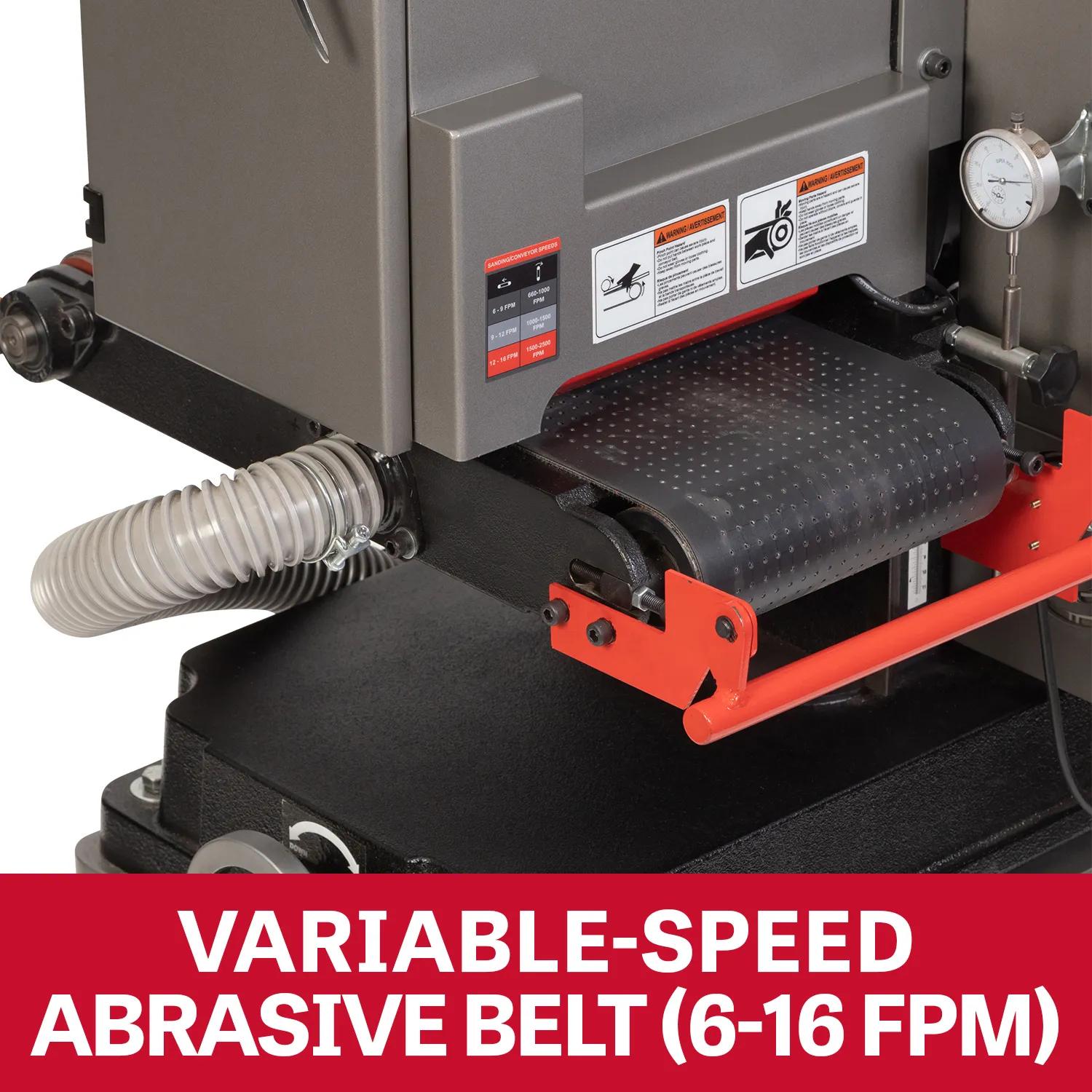

  • Conveyor Speed
    6 - 16 FPM Variable Speed

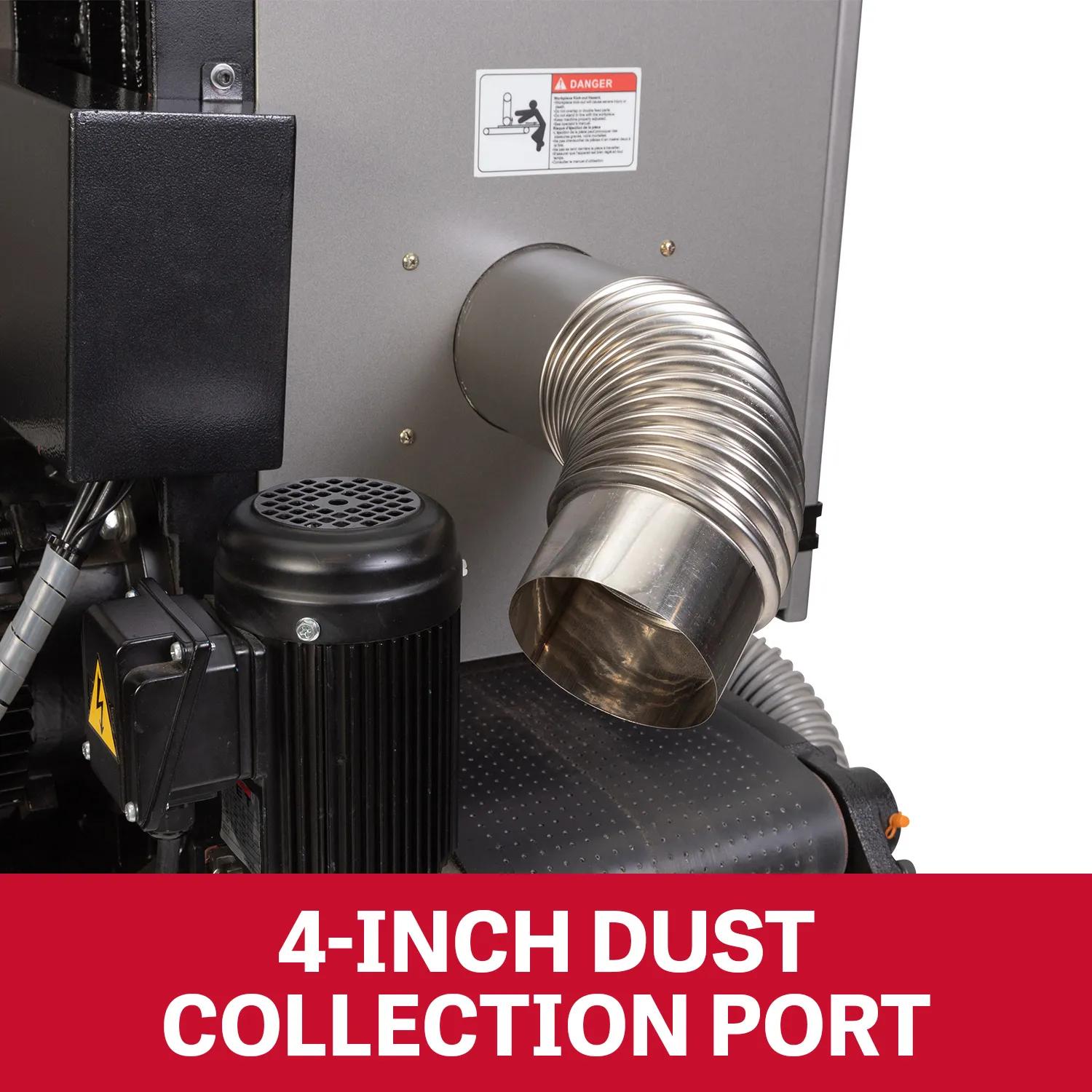

  • Dust Port Outside Diameter
    4 in.

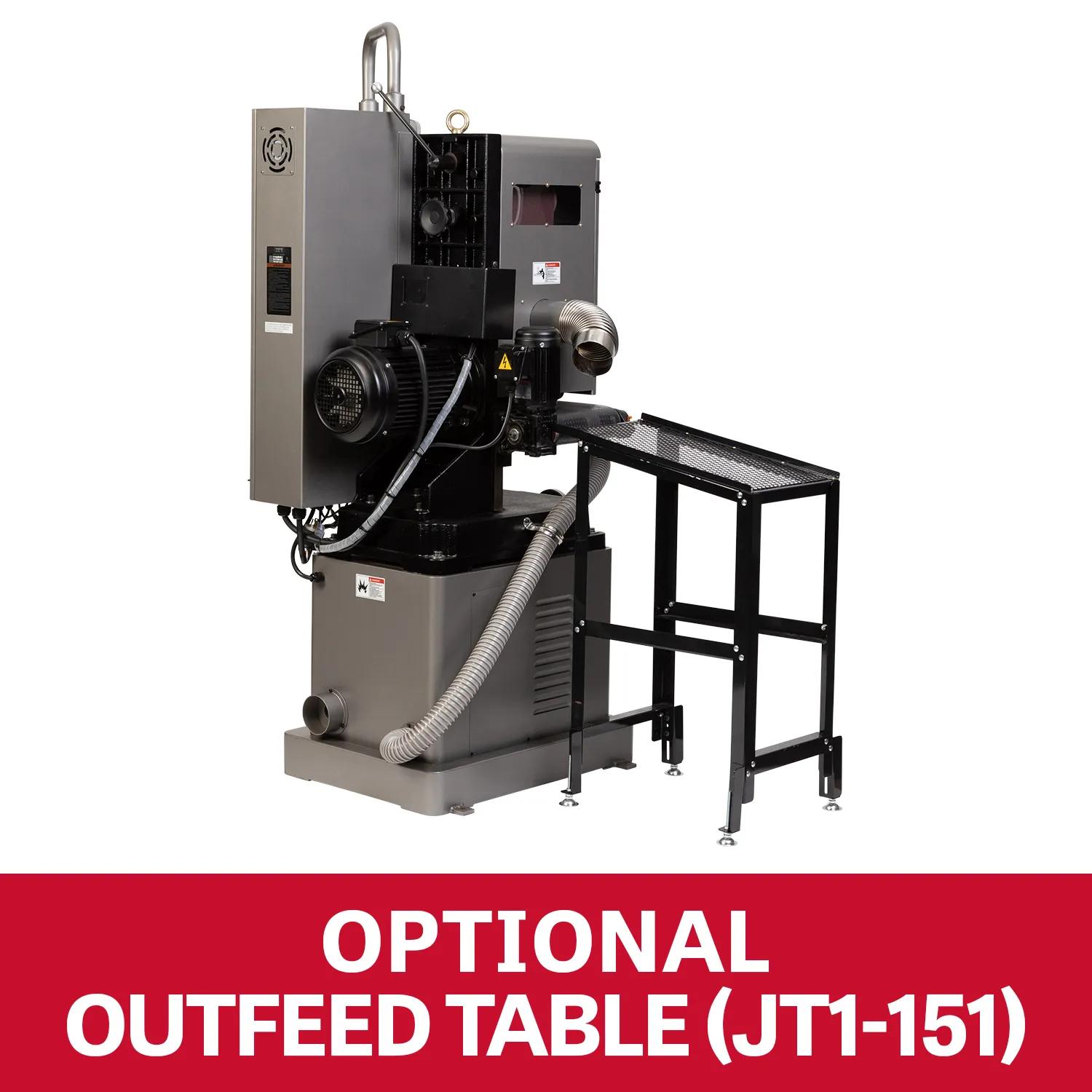

  • Infeed Table Length
    19.3 in.
  • Maximum Material Width
    9 in.
  • Maximum Work Piece Height
    4 in.
  • Minimum Height
    1/16 in.
  • Minimum Material Length

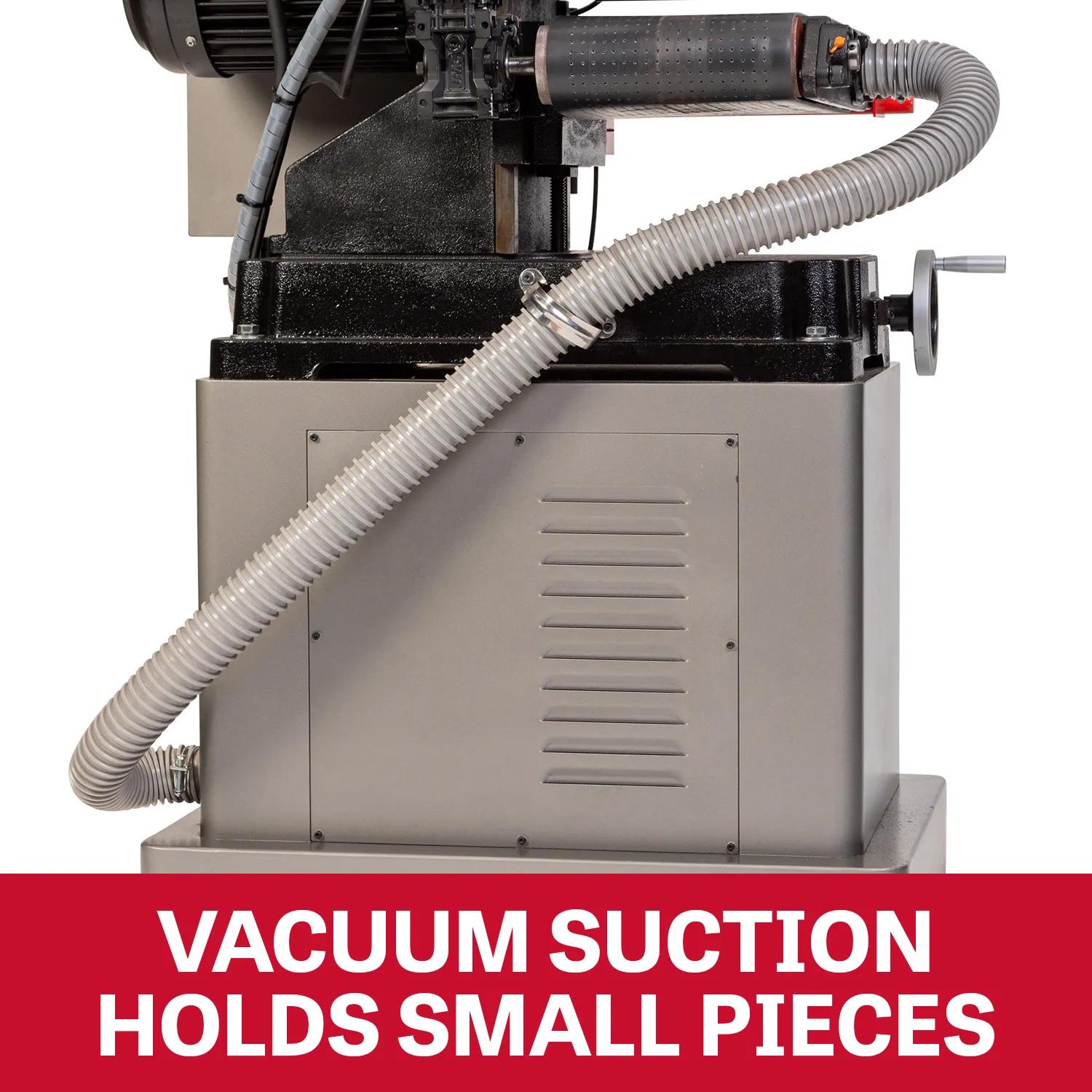

    5.9 in. (n-vacuum), 2 in. with vacuum
  • Minimum Material Thickness
    0.012 in.
  • Minimum Work Piece Size
    2 x 2 in.
  • Model Number
    J-948WBSV
  • Motor HP
    5 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
  • Number of Belt Speeds
    Variable
  • Number Ports
    1
  • Port Size
    4 in.
  • Prewired Voltage
    230 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Sanding Belt Speed
    660-2,500 FPM inverter driven
  • SAP Gross Weight
    860
  • SAP Net weight
    704
  • Table Height
    32.7 - 36.8 in.
  • UPC
    019907655923
  • Warranty
    Two Years
