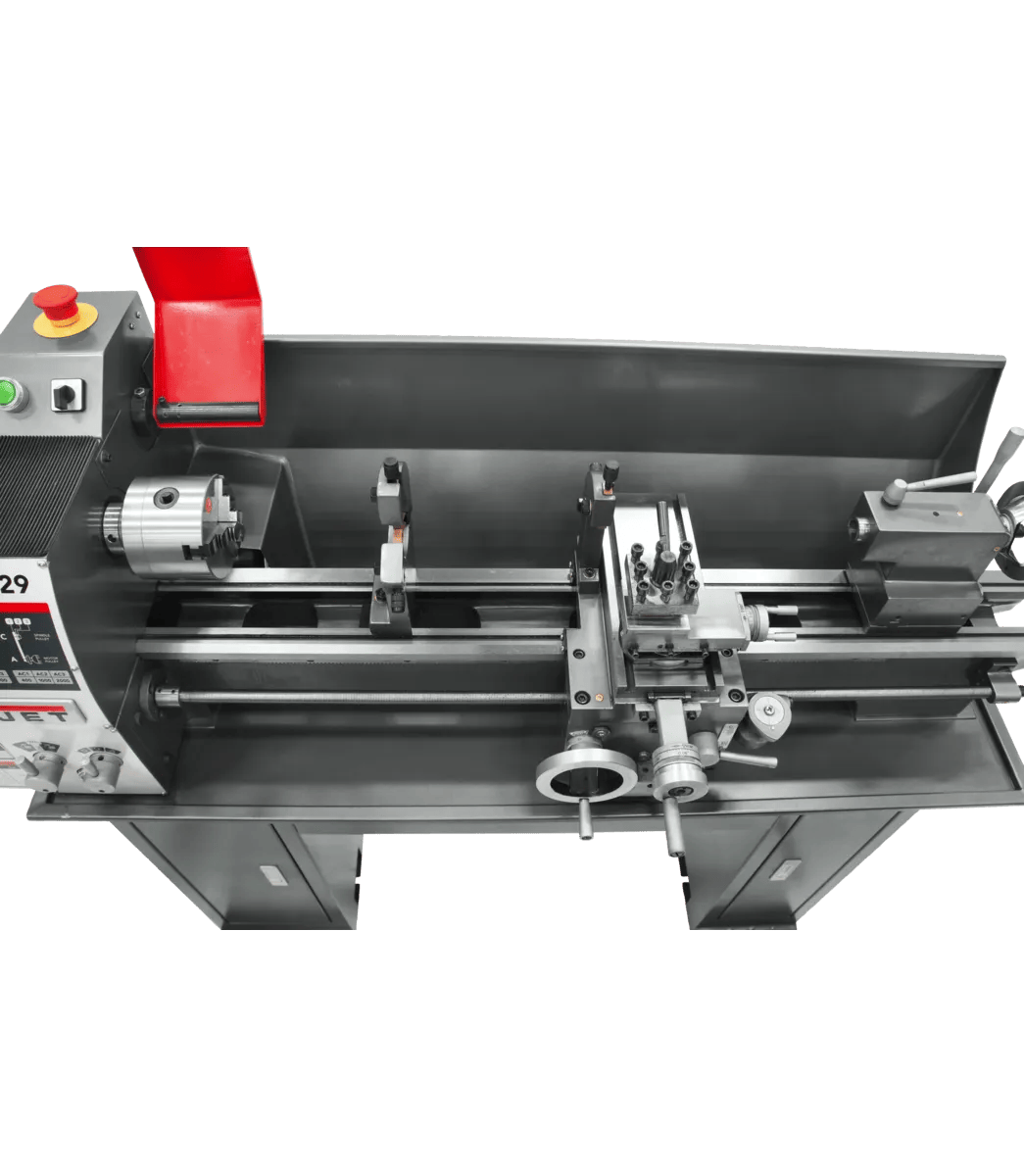

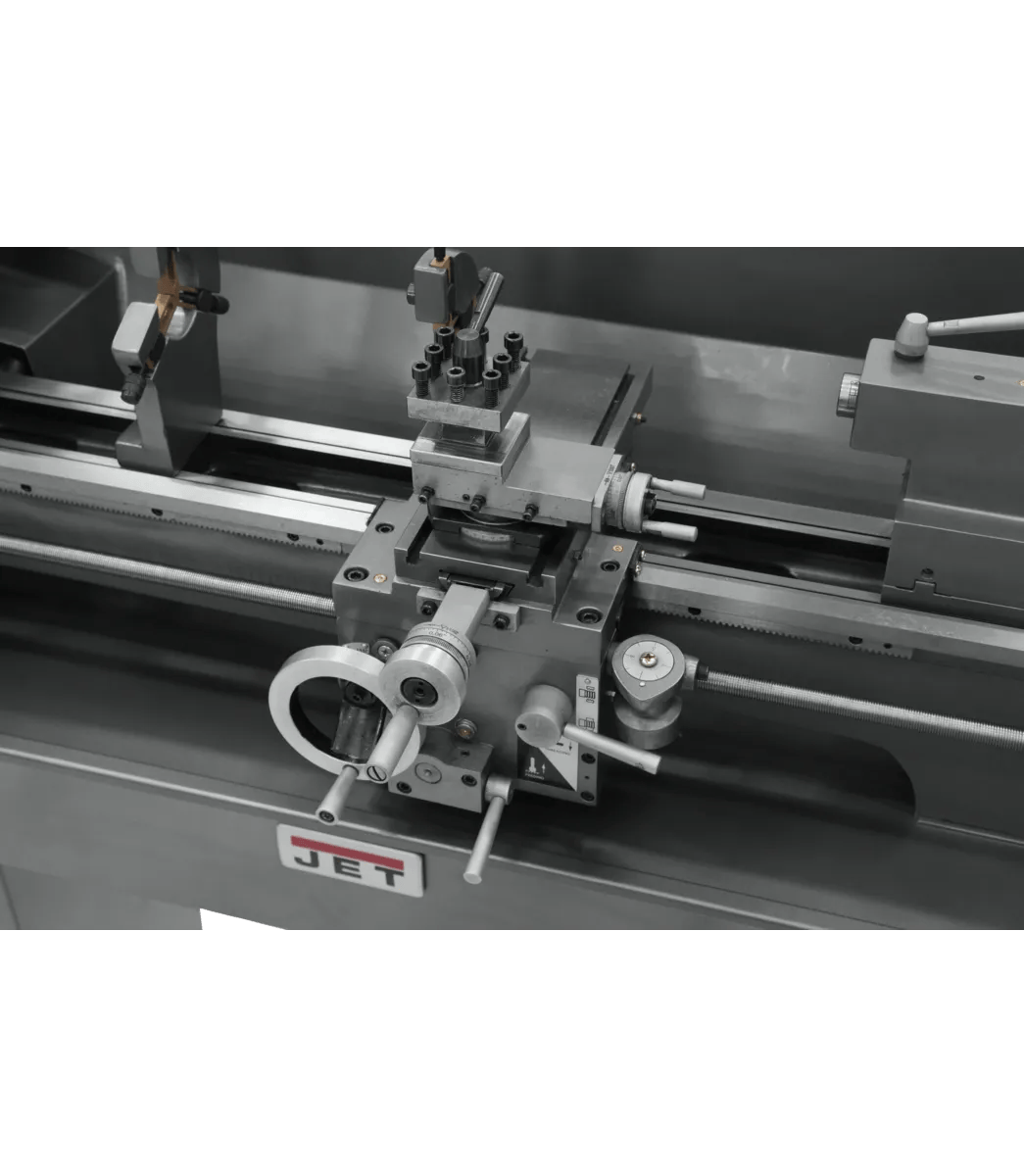

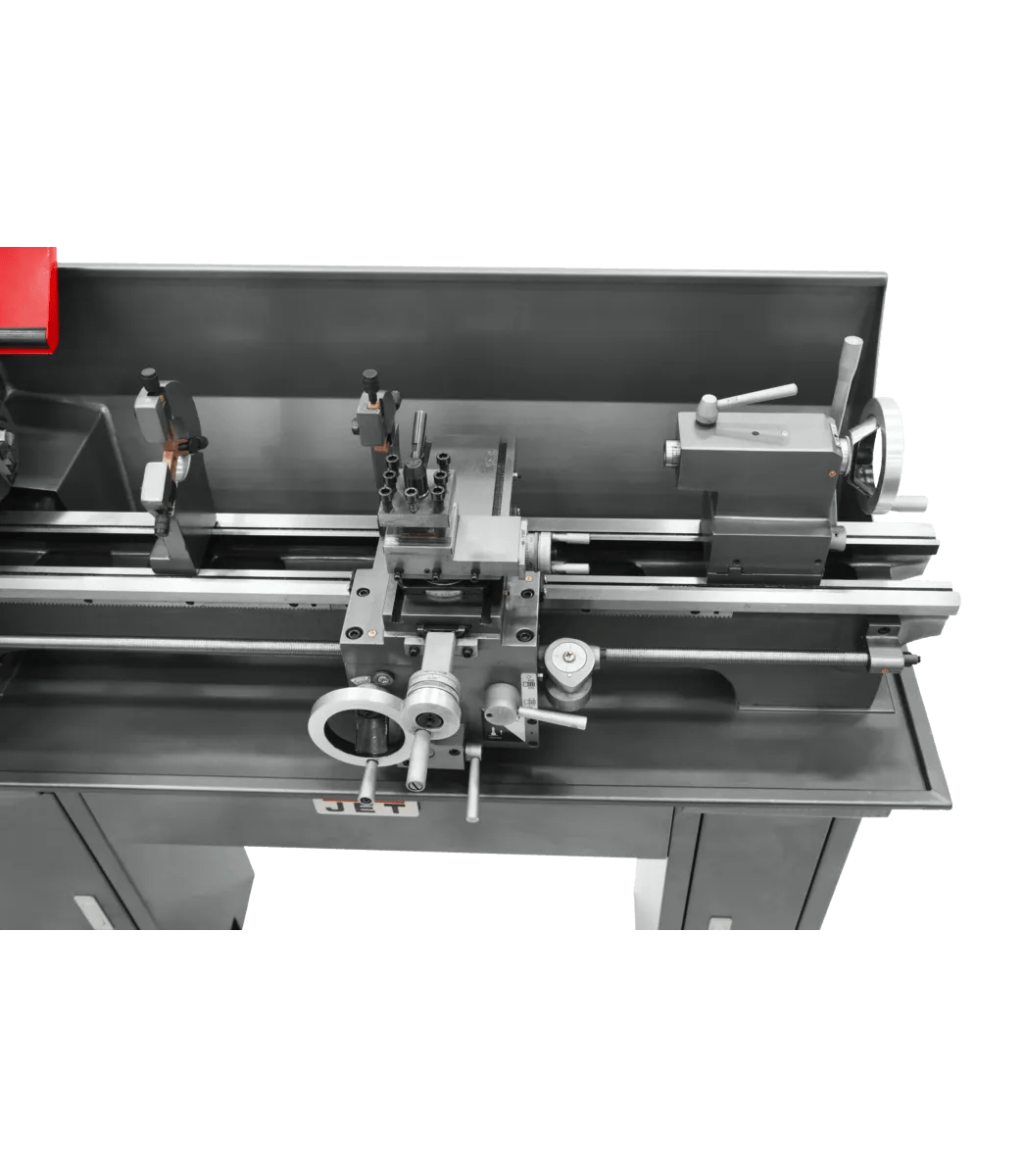

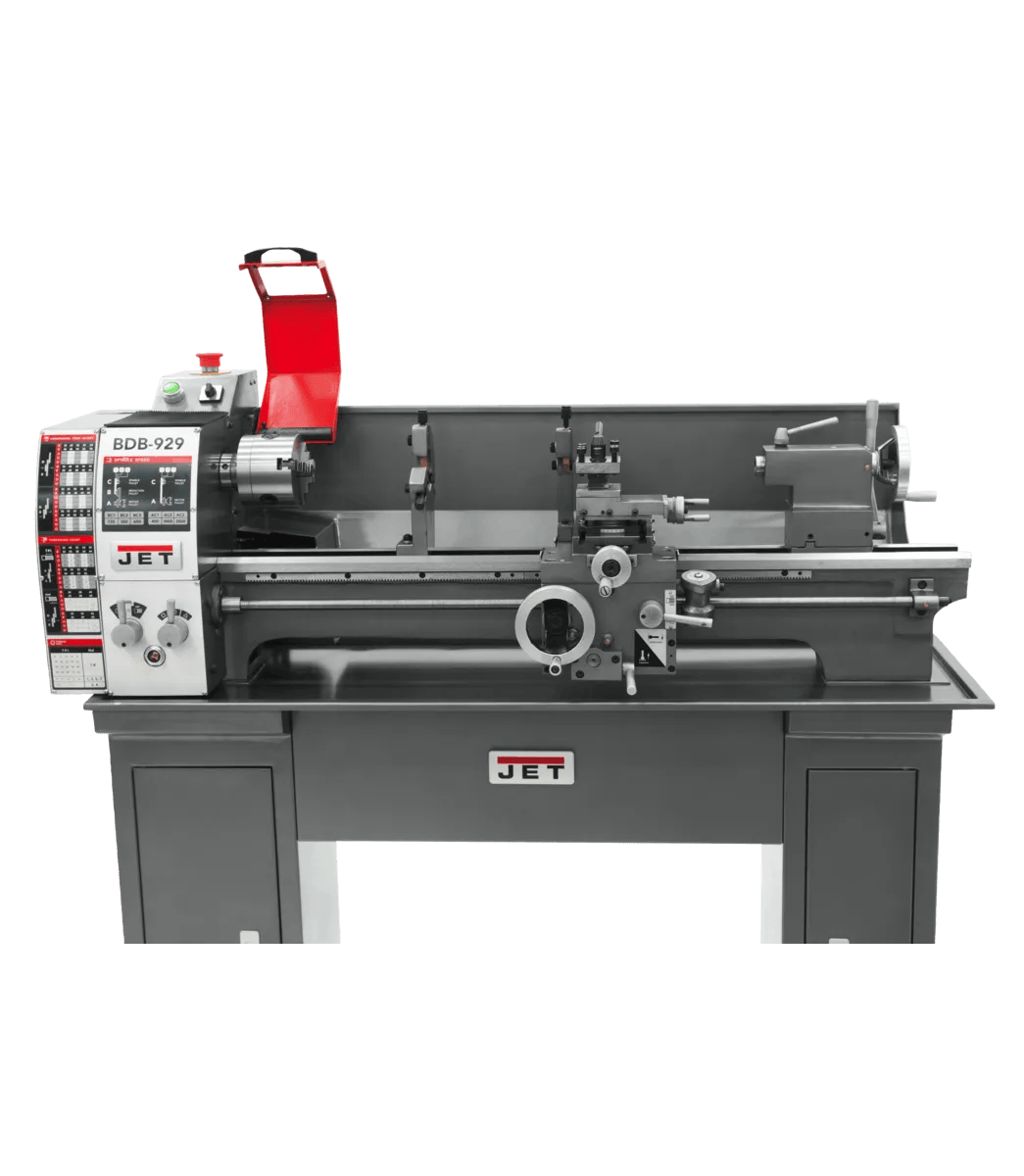

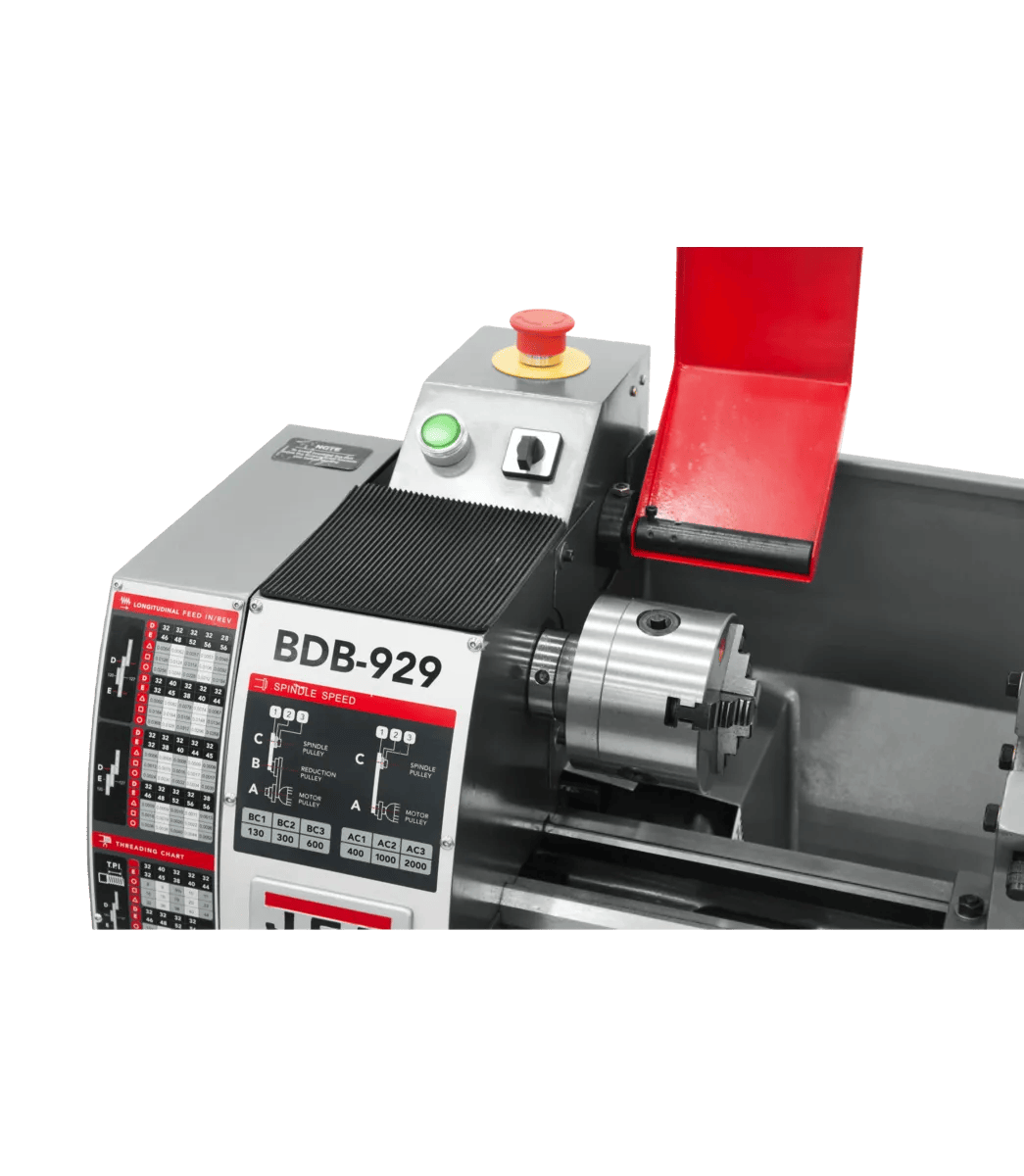

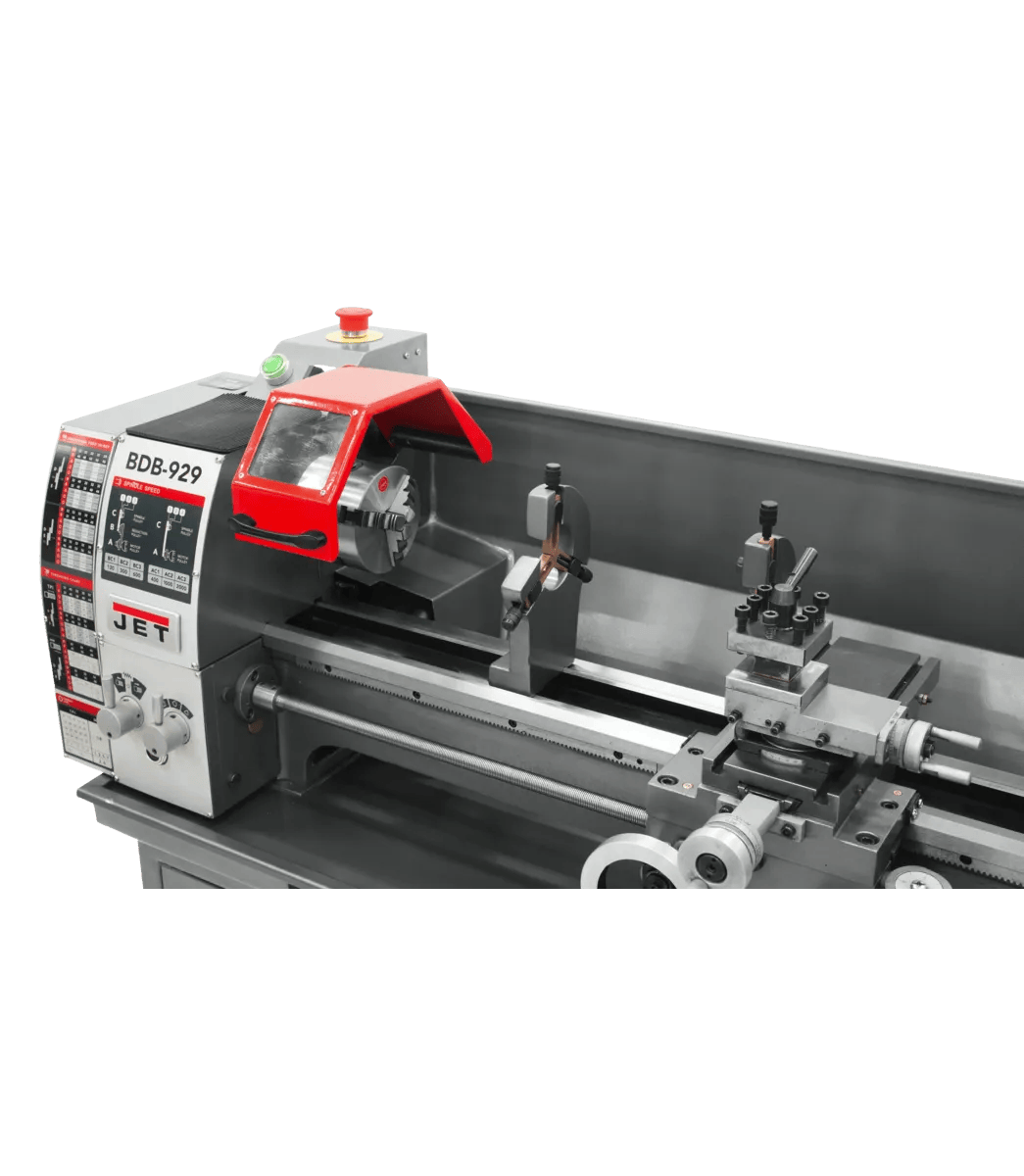

9" x 29" Belt Drive Bench lathe, 0.75HP, 115V 1PH(BDB-929)
9" x 29" Belt Drive Bench lathe, 0.75HP, 115V 1PH(BDB-929)
9" x 29" Belt Drive Bench lathe, 0.75HP, 115V 1PH(BDB-929)
9" x 29" Belt Drive Bench lathe, 0.75HP, 115V 1PH(BDB-929)
9" x 29" Belt Drive Bench lathe, 0.75HP, 115V 1PH(BDB-929)
9" x 29" Belt Drive Bench lathe, 0.75HP, 115V 1PH(BDB-929)
9" x 29" Belt Drive Bench lathe, 0.75HP, 115V 1PH(BDB-929)
9" x 29" Belt Drive Bench lathe, 0.75HP, 115V 1PH(BDB-929)

9" x 29" Belt Drive Bench lathe, 0.75HP, 115V 1PH(BDB-929)

Stock Number: JT9-321379

0 Reviews

No reviews yet.

  • 0.75 HP, 115V, single-phase
  • 8" swing, 27" centers
  • 3/4 in. spindle bore
  • 130-2000 RPM
BUY NOW

Product Details

Industrial turning capacity, machine-shop reliability. The BDB-929 fits production turning shops that demand consistency — and the cycle counts they generate. Equipped with a 0.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by the JET 2-year warranty.

Features

  • Working-grade 8-inch swing matches the chuck and tool-holding capacity for the workpiece diameters production turning generates.
  • Factory-sealed 0.75 HP 115V induction motor stands up to industrial machining.
  • Generous 27-1/2 in. bed length covers shaft turning for repair and fabrication shaft work.
  • Wide 3/4 in. spindle bore — putting long bar work in reach without sacrificing spindle rigidity.
  • Meehanite support castings cover the rigidity for finish quality production cutting requires.
  • Inch and metric thread capacity provides threading work for the threading work production repair and fabrication require.

Specifications

  • SKU
    JT9-321379
  • Assembled Dimensions
    51 x 22 x 20 in.
  • Carriage Travel
    26-1/2 in.
  • Collet Closer
    No
  • Compound Slide Travel
    1-7/8 in.
  • Cross Slide Travel
    4-1/4 in.
  • Distance Between Centers
    27-1/2 in.
  • Maximum Tool Size
    1/2 x 1/2 in.
  • Model Number
    BDB-929
  • Motor HP
    0.75 HP
  • Motor Phase
    Single
  • Motor Voltage
    115 V
  • Number of Inch Threads
    27
  • Number of Longitudal And Cross Feed Rates
    60
  • Number of Metric Threads
    12
  • Number of Spindle Speeds
    6
  • Old Material Number
    321379
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range Of Inch Threads Tpi
    8 - 56 TPI
  • Range Of Longitudal Feeds in/rev
    0.0006 - 0.0368 IPR
  • Range of Metric Threads
    0.5 - 3.5 mm
  • Range Of Spindle Speeds
    130 - 2000 RPM
  • Reference Type
    Base Machine
  • SAP Gross Weight
    337
  • SAP Net weight
    293
  • Spindle Bore
    3/4 in.
  • Spindle Mount
    1-1/2 in. x 8TPI
  • Spindle Taper
    MT3
  • Steady Rest Capacity
    1-3/4 in.
  • Swing Over Bed
    8-3/4 in.
  • Swing Over Cross Slide
    5 in.
  • Tailstock Spindle Travel
    1-9/16 in.
  • Taper Attachment
    No
  • Taper in Tailstock Spindle
    MT2
  • UPC
    731325545654
  • Warranty
    Two Years
  • Width Of Bed
    4-1/2 in.
