Product Details

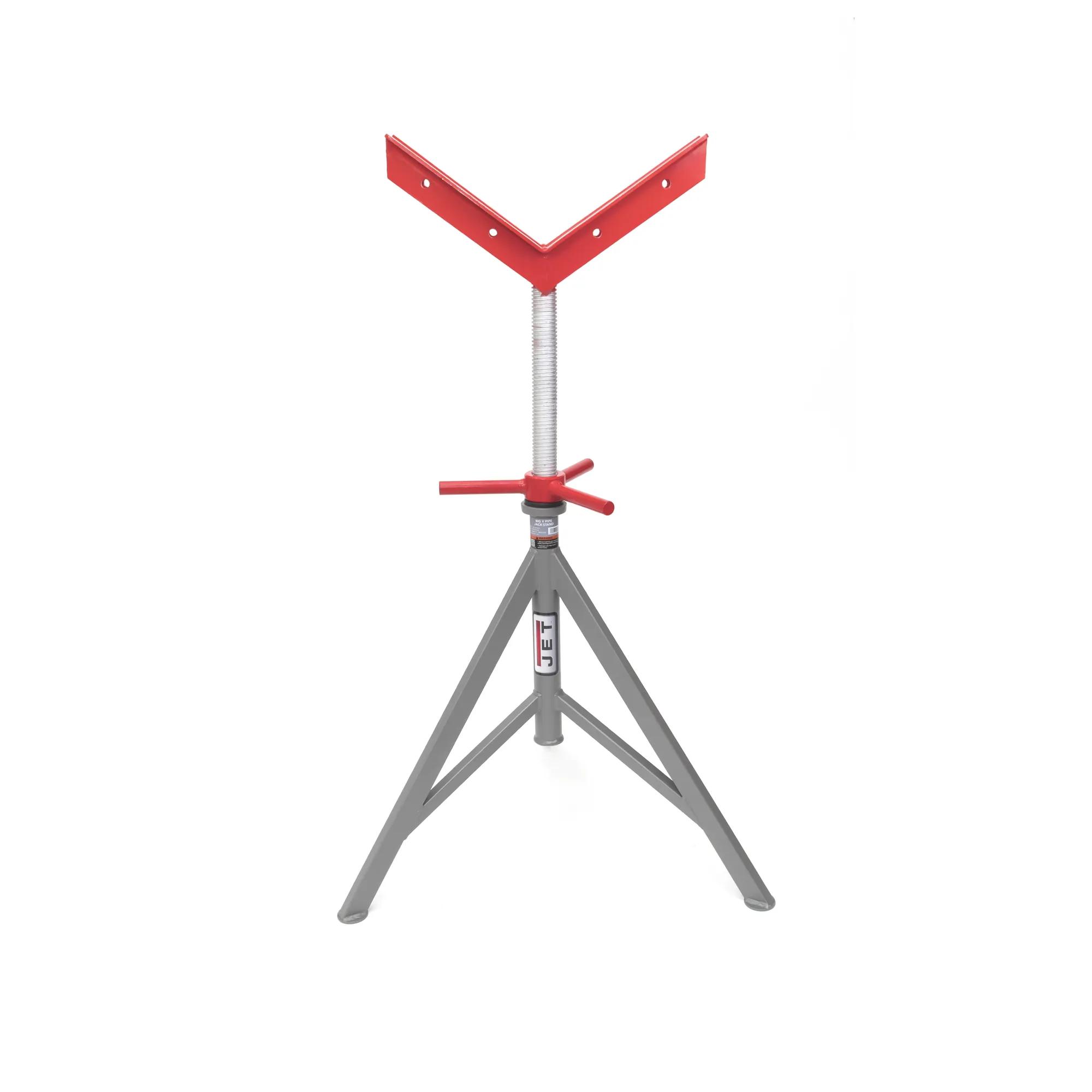

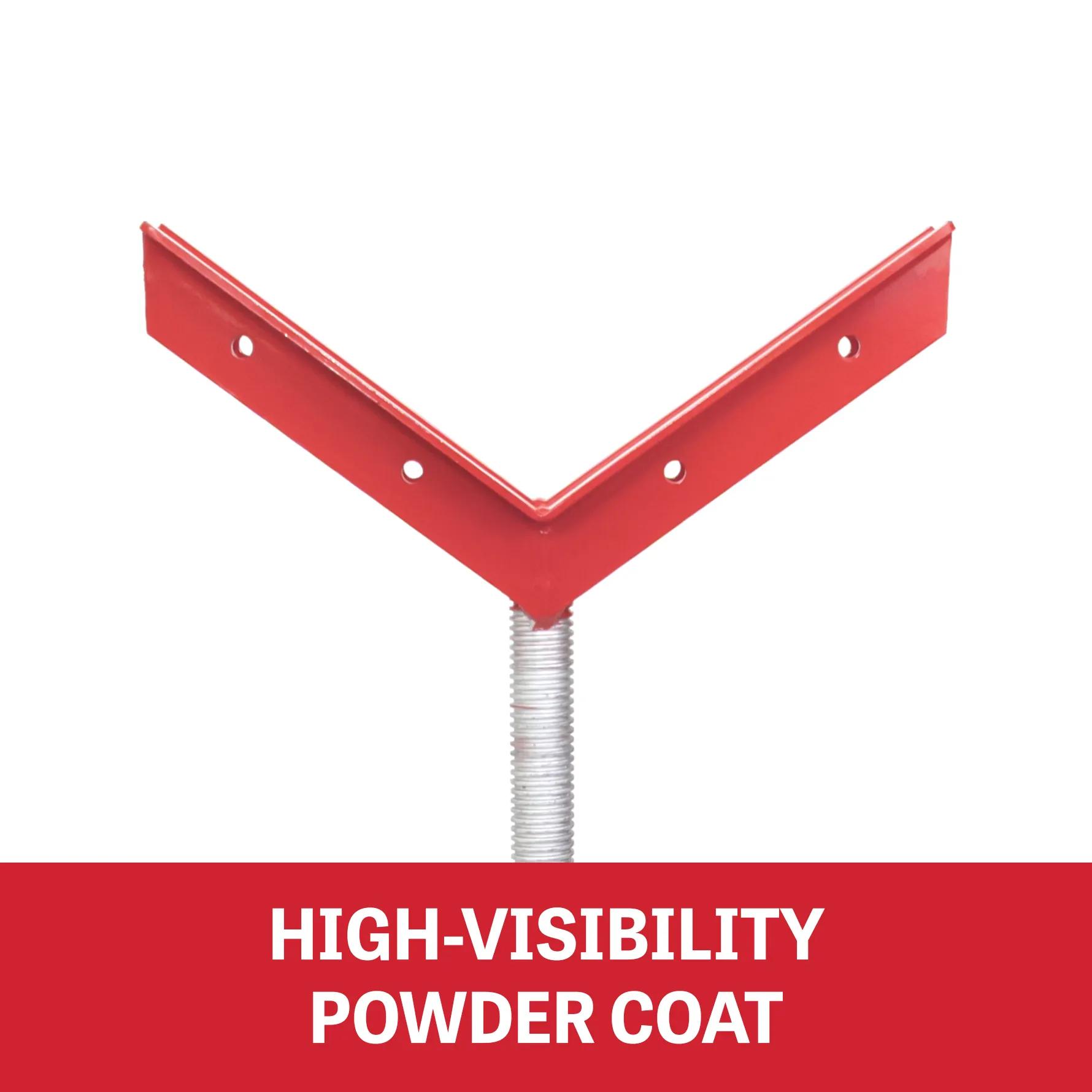

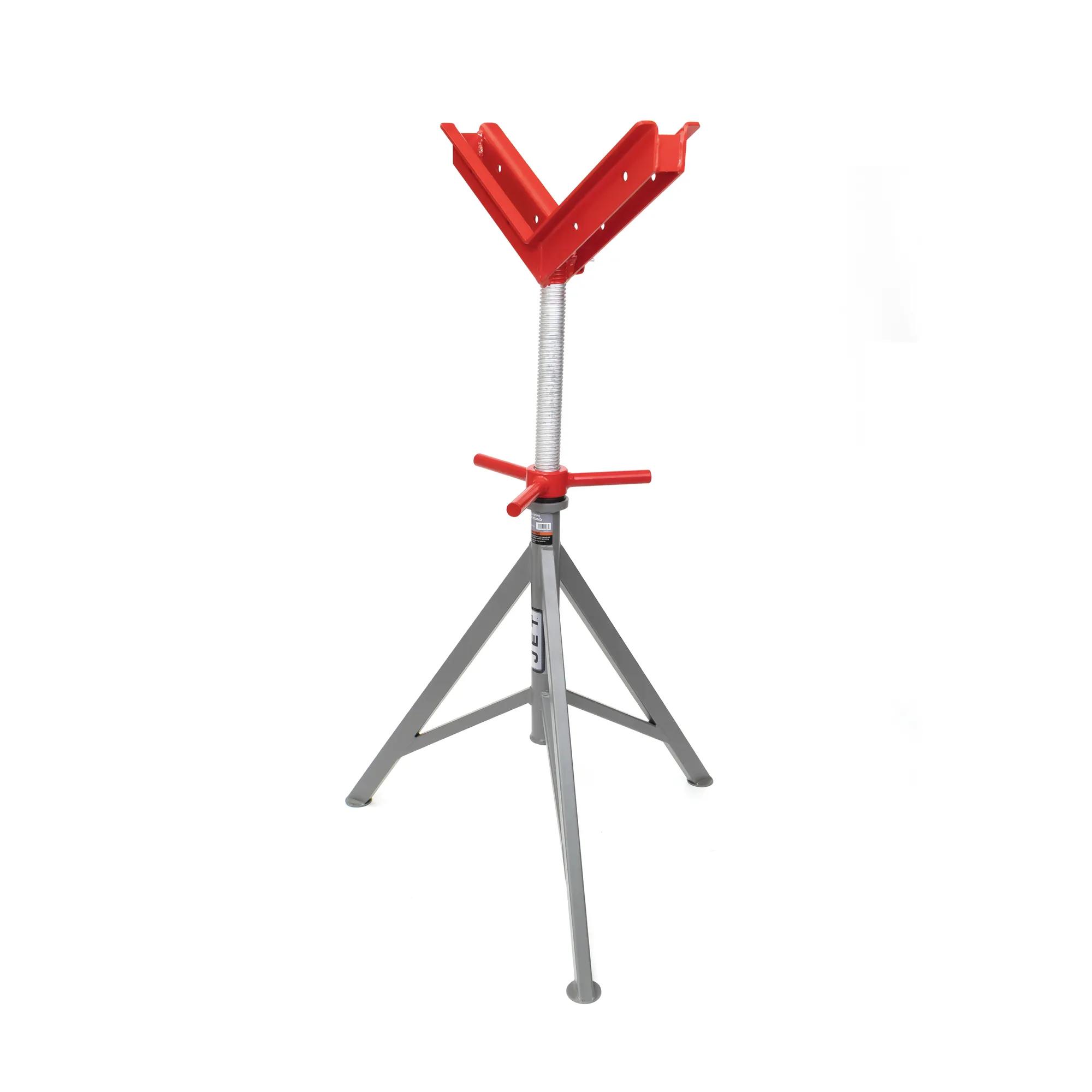

The JET Big V Pipe Jack Stand is a fixed, no-assembly pipe support used by welders, pipefitters, and metal fabricators in pipeline, plumbing, HVAC, and structural steel work. Position the stand under pipe up to 36" in diameter and 5,000 lbs., then turn the 1-3/4" ACME screw to raise or lower the V-head from 34" to 45" for layout and fit-up. The V-head accepts an optional roller head assembly, so the same stand can convert to a rotating roller stand when the job changes.

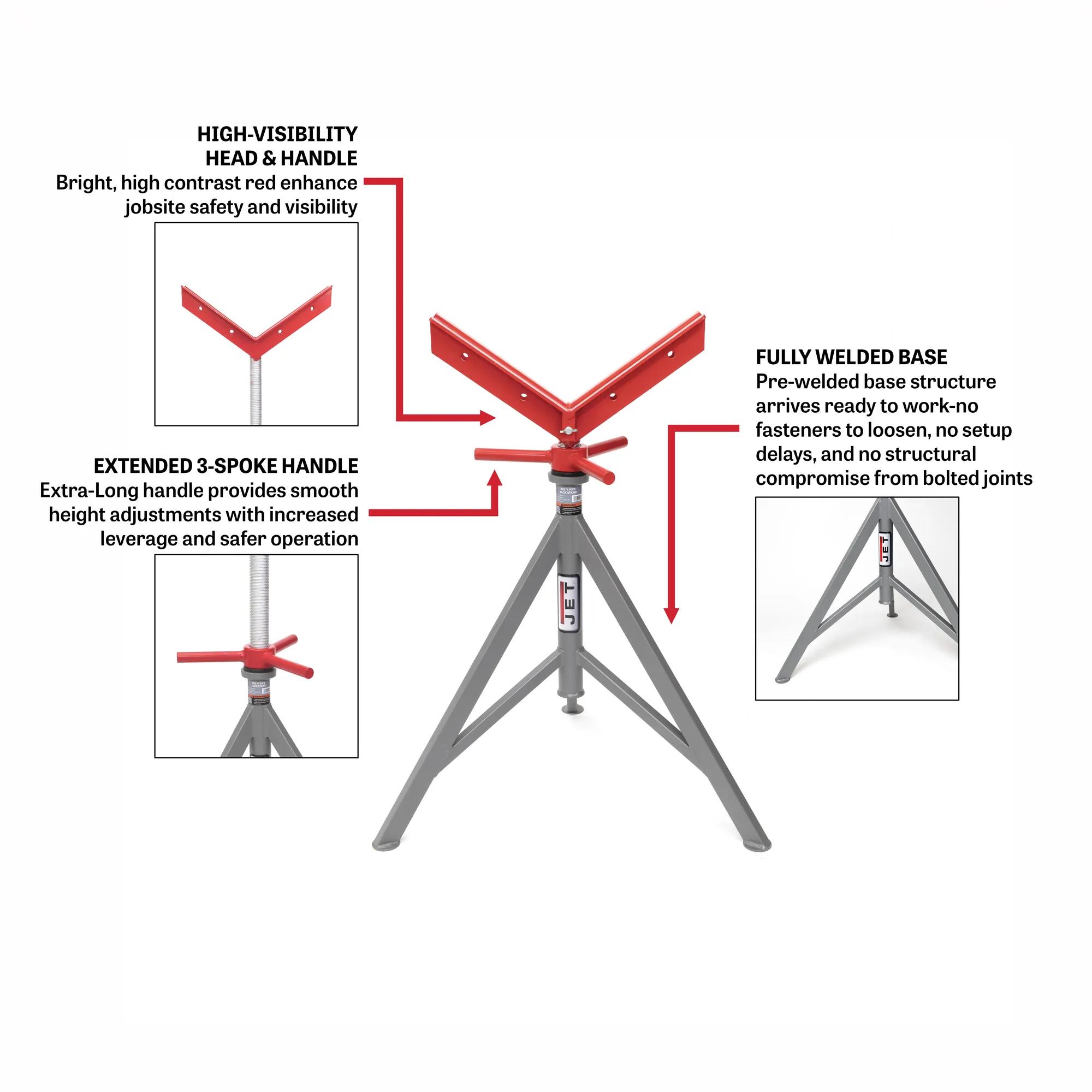

Features
- The V-head accepts a roller head assembly later, so the stand can convert to rotation-capable use if the job changes
- Delivers 5,000 lbs. of capacity for pipe up to 36" in diameter — heavy-duty capability in a fixed, no-moving-parts design — adjustable from 34" to 45"

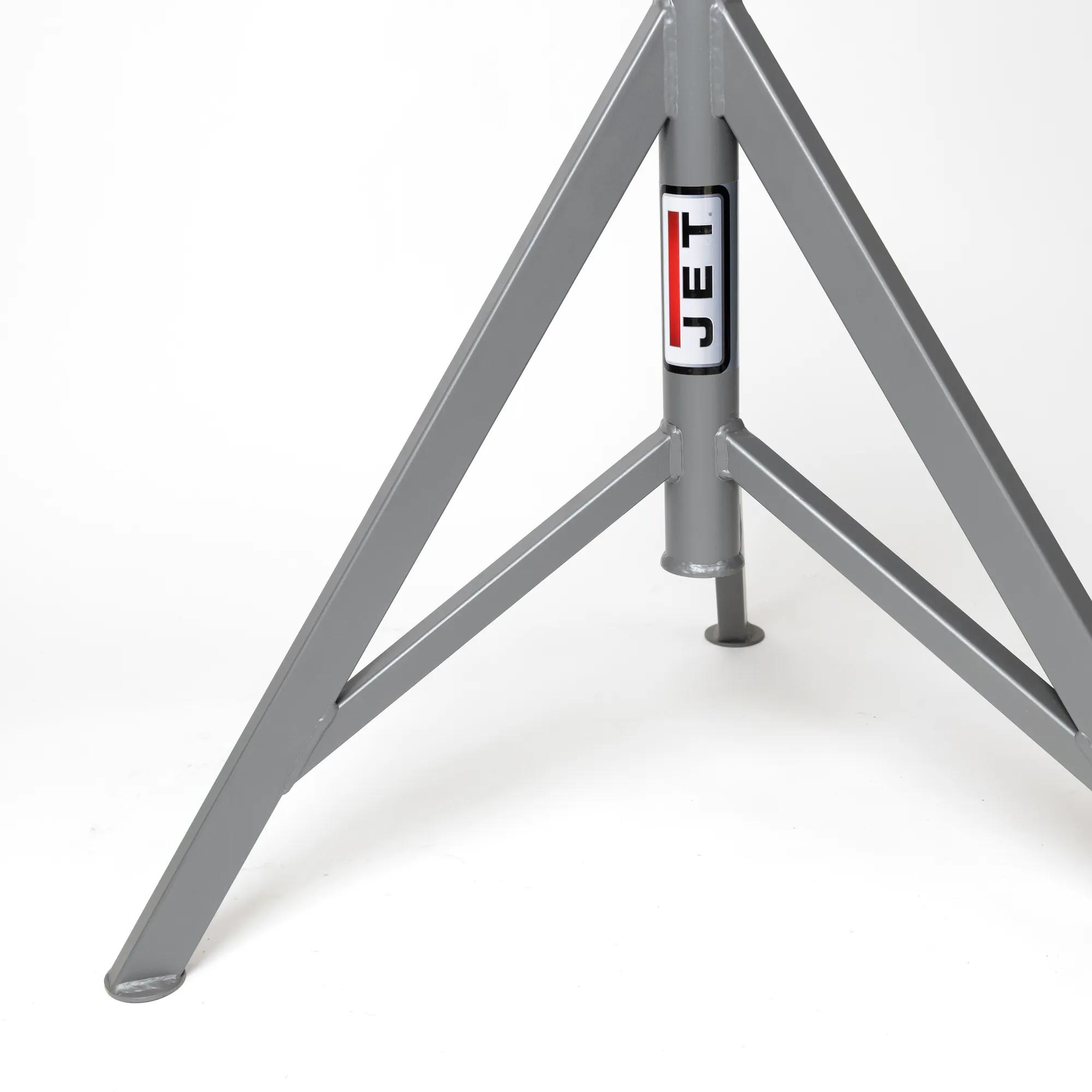

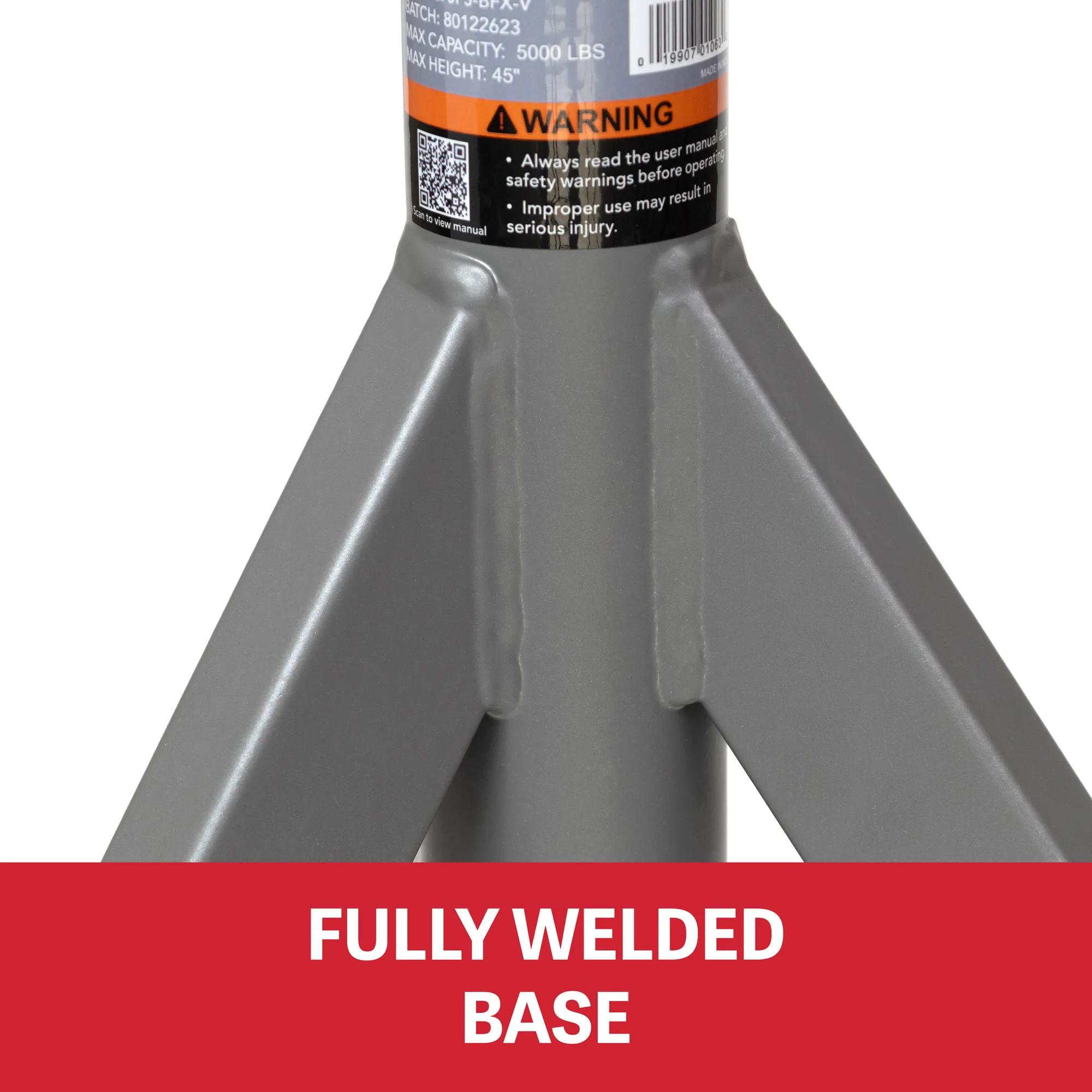

- A wide base footprint and fully welded, rectangular-tube construction keep the stand planted under heavy loads
- Ships fully welded and ready to use with no assembly required, straight off the truck and onto the shop floor
- A large 1-3/4" diameter ACME screw makes height adjustments easy to manage even under load
- Well suited to pipeline, plumbing, HVAC, and structural steel fabrication where pipe needs solid, stationary support during welding
Specifications
- SKUJT1-3807
- Assembled Dimensions26-1/2 in. x 30 in. x 40-3/4 in.
- Capacity0 - 36 in.

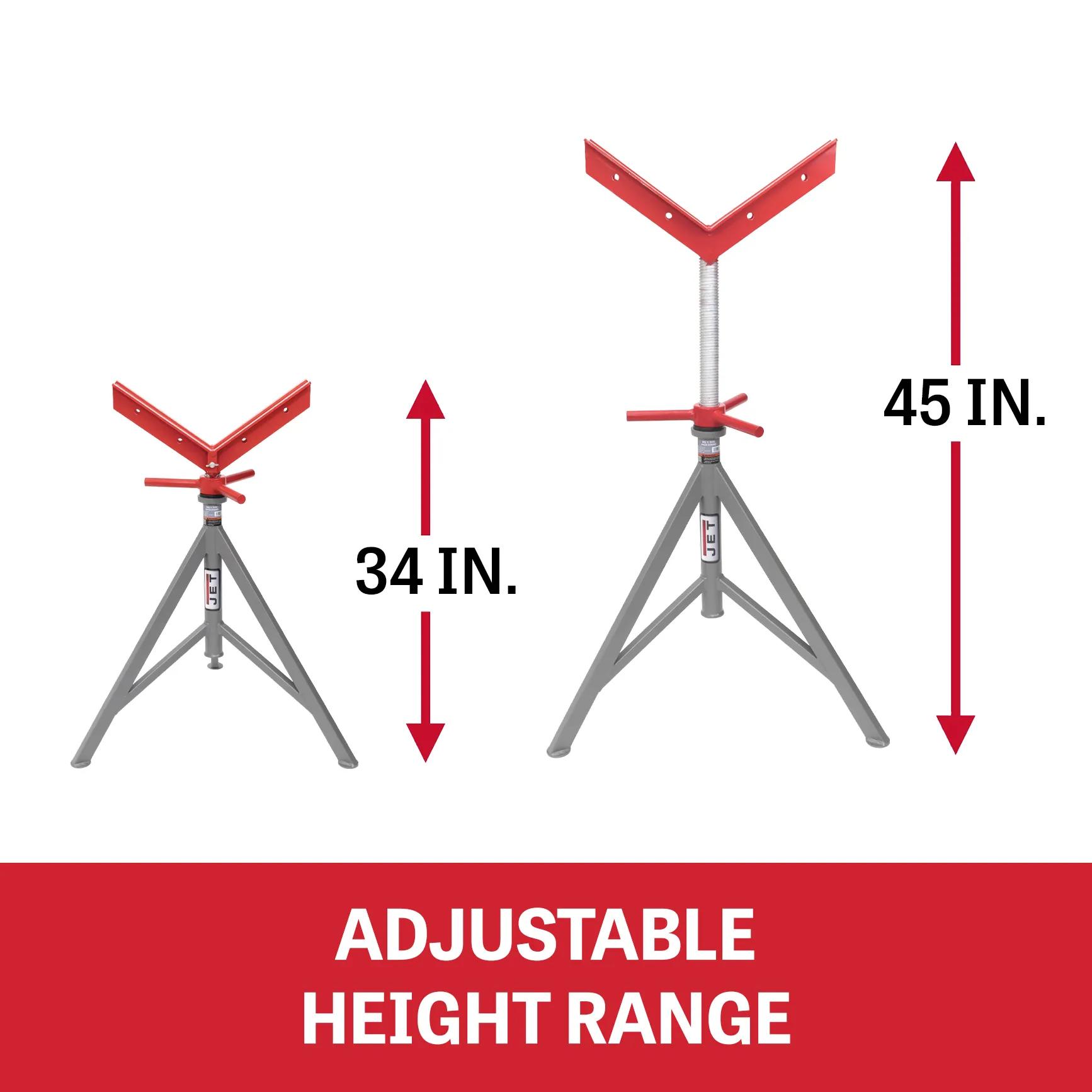

- Maximum Height45 in.
- Minimum Height34 in.
- Model NumberJPJ-BFX-V
- Product TypeTools & Equipment
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight40
- SAP Net weight40
- UPC019907010630
- WarrantyTwo Years
