Product Details

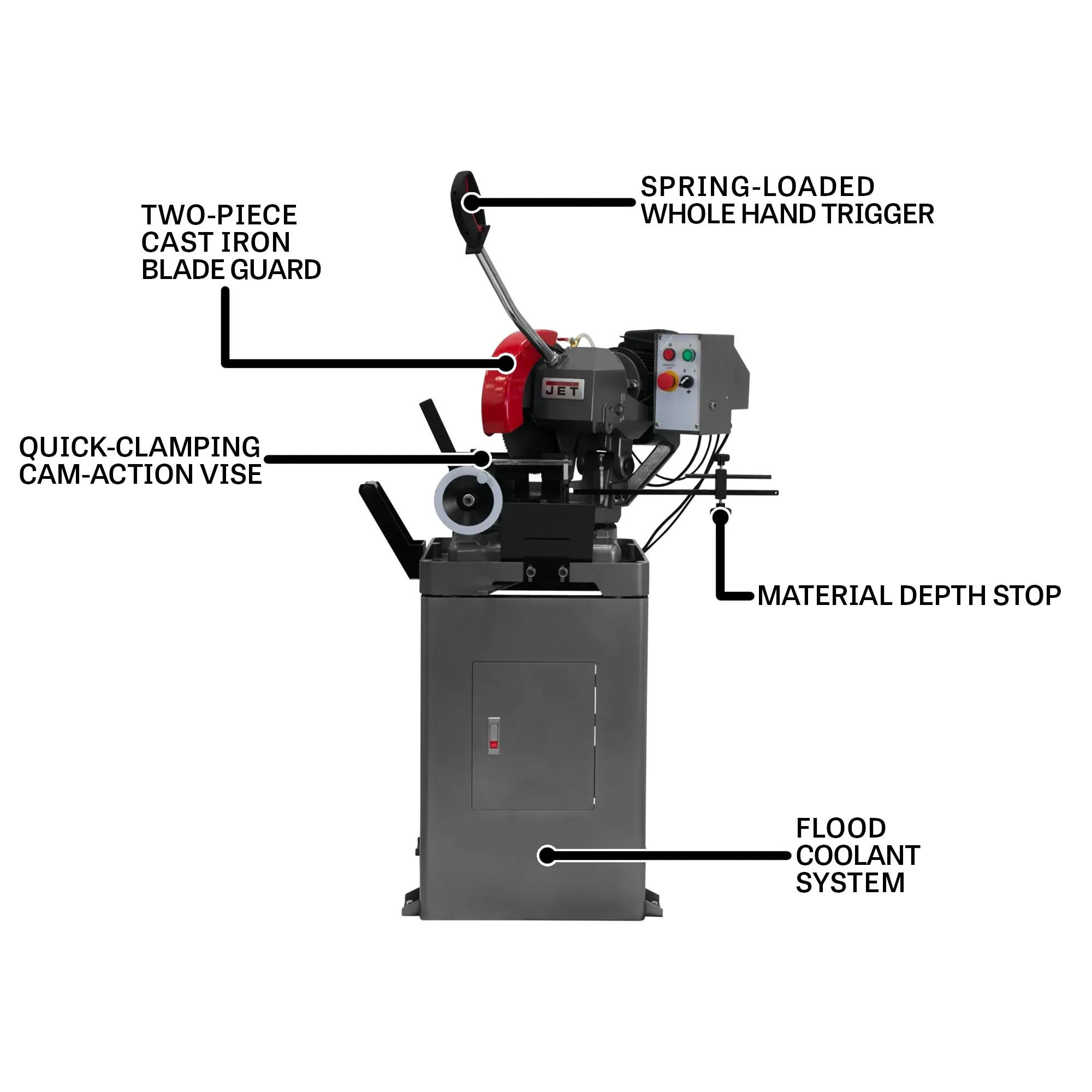

Built for the cuts that production fabrication actually generates. The CS-315-1 is built for fabrication shops running daily cuts. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production cycles, warrantied for the long run.
Features
- Brushless 2 HP induction motor design means decades of service across production cutting.
- 54 RPM cutting speed — matching cut velocity to material density across production fabrication.
- Industrial-grade frame construction holds blade alignment for cut quality consistency across long runs.
- Premium-grade tilting table — delivering the angle envelope production cutting demands, engineered for the angled cuts production fabrication actually runs.
- Engineered cutting geometry was sized for the workpiece sizes production sawing actually runs.
- Cast iron reference surfaces hold reference flat for the structural stability shop work demands.
Specifications
- SKUJT9-414229
- Blade Diameter12.4 in.
- Blade Size (In.)315 mm
- Blade Speed54 RPM
- CoatingPowder Coat
- Cutting Capacity - Height4 in.
- Horse Power1.5 HP
- Input Power230 V 1 Ph
- Maximum Vise Opening4.5 in.
- Model NumberCS-315-1
- Motor HP2 HP
- Motor PhaseSingle
- Motor Voltage230 V
- Old Material Number414229
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight350
- SAP Net weight350
- Solid Rectangle Capacity At 45 Degrees3-3/16 x 2-19/32 in.
- Solid Rectangle Capacity At 90 Degrees4 x 3-3/16 in.
- Solid Square Capacity At 45 Degrees2-19/32 x 2-19/32 in.
- Solid Square Capacity At 90 Degrees3-3/16 x 3-3/16 in.
- Style TypeFerrous
- Tubing Rectangle At 90 Degrees4 x 3-3/16 in.
- UPC731325266146
- WarrantyTwo Years
