Product Details
Particulate capture, equipment longevity, and operator health — in one system. The DC-1100VX-BK is built for facilities where equipment life and operator health both depend on filtration. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage stands behind every CFM rating.

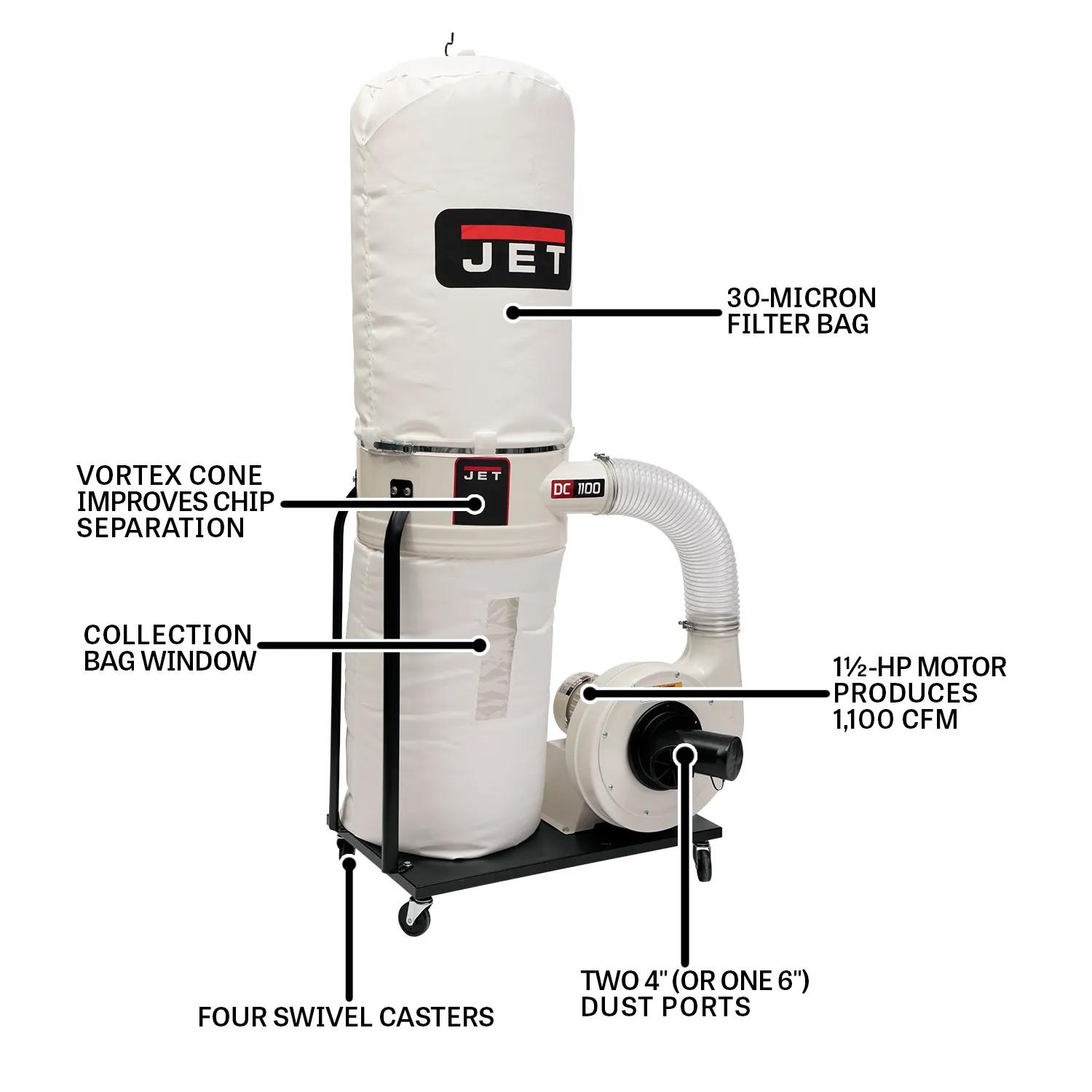

Features
- 1100 CFM air movement — delivering filtration capacity industrial shop air actually needs across industrial shop floors.
- Production-grade 1.5 HP single-phase induction motor delivers torque for the operating envelope production demands.
- From visible dust to invisible mist, the media catches it for shop air quality production work depends on.
- Precision-rated multi-stage filter design — extending primary filter life across professional shop floors.
- Hanging hardware sized for continuous-duty vibration loads — keeping shop floor space clear.
- Operator-side remote — handling speed and timer control wirelessly across professional shop floors.
Specifications
- SKUJT9-708657K
- Air Consumption1100 CFM
- Air Inlet Size4 or 6 in.
- Assembled Dimensions37 x 28 x 79 in.
- Base Size37 x 28 in.
- Batteries IncludedNo
- Collection Bag Capacity5.3 Cu. Ft.
- Collection Bag Diameter20 in.
- Collection Bag Length29 in.
- Connection Diameter4 in. 2 Hose, 6 in. 1 Hose
- Filter Type30 Micron Bag Filter
- Height79 in.
- Horse Power1.5 HP
- Impeller Diameter11 in.
- Impeller MaterialSteel
- Input Power115/230 V 1 Ph
- Maximum CFM1100 CFM
- Maximum Static Pressure10-1/2 in.
- MERV Value96% of 30 micron (bag filter)
- Model NumberDC-1100VX-BK
- Motor Amps11 A
- Motor HP1.5 HP
- Motor PhaseSingle
- Motor Voltage115/230 V
- Old Material Number708657K
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight139
- SAP Net weight127
- Speeds CFM Filtered Air1100 CFM
- Style TypeBag
- UPC731325175295
- Velocity at 4 FPM8464 FPM
- WarrantyFive Years
