Product Details

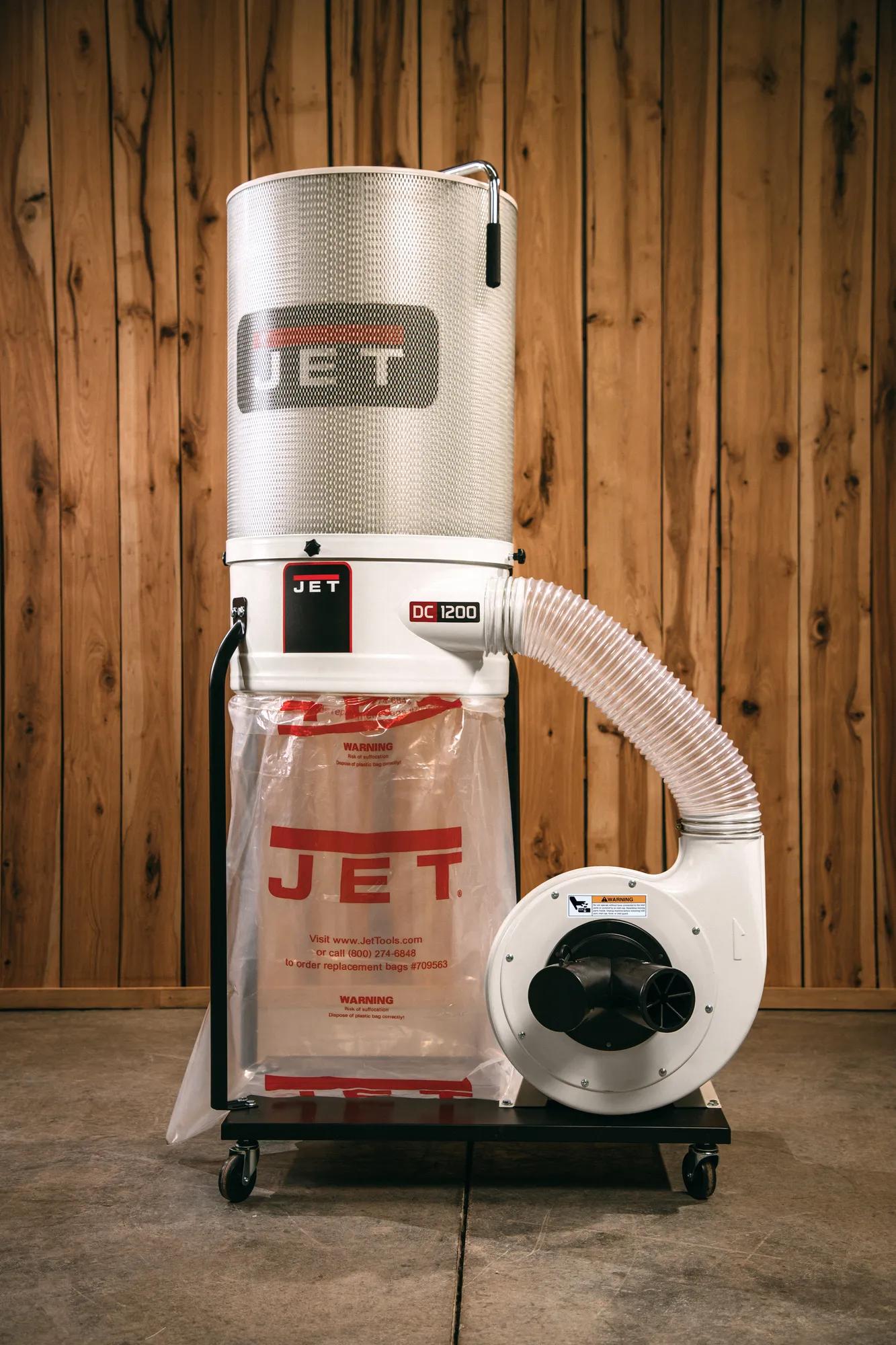

Shop air quality protects the work and the operators doing it. The DC-1200VX-CK3 fits production environments running daily particulate capture — and the cycle counts they generate. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for daily duty, warrantied for the long run.

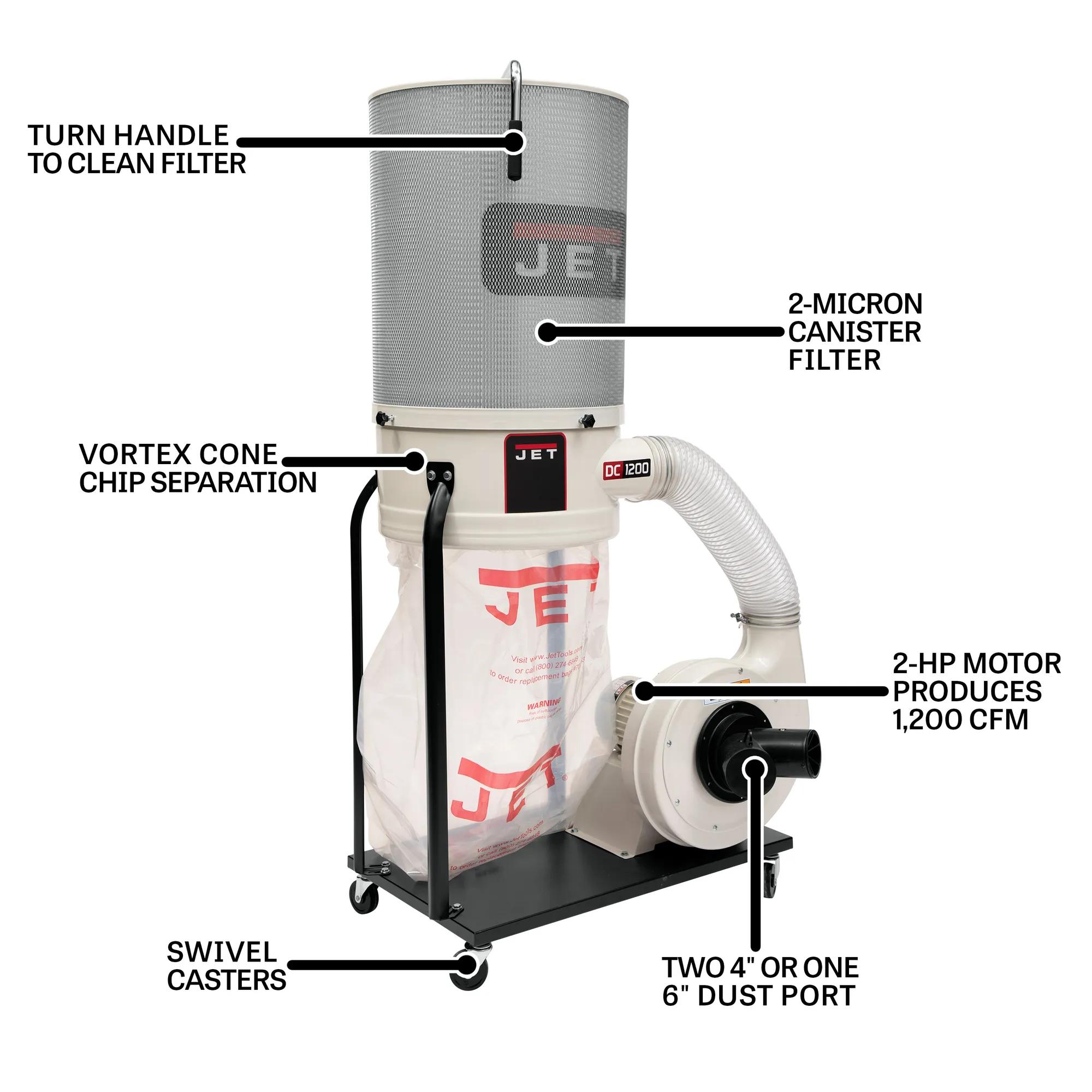

Features
- Rated 1200 CFM means the system actually clears the air for the dust, smoke, and particulates production environments generate.
- The 2 HP induction motor — delivering full nameplate output for sustained-load operation production work demands.
- Engineered filtration efficiency — covering the particulate loads production work generates across production environments.

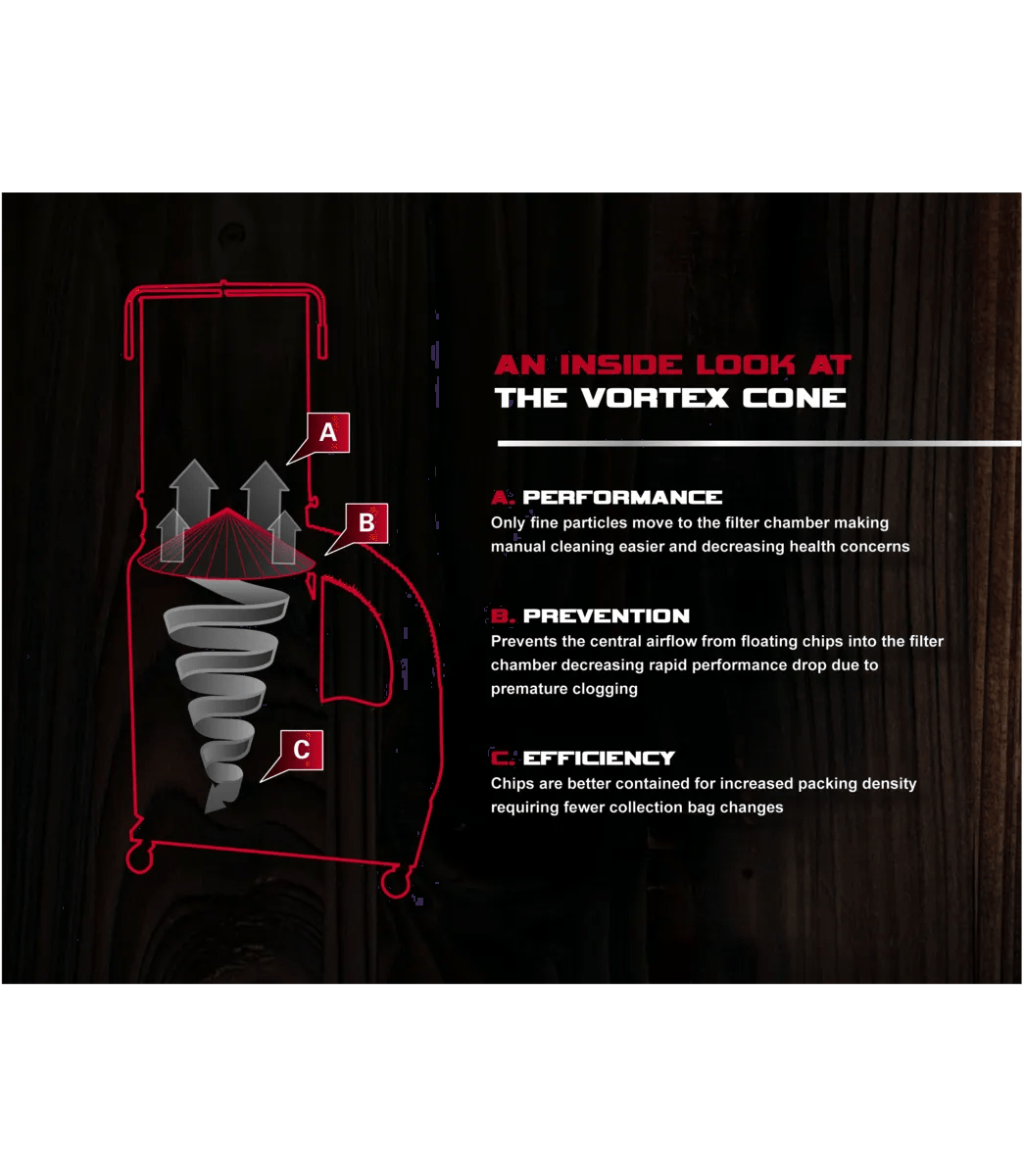

- Premium-grade multi-stage filter design — capturing both coarse and fine particulates in one engineered path across production environments.
- Overhead installation flexibility for any shop layout — covering above-floor and ceiling-mount installations across professional shop layouts.
- Industrial-spec hardened gear assemblies — holding tolerance well past the warranty period, engineered for repeatable feed rates across long cycles.
Specifications
- SKUJT9-710704K
- Air Consumption1200 CFM
- Air Inlet Size4 or 6 in.
- Assembled Dimensions37 x 28 x 79 in.
- Base Size37 x 28 in.
- Batteries IncludedNo
- Collection Bag Capacity5.3 Cu. Ft.
- Collection Bag Diameter20 in.
- Collection Bag Length29 in.
- Connection Diameter4 in. 2 Hose, 6 in. 1 Hose
- Filter Type2 Micron Canister Filter
- Height79 in.
- Horse Power2 HP
- Impeller Diameter12 in.
- Impeller MaterialSteel
- Input Power230/460 V 3 Ph
- Maximum CFM1200 CFM
- Maximum Static Pressure11-1/2 in.
- MERV Value86% of 2 micron
- Model NumberDC-1200VX-CK3
- Motor Amps6 A
- Motor HP2 HP
- Motor PhaseThree
- Motor Voltage230/460 V
- Old Material Number710704K
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- SAP Gross Weight183
- SAP Net weight170
- Speeds CFM Filtered Air1200 CFM
- Style TypeCanister
- UPC731325175370
- Velocity at 4 FPM13745 FPM
- WarrantyFive Years
