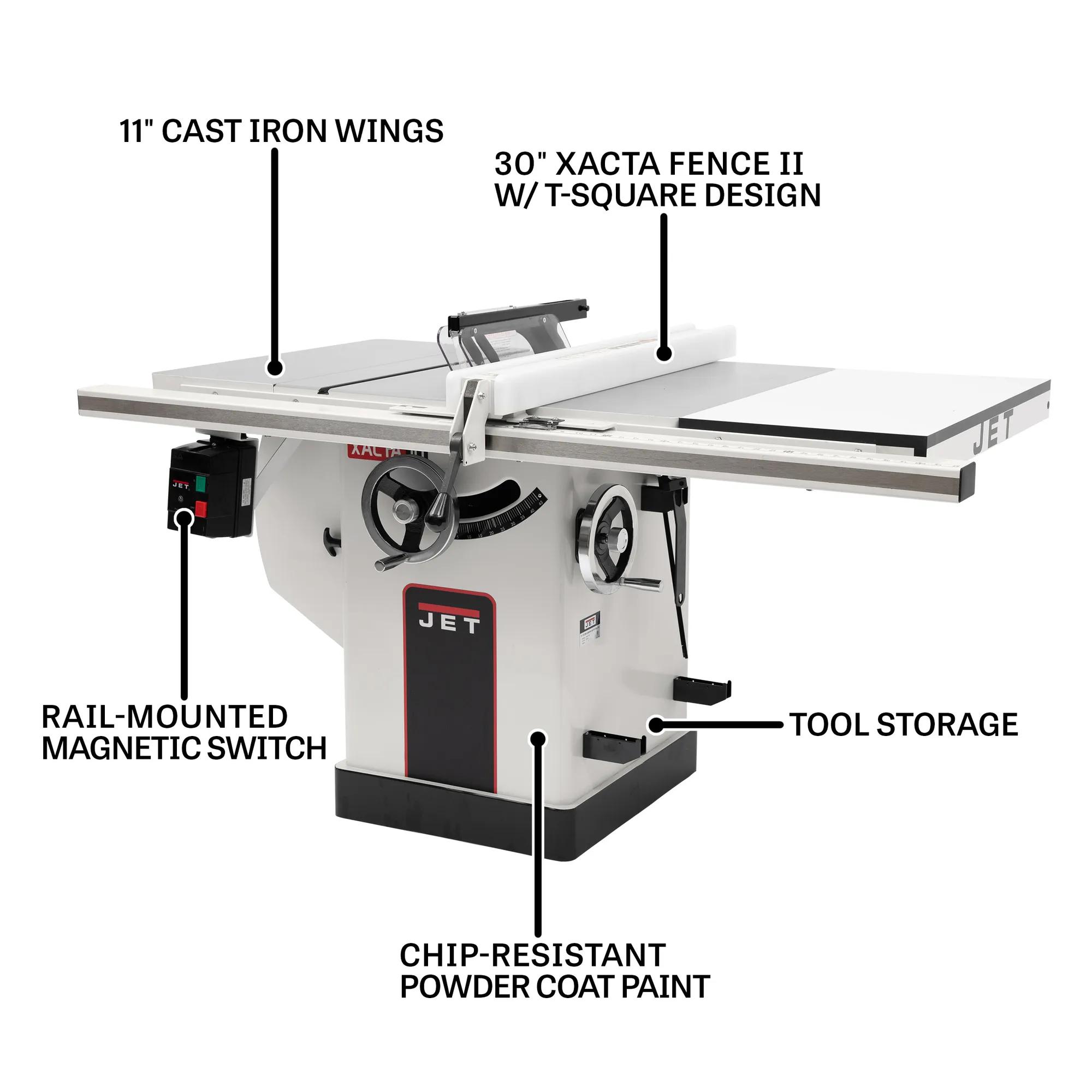

30" Rip, Deluxe XACTA SAW, 3HP, 1PH(JTAS-10DX-330)
30" Rip, Deluxe XACTA SAW, 3HP, 1PH(JTAS-10DX-330)
30" Rip, Deluxe XACTA SAW, 3HP, 1PH(JTAS-10DX-330)
30" Rip, Deluxe XACTA SAW, 3HP, 1PH(JTAS-10DX-330)
30" Rip, Deluxe XACTA SAW, 3HP, 1PH(JTAS-10DX-330)
30" Rip, Deluxe XACTA SAW, 3HP, 1PH(JTAS-10DX-330)
30" Rip, Deluxe XACTA SAW, 3HP, 1PH(JTAS-10DX-330)

30" Rip, Deluxe XACTA SAW, 3HP, 1PH(JTAS-10DX-330)

Stock Number: JT9-708674PK

0 Reviews

No reviews yet.

  • 3 HP, 230V, single-phase
  • 4300 RPM
  • Heavy-duty welded steel frame
  • Adjustable blade tracking
BUY NOW
Fetching Data...

Product Details

Where the cut starts: blade speed, blade geometry, and rigid frame in one tool. The JTAS-10DX-330 was sized for shops cutting varied stock through long-cycle work. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by the JET service network.

Features

  • 3 HP single-phase induction motor sized for the cycle counts industrial use generates.
  • Factory-tested blade speed at 4300 RPM handles cut velocity for variable cuts across material density.
  • Rigid frame construction — holding reference flat under cutting loads that warp lighter frames.
  • Professional-grade tilting table — extending the working envelope, engineered for miter-and-bevel work in one setup.
  • Industrial-grade cutting envelope supports workpiece sizes for the workpiece sizes production sawing actually runs.
  • Industrial-spec cast iron tables dampen harmonics across the work envelope this machine targets.

Specifications

  • SKU
    JT9-708674PK
  • Arbor Size
    5/8 in.
  • Arbor Speed
    4300 RPM
  • Assembled Dimensions
    34 x 29 x 42 in.
  • Base Size
    34 x 29 in.
  • Blade Diameter
    10 in.
  • Blade Length
    10 in.
  • Blade Size (In.)
    10 in.
  • Blade Speed
    4300 RPM
  • Cutting Capacity - Height
    3 in.
  • Dust Port Outside Diameter
    4 in.
  • Height
    42 in.
  • Horse Power
    3 HP
  • Input Power
    230 V 1 Ph
  • Maximum Depth Of Cut
    3 in.
  • Maximum Diameter Of Dado
    8 in.
  • Maximum Rip Left Of Blade
    12 in.
  • Maximum Width Of Dado
    13/16 in.
  • Miter Gauge Type
    Deluxe
  • Model Number
    JTAS-10DX-330
  • Motor Amps
    14.5 A
  • Motor HP
    3 HP
  • Motor Phase
    Single
  • Motor Voltage
    230 V
  • Old Material Number
    708674PK
  • Overall Assembled (Bow Lowered)
    34 x 29 x 42 in.
  • Prewired Voltage
    230 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    20 A
  • Required Cfm
    350 - 350 CFM
  • SAP Gross Weight
    490
  • SAP Net weight
    490
  • Style Type
    Cabinet
  • Table Front Of Saw Blade At Maximum Depth of Cut
    10 in.
  • Table Height
    34 in.
  • Table Size
    29 x 20 in.
  • Table Type
    Cast Iron
  • UPC
    662755941047
  • Warranty
    Five Years
