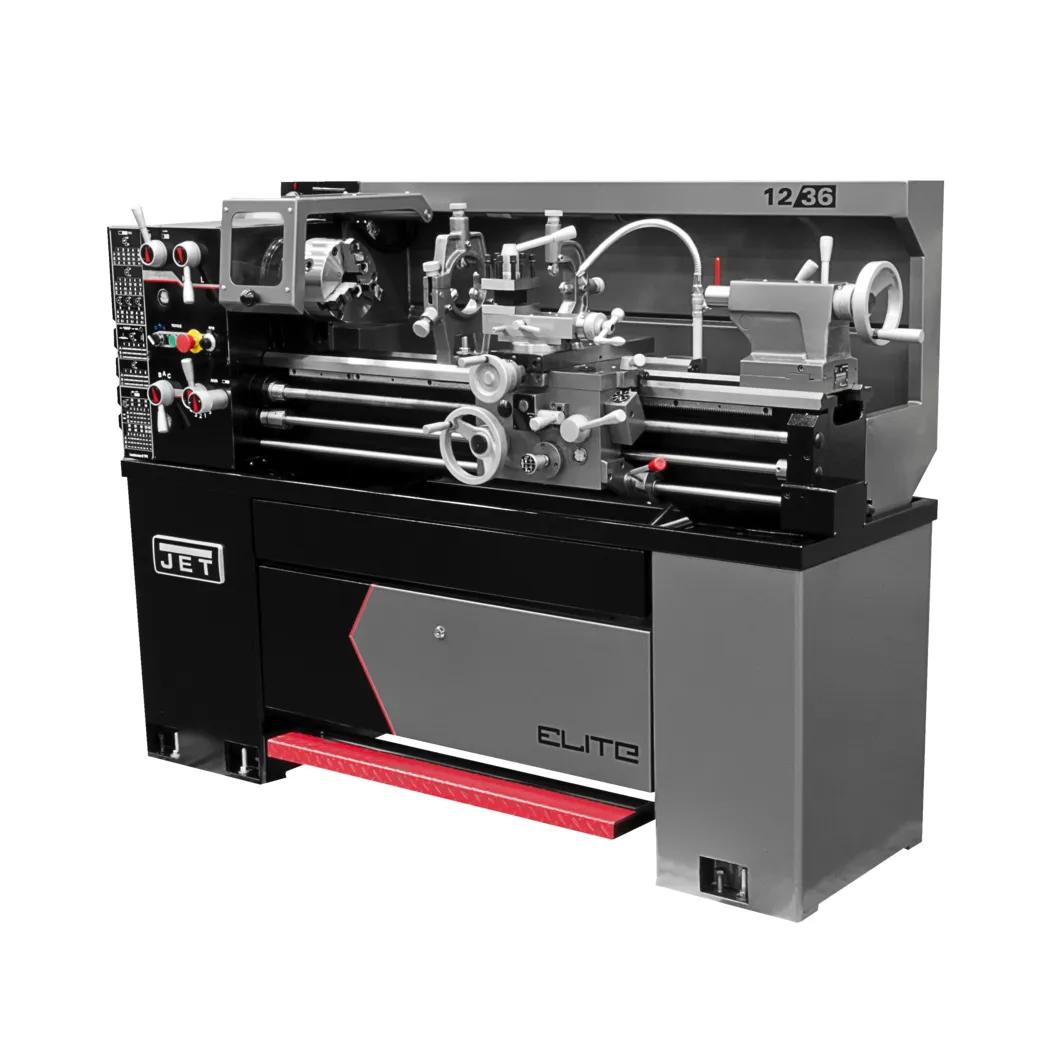

12" x 36" EVS Lathe w/ ACU-RITE 303 CSS DRO w/ Taper Attachment, 2HP, 230V 3PH(E-1236VS)

Stock Number: JT9-892316

0 Reviews

No reviews yet.

  • 2 HP, 230V, three-phase
  • 12" swing, 36" centers
  • 1-9/16 in. spindle bore
  • 40 - 2,000 RPM
BUY NOW
JET 3 Year Warranty
Jet Need Parts

Product Details

Tolerance-grade turning for shops that demand consistency. The E-1236VS is built for repair shops, fab shops, and tool-room turning. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage and the service network production shops actually use.

Features

  • Precision-rated 12-inch swing matches the chuck and tool-holding capacity for the round-stock work production schedules generate.
  • Industrial 2 HP induction motor: running quieter and cooler than equivalent open-frame designs, designed for high-volume working environments.
  • Continuous-duty 36 in. bed length supports long-shaft work for center-and-tail work across the full bed.
  • 1-9/16 in. spindle bore — delivering bar-feeding capacity production turning demands across bar work environments.
  • Certified Meehanite load-bearing castings support structural authority for the structural rigidity tolerance-grade work demands.
  • Engineered hardened feed-shaft gears — earning their place through service life, not just first-pass tolerance, engineered without the slop softer drivetrains develop.

Specifications

  • SKU
    JT9-892316
  • Assembled Dimensions
    71 x 28 x 45 in.
  • Center Height
    6 in.
  • Collet Closer
    No
  • Cross Slide Travel
    6-3/4 in.
  • Digital Readout
    Acu-Rite CSS 303
  • Distance Between Centers
    36 in.
  • Drive Type
    EVS
  • Lead Screw Diameter
    7/8 in.
  • Leadscrew Thread Pitch
    8 TPI
  • Length of Gap
    9-1/2 in.
  • Maximum Tool Size
    1/2 x 1/2 in.
  • Number of Inch Threads
    34
  • Number of Longitudal And Cross Feed Rates
    25
  • Number of Metric Threads
    33
  • Old Material Number
    892316
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range Of Cross Feeds
    0.0005 - 0.015 in./rev
  • Range Of Inch Threads Tpi
    2 - 56 TPI
  • Range Of Longitudal Feeds in/rev
    0.0016 - 0.046 IPR
  • Range Of Spindle Speeds
    40 - 2000 RPM
  • Range of Metric Threads
    0.5 - 12 mm
  • SAP Gross Weight
    1,477
  • SAP Net weight
    1,213
  • Size
    12 x 36
  • Spindle Bore
    1-9/16 in.
  • Spindle Mount
    D1-4
  • Spindle Taper
    MT5
  • Steady Rest Capacity
    1/4 - 2-1/2 in.
  • Style Type
    ELITE EVS
  • Swing Over Bed
    12 in.
  • Swing Over Cross Slide
    7-5/16 in.
  • Swing Through Gap
    17-1/2 in.
  • Tailstock Spindle Travel
    4 in.
  • Taper Attachment
    Yes
  • Taper in Tailstock Spindle
    MT3
  • Top Slide Travel
    3-1/2 in.
  • UPC
    731325282337
  • Warranty
    Three Years
  • Width Of Bed
    7-1/2 in.
  • Motor HP
    2 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
  • Amp Draw (amps)
    19 A
