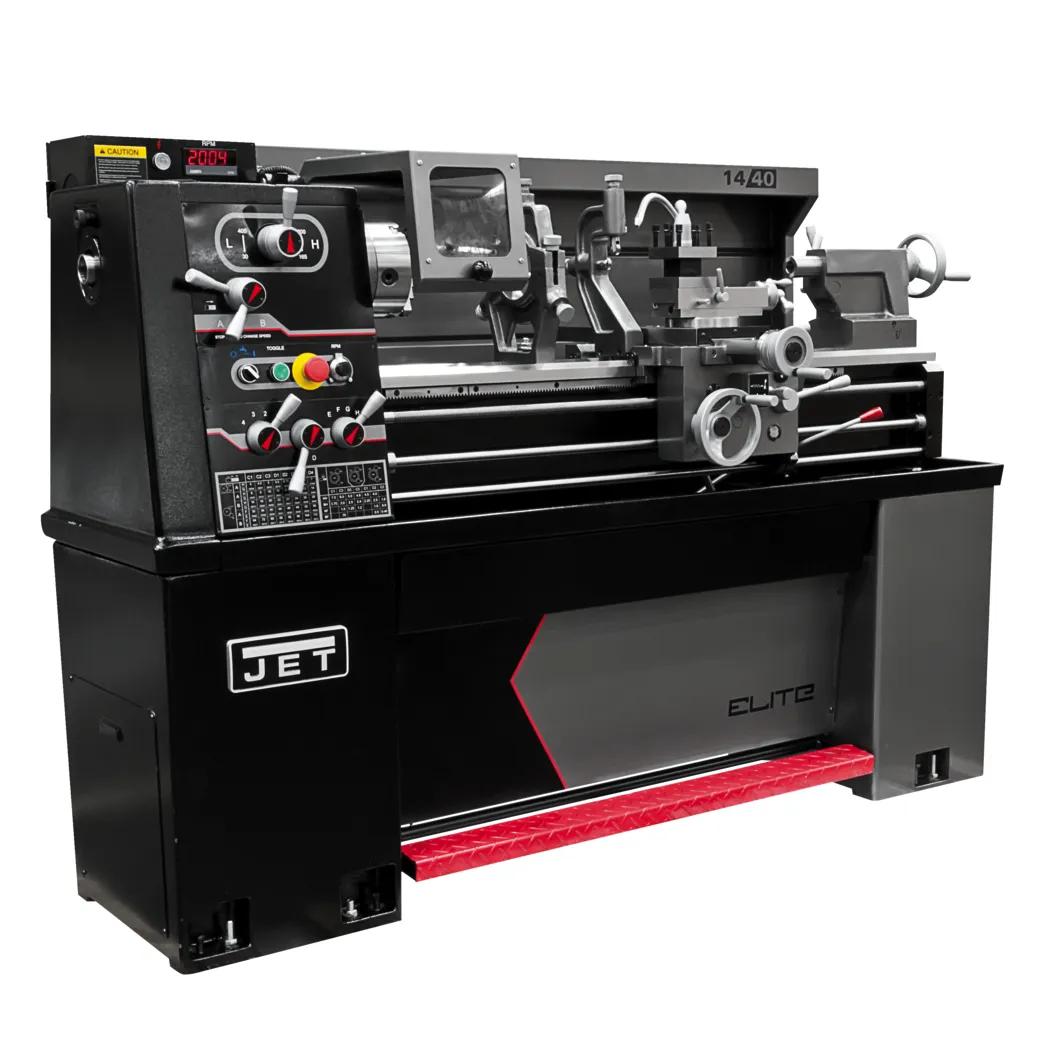

13" x 40" EVS Lathe w/ ACU-RITE 303 CSS DRO w/ Taper Attachment & Collet Closer, 3HP, 230V 3PH(E-1340VS)

Stock Number: JT9-892418

0 Reviews

No reviews yet.

  • 3 HP, 230V, three-phase
  • 13" swing, 40" centers
  • 1-1/2 in. spindle bore
  • 30 - 2,200 RPM
BUY NOW
JET 3 Year Warranty
Jet Need Parts

Product Details

Compact footprint, shop-floor authority. The E-1340VS is built for industrial machine shops with daily turning work. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage and the service network production shops actually use.

Features

  • Generous 13-inch swing-over-bed handles larger-diameter parts for larger-diameter production parts.
  • Engineered 3 HP three-phase induction drive: delivering full-rated power to the cut, not the brush dust, sized for full-shift continuous operation.
  • 40 in. between centers handles long-shaft work for the long-bed work production turning demands.
  • Professional-grade 1-1/2 in. spindle bore delivers bar-feeding capacity for bar stock smaller lathes force you to cut down first.
  • Heat-treated Meehanite load-bearing castings deliver rigidity for stability where commercial-grade iron warps.
  • Heat-treated and surface-ground quick-change gears resist wear across long service life.

Specifications

  • SKU
    JT9-892418
  • Assembled Dimensions
    75-1/2 x 36-1/4 x 51 in.
  • Center Height
    6.5 in.
  • Collet Closer
    Yes
  • Cross Slide Travel
    6-1/4 in.
  • Digital Readout
    Acu-Rite CSS 303
  • Distance Between Centers
    40 in.
  • Drive Type
    EVS
  • Lead Screw Diameter
    7/8 in.
  • Leadscrew Thread Pitch
    8 TPI
  • Length of Gap
    9-7/16 in.
  • Maximum Tool Size
    5/8 x 5/8 in.
  • Net Weight
    1,582
  • Number of Inch Threads
    40
  • Number of Longitudal And Cross Feed Rates
    40/40
  • Number of Metric Threads
    22
  • Old Material Number
    892418
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range Of Cross Feeds
    0.0005 - 0.0271 in./rev
  • Range Of Inch Threads Tpi
    4 - 112 TPI
  • Range Of Longitudal Feeds in/rev
    0.0012 - 0.0294 IPR
  • Range Of Spindle Speeds
    30 - 2200 RPM
  • Range of Metric Threads
    0.45 - 7.5 mm
  • SAP Gross Weight
    1,849
  • Size
    13 x 40
  • Spindle Bore
    1-1/2 in.
  • Spindle Mount
    D1-4
  • Spindle Taper
    MT5
  • Steady Rest Capacity
    1/4 - 2-3/4 in.
  • Style Type
    ELITE EVS
  • Swing Over Bed
    13 in.
  • Swing Over Cross Slide
    7-5/8 in.
  • Swing Through Gap
    19 in.
  • Tailstock Spindle Travel
    4-3/4 in.
  • Taper Attachment
    Yes
  • Taper in Tailstock Spindle
    MT3
  • Top Slide Travel
    3-1/2 in.
  • UPC
    731325282627
  • Warranty
    Three Years
  • Width Of Bed
    8-1/2 in.
  • Motor HP
    3 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
  • Amp Draw (amps)
    19 A
