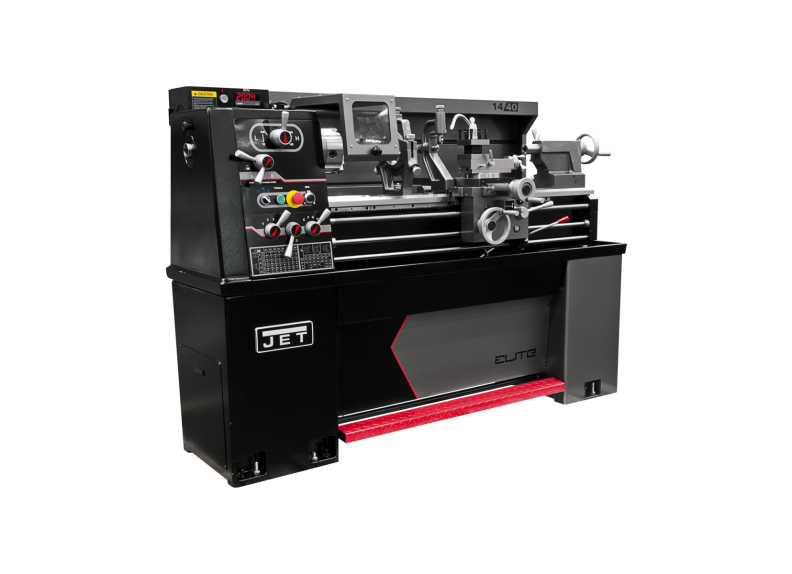

14" x 40" EVS Lathe w/ Collet Closer, 3HP, 230V 3PH(E-1440VS)

Stock Number: JT9-892451

0 Reviews

No reviews yet.

  • 3 HP, 230V, three-phase
  • 14" swing, 40" centers
  • 1-1/2 in. spindle bore
  • 30 - 2,200 RPM
BUY NOW
JET 3 Year Warranty
Jet Need Parts

Product Details

Where round work starts: the lathe that holds tolerance through every cycle. The E-1440VS fits industrial machine shops with daily turning work — and the cycle counts they generate. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by the JET 2-year warranty.

Features

  • 14-inch swing-over-bed capacity supports the workpiece diameters for the round-stock work production schedules generate.
  • Continuous-duty 3 HP induction motor — transmitting power smoothly, engineered for the operating envelope production demands.
  • Factory-tested 40 in. bed length covers long-shaft work for the long-shaft envelope production turning generates.
  • Professional-grade 1-1/2 in. spindle bore handles bar-feeding capacity for bar stock smaller lathes force you to cut down first.
  • Vibration-dampening Meehanite tailstock castings keep finish quality consistent across precision turning environments.

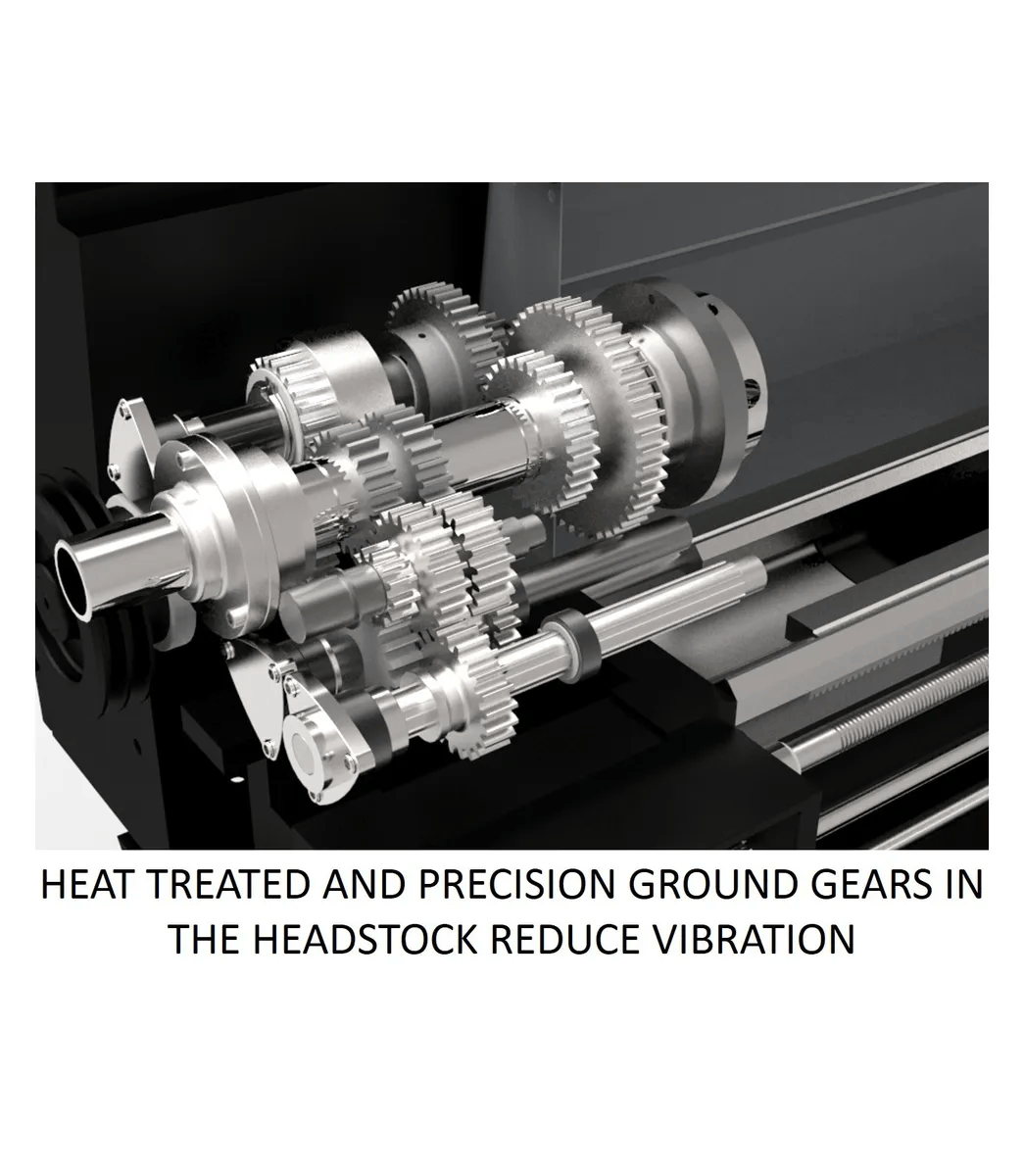

  • Hardened and matched quick-change gears — holding feed rates without backlash compensation, sized without the slop softer drivetrains develop.

Specifications

  • SKU
    JT9-892451
  • Assembled Dimensions
    75-1/2 x 36-1/4 x 51 in.
  • Center Height
    7 in.
  • Collet Closer
    Yes
  • Cross Slide Travel
    6-1/2 in.
  • Digital Readout
    No
  • Distance Between Centers
    40 in.
  • Drive Type
    EVS
  • Lead Screw Diameter
    7/8 in.
  • Leadscrew Thread Pitch
    8 TPI
  • Length of Gap
    9-7/16 in.
  • Maximum Tool Size
    7/8 x 7/8 in.
  • Number of Inch Threads
    40
  • Number of Longitudal And Cross Feed Rates
    40/40
  • Number of Metric Threads
    22
  • Old Material Number
    892451
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range Of Cross Feeds
    0.0005 - 0.0271 in./rev
  • Range Of Inch Threads Tpi
    4 - 112 TPI
  • Range Of Longitudal Feeds in/rev
    0.0012 - 0.0294 IPR
  • Range Of Spindle Speeds
    30 - 2200 RPM
  • Range of Metric Threads
    0.45 - 7.5 mm
  • SAP Gross Weight
    1,940
  • SAP Net weight
    1,653
  • Size
    14 x 40
  • Spindle Bore
    1-1/2 in.
  • Spindle Mount
    D1-4
  • Spindle Taper
    MT5
  • Steady Rest Capacity
    1/4 - 2-3/4 in.
  • Style Type
    ELITE EVS
  • Swing Over Bed
    14 in.
  • Swing Over Cross Slide
    8-5/8 in.
  • Swing Through Gap
    20 in.
  • Tailstock Spindle Travel
    4-3/4 in.
  • Taper Attachment
    No
  • Taper in Tailstock Spindle
    MT3
  • Top Slide Travel
    4 in.
  • UPC
    731325282726
  • Warranty
    Three Years
  • Width Of Bed
    8-1/2 in.
  • Motor HP
    3 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
  • Amp Draw (amps)
    19 A
