Product Details
Frame rigidity meets blade-speed flexibility. The ECB-1422V answers the work generated by production sawing across hardwoods, softwoods, and metal stock. Equipped with a 5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by the JET service network.
Features
- The 5 HP induction motor — transmitting power without the maintenance brush-motor designs require for long-cycle production work.
- 75 - 25075 - 250 sf[, cutting speed — delivering blade velocity production sawing demands across fabrication shops.
- Heavy-gauge welded frame handles structural rigidity for the structural rigidity production cutting demands.
- Continuous-duty tilting table — delivering angle accuracy precision work expects, engineered for the angled cuts production fabrication actually runs.
- Precision-rated cutting envelope supports workpiece sizes for the cut-length envelope industrial sawing requires.
- Heavy cast iron support castings — earning their place through sheer mechanical authority, engineered for the working loads industrial cutting generates.
Specifications
- SKUJT9-891160
- Assembled Dimensions93.5 x 25.9 x 72.83 in. (2375x660x1850mm)
- Bed Height29 in.
- Blade Diameter18-1/2 in.
- Blade Length192-1/2 in.
- Blade Size (In.)1.3 x 0.043 x 192.13 in.
- Blade Speed75 - 25075 - 250 sf

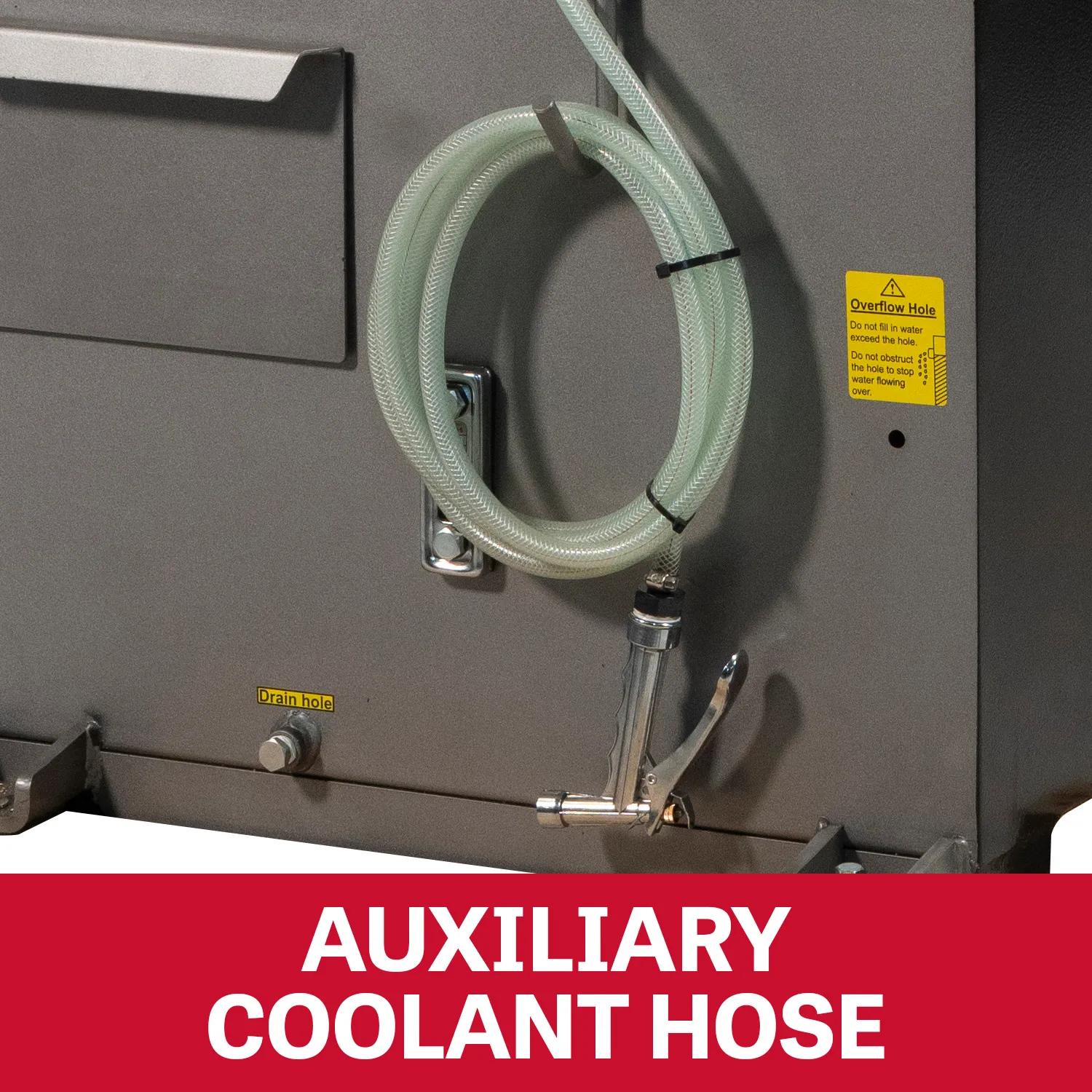

- Coolant Capacity23.8 Gal.
- Coolant Pump Motor1/6 HP, 230/460 V
- Cutting Capacity - Height14 in.
- Drive TypeVariable Speed
- Height29.21 in.
- Horse Power5 HP
- Hydraulic Motor Hp1 HP
- Input Power230/460 V 3 Ph
- Model NumberECB-1422V
- Motor HP5 HP
- Motor PhaseThree
- Motor Voltage230/460 V
- Old Material Number891160
- Overall Assembled (Bow Lowered)93.5 x 25.9 x 72.83 in.
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp20 A
- Rectangle At 90 Degrees14-1/8 x 22 in.
- Round Capacity At 90 Degrees14-1/8 in.
- SAP Gross Weight2,992
- SAP Net weight2,266
- Square At 90 Degrees14-1/8 in.
- Throat Depth14 x 17 in.
- UPC731325806847
- WarrantyThree Years
- Wheel Diameter18-1/2 in.
