Product Details

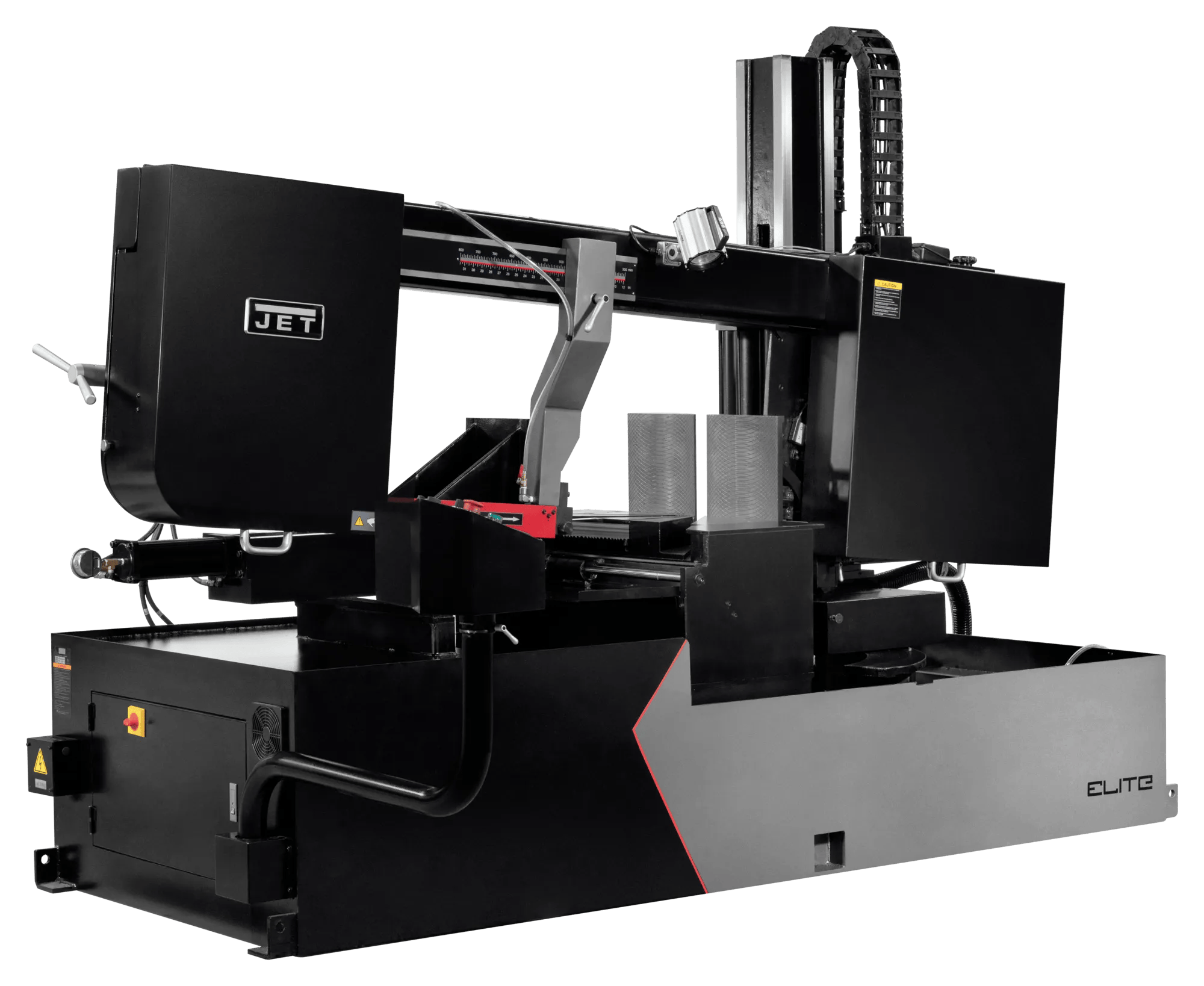

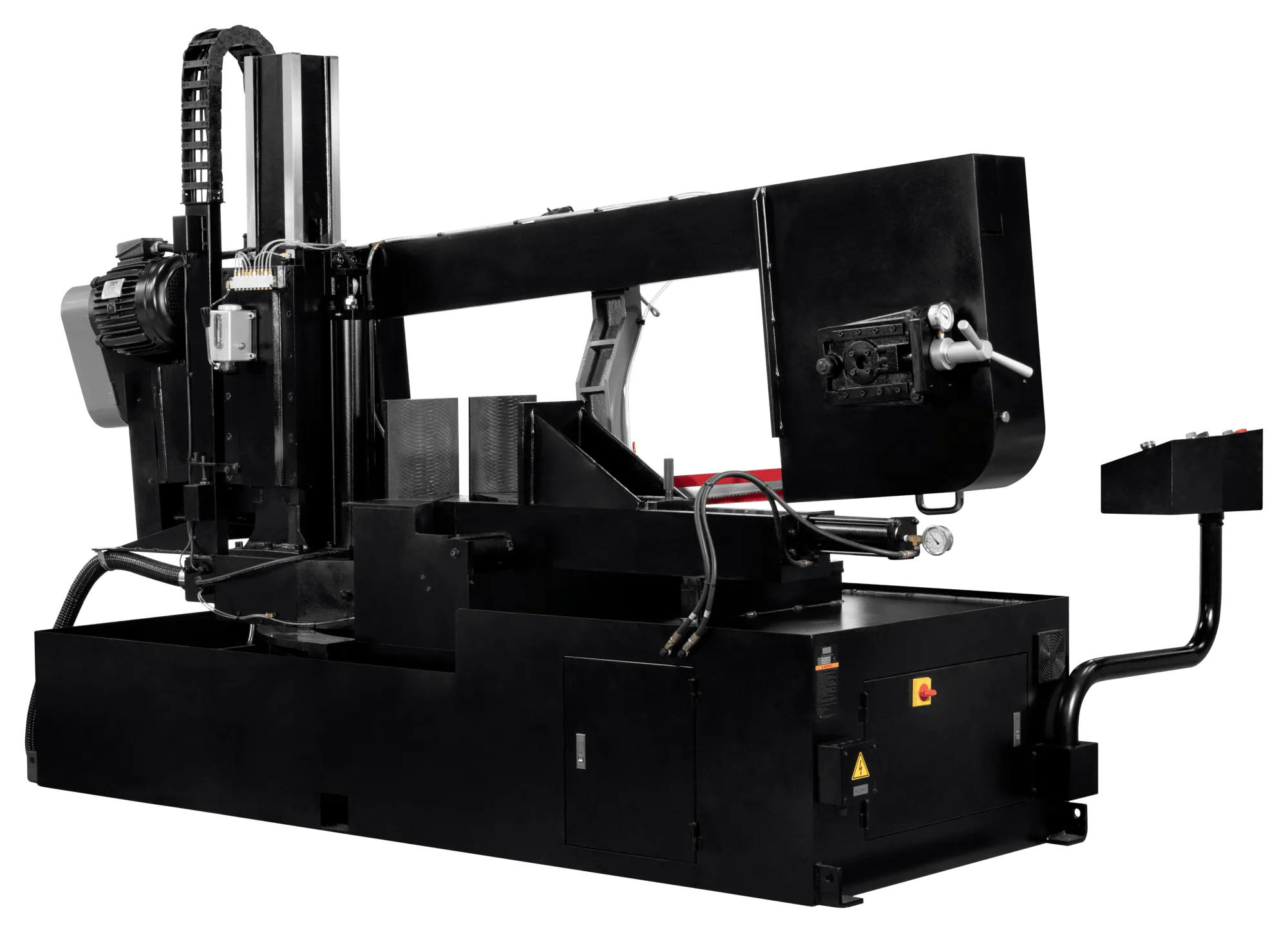

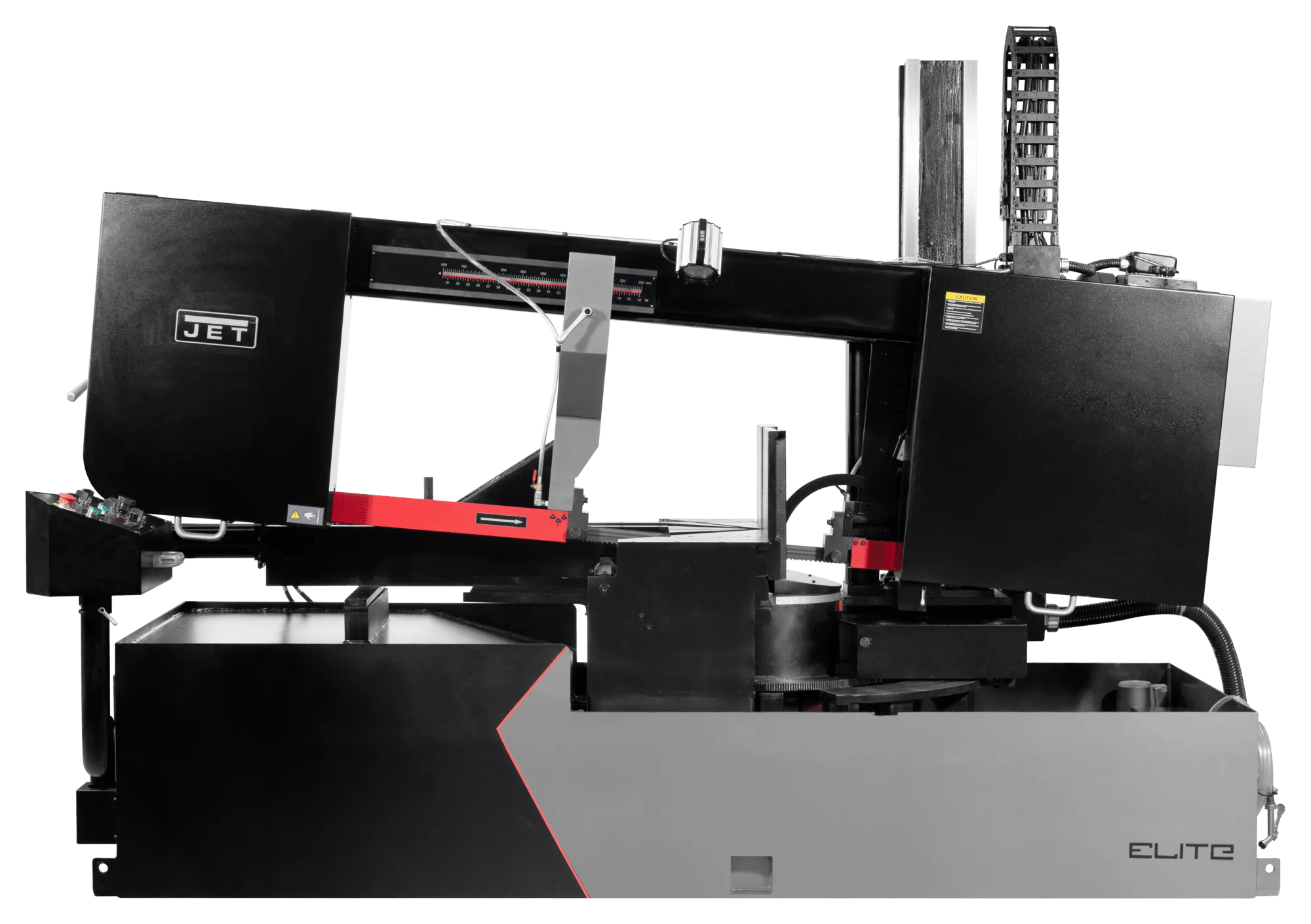

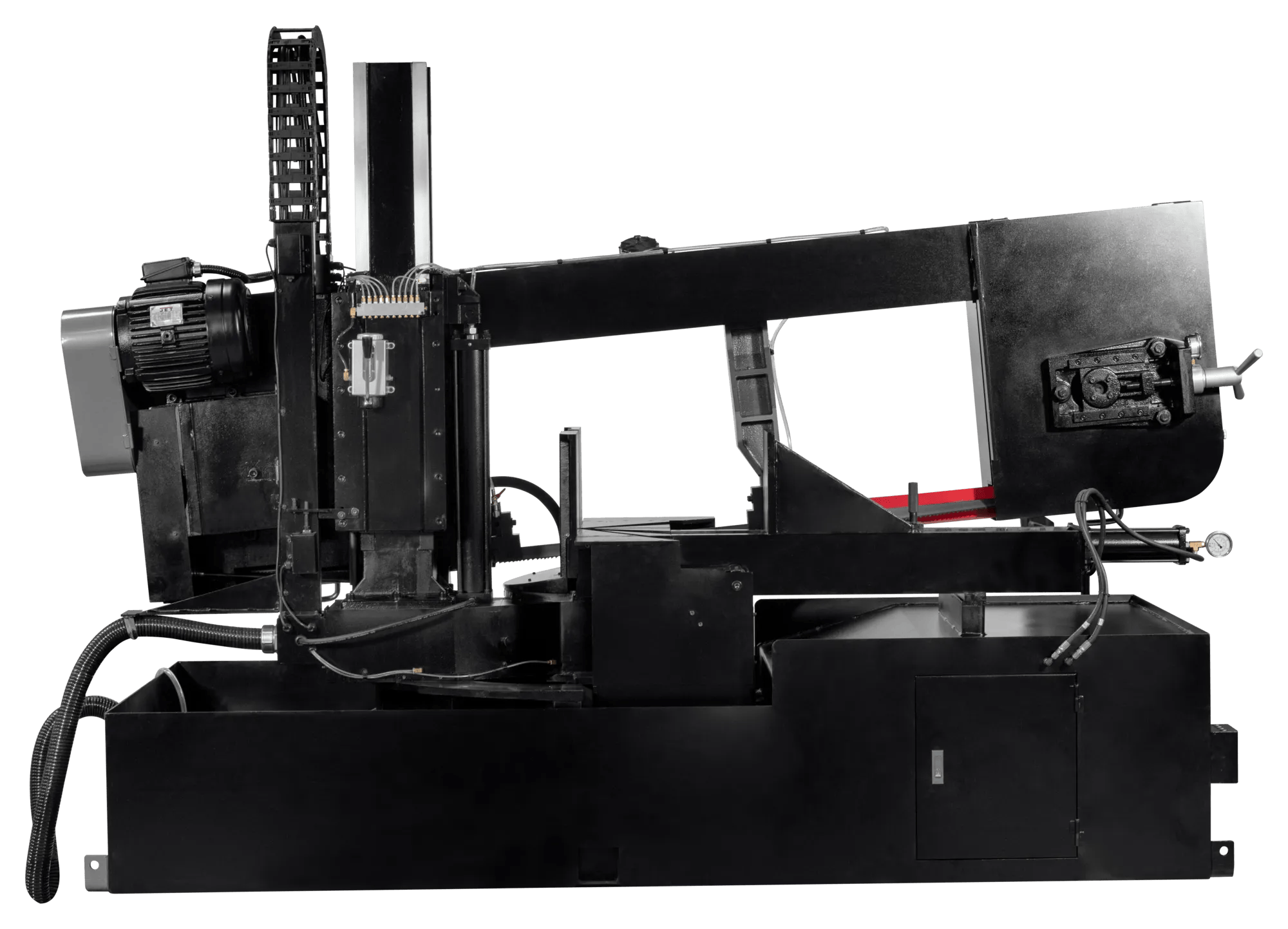

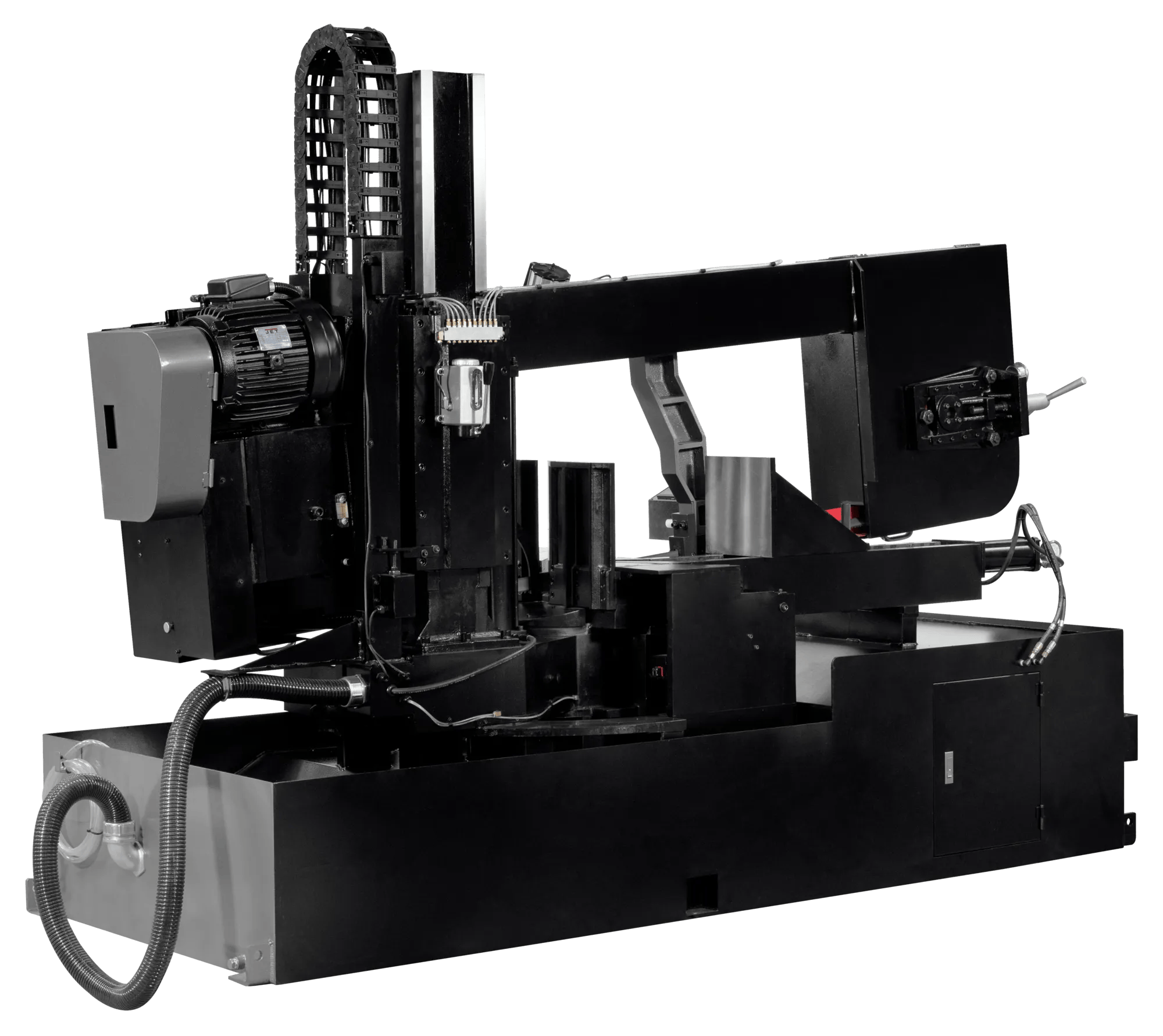

From benchtop to production floor, sized for the work that ships. The ECB-1833DMEVS-230 was sized for production sawing across hardwoods, softwoods, and metal stock. Equipped with a 7.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production cycles, warrantied for the long run.
Features
- Sealed 7.5 HP induction motor protects against the dust, chips, and humidity of production environments.
- 150-30050.350 - 300, SFPM blade speed — covering the material library production sawing runs.
- Industrial-grade saw frame provides blade alignment for blade-tracking accuracy production sawing requires.
- Production-grade tilting table — covering miter and bevel cuts production fabrication generates, engineered for angle accuracy production work expects.
- Industrial-spec cutting envelope matches workpiece sizes for the cutting envelope production sawing demands.
- Industrial-grade cast iron trunnion castings deliver rigidity for tolerance retention across years of cycles.
Specifications
- SKUJT9-891170
- Assembled Dimensions110 x 74.8 x 82.67 in. ( 2800 x 1900 x 2100 mm)
- Bed Height39-3/8 in.
- Blade Length240 in.
- Blade Size (In.)1.61 x 0.051 x 240 in.
- Blade Speed150-30050.350 - 300, sfpm
- Coolant Pump Motor1/8 HP, 230 V, 3 PH
- Cutting Capacity - Height18 in.
- Drive TypeEVS
- Floor Space Required110 x 74 x 82-5/8 in.
- Height33-1/2 in. (850 mm)
- Horse Power7.5 HP
- Hydraulic Motor Hp1 HP
- Input Power230 V 3 Ph
- Maximum Vise Opening31 in.
- Miter Angle Motor1/5 HP, 460 V, 3 Ph
- Model NumberECB-1833DMEVS-230
- Motor HP7.5 HP
- Motor PhaseThree
- Motor Voltage230 V
- Old Material Number891170
- Overall Assembled (Bow Lowered)110 x 74.8 x 82.67 in.
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp25 A
- Rectangle At 45 Degrees18 x 20-13/16 in.
- Rectangle At 60 Degrees18 x 14-29/32 in.
- Rectangle At 90 Degrees18 x 31-1/2 in.
- Round Capacity At 45 Degrees18 in.
- Round Capacity At 60 Degrees18 in.
- Round Capacity At 90 Degrees15 in.
- SAP Gross Weight5,500
- SAP Net weight5,060
- Square At 45 Degrees18 x 18 in.
- Square At 60 Degrees15 x 15 in.
- Square At 90 Degrees18 x 18 in.
- Throat Depth18 in.
- UPC731325806830
- WarrantyThree Years
- Wheel Diameter22.8 in. (580 mm)
