Product Details

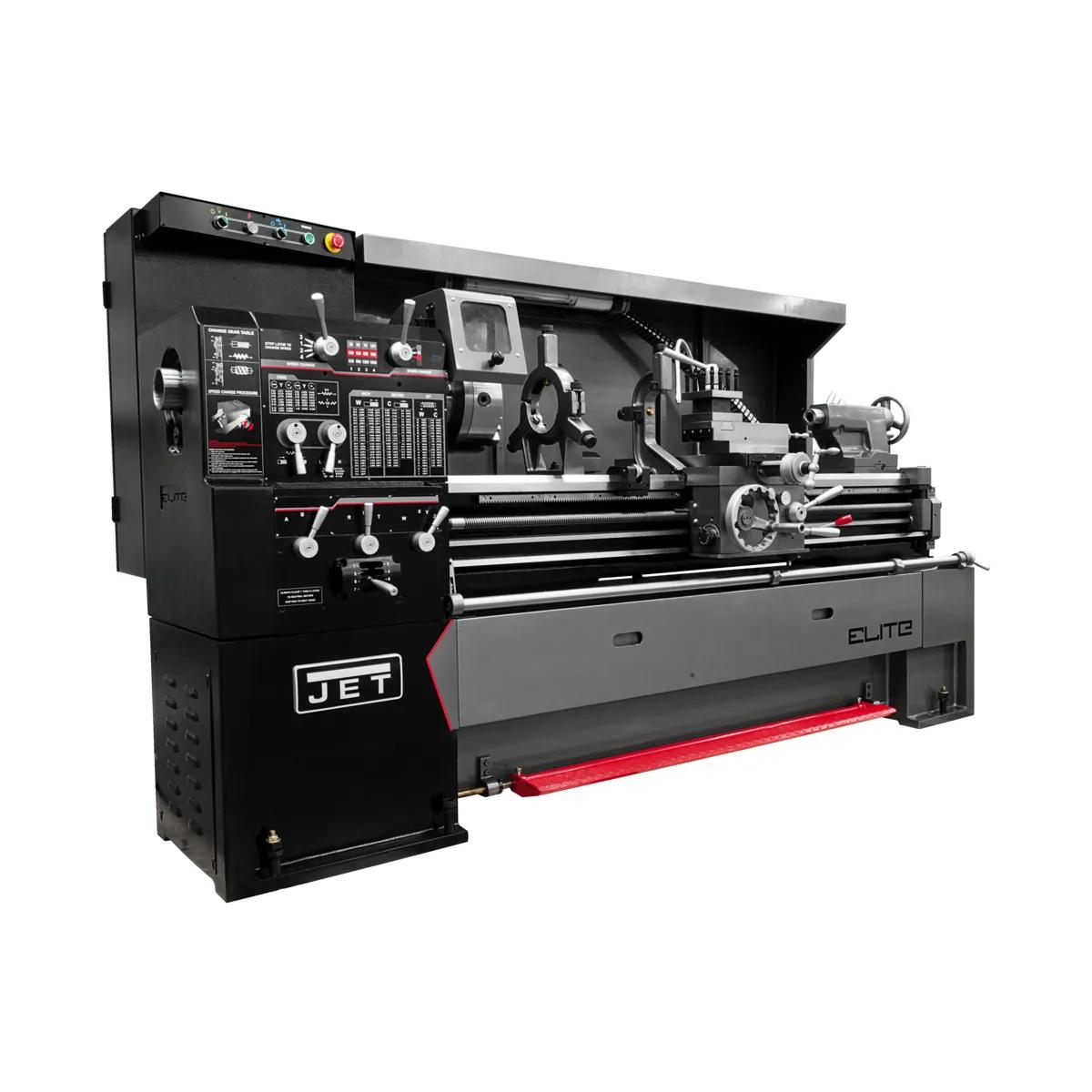

Built for the turning work that defines a production shop. Designed for industrial machine shops with daily turning work, the EGH-1740 stands up to the duty cycle. Equipped with a 7.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial build quality, industrial warranty backing.
Features
- Factory-tested 17-inch swing matches the chuck and tool-holding capacity for the workpiece library production turning runs.
- 7.5 HP, 230/460V three-phase induction motor — standing up to the dust, chips, and humidity of working shops, sized for the cycle counts industrial use generates.
- 40 in. between centers handles long-shaft work for spindle-end-to-tailstock-end work.
- Industrial-spec 3-1/8 in. spindle bore supports bar-feeding capacity for the bar-stock library production shops keep.
- Vibration-dampening Meehanite support castings keep finish quality consistent across tolerance-grade production.

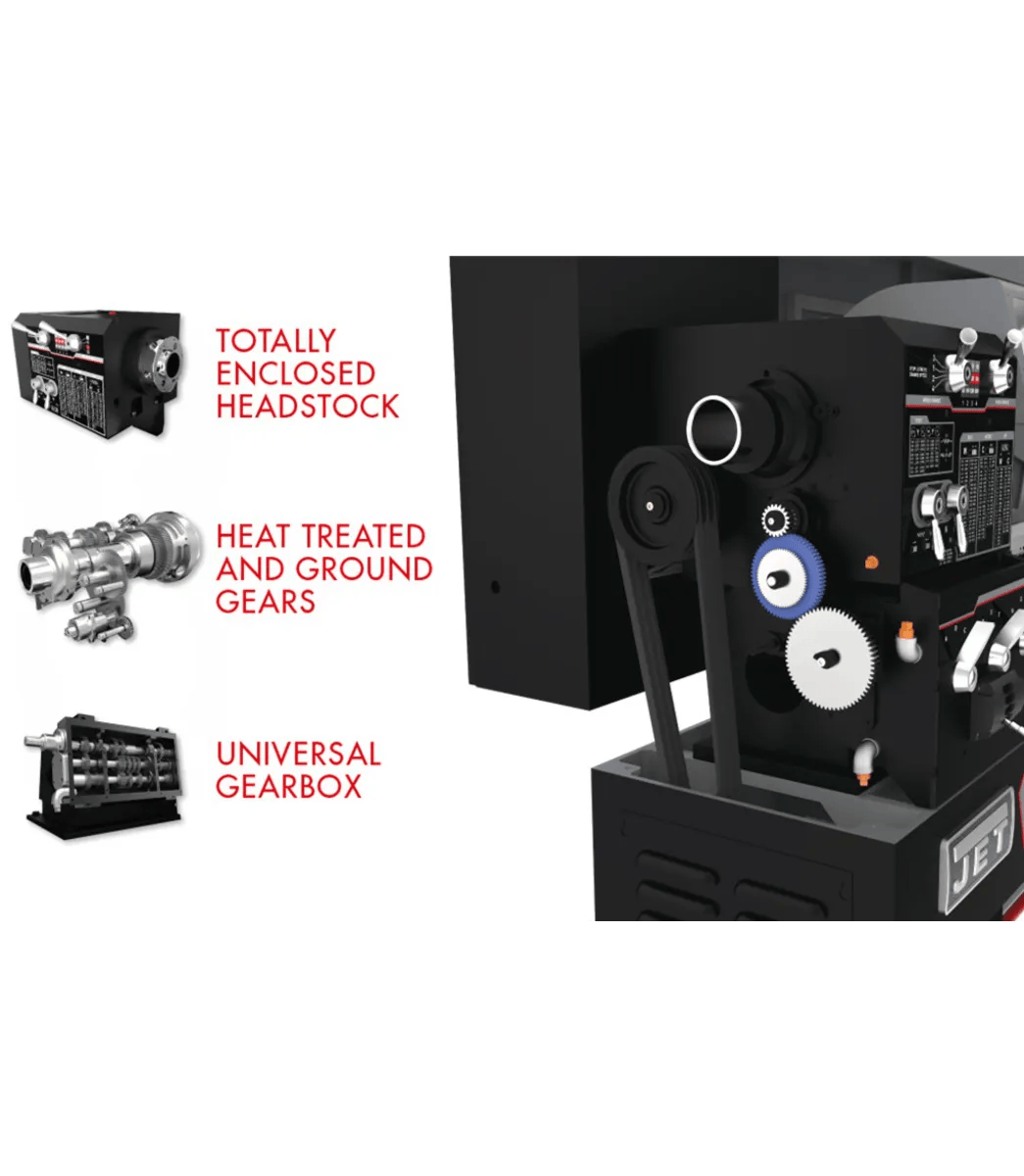

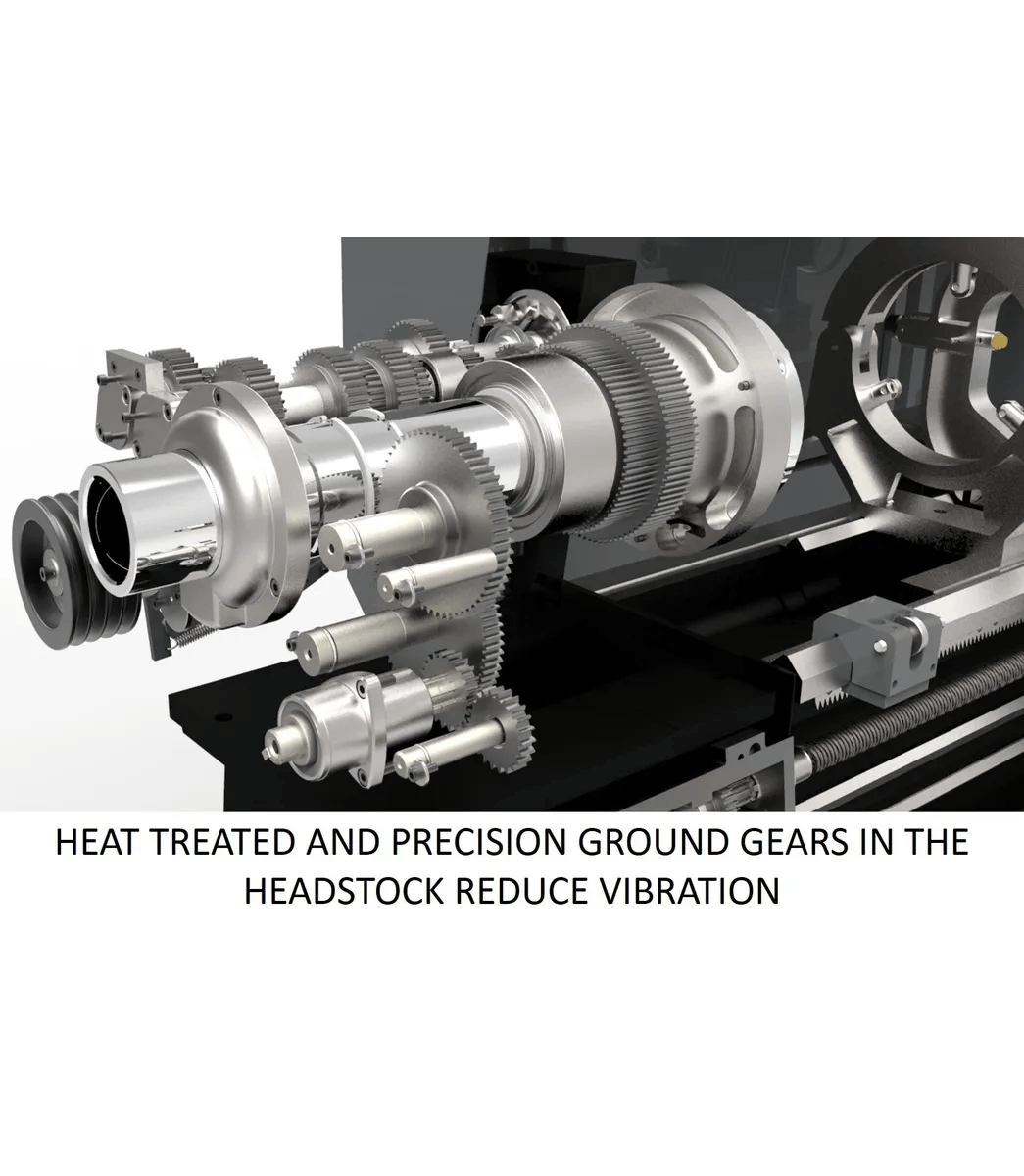

- Hardened and ground carriage gears match consistent transmission for repeatable feed rates across long cycles.
Specifications
- SKUJT9-892505
- Assembled Dimensions94.5 x 44 x 69 in.
- Collet CloserYes
- Digital ReadoutAcu-Rite 203
- Distance Between Centers40 in.
- Drive TypeGeared Head
- Length of Gap7-2/3 in.
- Maximum Tool Size1 x 1 in.
- Modular Pitch Threads Number18
- Number of Inch Threads45
- Number of Metric Threads39
- Number of Spindle Speeds12
- Old Material Number892505
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Range Of Cross Feeds0.00075 - 0.02 in./rev
- Range Of Inch Threads Tpi26330 TPI
- Range Of Longitudal Feeds in/rev0.0015 - 0.04 IPR
- Range Of Spindle Speeds36 - 1800 RPM
- Range of Metric Threads0.2 - 14 mm
- SAP Gross Weight4,409
- SAP Net weight3,748
- Spindle Bore3-1/8 in.
- Spindle MountD1-6
- Spindle TaperMT5
- Steady Rest Capacity3/8 - 6-3/4 in.
- Style TypeEngine
- Swing Over Bed17 in.
- Swing Through Gap24-1/4 in.
- Tailstock Spindle Travel5 in.
- Taper in Tailstock SpindleMT4
- UPC731325283037
- WarrantyThree Years
- Width Of Bed12 in.
- Motor HP7.5 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)23 A
