Product Details

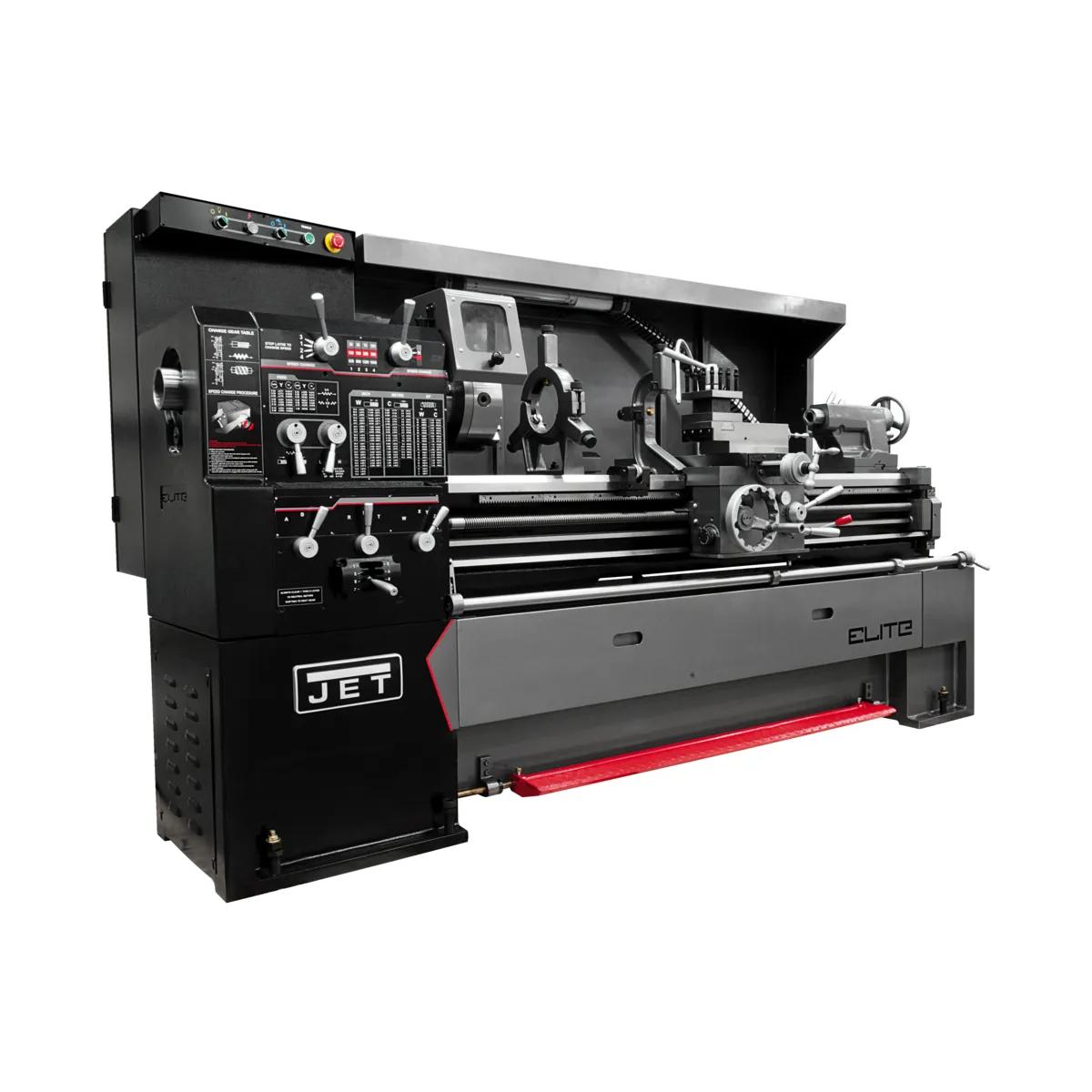

The bed, the spindle, the carriage — every component sized for serious turning. The EGH-1740 was sized for production turning shops that demand consistency. Equipped with a 7.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Production-grade build, production-grade results.
Features
- Working-grade 17-inch swing matches the chuck and tool-holding capacity for the round-stock work production schedules generate.
- Factory-sealed 7.5 HP 230/460V induction motor stands up to industrial shop floors.
- 40 in. between-centers — handling shaft work production turning generates daily, engineered for the long-shaft work that defines production turning.
- Shop-rated 3-1/8 in. spindle bore covers bar-feeding capacity for the bar diameters production work actually runs.
- Vibration-dampening Meehanite load-bearing castings keep finish quality consistent across tolerance-grade production.

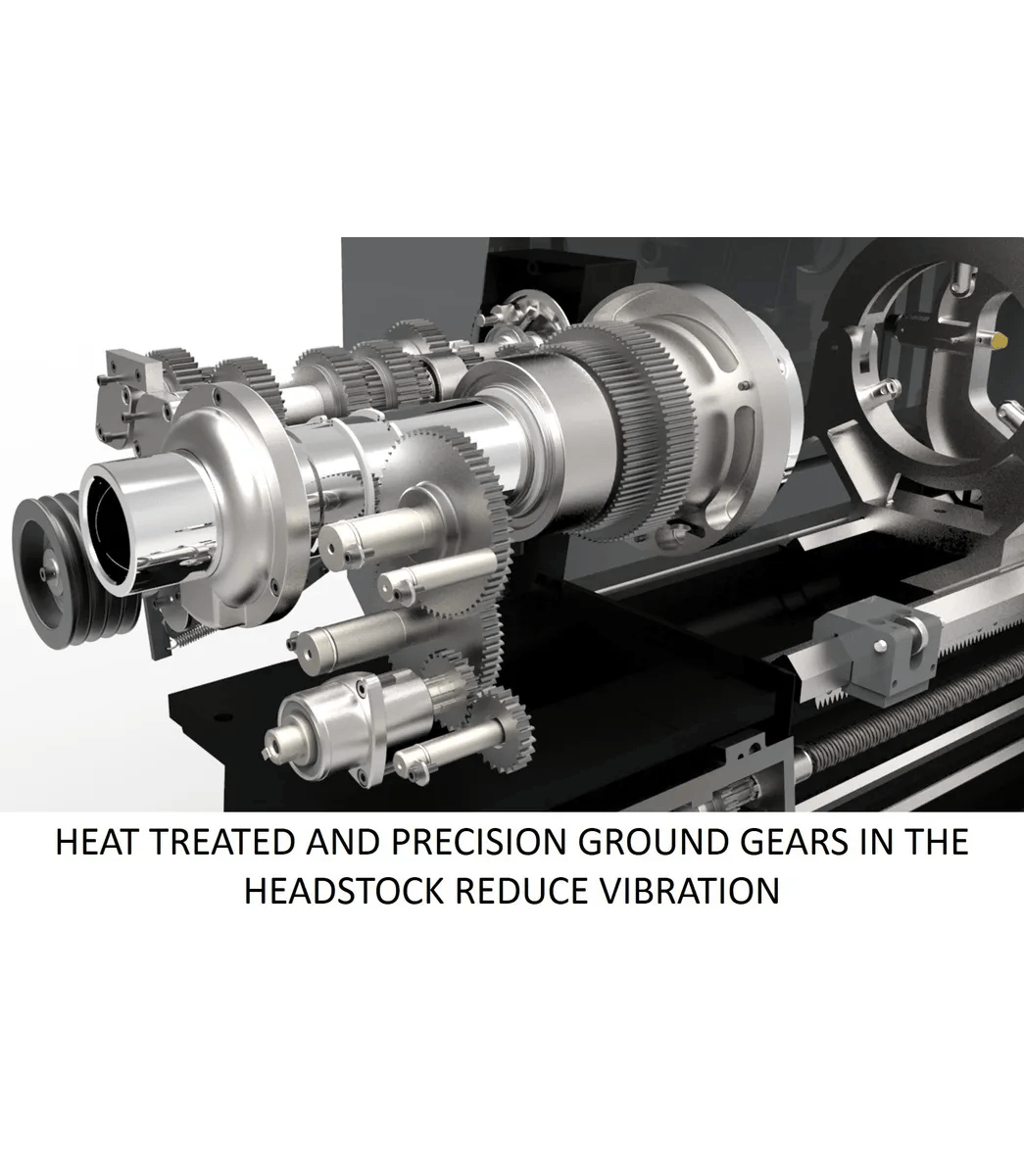

- Surface-ground after hardening, the drivetrain components stay in spec — delivering precision power transmission across decades.
Specifications
- SKUJT9-892504
- Assembled Dimensions94.5 x 44 x 69 in.
- Collet CloserNo
- Digital ReadoutAcu-Rite 203
- Distance Between Centers40 in.
- Drive TypeGeared Head
- Length of Gap7-2/3 in.
- Maximum Tool Size1 x 1 in.
- Modular Pitch Threads Number18
- Number of Inch Threads45
- Number of Metric Threads39
- Number of Spindle Speeds12
- Old Material Number892504
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Range Of Cross Feeds0.00075 - 0.02 in./rev
- Range Of Inch Threads Tpi26330 TPI
- Range Of Longitudal Feeds in/rev0.0015 - 0.04 IPR
- Range Of Spindle Speeds36 - 1800 RPM
- Range of Metric Threads0.2 - 14 mm
- SAP Gross Weight4,409
- SAP Net weight3,748
- Spindle Bore3-1/8 in.
- Spindle MountD1-6
- Spindle TaperMT5
- Steady Rest Capacity3/8 - 6-3/4 in.
- Style TypeEngine
- Swing Over Bed17 in.
- Swing Through Gap24-1/4 in.
- Tailstock Spindle Travel5 in.
- Taper in Tailstock SpindleMT4
- UPC731325283020
- WarrantyThree Years
- Width Of Bed12 in.
- Motor HP7.5 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)23 A
