Product Details

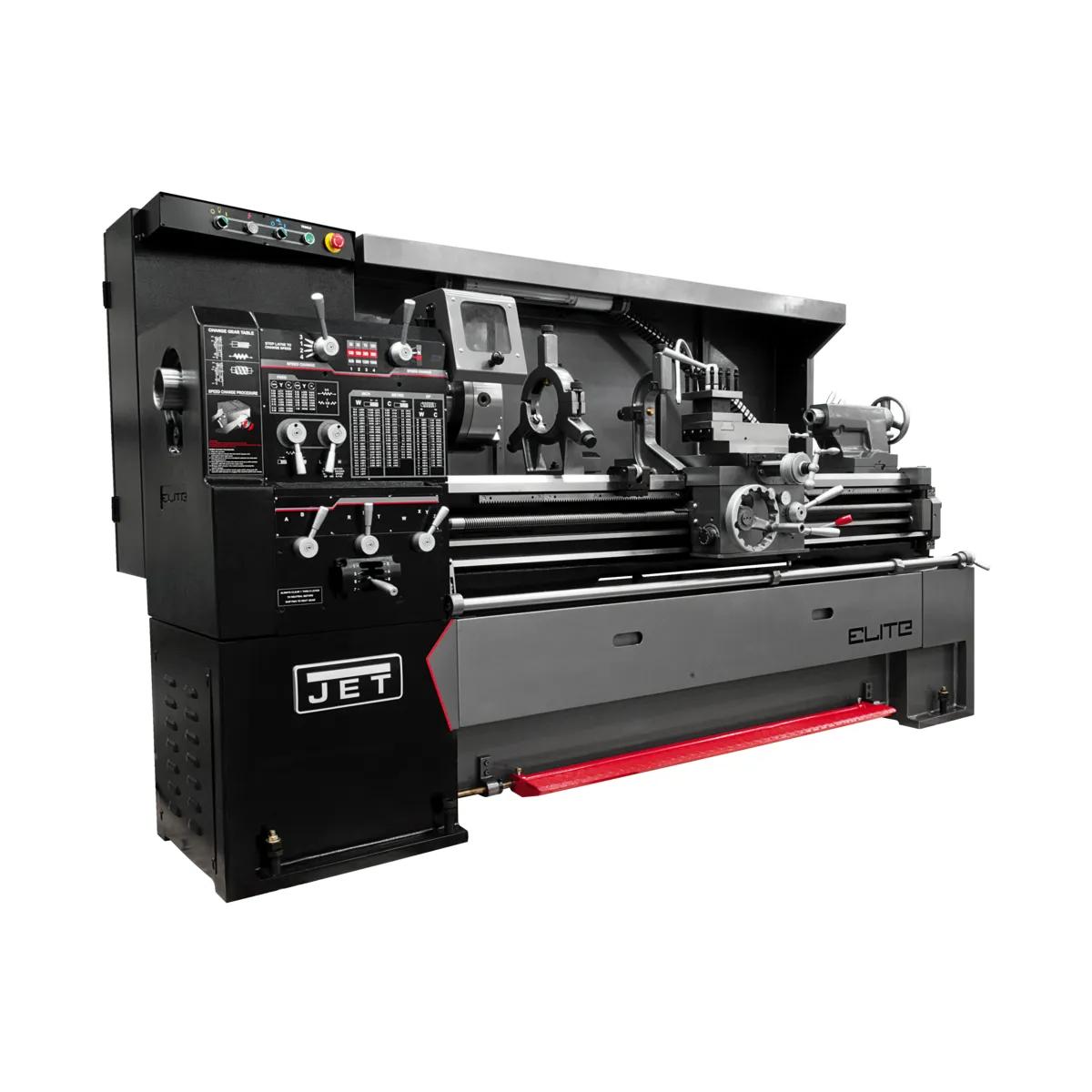

Industrial turning capacity, machine-shop reliability. Engineered around repair shops, fab shops, and tool-room turning, the EGH-1740 earns its place. Equipped with a 7.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage and the service network production shops actually use.
Features
- Production-grade 17-inch swing matches the chuck and tool-holding capacity for the round stock and chuck setups operators run daily.
- Engineered 7.5 HP three-phase induction drive: holding RPM under cutting load that would stall lighter motors, sized for full-shift continuous operation.
- Industrial-spec 40 in. bed length delivers long-shaft work for shaft turning production schedules generate.
- Production-spec 3-1/8 in. spindle bore supports bar-feeding capacity for long-bar work production turning generates.

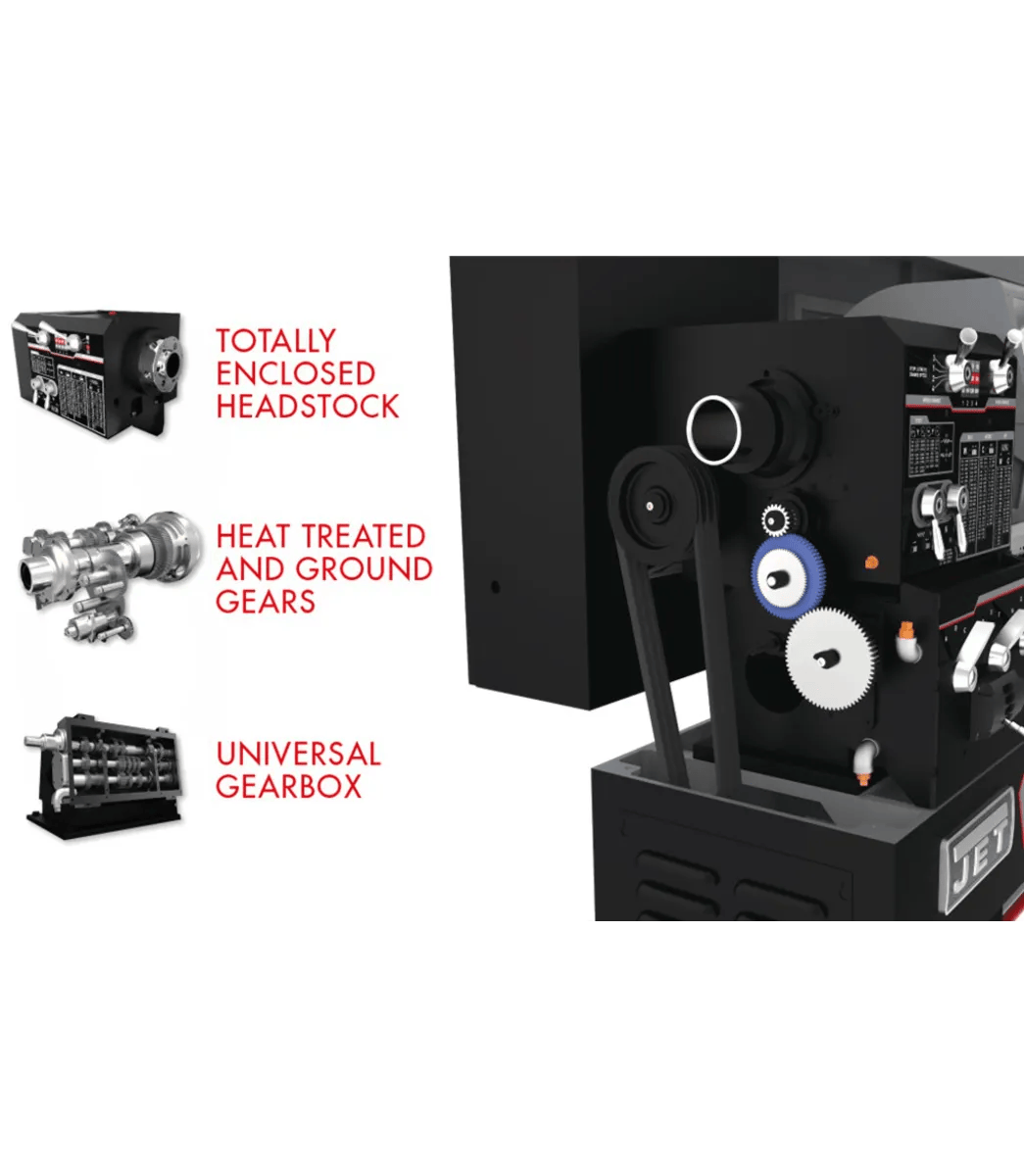

- Premium Meehanite headstock castings earn their place for the cycle counts production turning generates.

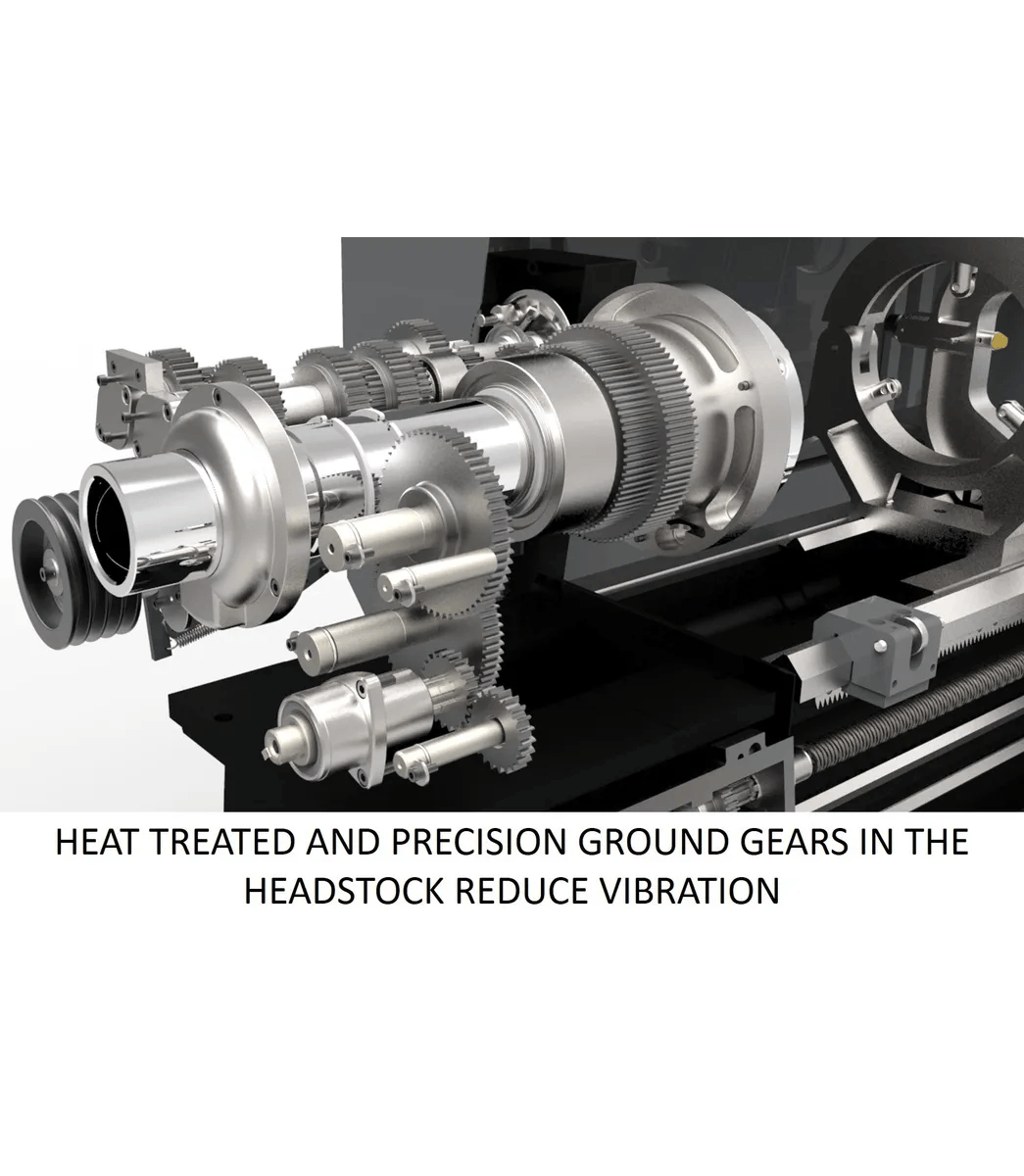

- Industrial-grade hardened feed-shaft gears run quieter and longer than commercial-grade alternatives across tolerance-grade machining.
Specifications
- SKUJT9-892506
- Assembled Dimensions94.5 x 44 x 69 in.
- Collet CloserYes
- Digital ReadoutAcu-Rite 203
- Distance Between Centers40 in.
- Drive TypeGeared Head
- Length of Gap7-2/3 in.
- Maximum Tool Size1 x 1 in.
- Modular Pitch Threads Number18
- Number of Inch Threads45
- Number of Metric Threads39
- Number of Spindle Speeds12
- Old Material Number892506
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Range Of Cross Feeds0.00075 - 0.02 in./rev
- Range Of Inch Threads Tpi26330 TPI
- Range Of Longitudal Feeds in/rev0.0015 - 0.04 IPR
- Range Of Spindle Speeds36 - 1800 RPM
- Range of Metric Threads0.2 - 14 mm
- SAP Gross Weight4,409
- SAP Net weight3,748
- Spindle Bore3-1/8 in.
- Spindle MountD1-6
- Spindle TaperMT5
- Steady Rest Capacity3/8 - 6-3/4 in.
- Style TypeEngine
- Swing Over Bed17 in.
- Swing Through Gap24-1/4 in.
- Tailstock Spindle Travel5 in.
- Taper in Tailstock SpindleMT4
- UPC731325283044
- WarrantyThree Years
- Width Of Bed12 in.
- Motor HP7.5 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)23 A
