Product Details

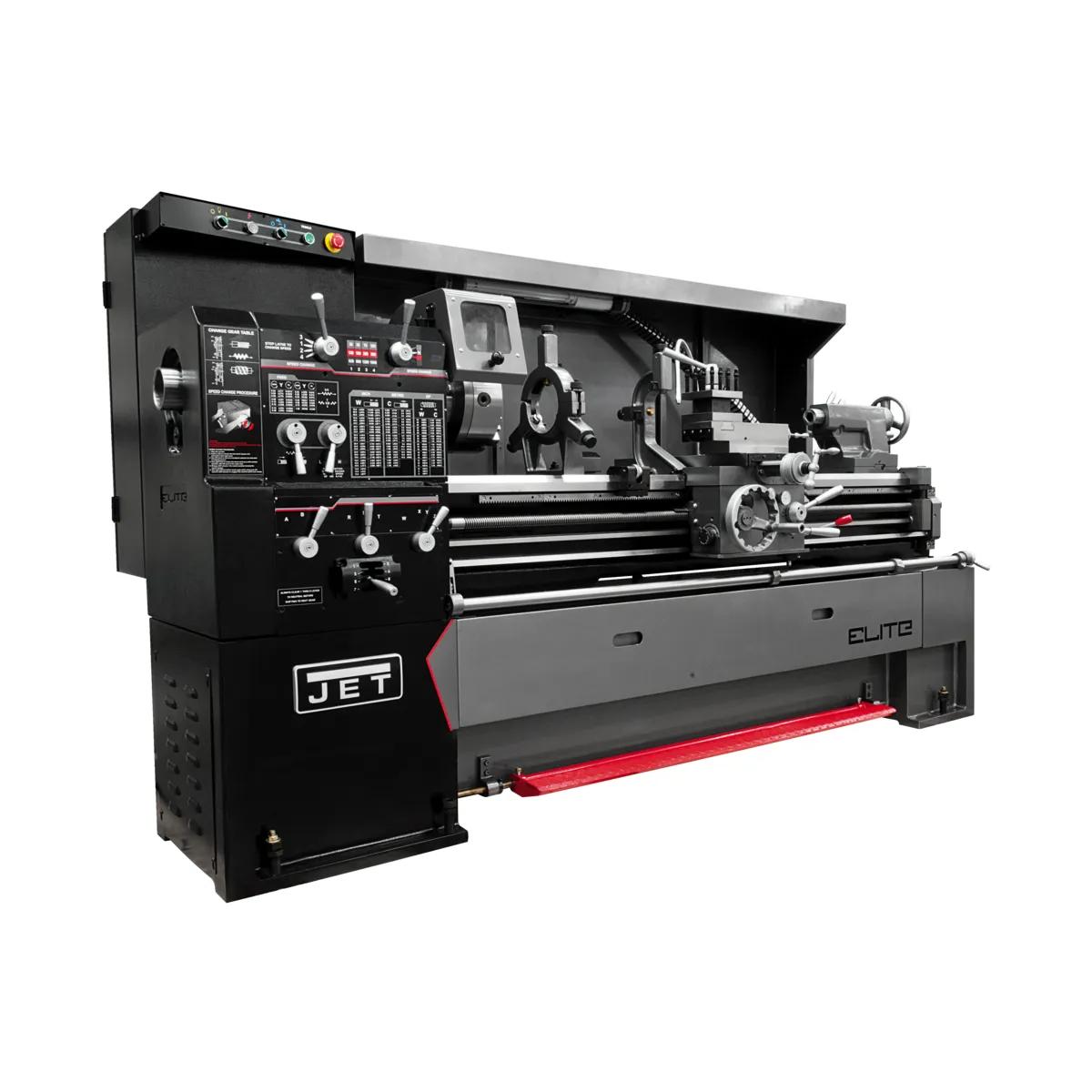

Bar work, shaft work, repair work — all covered. The EGH-1740 answers the work generated by production turning shops that demand consistency. Equipped with a 7.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by the JET 2-year warranty.
Features
- Production-spec 17-inch swing matches the chuck and tool-holding capacity for larger-diameter production parts.
- Heavy-duty 7.5 HP induction motor handles working speed under load — holding RPM under cutting load that would stall lighter motors.
- Factory-tested 40 in. bed length matches long-shaft work for spindle-end-to-tailstock-end work.
- Working-grade 3-1/8 in. spindle bore matches bar-feeding capacity for the bar-stock library production shops keep.
- Certified Meehanite support castings handle structural authority for the structural rigidity tolerance-grade work demands.
- Industrial-grade hardened carriage gears — holding feed rates without backlash compensation, engineered without backlash drift that costs you finish quality.
Specifications
- SKUJT9-892507
- Assembled Dimensions94.5 x 44 x 69 in.
- Collet CloserNo
- Digital ReadoutAcu-Rite 303
- Distance Between Centers40 in.
- Drive TypeGeared Head
- Length of Gap7-2/3 in.
- Maximum Tool Size1 x 1 in.
- Modular Pitch Threads Number18
- Number of Inch Threads45
- Number of Metric Threads39
- Number of Spindle Speeds12
- Old Material Number892507
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Range Of Cross Feeds0.00075 - 0.02 in./rev
- Range Of Inch Threads Tpi26330 TPI
- Range Of Longitudal Feeds in/rev0.0015 - 0.04 IPR
- Range Of Spindle Speeds36 - 1800 RPM
- Range of Metric Threads0.2 - 14 mm
- SAP Gross Weight4,409
- SAP Net weight3,748
- Spindle Bore3-1/8 in.
- Spindle MountD1-6
- Spindle TaperMT5
- Steady Rest Capacity3/8 - 6-3/4 in.
- Style TypeEngine
- Swing Over Bed17 in.
- Swing Through Gap24-1/4 in.
- Tailstock Spindle Travel5 in.
- Taper in Tailstock SpindleMT4
- UPC731325283051
- WarrantyThree Years
- Width Of Bed12 in.
- Motor HP7.5 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)23 A
